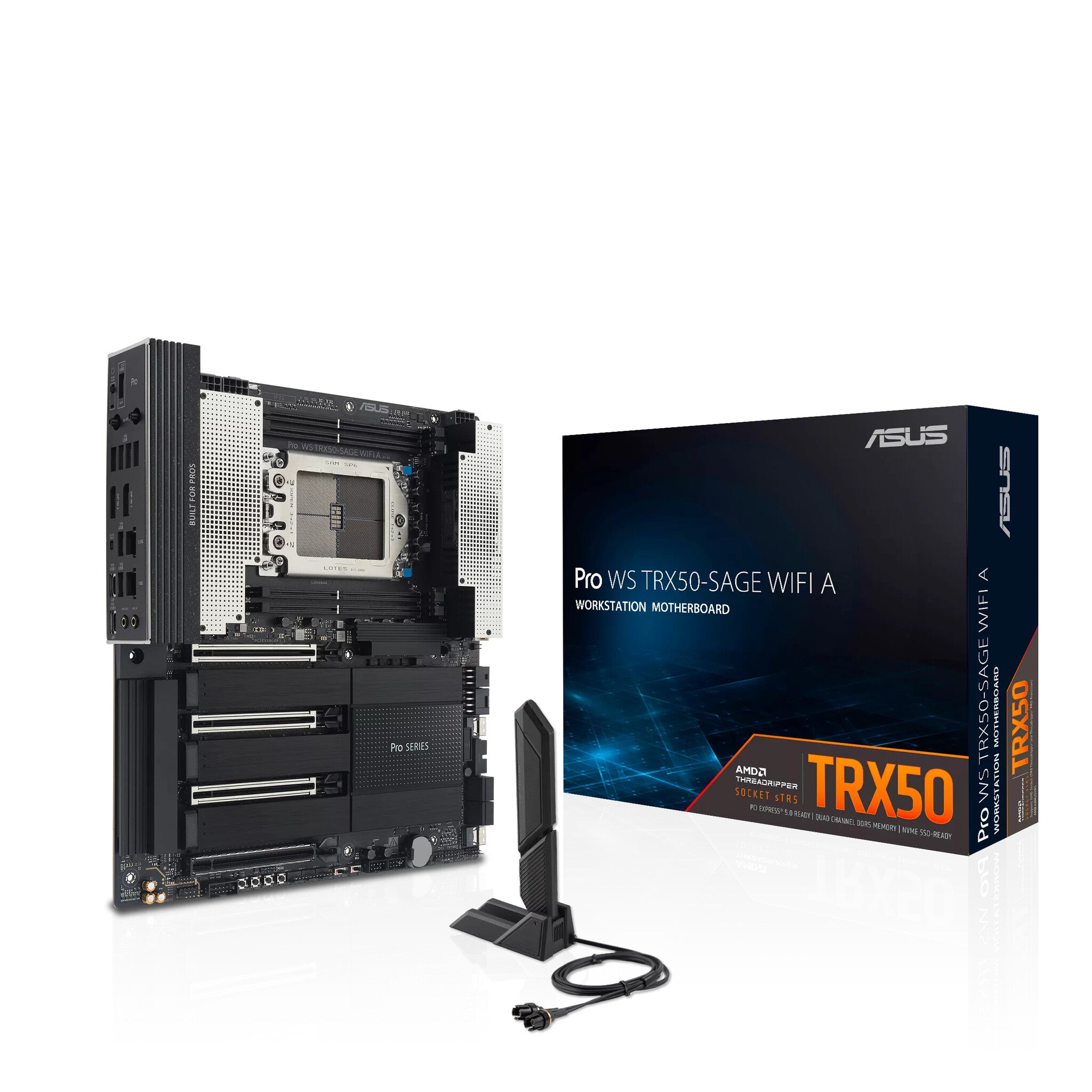

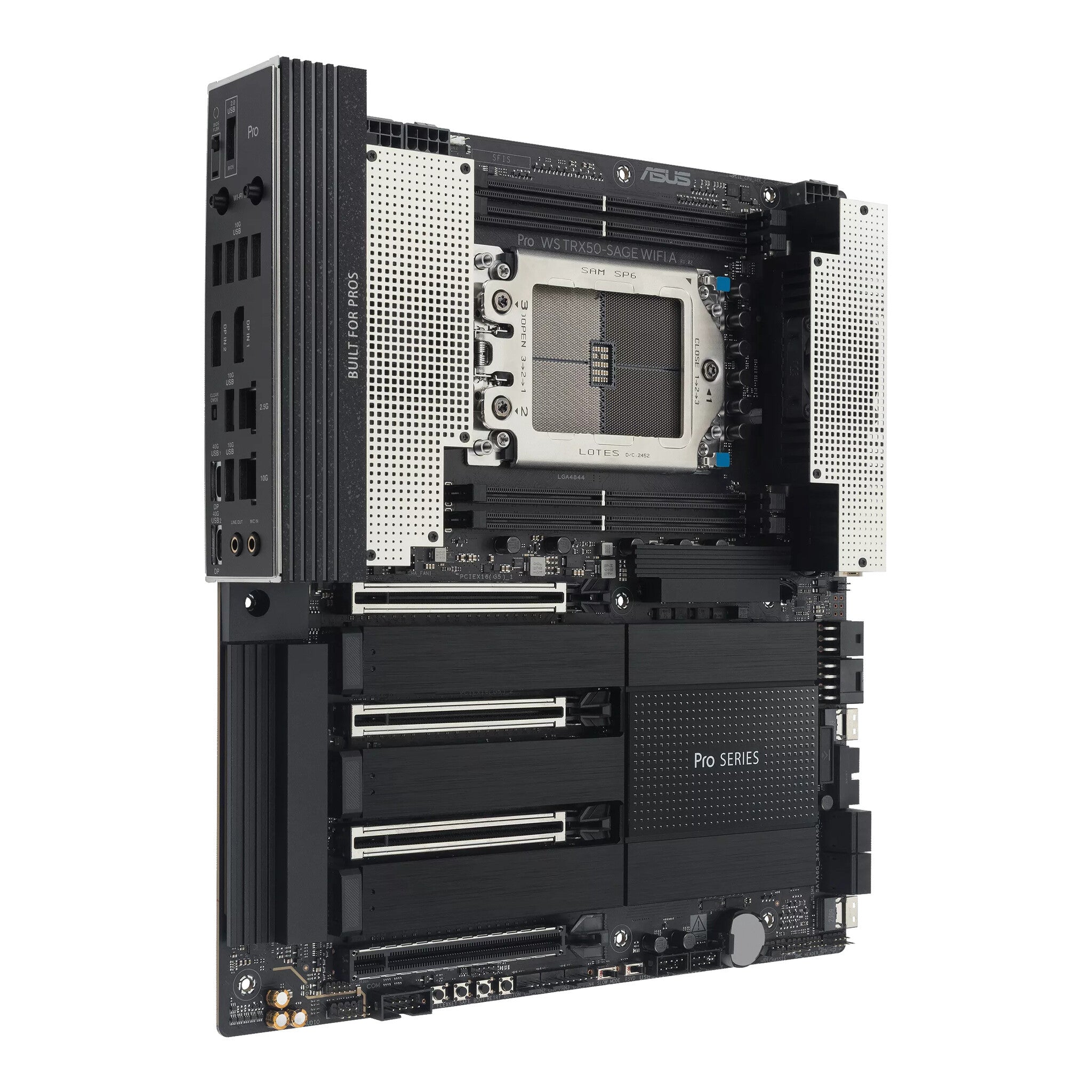

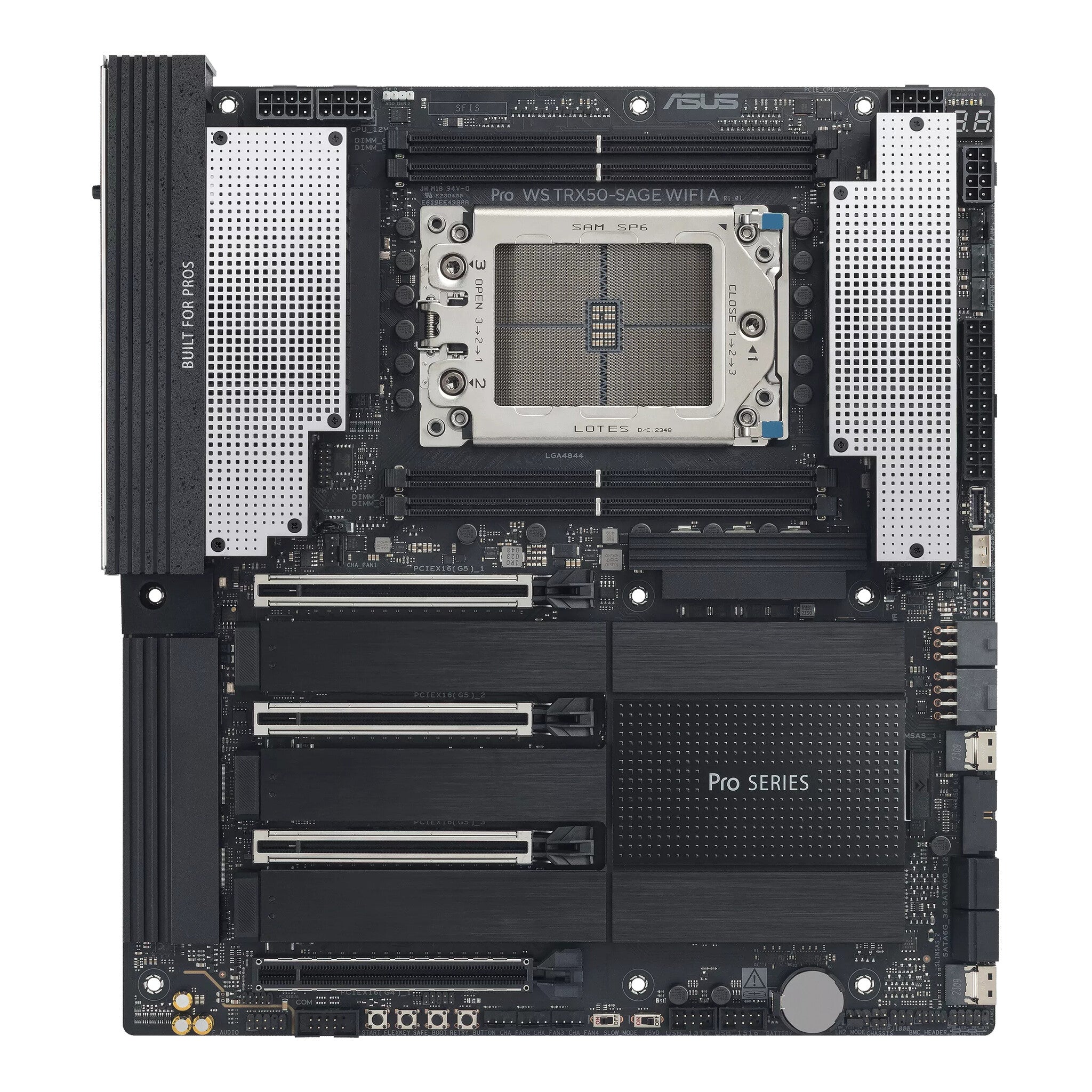

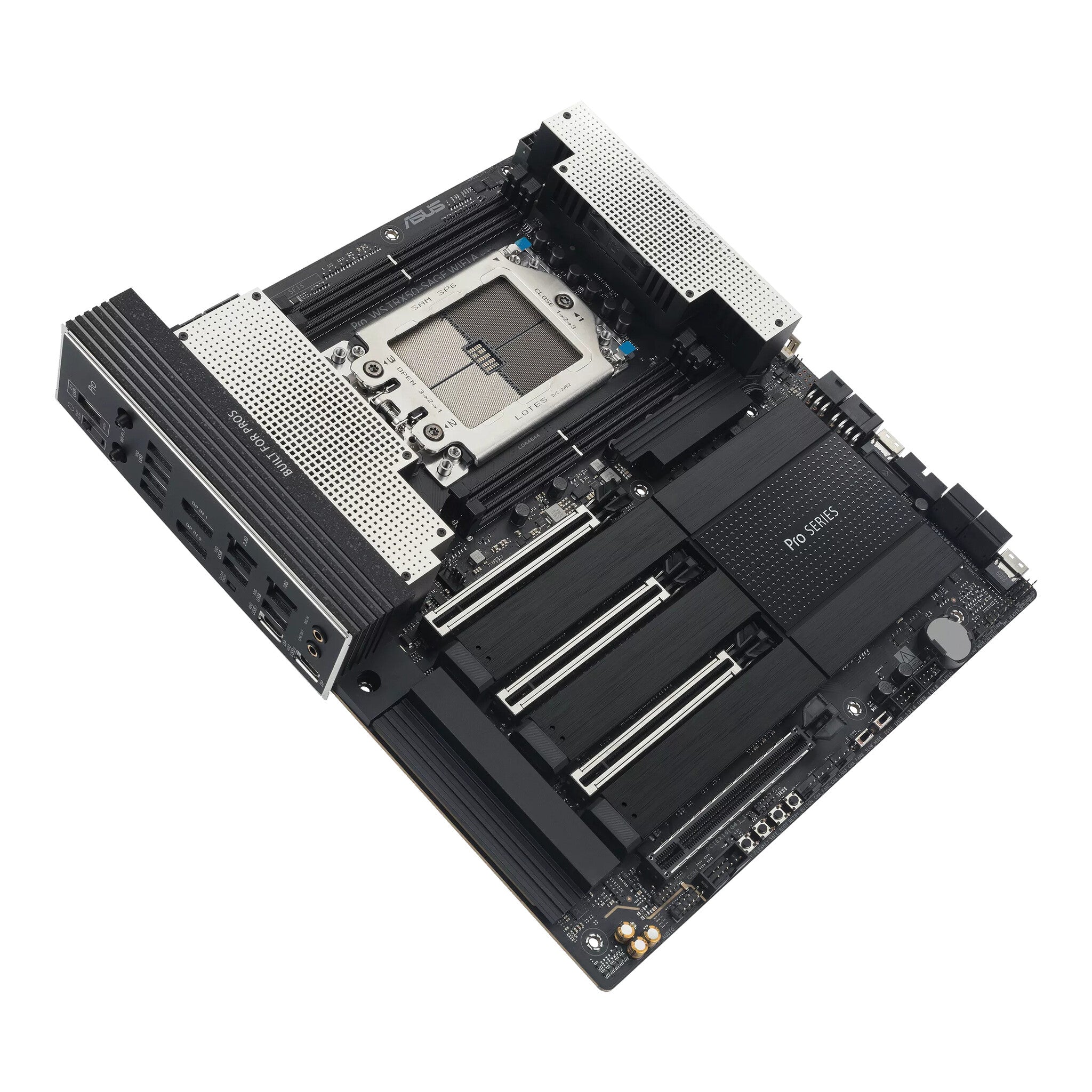

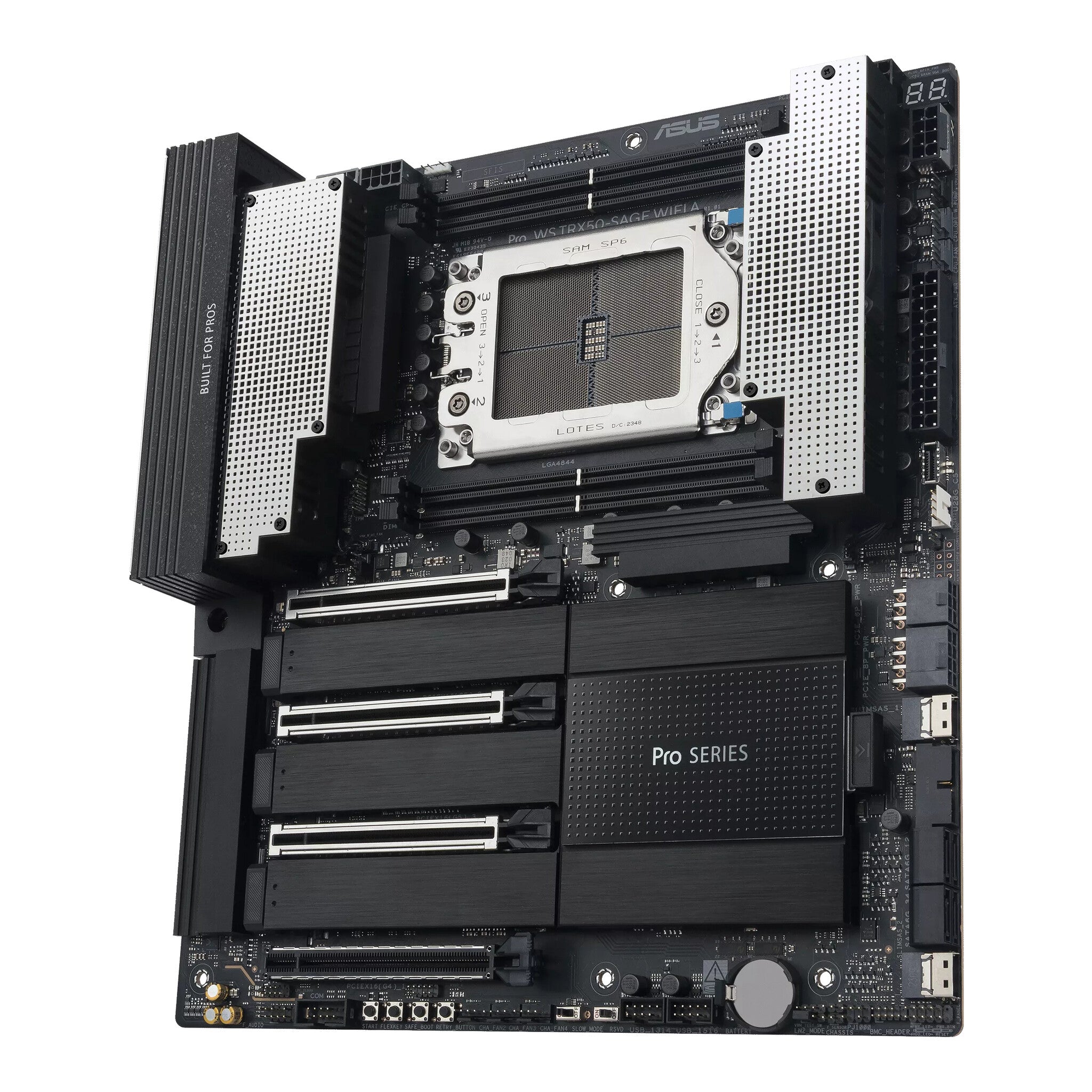

ASUS PRO WS TRX50-SAGE WIFI A AMD TRX50 Socket sTR5 CEB
A WORKSTATION WONDERLAND
The Pro WS TRX50-SAGE WIFI A motherboard offers elite speed, compatibility and stability tailored to content creation, software development, machine learning and AI era applications. Twenty power stages fuel AMD Ryzen™ Threadripper™ processors with up to 96 cores, while supporting up to 1 TB of R-DIMM DDR5 modules, delivering the performance potential that professionals need for cutting-edge applications.
With onboard PCIe® power connectors offering additional support for multiple graphics cards, active cooling on the VRM heatsinks, WiFi 7, USB4® (40 Gbps), SlimSAS and IMPI support, the Pro WS TRX50-SAGE WIFI A comes prepared for a wide array of scenarios and industries.
| Processor | |
|---|---|
| Supported processor sockets | Socket sTR5 |
| Compatible processor series | AMD Ryzen Threadripper 7000 Series, AMD Ryzen Threadripper PRO 7000 WX-Series |
| Processor socket | Socket sTR5 |
| Processor manufacturer | AMD |
| Memory | |
|---|---|
| Maximum internal memory | 1 TB |
| ECC сompatibility | ECC |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory types | DDR5-SDRAM |
| Storage controllers | |
|---|---|
| RAID levels | 0, 1, 5, 10 |
| RAID support | Yes |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 10 |
| Supported storage drive interfaces | M.2, SATA III, SlimSAS |
| Supported storage drive types | HDD & SSD |
| Graphics | |
|---|---|
| On-board graphics card | No |
| Parallel processing technology support | Not supported |
| Internal I/O | |
|---|---|
| RGB LED pin header | Yes |
| Number of COM connectors | 1 |
| TPM connector | Yes |
| 12V power connector | Yes |
| Number of temperature sensor headers | 1 |
| EPS power connector (8-pin) | Yes |
| Chassis intrusion connector | Yes |
| Number of chassis fan connectors | 4 |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Front panel connector | Yes |
| Front panel audio connector | Yes |
| Number of SATA III connectors | 4 |
| USB 3.2 Gen 2x2 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 2.0 connectors | 2 |

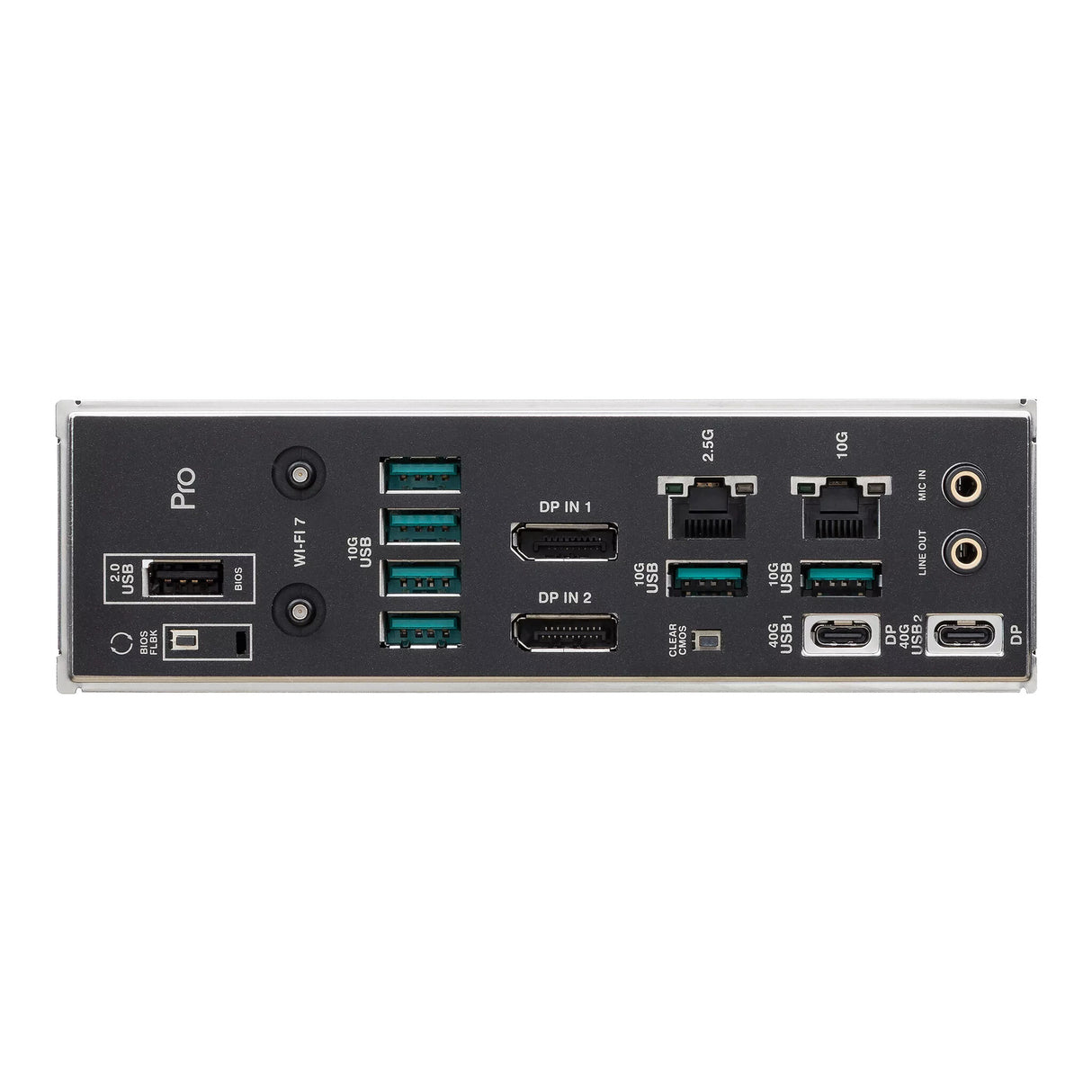

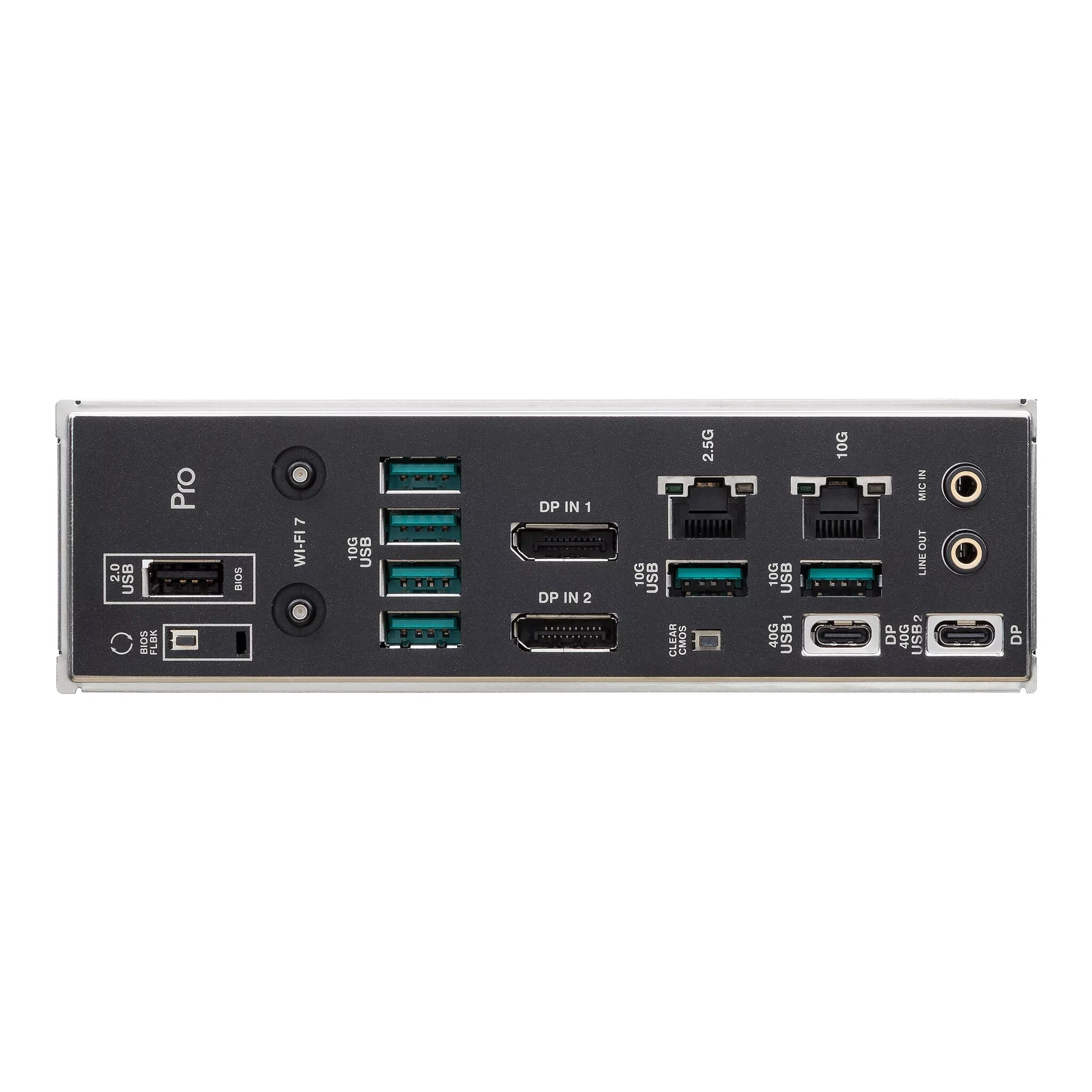

| Rear panel I/O ports | |
|---|---|
| WiFi-AP antenna jack | 1 |
| DisplayPorts quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| USB4 Gen 3x2 ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 6 |
| USB 2.0 ports quantity | 1 |
| Network | |
|---|---|
| Bluetooth version | 5.4 |
| Bluetooth | Yes |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi | Yes |
| LAN controller | Intel I226-LM |
| Ethernet interface type | 2.5 Gigabit Ethernet, 10 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Features | |
|---|---|
| Windows operating systems supported | Windows 11 |
| Product colour | Aluminium, Black |
| Audio output channels | 5.1 channels |
| Audio chip | Realtek ALC1220P |
| Motherboard chipset | AMD TRX50 |
| Motherboard chipset family | AMD |
| Motherboard form factor | CEB |
| Component for | Workstation |
| Expansion slots | |
|---|---|
| 4th M.2 highest PCI Express generation | 5.0 |
| 4th M.2 largest key size | 2280 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| 3rd M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 2580 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 1st M.2 largest key size | 2280 |
| Number of M.2 (M) slots | 4 |
| PCI Express x16 (Gen 5.x) slots | 3 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| BIOS | |
|---|---|
| BIOS memory size | 256 Mbit |
| BIOS type | UEFI AMI |
| Packaging data | |
|---|---|
| Package weight | 4.85 kg |
| Package height | 100 mm |
| Package depth | 380 mm |
| Package width | 320 mm |
| Weight & dimensions | |
|---|---|
| Depth | 280 mm |
| Width | 305 mm |
| Packaging content | |
|---|---|
| Cables included | DisplayPort, SATA |
| Antenna included | Yes |
-
