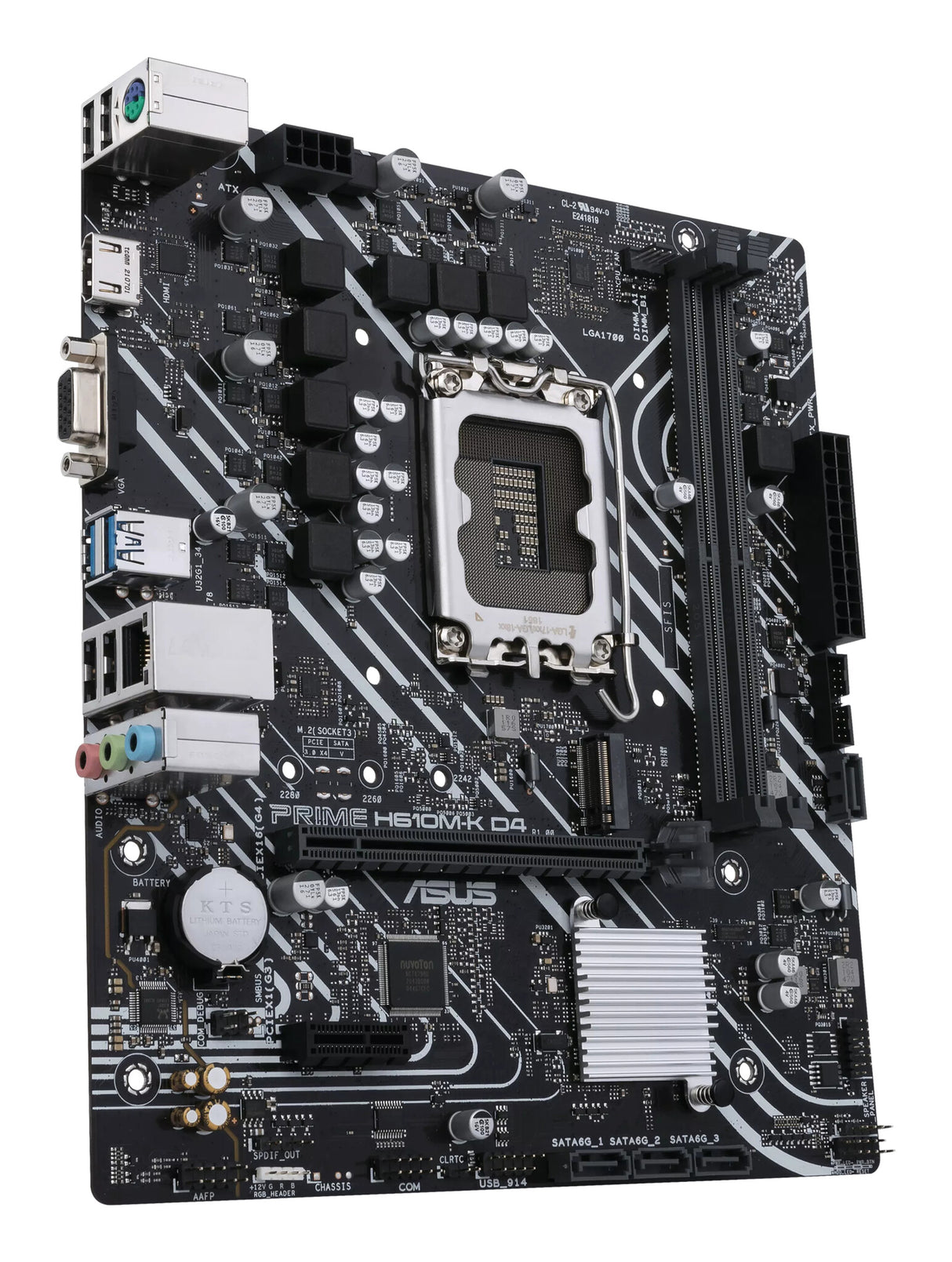

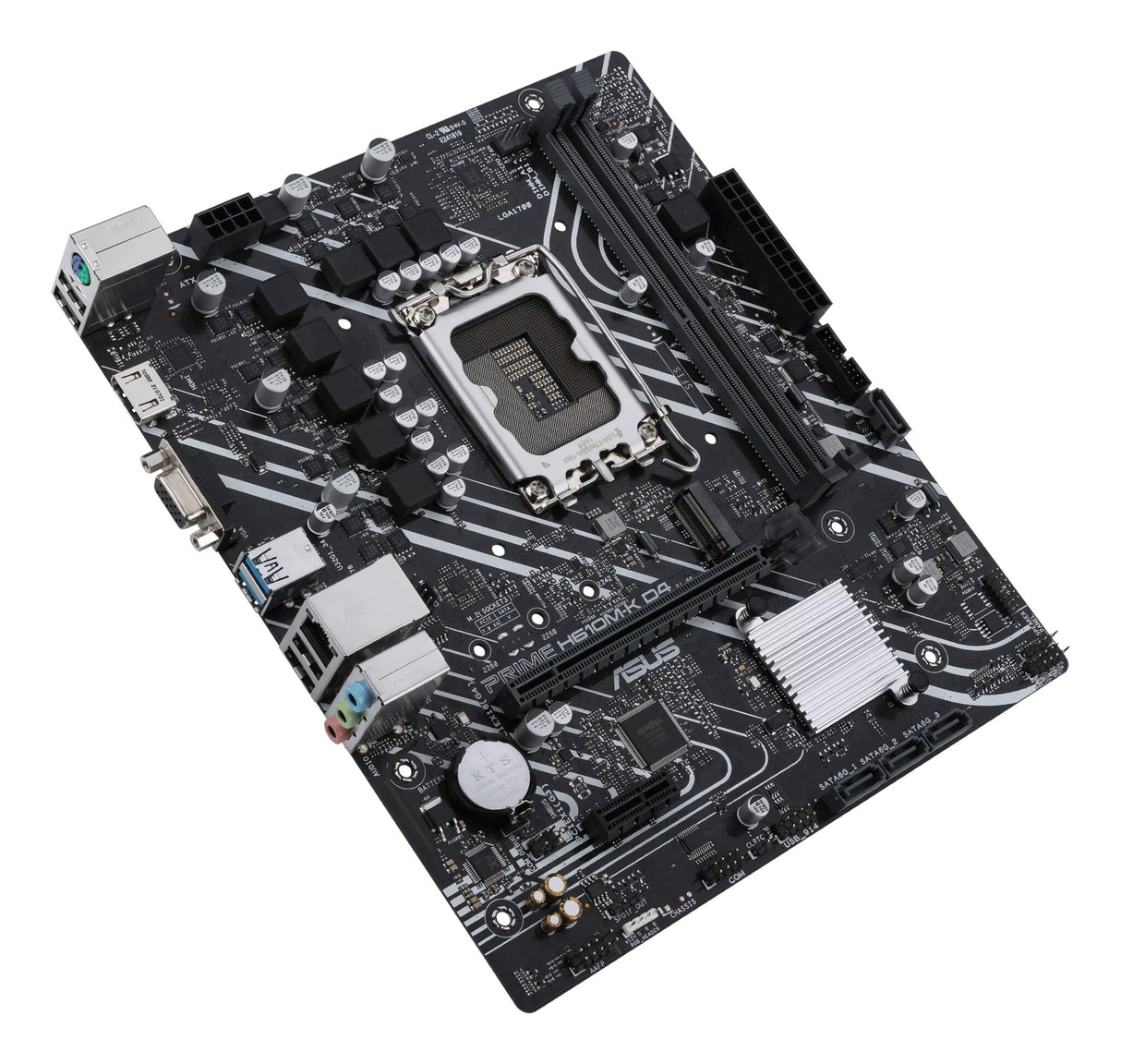

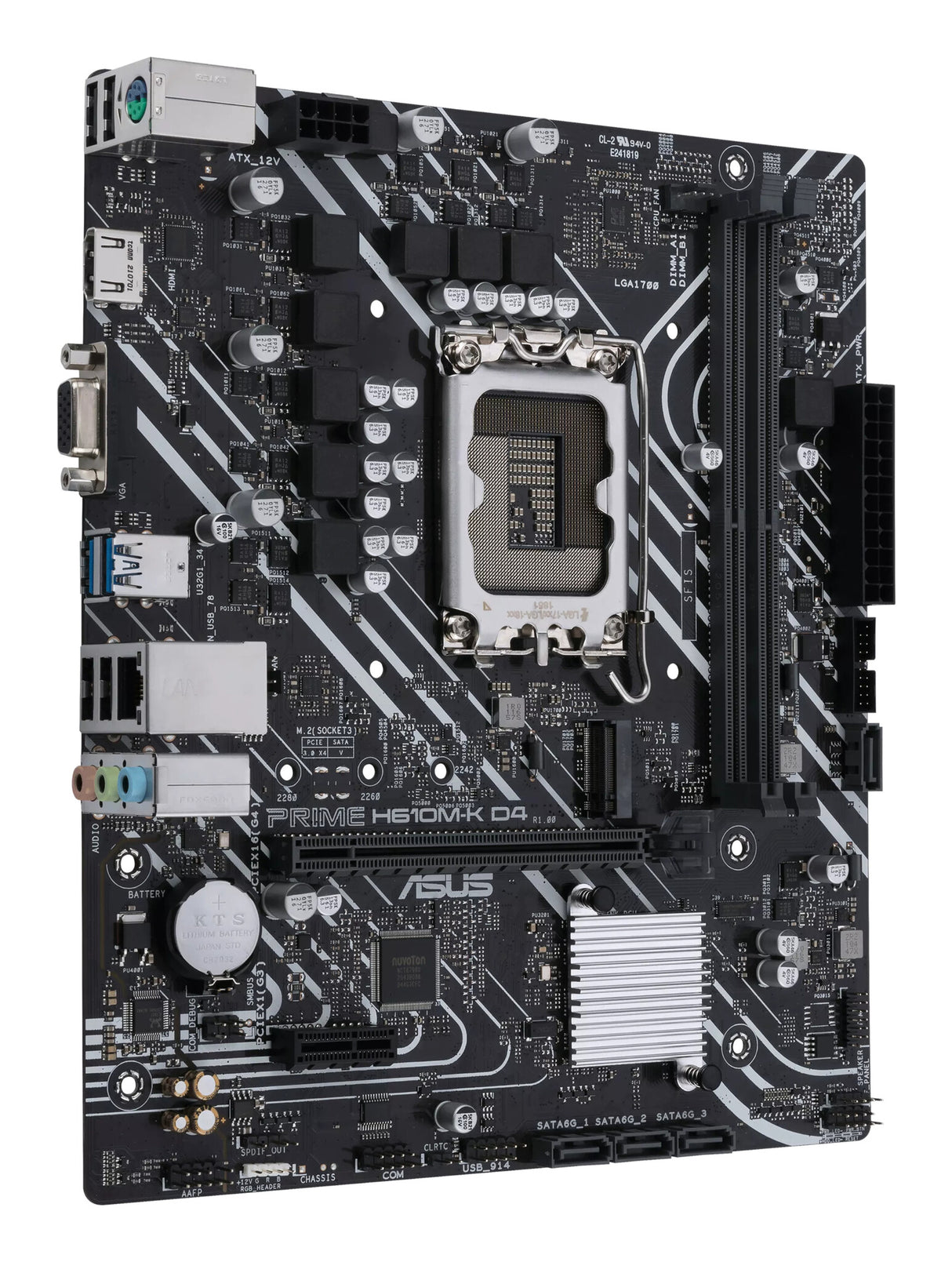

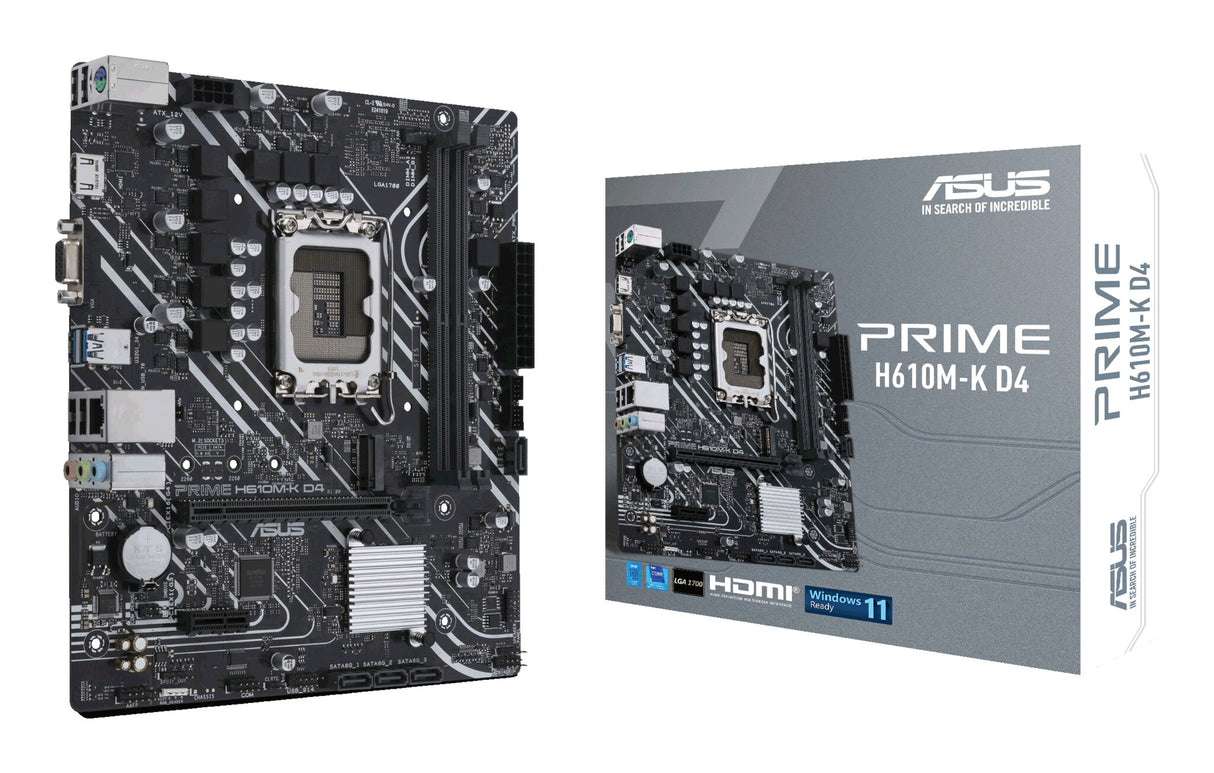

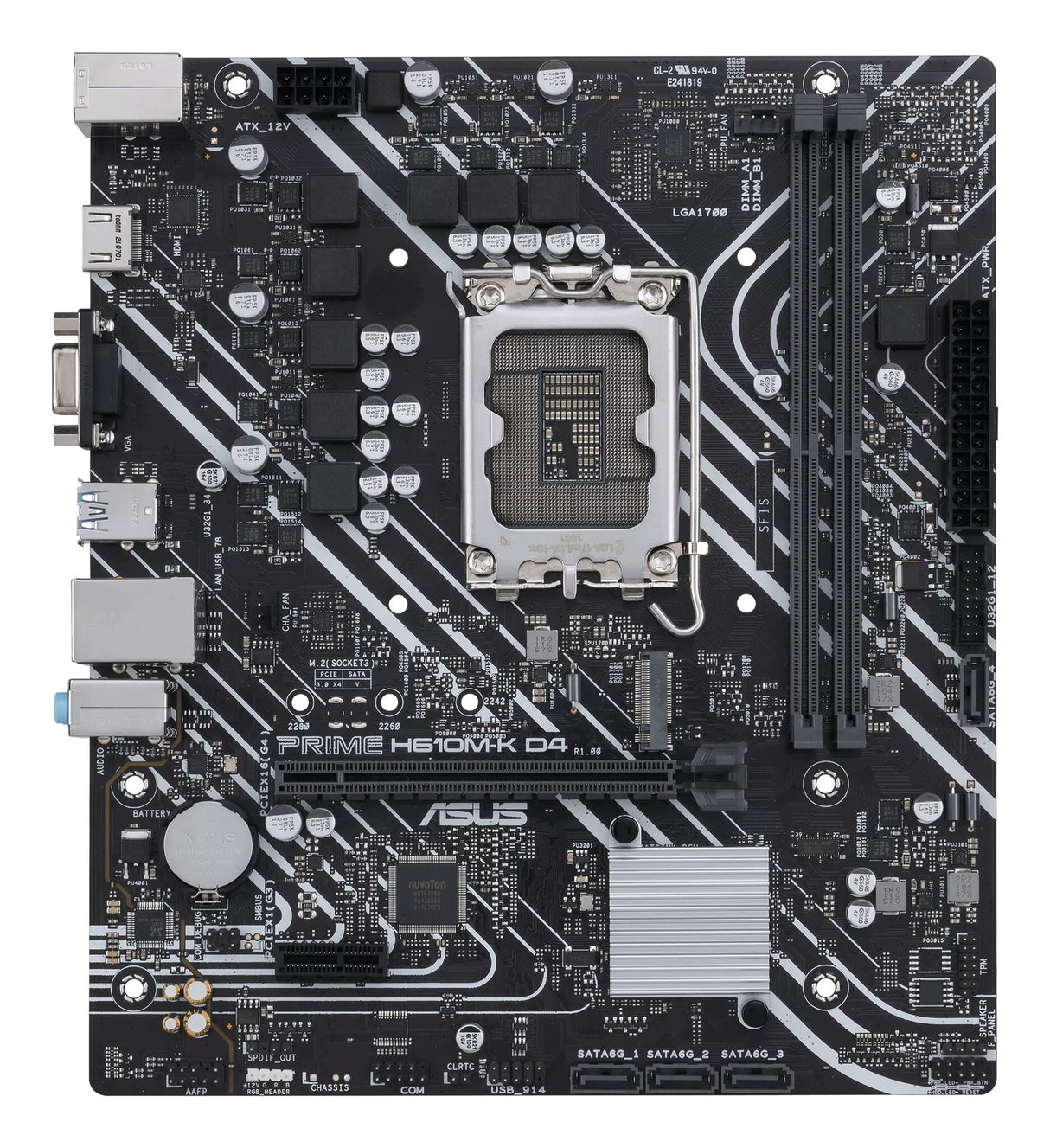

Intel® H610 (LGA 1700) mic-ATX motherboard with DDR4, PCIe 4.0, M.2 slot, Realtek 1 Gb Ethernet, HDMI®, D-Sub, USB 3.2 Gen 1 ports, SATA 6 Gbps, COM header, RGB header
- Intel® LGA 1700 socket: Ready for 12th Gen Intel® processors
- Comprehensive cooling: PCH heatsink and Fan Xpert
- Ultrafast connectivity: 32Gbps M.2 slot, Realtek 1 Gb Ethernet and USB 3.2 Gen 1 support
- 5X Protection III: Multiple hardware safeguards for all-round protection
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 12th Generation Intel processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime H610 provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features.
Flexibility
Comprehensive controls form the foundation of the ASUS Prime series. The Prime H610 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
UEFI BIOS
The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.
Cooling
Prime H610 series are engineered with an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.
Performance
Prime H610 series are built to handle the additional cores and increased bandwidth of 12th Generation Intel processors. ASUS H610 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.
Customisation
Prime H610 series add the nuanced details that improve every experience, exclusive codecs that provide pristine audio quality let you customize your system to create a uniquely personal look.
For more information please click
here.
Description
Specification
-
Motherboard Type: Desktop
-
Form Factor: Micro ATX
-
Socket: Intel 1700
-
Chipset: Intel H610
-
#Hide#DDR Type: DDR4
-
CPU Support: Click here for CPU support
-
RAM Technology: DDR4 (Dual Channel)
-
RAM Slots: 2 x DIMM
-
RAM Speeds: 3200/3000/2933/2800/2666/2400/2133 MHz
-
Maximum Memory: 64GB
-
Graphics: Integrated Graphics*
*Graphics specifications may vary between CPU types
-
Graphics Ports: 1 x VGA
1 x HDMI
-
PCI/PCI Express: 1 x PCIe 4.0 x16
1 x PCIe 3.0 x1
-
Storage: 4 x SATA III
1 x M.2 (2242/2260/2280) - SATA & PCIe
-
Wireless: -
-
LAN: GB LAN
-
Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
-
USB Ports Supported: "4 x USB 3.2 Gen1 Type-A (2 at back, 2 at mid-board)
6 x USB 2.0 (4 at back, 2 at mid-board)"
-

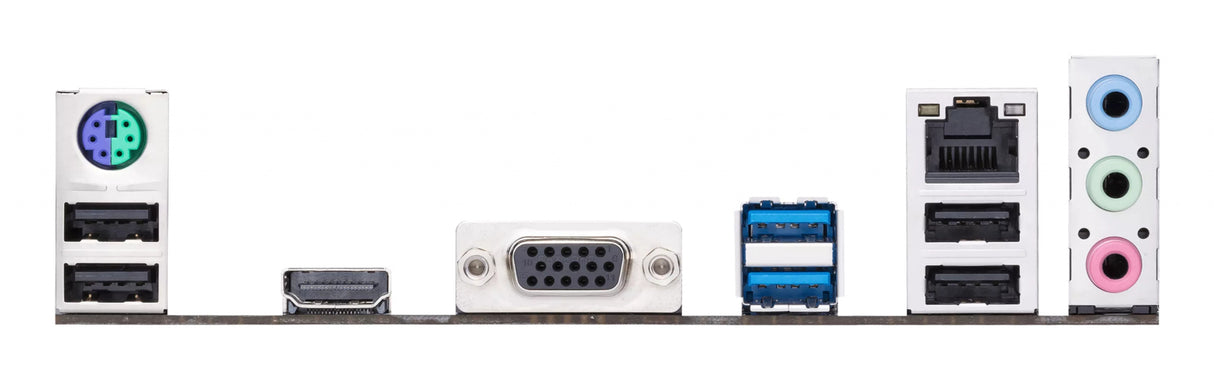

Back Panel I/O Ports: 2 x USB 3.2 Gen1 Type-A
4 x USB 2.0
1 x D-Sub
1 x HDMI
1 x Realtek 1Gb Ethernet
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo
-
Internal I/O Connectors: 1 x 4-pin CPU Fan
1 x 4-pin Chassis Fan
1 x 24-pin Main
1 x 8-pin +12V
1 x M.2 (Key M)
4 x SATA 6Gb/s ports
1 x USB 3.2 Gen1
1 x USB 2.0
1 x RGB
1 x Clear CMOS
1 x COM Port
1 x Front Panel Audio
-
.: 1 x S/PDIF Out
1 x Speaker
1 x SPI TPM (14-1pin)
1 x 10-1 pin System Panel
-

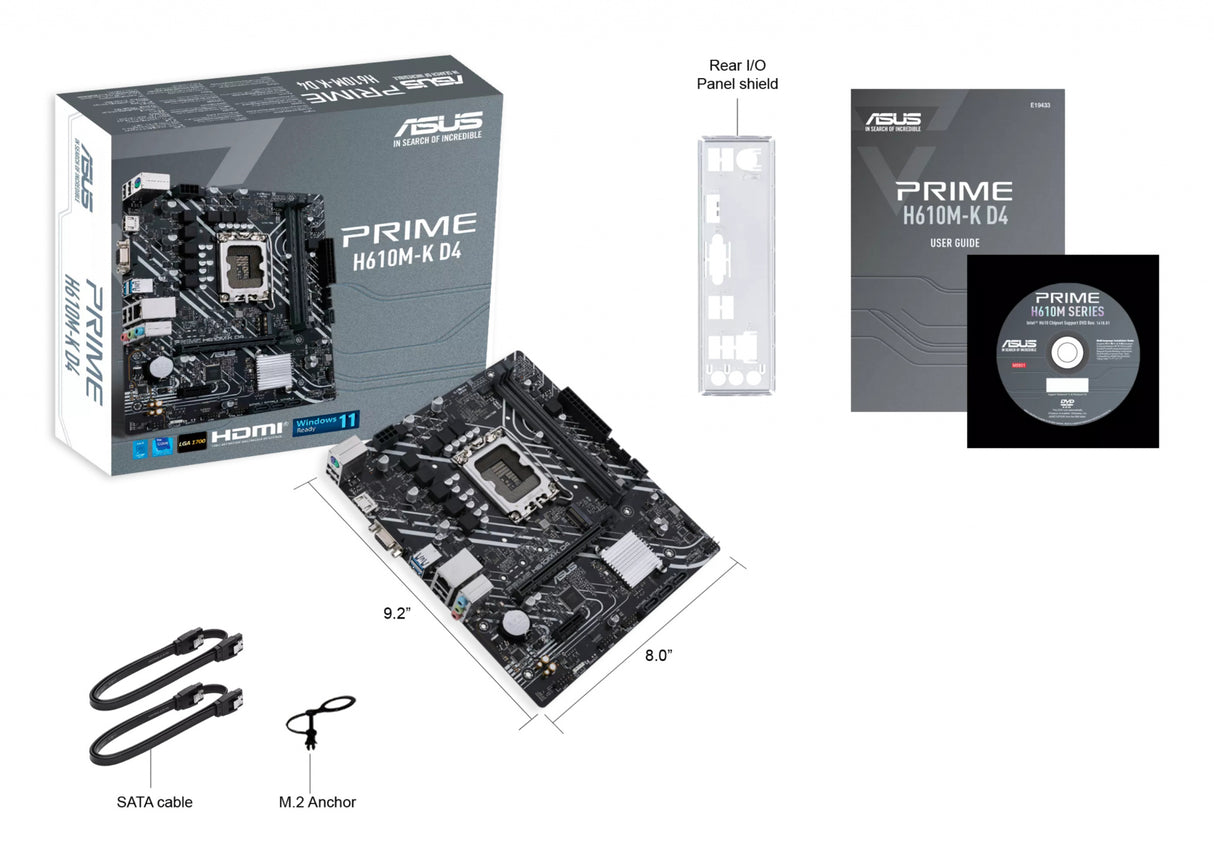

Accessories: 2 x SATA 6Gb/s cables

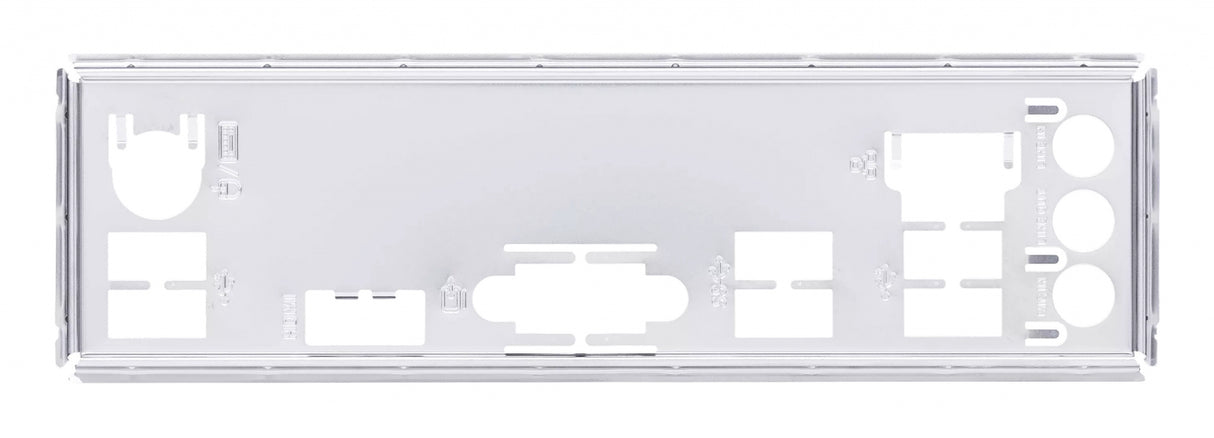

1 x I/O Shield
1 x M.2 ANCHOR
1 x Support DVD
1 x User guide
-
Additional Features: See Overview
-
Package Type: Retail
-
Package Weight: 0.8540 kg
-
Warranty: 3 Years
-
#Hide#M.2 Slot(s): Yes (M.2)
-
#Hide#No. LAN Ports: 1 x LAN
-
#Hide#Max LAN Speed: GB LAN
