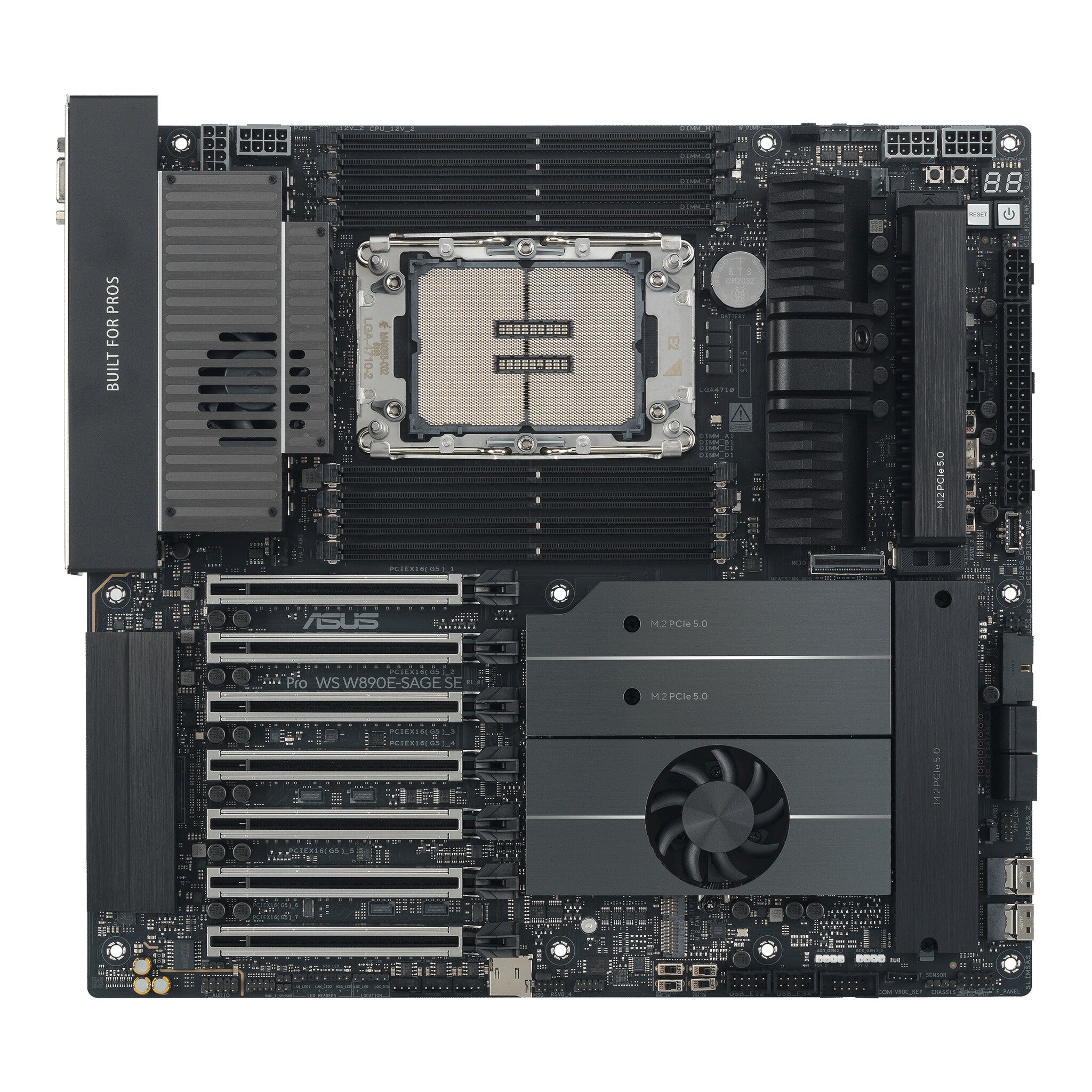

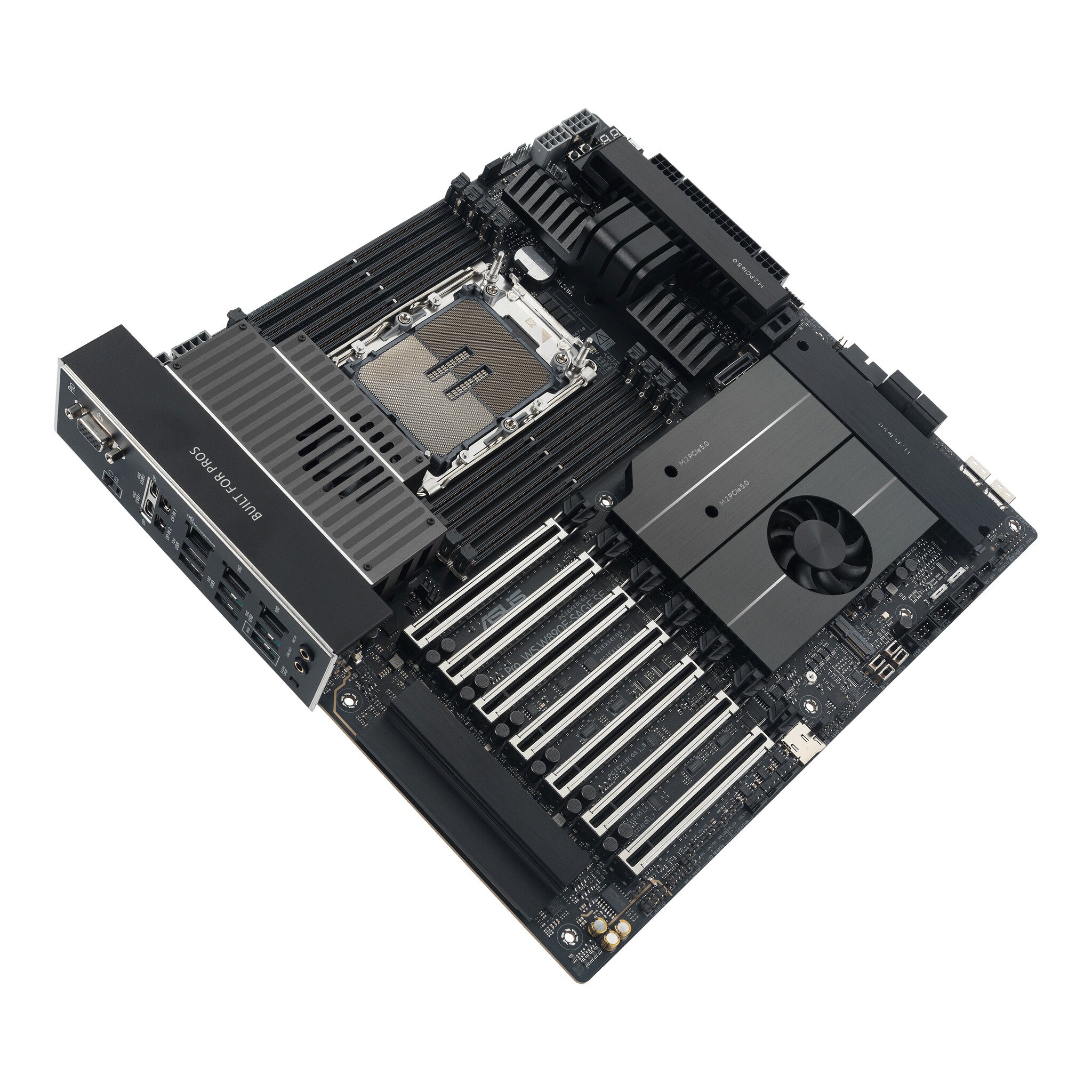

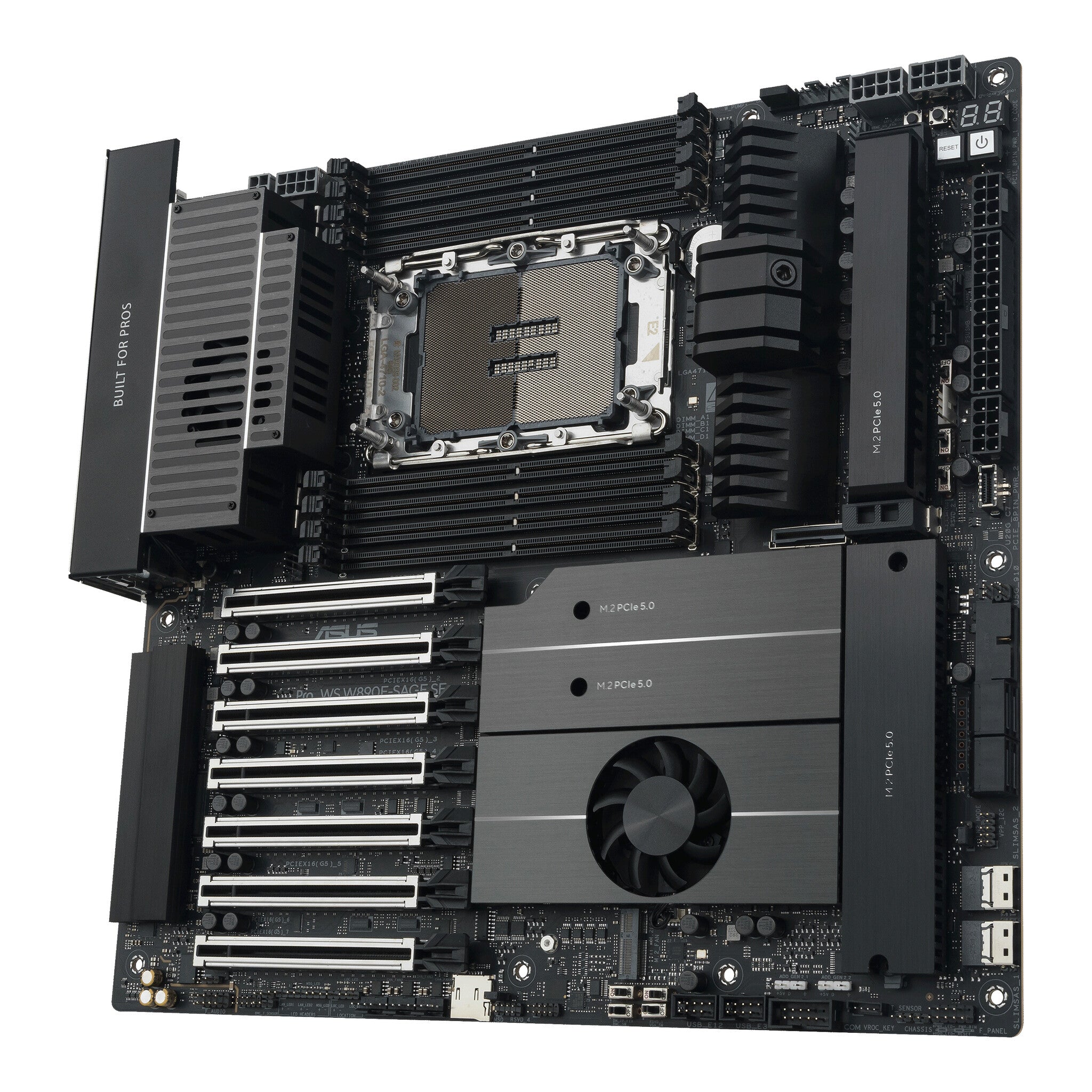

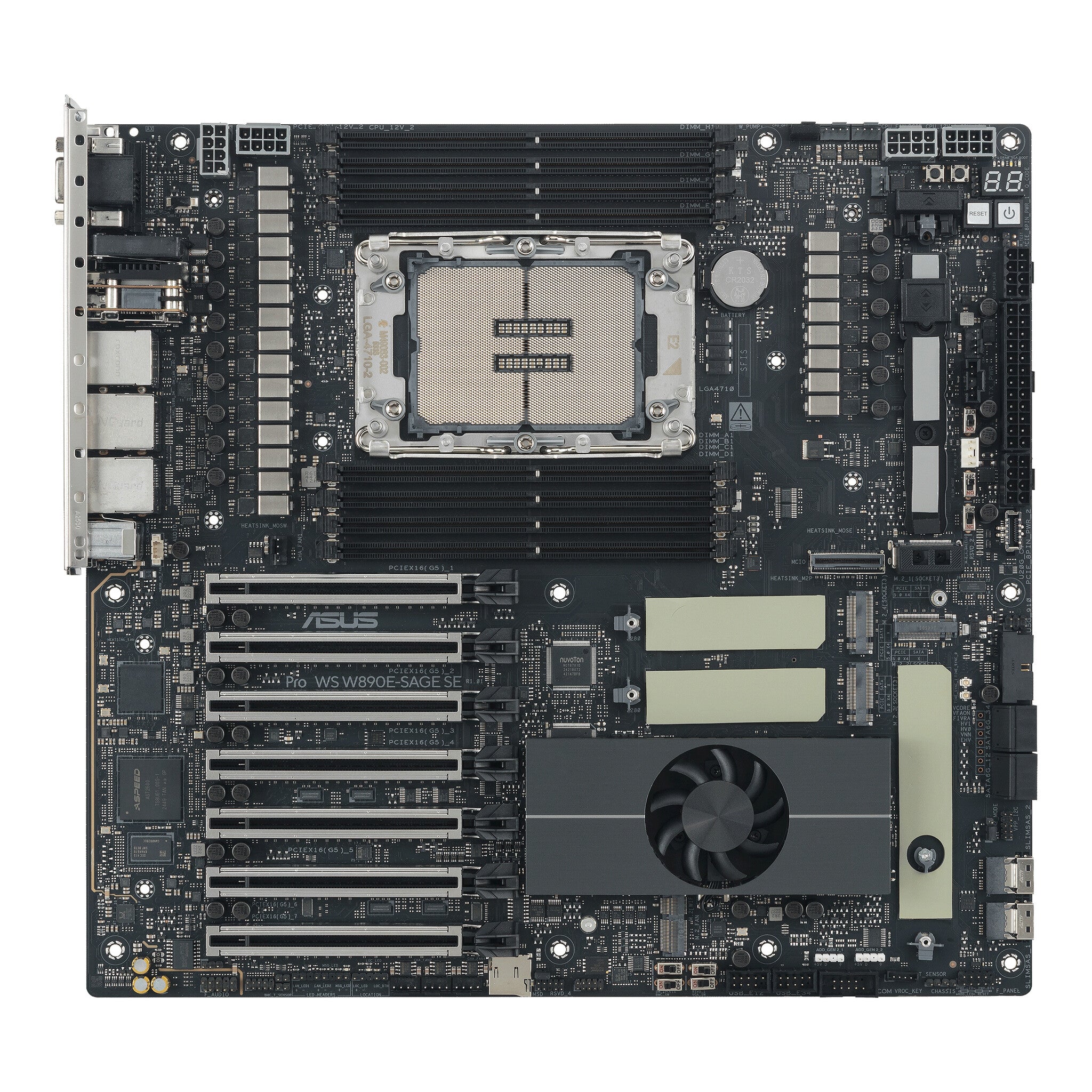

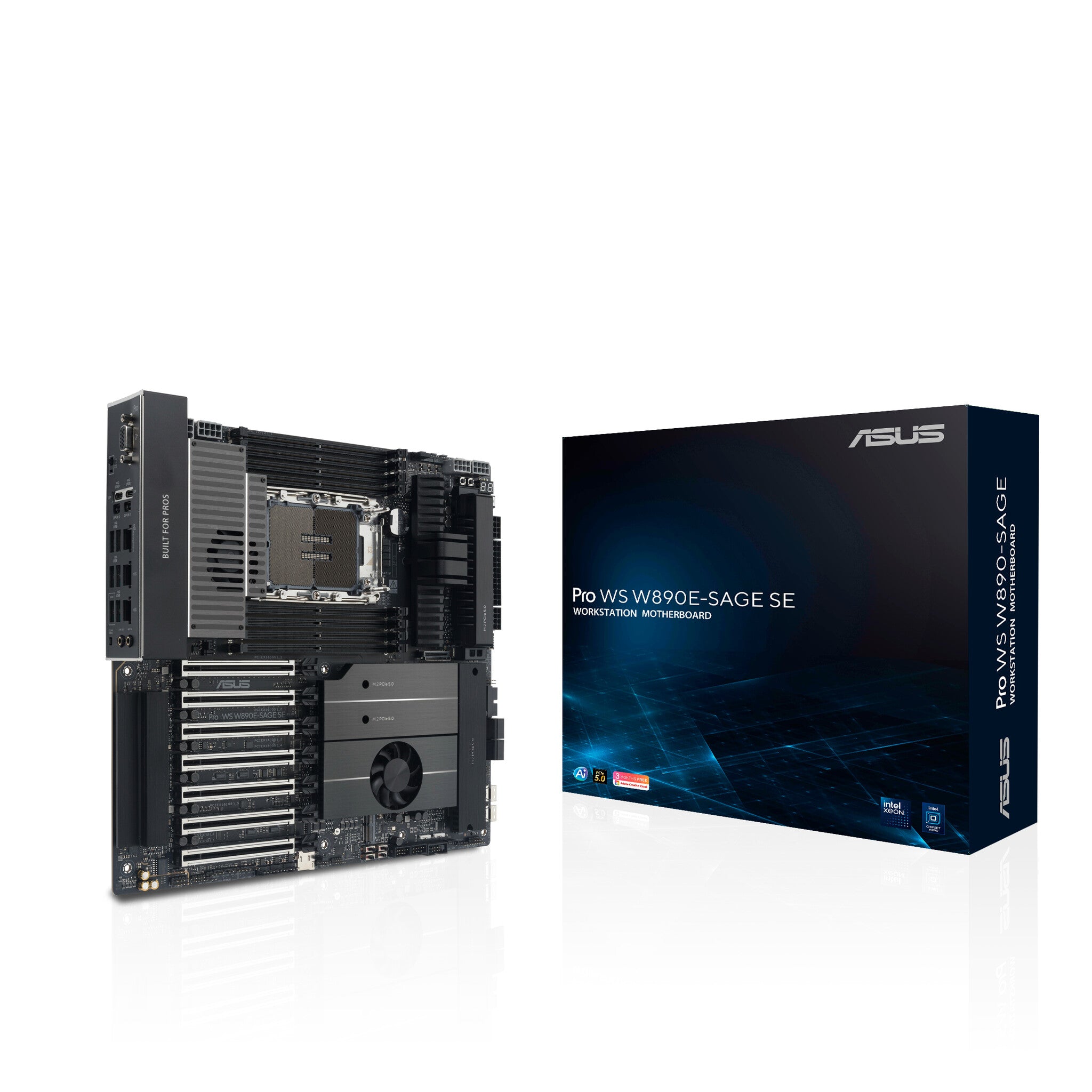

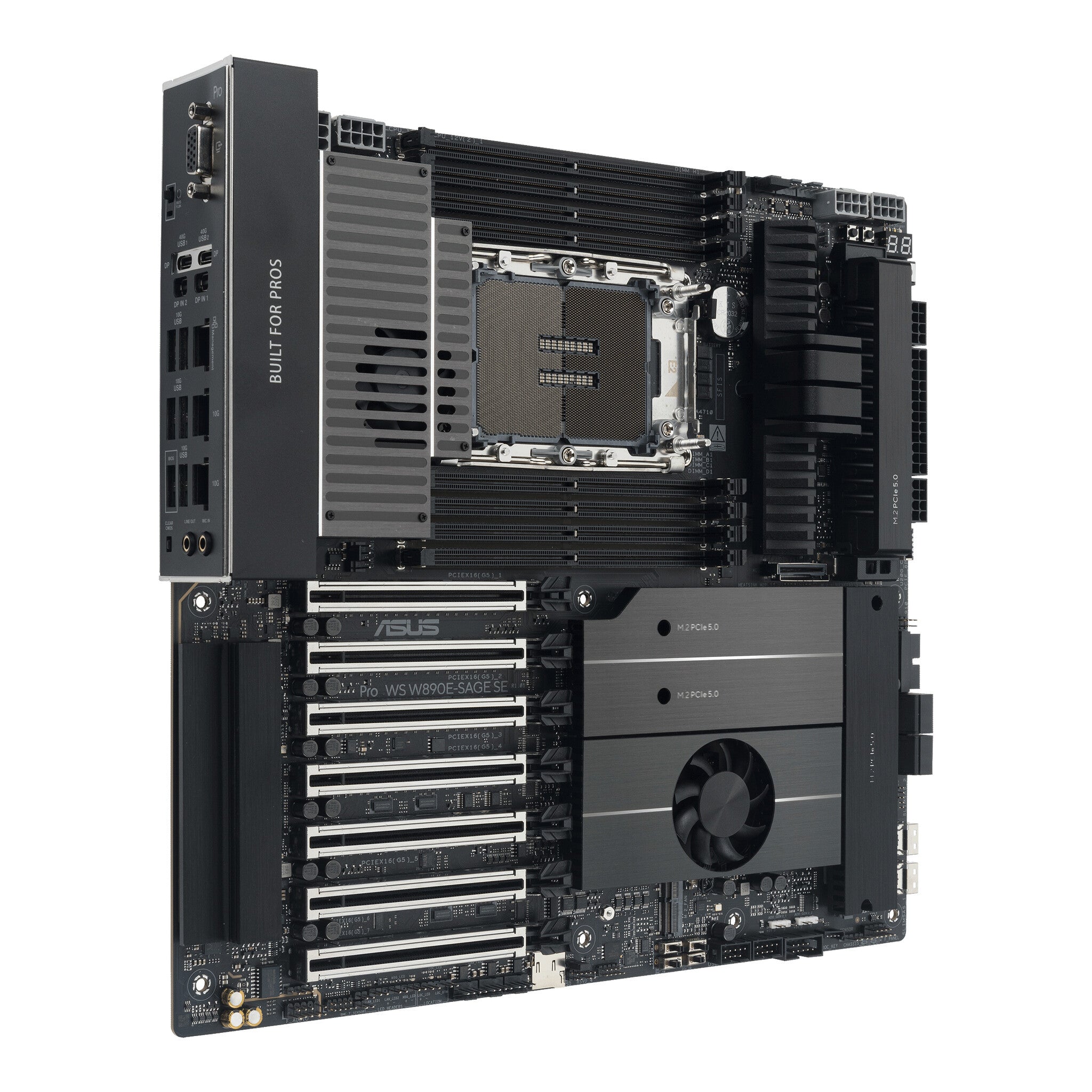

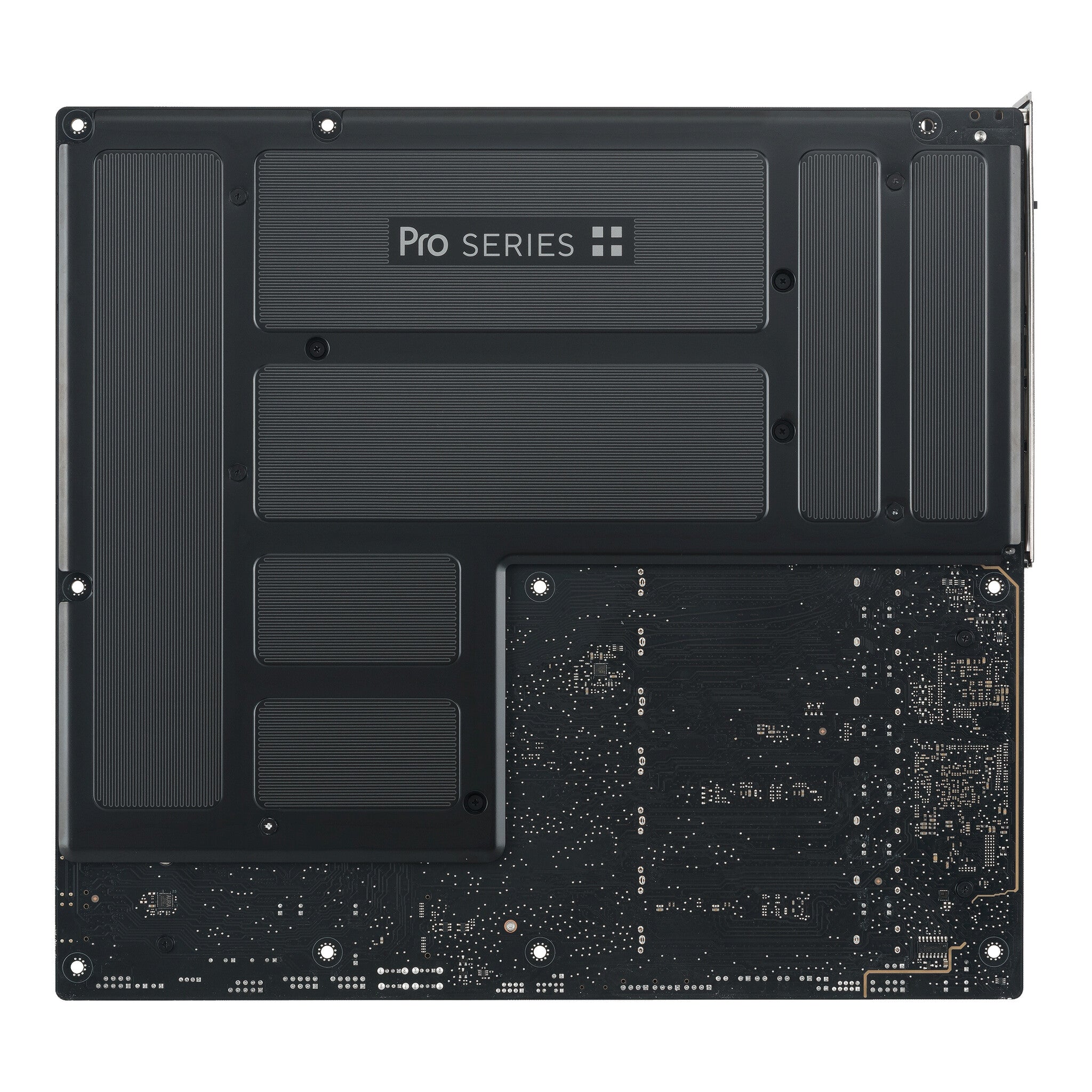

ASUS Pro WS W890E-SAGE SE Intel W890 LGA 4710-2 EEB
The Pro WS W890E-SAGE SE workstation motherboard is deftly tailored for creative professionals, developers and engineers, unleashing the dominate performance of the latest Intel Xeon processors, with CPU and memory overclocking capability. Featuring an optimized memory trace layout, advanced power stage design, server-grade IPMI remote management, and ultrafast PCIe 5.0 and networking connectivity, Pro WS W890E-SAGE SE melds no-compromise engineering with incredible aesthetics, and comes prepared for a wide array of scenarios and industries.
Pro WS W890E-SAGE SE motherboard goes above and beyond the ordinary with a painstakingly cultivated collection of hardware validations to help ensure that your workstation build supports a wide variety of memory, cooler, chassis, PSU and other devices.
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 4710-2 |
| Compatible processor series | Intel® Xeon® |
| Supported processor sockets | LGA 4710-2 |
| Memory | |
|---|---|
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 8 |
| Memory slots type | DIMM |
| Memory channels | Octa-channel |
| ECC сompatibility | ECC |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III, SlimSAS |
| Number of storage drives supported | 10 |
| Number of HDDs supported | 4 |
| RAID support | Yes |
| RAID levels | 0, 5, 1, 10 |
| Graphics | |
|---|---|
| Parallel processing technology support | Not supported |
| Maximum resolution | 7680 x 4320 pixels |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2x2 connectors | 1 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of CPU fan connectors | 1 |
| Number of chassis fan connectors | 5 |
| Chassis intrusion connector | Yes |
| EPS power connector (8-pin) | Yes |
| Number of EPS power connectors (8-pin) | 5 |
| Number of temperature sensor headers | 1 |
| Number of water pump connectors | 1 |
| Integrated SAS ports | 2 |
| Number of COM connectors | 1 |
| 12V power connector | Yes |
| RGB LED pin header | Yes |
| Number of RGB LED pin headers | 2 |

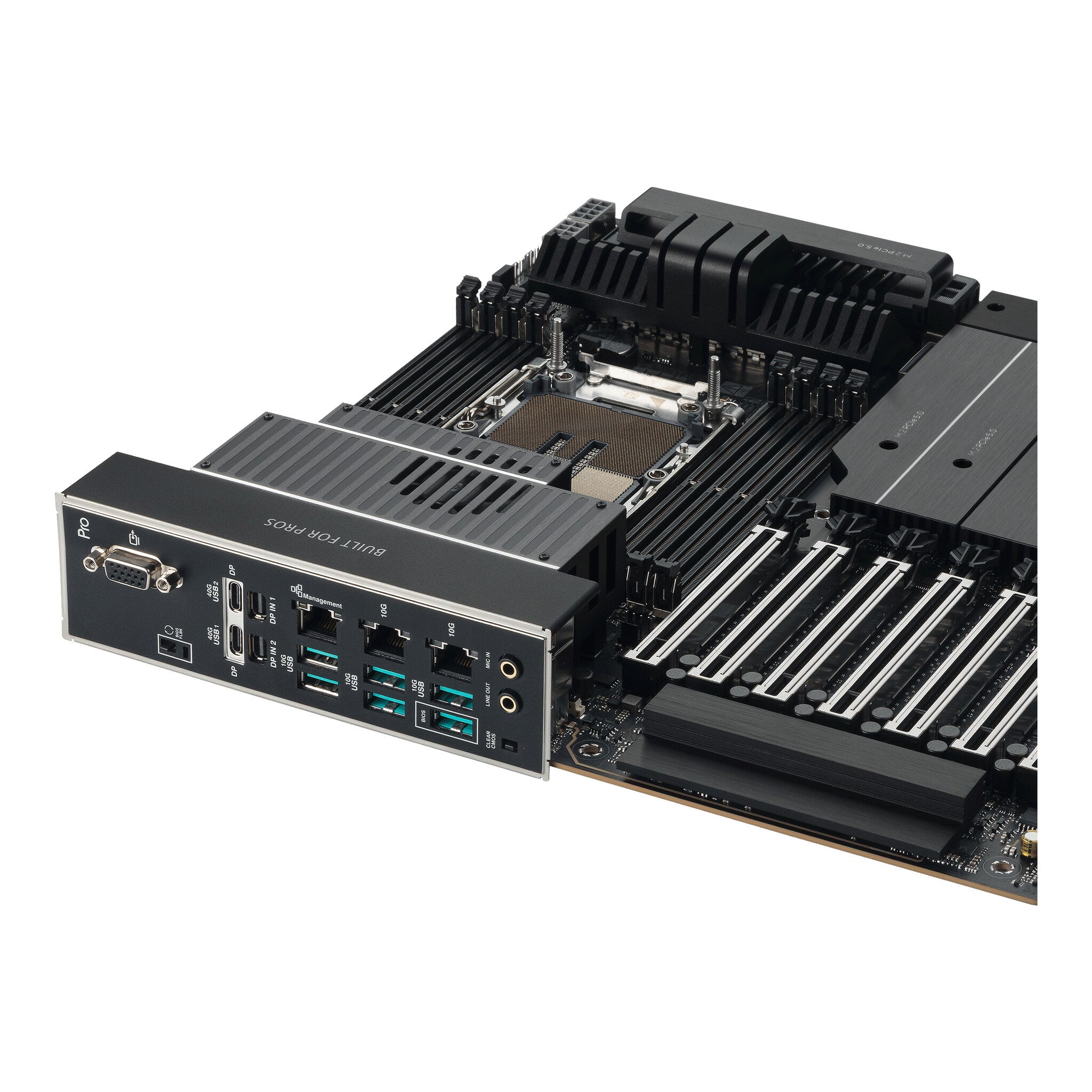

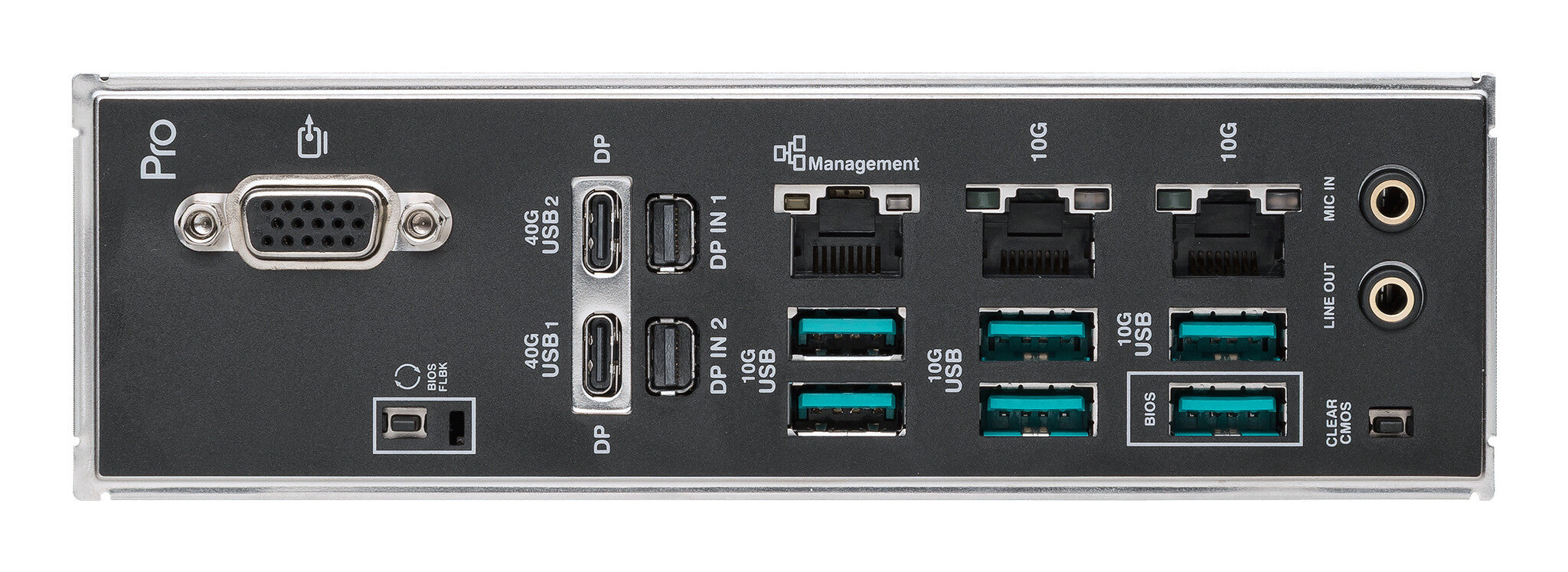

| Rear panel I/O ports | |
|---|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 6 |
| USB4 Gen 3x2 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 3 |
| IPMI LAN (RJ-45) port | Yes |
| VGA (D-Sub) ports quantity | 1 |
| DisplayPort version | 1.4 |
| Line-in | Yes |
| Headphone outputs | 1 |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet, Gigabit Ethernet |
| Wi-Fi | No |
| Features | |
|---|---|
| Component for | Workstation |
| Motherboard form factor | EEB |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel W890 |
| Audio chip | Realtek ALC1220P |
| Audio output channels | 7.1 channels |
| Product colour | Black |
| Cooling type | Passive |
| Power source type | ATX |
| Windows operating systems supported | Windows 11 |
| Expansion slots | |
|---|---|
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 7 |
| Number of M.2 (M) slots | 4 |
| 1st M.2 largest key size | 22110 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 22110 |
| 2nd M.2 highest PCI Express generation | 5.0 |
| 3rd M.2 largest key size | 2280 |
| 3rd M.2 highest PCI Express generation | 5.0 |
| 4th M.2 largest key size | 2280 |
| 4th M.2 highest PCI Express generation | 5.0 |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 512 Mbit |
| Clear CMOS button | Yes |
| BIOS flashback button | Yes |
| Packaging data | |
|---|---|
| Package width | 362 mm |
| Package depth | 377 mm |
| Package height | 103 mm |
| Package weight | 3.7 kg |
| Weight & dimensions | |
|---|---|
| Width | 305 mm |
| Depth | 330 mm |
| Height | 50 mm |

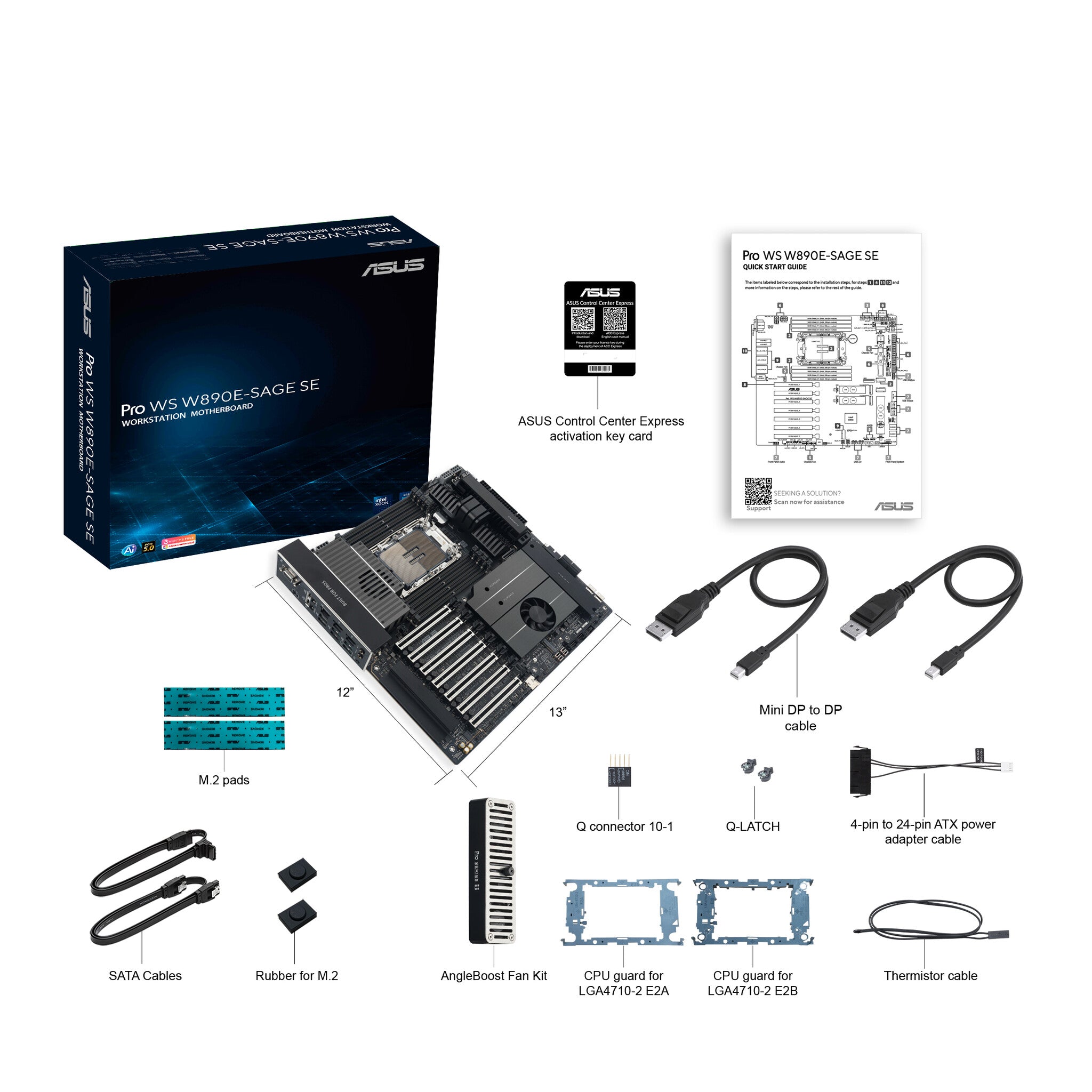

| Packaging content | |
|---|---|
| Screws included | Yes |
| Cables included | SATA, DisplayPort |
| Other features | |
|---|---|
| Mini DisplayPorts quantity | 2 |
| Weight | 3.4 kg |
| Number of M.2 (E) slots | 1 |
-
