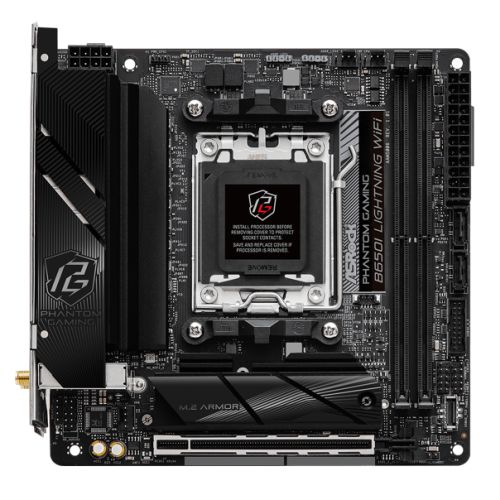

ASROCK  |  SKU: B650I LIGHTNING WIFI  |  Condition: Brand New  |  UPC/EAN: 4710483944253

Asrock B650I LIGHTNING WIFI, AMD B650, AM5, Mini ITX, 2 DDR5, HDMI, Wi-Fi 6E, 2.5G LAN, 2x M.2

£228.99 £234.99
Excl VAT £190.83
Final Price after Configuration:
£228.99 £234.99
Excl VAT £190.83

Found a cheaper price online? Contact us so we can try to price match/beat.



B650I Lightning WiFi


  • Supports AMD Socket AM5 Ryzen™ 7000 Series Processors
  • 8+2+1 Power Phase, Dr.MOS
  • Supports DDR5 7200+ (OC)
  • 1 PCIe 4.0 x16
  • Graphics Output Options: HDMI
  • Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
  • 2 SATA3, 1 Blazing M.2 (PCIe Gen5x4), 1 Hyper M.2 (PCIe Gen4x4)
  • 1 USB 3.2 Gen2 Type-C (Rear),
  • 3 USB 3.2 Gen2 Type-A (Rear),
  • 1 USB 3.2 Gen1 Type-C (Front),
  • 2 USB 3.2 Gen1 Type-A (Front),
  • 6 USB 2.0 (4 Rear, 2 Front)
  • Phantom Gaming 2.5G LAN
  • 802.11ax WiFi 6E + Bluetooth
  • Supports ASRock Auto Driver Installer, BIOS Flashback








Optimized VRM Design

Dr. MOS
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.

8+2+1 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.

8 Layer PCB
The 8 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it's able to support the latest memory modules with most extreme memory performance!






Reinforced Steel Slot [PCIe 4.0 Version]

The reinforced steel slot is capable of supporting PCI Express 4.0 standard. The various benefits include:
  • Extra anchor points
  • Stronger latch
  • Ensure signal stability
  • Make sure heavy graphics cards to be well-installed.





Extreme Overclocking Performance

DDR5 EXPO & XMP Support
Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. All B650 motherboards are built with 8-Layer PCB design, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance up to 7200MHz and beyond by enabling the pre-tested profiles. Make sure the memory modules are AMD EXPO™/ Intel® XMP capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.

Blazing OC Tuner
The Blazing OC Tuner allows AM5 CPU to switch between OC mode and PBO(Precision Boost Overdrive) mode when the CPU current hits threshold. Anything above current threshold will engage manual OC mode; if below current threshold then will engage Precision Boost Overdrive mode. This idea is to combine overclocking on all cores and automatic boost on a single core to get the best performance out of your CPU. There is no need to enter BIOS to setup up, you can modify all the settings on time under OS.

AMD PBO Technology
PBO(Precision Boost Overdrive) is an automatic performance-maximizing technology that is able to improve your PC’s performance by raising clock speeds based on the conditions inside your PC, AMD’s processors is equipped with intelligent thermal sensors designed to analyze conditions inside your PC and make the “go faster” decision as often as possible, please ensure system cooling is sufficient before enabling PBO.






Nahimic Audio

Audio That Matters
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

Enhance Communication Quality
The Powerful algorithms to ensure the best noise-free conversation, giving a constant vocal level no matter the distance from your mic. The Nahimic audio engine dynamically clear the sound and remove interference noise and lower the voice variation. Result is a better comprehension and less fatigue.

Sound Tracker
The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.

Works on any devices!
Enjoy the vibrant and high-quality Surround Sound on all your favorite audio devices: Jack, USB, Bluetooth, HDMI, S/PDIF. Nahimic is compatible with all of your favorite audio tools and ensures the best sound with any of them. Nahimic measure and improve to optimize our technology and offer you the best experience.






Lightning Gaming Ports

Aimed for die hard gamers and enthusiasts! Lightning Gaming Ports are sourced from two different controller interfaces that assist gamers in connecting the high speed mice/keyboard with the lower jitter and latency!






Polychrome RGB

This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects






High Speed M.2 Solution

PCIe Gen5 Blazing M.2
The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128GB/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs.

Multi-Layer M.2 Heatsink
The extra large aluminum alloy M.2 heatsink effectively improves heat dissipation to keep those high speed M.2 SSDs as cool as possible, it is able to give better stability while maintaining top performance.






Phantom Gaming 2.5 Gb/s LAN

The intelligent Phantom Gaming 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.
Automatically detects and accelerates game traffic ahead of other network traffic for smoother, stutter-free in-game performance and the competitive edge.






Wi-Fi 6E 802.11ax

WiFi 6E technology has extended to the whole new 6GHz spectrum band, providing more WiFi capability and giving an even better and faster internet traffic. In addition to deliver higher speeds, the WiFi 6E also enhances the lower latency and supports service levels that are equivalent to 5G networks.






EZ Setting

Auto Driver Installer
Optical drive or driver DVD is no longer needed! ASRock motherboard already has its Ethernet driver prepacked in BIOS ROM, once finish installing the operation system, simply follow the instructions and allow ADI to download and install all necessary drivers automatically!

BIOS Flashback
Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and power supply, No CPU, RAM or other components required.

Flexible Integrated IO Shield
Unlike most so called pre-mounted I/O shield that is only decorated with fancy color schemes. We reserve more tolerance space and allow IO shield is adjustable when installing, thus fitting chassis perfectly without any mechanical issue.








Description

Specification

  • Motherboard Type: Desktop
  • Form Factor: Mini ITX
  • Socket: AMD AM5
  • Chipset: AMD B650
  • #Hide#DDR Type: DDR5
  • CPU Support: Click here for CPU support
  • RAM Technology: DDR5 (Dual Channel)
    Supports Extreme Memory Profile (XMP)
    Supports Extended Profiles for Overclocking (EXPO
  • RAM Slots: 2 x DIMM
  • RAM Speeds: Up to 7200+(OC)
  • Maximum Memory: 96GB
  • Graphics: Integrated Graphics*
    *Graphics specifications may vary between CPU types
  • Graphics Ports: 1 x HDMI
  • PCI/PCI Express: 1 x PCIe 4.0 x16 (supports x16 mode)
  • Storage: 2 x SATA III
    1 x M.2 (2280) - PCIe 5.0 x4
    1 x M.2 (2280) - PCIe 4.0 x4
  • RAID: "Supports RAID 0 and RAID 1 for SATA storage devices
    Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices"
  • Wireless: 802.11ax Wi-Fi 6E Module
    Supports IEEE 802.11a/b/g/n/ac/ax
    Supports Dual-Band 2x2 with extended 6GHz band support
    2 antennas - 2 (Transmit) x 2 (Receive) diversity tech
    Supports Bluetooth 5.2 + High speed class II
    Supports MU-MIMO
  • LAN: 2.5GB LAN
  • Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
  • USB Ports Supported: Rear:
    1 x USB 3.2 Gen2 Type-C
    3 x USB 3.2 Gen2 Type-A*
    4 x USB 2.0

    Front:
    1 x USB 3.2 Gen1 Type-C
    2 x USB 3.2 Gen1 Type-A
    2 x USB 2.0

    *USB32_23 are Lightning Gaming Ports
  • Back Panel I/O Ports: 2 x Antenna
    1 x HDMI
    3 x USB 3.2 Gen2 Type-A
    1 x USB 3.2 Gen2 Type-C
    4 x USB 2.0
    1 x RJ-45 LAN
    1 x BIOS Flashback Button
    HD Audio Jacks
  • Internal I/O Connectors: 2 x Addressable LED
    2 x CPU/Water Pump Fan
    1 x Chassis/Water Pump Fan
    1 x 24 pin ATX
    1 x 8 pin 12V
    1 x Front Panel Audio
    1 x USB 2.0
    1 x USB 3.2 Gen1
    1 x Front Panel Type C USB 3.2 Gen1
  • Accessories: 1 x User Manual
    2 x SATA Data Cables
    2 x ASRock WiFi 2.4/5/6 GHz Antennas
    1 x Screw for M.2 Socket
  • Additional Features: See Overview
  • Package Type: Retail
  • Package Weight: 1.2000 kg
  • Warranty: 3 Year Replacement Warranty
  • #Hide#M.2 Slot(s): Yes (M.2)
  • #Hide#No. LAN Ports: 1 x LAN
  • #Hide#Max LAN Speed: 2.5GB LAN
  • #Hide#Wi-Fi: Yes (Wi-Fi)
