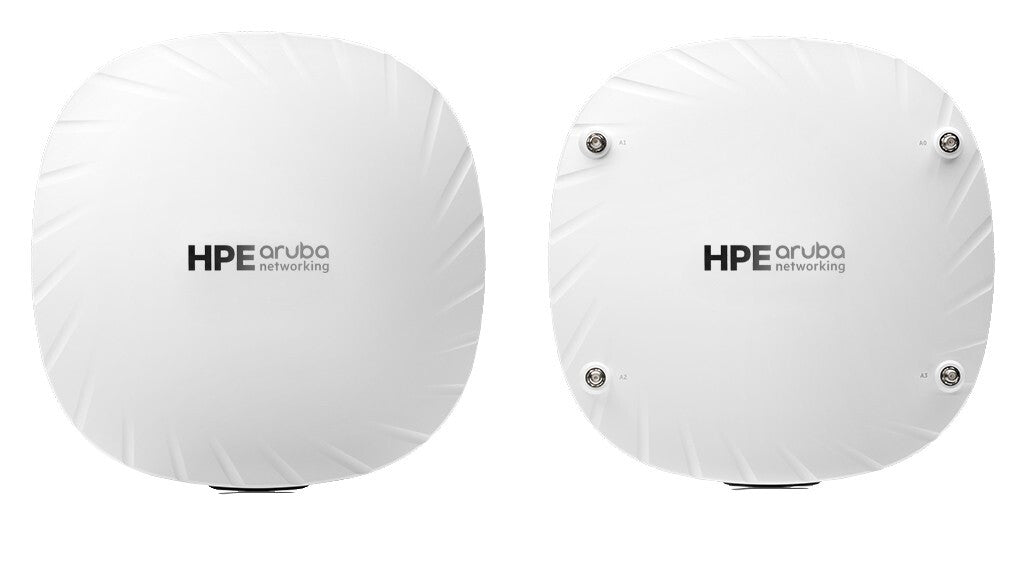

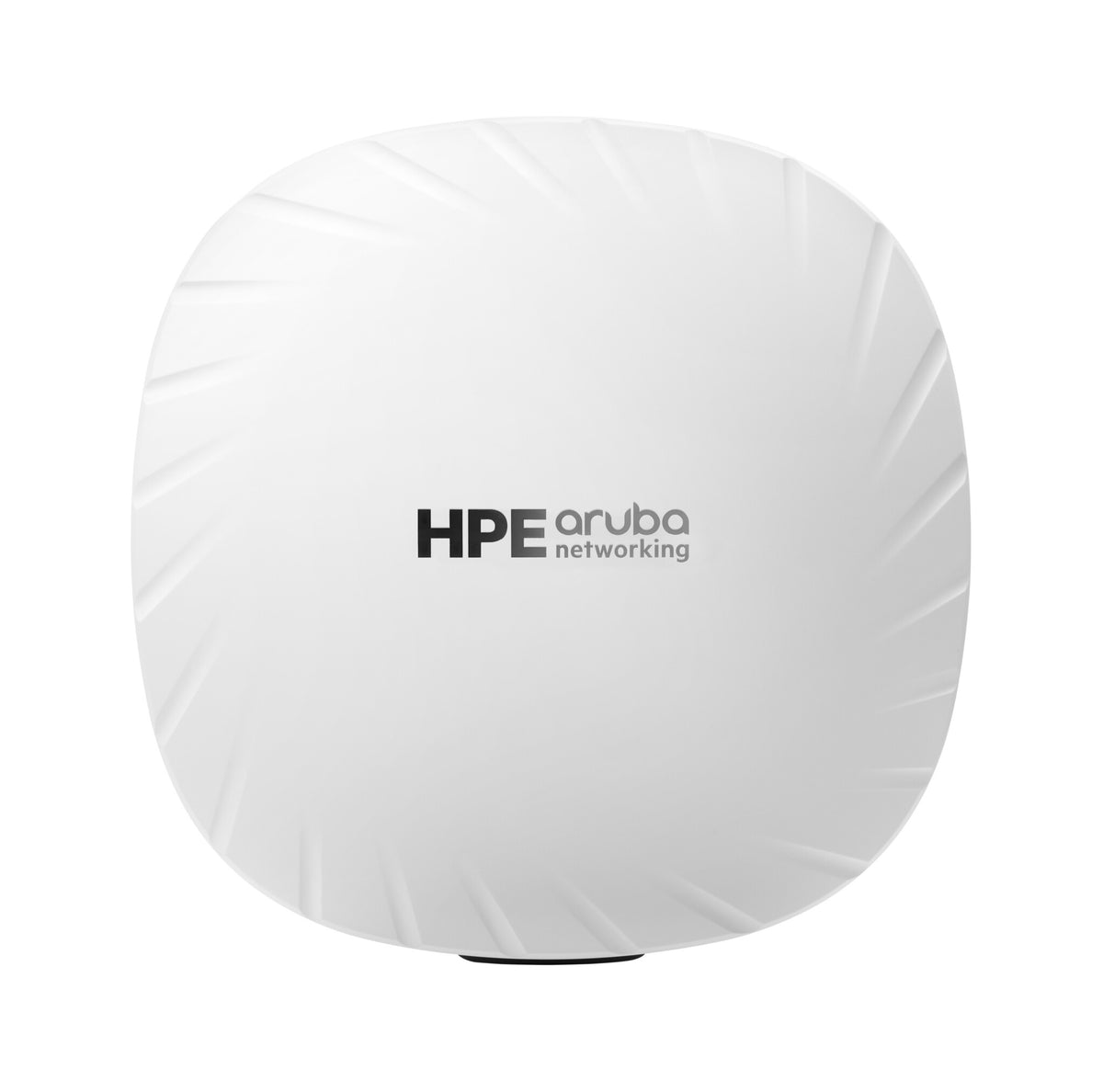

HPE Aruba Networking AP-535 (RW) Dual Radio 4x4 802.11ax Internal Antennas Unified Campus AP
HPE Aruba Networking AP-535 (RW) Dual Radio 4x4 802.11ax Internal Antennas Unified Campus AP is backordered and will ship as soon as it is back in stock.
HPE Aruba Networking AP-535 (RW) Dual Radio 4x4 802.11ax Internal A...
The HPE Aruba Networking 530 Series Campus Access Points provide Wi-Fi 6 connectivity for high-density deployments such as larger office spaces, training and meeting facilities, and hospitals. Providing up to 2.97 Gbps combined aggregate data rate, this series is built on Wi-Fi 6 standards (IEEE 802.11ax) and includes features such as OFDMA, bidirectional MU-MIMO, and target wait time (TWT) for better multi-user performance and improved efficiency. The 530 series can be deployed using zero touch provisioning (ZTP) without on‑site technical expertise, for ease of implementation in branch offices and for remote work. HPE Aruba Networking Central provides a single pane of glass for overseeing wired and wireless LANs, WANs, and VPNs. AI‑powered analytics, end‑to‑end orchestration and automation, and advanced security features are built natively into the solution. The 530 series includes a limited lifetime warranty.
What is new supporting point:
Deploy models with internal antennas or connectorized models that support external antennas to meet the range of environments
Wi-Fi 6 access points (APs) provide up to 2.97 Gbps combined aggregate data rate
Dual radio AP supporting 5 GHz and 2.4 GHz bands (4x4 MIMO)
Protects network security with stronger encryption and authentication, secure credentials/keys storage, and user and IoT access policy enforcement firewalls (PEFs)
IoT-ready with support for Bluetooth 5 and Zigbee and two 5 Gbps ports for fast wired connectivity
| Features | |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Maximum data transfer rate | 3550 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 1148 Mbit/s |
| Maximum data transfer rate (5 GHz) | 2402 Mbit/s |
| Ethernet LAN data rates | 5000 Mbit/s |
| Frequency band | 20/40 (2.4 GHz), 20/40/80/(80+80) (5 GHz), and maximum peak data rate 2.9 Gbps |
| Networking standards | IEEE 802.11ax, IEEE 802.11mc |
| Auto MDI/MDI-X | Yes |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Spread spectrum method | DSSS, OFDM |
| Modulation | 16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK |
| MACsec support | No |
| Security | |
|---|---|
| Security algorithms | WMM, WPA, WPA2 |
| Management features | |
|---|---|
| Access point management | On-premises; Public Cloud; Virtual Private Cloud (VPC); as a Service |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 1 |
| USB connector type | USB Type-A |
| Power | |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power consumption (max) | 23.3 W |
| Design | |
|---|---|
| Placement | Ceiling, Wall |
| Product colour | White |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Recommended usage | Indoor |
| Certification | UL2043 plenum rating Wi‑Fi Alliance: Wi-Fi CERTIFIED a, b, g, n, ac Wi-Fi CERTIFIED 6 (ax) WPA, WPA2 and WPA3—Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, Wi-Fi Agile Multiband Wi-Fi CERTIFIED Location Bluetooth Special Interest Group (SIG) |
| Antenna | |
|---|---|
| Antenna type | Internal |
| Antenna direction type | Omni-directional |
| Antenna features | Integrated antenna |
| Antennas quantity | 4 |
| Antenna gain level (max) | 5.4 dBi |
| Performance | |
|---|---|
| Compatible operating systems | HPE Aruba Networking Wireless Operating System 8.5.0.0* HPE Aruba Networking Instant OS 8.5.0.0* HPE Aruba Networking Wireless Operating System 10.0.0.0 or later. Note: *With some restrictions. For unrestricted operation, use 8.6.0.0 or later. |
| General | |
|---|---|
| Product family | Aruba Networking |
| Technical details | |
|---|---|
| Compliance certificates | Federal Communications Commission (FCC), ISED, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD) |
| Weight & dimensions | |
|---|---|
| Width | 240 mm |
| Depth | 240 mm |
| Height | 57 mm |
| Weight | 1 kg |
| Other features | |
|---|---|

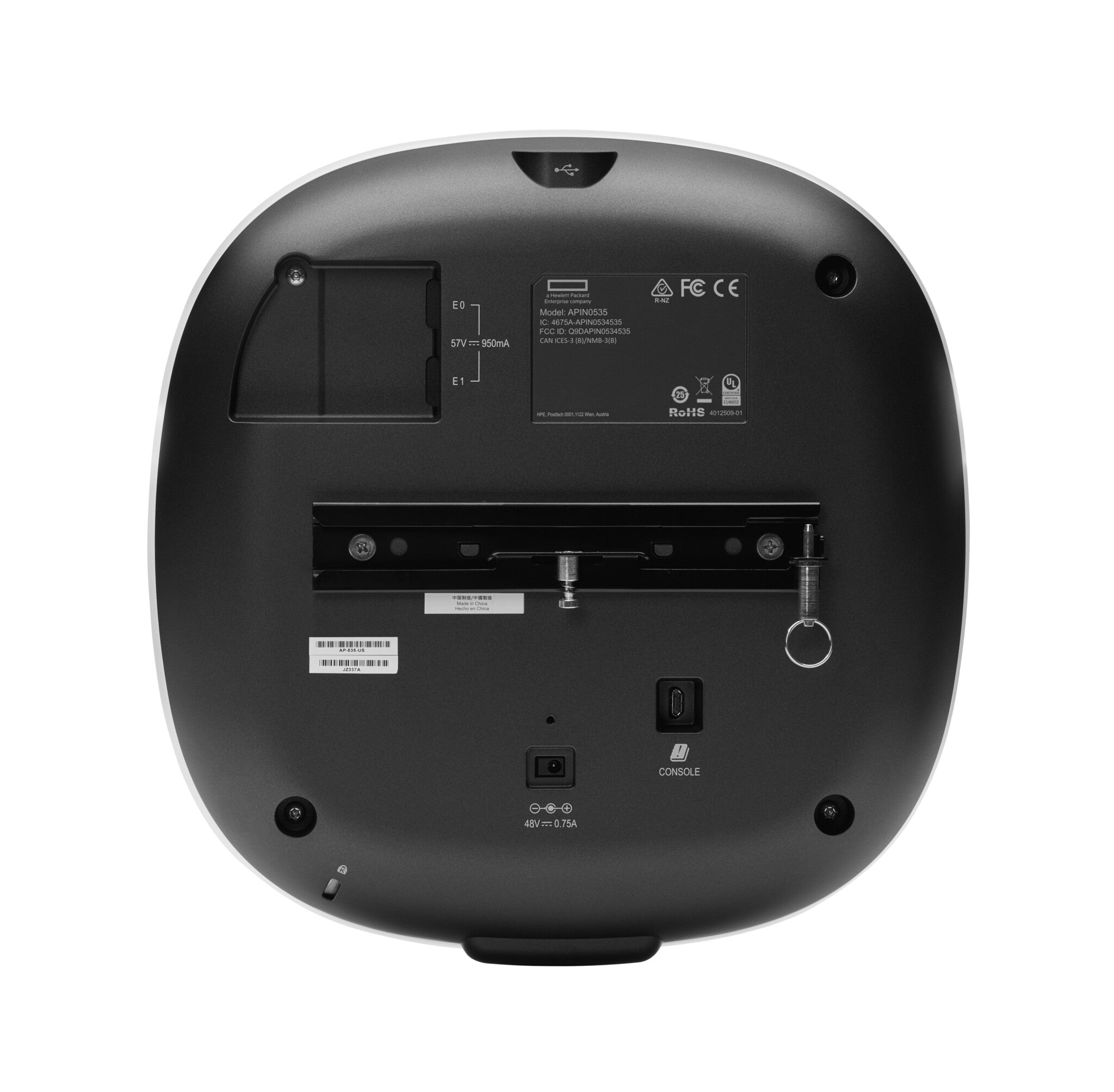

| I/O ports | E0, E1: Ethernet port (RJ-45) Serial console interface (proprietary, micro-B USB physical jack) USB 2.0 host interface (Type A connector) Kensington security slot |
| Weight (imperial) | 0.998 kg (2.2 lbs) |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 5 - 93% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 93% |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
-
