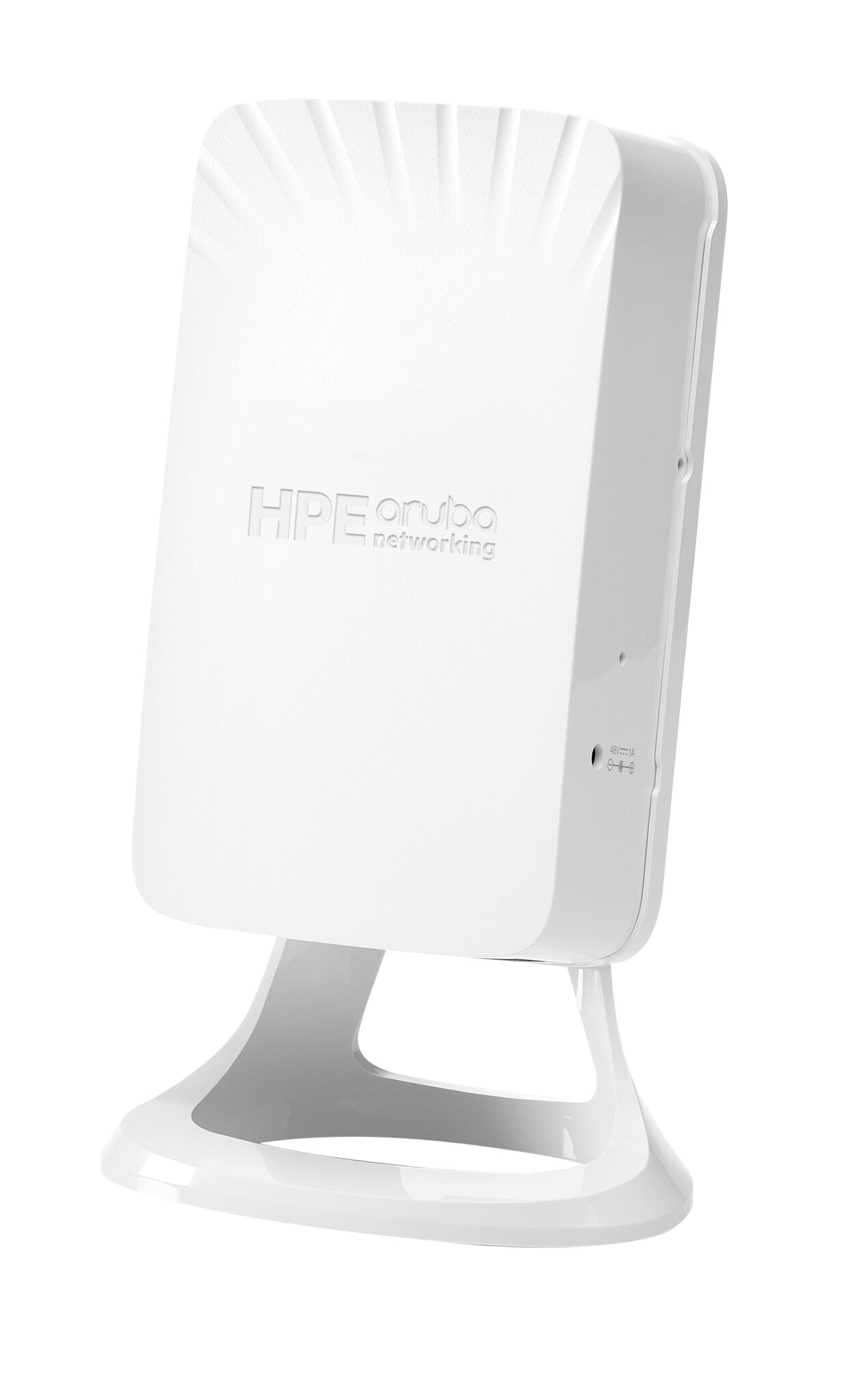

HPE Aruba Networking AP-505H (RW) Dual Radio 802.11ax 2x2 1+4 Ethernet PSE USB Hospitality AP
HPE Aruba Networking AP-505H (RW) Dual Radio 802.11ax 2x2 1+4 Ethernet PSE USB Hospitality AP is backordered and will ship as soon as it is back in stock.
HPE Aruba Networking AP-505H (RW) Dual Radio 802.11ax 2x2 1+4 Ether...
HPE Aruba Networking 500H Series Hospitality Access Points deliver cost-effective Wi-Fi 6 coverage in a compact form factor that is ideal for hotels, residence halls, and remote offices. With 1.49 Gbps maximum combined speed, zero touch provisioning (ZTP), and wired ports, the 500H series is ready to improve wireless experiences for guests, employees, students, and teleworkers. The 500H series is Wi-Fi CERTIFIED and supports 802.11ax features; orthogonal frequency-division multiple access (OFDMA) for multi-user efficiency, target wake time (TWT) to extend the battery life of connected Internet of Things (IoT) devices, and WPA3 and Enhanced Open (OWE) for greater password and guest security. The 500H series includes a limited lifetime warranty.
What is new supporting point:
You can customize deployment with optional desktop stand and models that offer choice of wired connectivity, USB, and PoE out support
Cost-effective Wi-Fi 6 hospitality access points provide up to 1.49 Gbps maximum combined data rate with a range of connectivity options for venues such as hotels, residence halls, and remote offices
The AP provides supports for OFDMA for enhanced multi-user efficiency, and WPA3 and Enhanced Open for greater security
The AP provides IoT-ready Bluetooth 5 and Zigbee support
Dynamic segmentation and policy enforcement firewalls (PEFs) automatically enforce consistent policies across the network, enhancing user and device security
Zero touch provisioning (ZTP) provides ease of implementation in branch offices and remote sites, without on-site technical expertise
| Features | |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Maximum data transfer rate | 1487 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 287 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1200 Mbit/s |
| Ethernet LAN data rates | 1000,5000 Mbit/s |
| Frequency band | 20/40 (2.4 GHz), 20/40/80 (5 GHz), maximum peak data rate 1.49 Gbps |
| Networking standards | IEEE 802.11ax, IEEE 802.11mc |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Auto MDI/MDI-X | Yes |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Spread spectrum method | DSSS, OFDM, OFDMA |
| Modulation | 16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK |
| MACsec support | No |
| Security | |
|---|---|
| Security algorithms | WPA, WPA2, WPA3 |
| Management features | |
|---|---|
| Access point management | On-premises; Public Cloud; Virtual Private Cloud (VPC); as a Service |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| USB 2.0 ports quantity | 1 |
| USB connector type | USB Type-A |
| Power | |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power consumption (max) | 50 W |
| Design | |
|---|---|
| Placement | Table, Wall |
| Product colour | White |
| Recommended usage | Indoor |
| Certification | Wi‑Fi Alliance: Wi-Fi CERTIFIED a, b, g, n, ac Wi-Fi CERTIFIED 6 (ax) WPA, WPA2 and WPA3–Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, Wi-Fi Agile Multiband Wi-Fi CERTIFIED Location (AP-505H only) Bluetooth SIG Ethernet Alliance (PoE) |
| Antenna | |
|---|---|
| Antenna type | Internal |
| Antenna direction type | Semi-directional |
| Antenna features | Integrated antenna |
| Antennas quantity | 2 |
| Antenna gain level (max) | 5.4 dBi |
| Performance | |
|---|---|
| Compatible operating systems | HPE Aruba Networking Operating System and HPE Aruba Networking Instant OS 8.7.1.0 (AP-503H) and 8.7.0.0 (AP-505H), HPE Aruba Networking Operating System 10.3.0.0 (AP-503H), 10.2.0.0 (AP-505H) |
| General | |
|---|---|
| Product family | Aruba Networking |
| Technical details | |
|---|---|
| Compliance certificates | Federal Communications Commission (FCC), ISED, CE, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD) |
| Weight & dimensions | |
|---|---|
| Width | 86 mm |
| Depth | 47 mm |
| Height | 150 mm |
| Weight | 360 g |
| Other features | |
|---|---|
| I/O ports | 1 x 10/100/1000BASE-T RJ-45 port, auto-sensing link speed and MDI/MDX 4 x 10/100/1000BASE-T (RJ-45) ports, auto-sensing link speed and MDI/MDX |
| Weight (imperial) | 0.363 kg (0.8 lbs) |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 5 - 93% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
-
