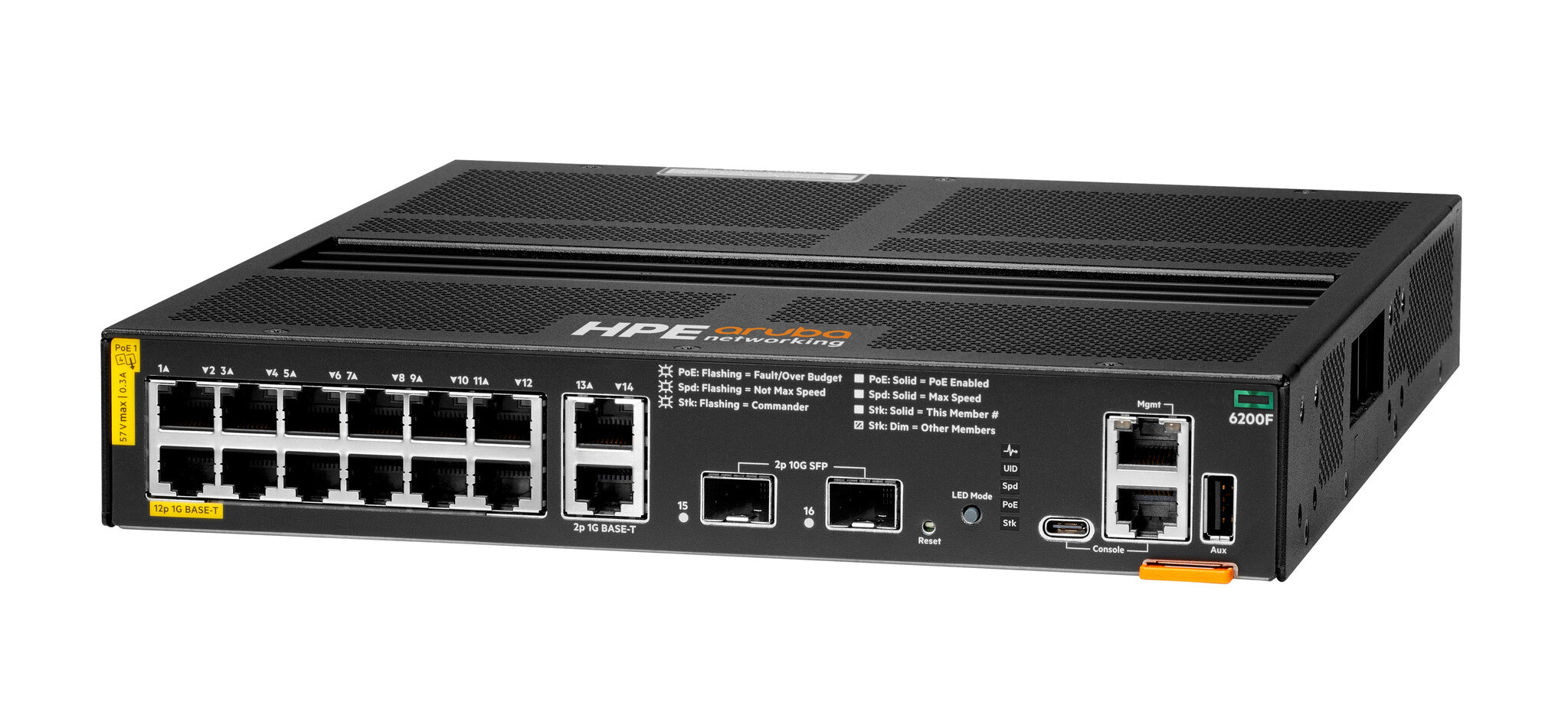

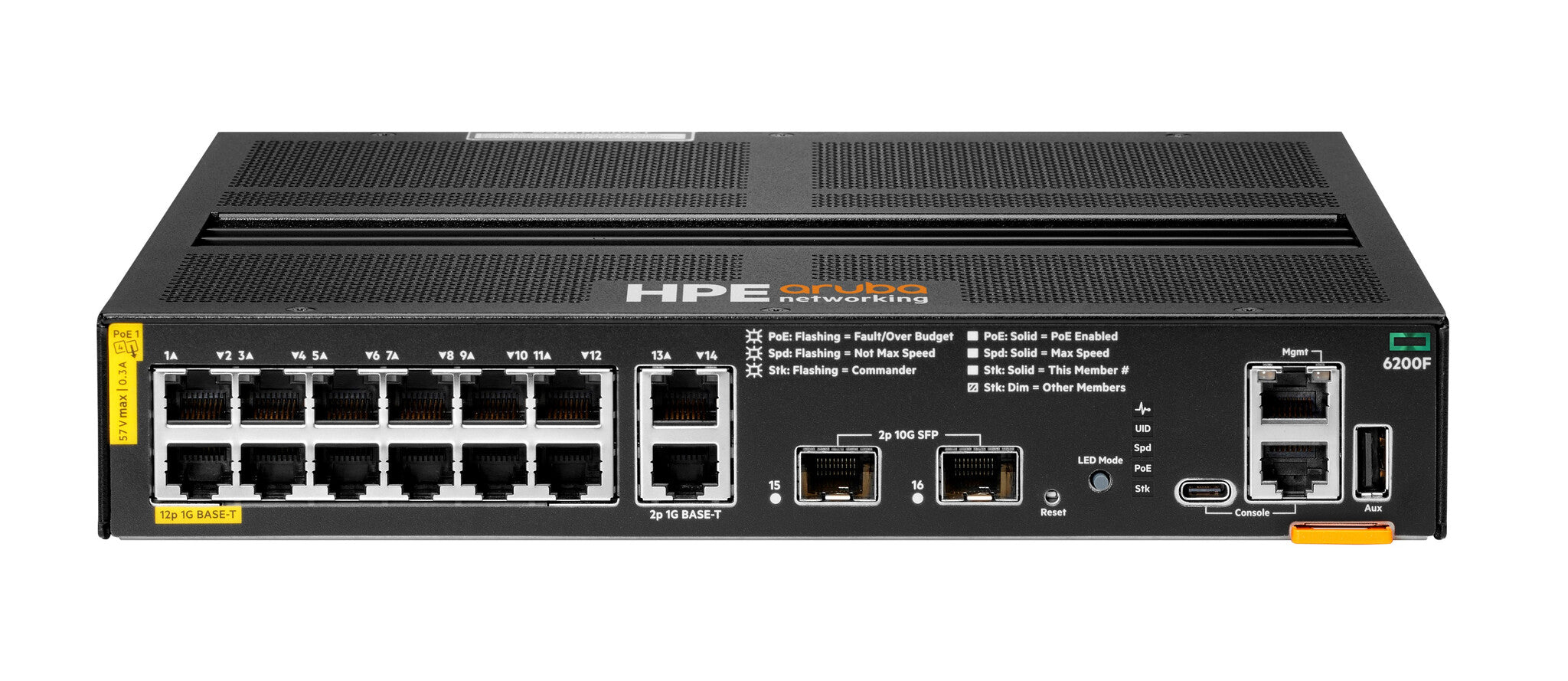

HPE Aruba Networking CX 6200F 12G Class4 PoE 2G/2SFP+ 139W Switch
HPE Aruba Networking CX 6200F 12G Class4 PoE 2G/2SFP+ 139W Switch is backordered and will ship as soon as it is back in stock.
HPE Aruba Networking CX 6200F 12G Class4 PoE 2G/2SFP+ 139W Switch

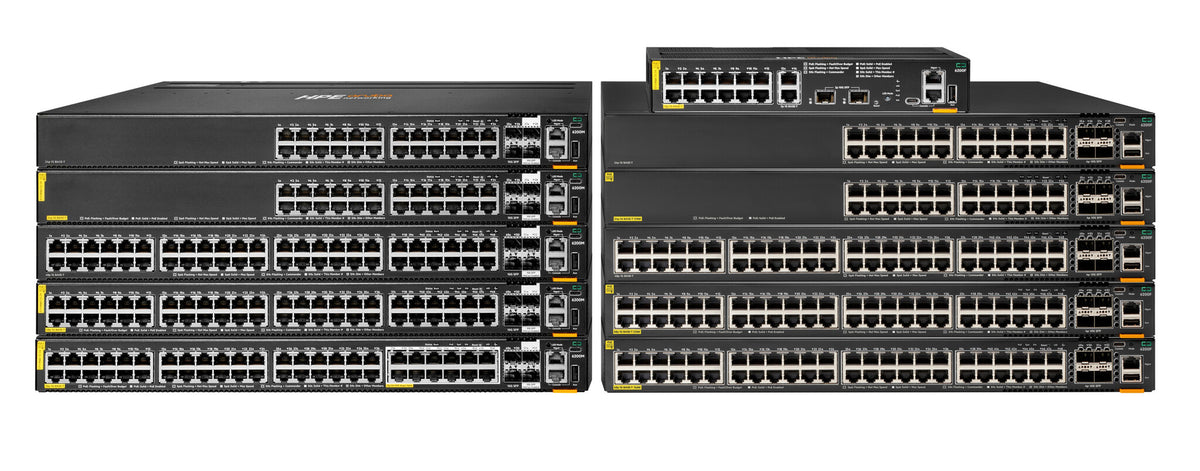

The HPE Aruba Networking CX 6200 Switch Series is a next-generation family of stackable access switches ideal for enterprise branch offices, campuses, and SMB networks. With a cloud-centric design that combines a fully programmable operating system (OS) with the HPE Aruba Networking CX Network Analytics Engine, this switch family extends industry-leading deployment, monitoring, and troubleshooting to the access layer. Prepare your network for future demands with a powerful Gen7 ASIC that delivers an AI and Wi-Fi 7 ready, non-blocking performance. HPE Aruba Networking Virtual Stacking Framework (VSF) allows for stacking of up to 8 switches, providing scale and simplified management. This series includes fixed (CX 6200F) and modular (CX 6200M) switches with built-in high-speed uplinks and up to 1440W of PoE to support Internet of Things (IoT) devices such as security cameras and wireless APs.
What is new supporting point:
Dynamic segmentation enhanced with application-based policy to deliver secure access for users and Internet of Things (IoT)
HPE Aruba Networking Switch Multi-Edit Software supports for automation, configuration and verification
Enterprise-class connectivity with support for access control lists (ACLs), robust quality of service (QoS), and common protocols such as static and access OSPF routing
Up to 384 ports of scalability with 8-member HPE Aruba Networking Virtual Stacking Framework (VSF) stacking supported for both 24 and 48-port fixed and modular switches through the CX installer app
Flexible, modular switch models support hot-swappable, redundant power supplies and fans for enhanced resiliency
Real-time insights and actions through a built-in network analytics engine to securely maintain network performance, stability, and security
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 12 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP+ module slots quantity | 2 |
| Console port | RJ-45/USB Type-C |
| Network | |
|---|---|
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Spanning tree protocol | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| VLAN support | Yes |
| Number of VLANs | 4094 |
| Data transmission | |
|---|---|
| Switching capacity | 68 Gbit/s |
| Throughput | 45.1 Mpps |
| Latency (1 Gbps) | 2.28 µs |
| Latency (10 Gbps) | 1.46 µs |
| Jumbo frames support | Yes |
| Security | |
|---|---|
| DHCP features | DHCP server |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Authentication type | RADIUS, TACACS+ |
| SSH/SSL support | Yes |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| Protocols | |
|---|---|
| Routing protocols | RIP-2 |
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL) |
| Design | |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Performance | |
|---|---|
| Physical stacking (units) | 8 |
| Virtual stacking (units) | 8 |
| Built-in processor | Yes |
| Processor model | ARM Cortex-A72 |
| Processor frequency | 1200 MHz |
| Memory type | DDR4-SDRAM |
| Internal memory | 8000 MB |
| General | |
|---|---|
| Product family | Aruba Networking |
| Power | |
|---|---|
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 170 W |
| Power consumption note | 170W at 230 VAC |
| Power supply note | Fixed power supply Up to 139W of Class 4 PoE Power |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Total Power over Ethernet (PoE) budget | 139 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
|---|---|
| Width | 43.9 mm |
| Depth | 442.5 mm |
| Height | 325.4 mm |
| Weight | 5.09 kg |
| Other features | |
|---|---|
| Latency | 1 Gbps: 2.28 μSec 10 Gbps: 1.46 μSec |
| Fan | Fixed fans |
| Performance management | Management flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software |
| Memory and processor | CPU: Quad-core Arm Cortex-A72 at 1.2 GHz Memory: 8 GB DDR4 Flash: 16 GB eMMC |
| Weight (imperial) | 5.09 kg (11.2 lbs) |
| I/O ports | 12 x 10/100/1000BASE-T Class 4 PoE ports, supporting up to 30W per port 2 x 1/10G SFP ports; PHY-less 2 x 1GbE ports Supports PoE standards IEEE 802.3af, 802.3at 1 x USB-C console port 1 x USB Type-A host port 1 x OOBM 1 x RJ-45 console port |
| Dimensions (W x D x H) (imperial) | 43.9 x 442.5 x 325.4 mm (1.73 x 17.4 x 12.8") |
-
