APC Smart-UPS On-Line, 10kVA/10kW, Tower, 230V/400V, 6x C13+4x C19 IEC outlets, Network Card+SmartSlot, Extended runtime, W/O rail kit

APC  |  SKU: SRT10KXLI  |  Condition: Brand New  |  Barcode: 0731304304272

MORE INFO

£9,332.99
£9,318.99 Save £14.00 £9,332.99
£7,765.83 excluding VAT @20%
iFrame
Smart-UPS On-Line, 10kVA/10kW, Tower, 230V/400V, 6x C13+4x C19 IEC outlets, Network Card+SmartSlot, Extended runtime, W/O rail kit

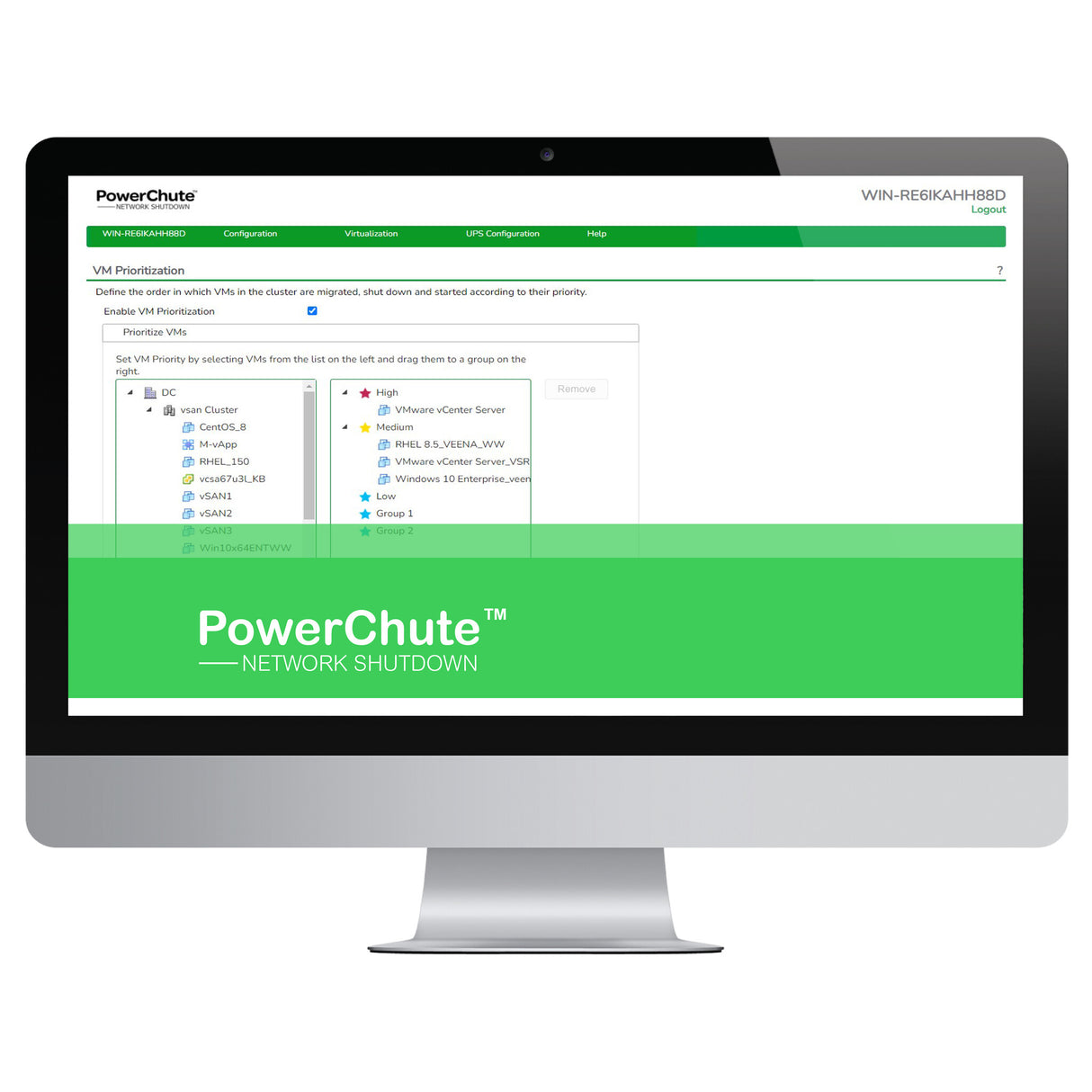

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 10kVA on-line tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire(1P+N+E)/5-wire(3P+N+E) input, 6x IEC 320 C13 and 4x IEC 320 C19 outlets, and 3x IEC jumper cables. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS is compatible with SRTRK2 (4-post) and SRTRK3 (2-post) rail kits sold separately. Designed for IT professionals or network administrators providing wide input voltage window, tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.

Features
Auto-restart Yes
Audible alarm(s) Yes
Noise level 55 dB
Emergency Power Off (EPO) Yes
Crest factor 3:1
Efficiency 94.6%
Number of output phases 1
Surge energy rating 480 J
Output frequency regulation 50/60 Hz
Output operation voltage (max) 240 V
Output operation voltage (min) 220 V
Input frequency 40/70 Hz
Input operation voltage (max) 476 V
Input operation voltage (min) 100 V
Waveform Sine
Output power 10000 W
Output power capacity 10 kVA
UPS topology Double-conversion (Online)
Ports & interfaces
SmartSlot Yes
Serial interface type RJ-45
Serial interface Yes
USB port Yes
Number of output IEC jumpers 3
AC outlets quantity 10 AC outlet(s)
Power plug Hardwire

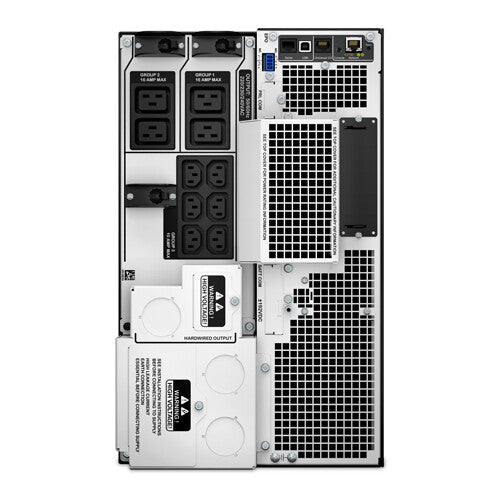

AC outlet types C13 coupler, C19 coupler
Battery
Cold start Yes
Automatic battery test Yes
Hot-swap battery Yes
Battery recharge time 1.5 h
Battery life (max) 5 year(s)

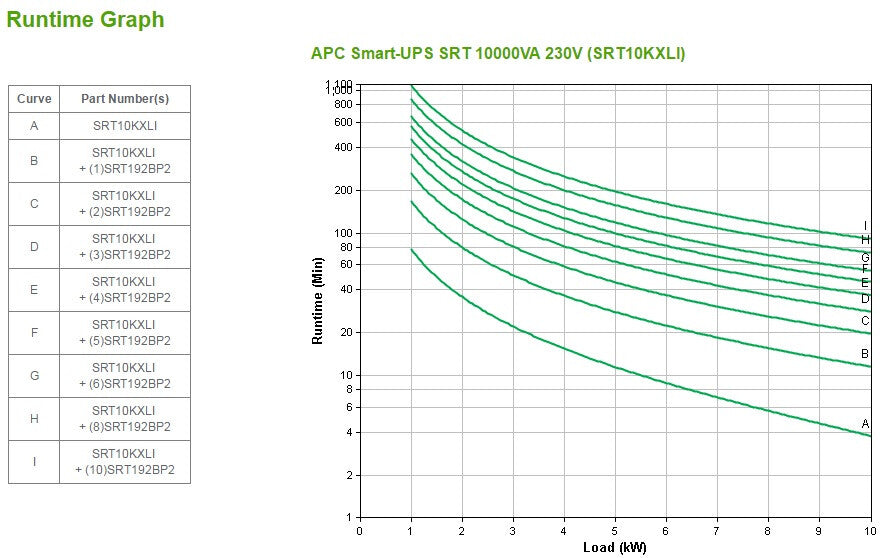

Typical backup time at half load 11.5 min
Typical backup time at full load 3.8 min
Battery capacity 1805 VAh
Battery technology Sealed Lead Acid (VRLA)
Design
Certification CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE, REACH
International Protection (IP) code IP20
LED indicators Yes
Product colour Black
Form factor Rackmount/Tower
Operational conditions
Non-operating altitude 0 - 15000 m
Operating altitude 0 - 3000 m
Storage relative humidity (H-H) 0 - 95%
Operating relative humidity (H-H) 0 - 95%
Storage temperature (T-T) -15 - 45 °C
Operating temperature (T-T) 0 - 40 °C
Technical details
Total carbon footprint 22851.99
Sustainability certificates ENERGY STAR
Compliance certificates RoHS
Weight & dimensions
Package weight 126.8 kg
Package height 461 mm
Package depth 1000 mm
Package width 600 mm
Weight 111.8 kg
Height 432 mm
Depth 715 mm
Width 263 mm
Packaging data
Software CD Yes
Warranty card Yes
Quick installation guide Yes
Temperature sensor Yes
Cables included USB cable
Logistics data
Harmonized System (HS) code 85078000
Other features
Packaging content Web/SNMP Management Card
Nominal output voltage 230 V
Nominal input voltage 230 V
Interface RJ-45 10/100 Base-T
