NETGEAR GS110TP Managed L2/L3/L4 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
NETGEAR GS110TP Managed L2/L3/L4 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey is backordered and will ship as soon as it is back in stock.
NETGEAR GS110TP Managed L2/L3/L4 Gigabit Ethernet (10/100/1000) Pow...

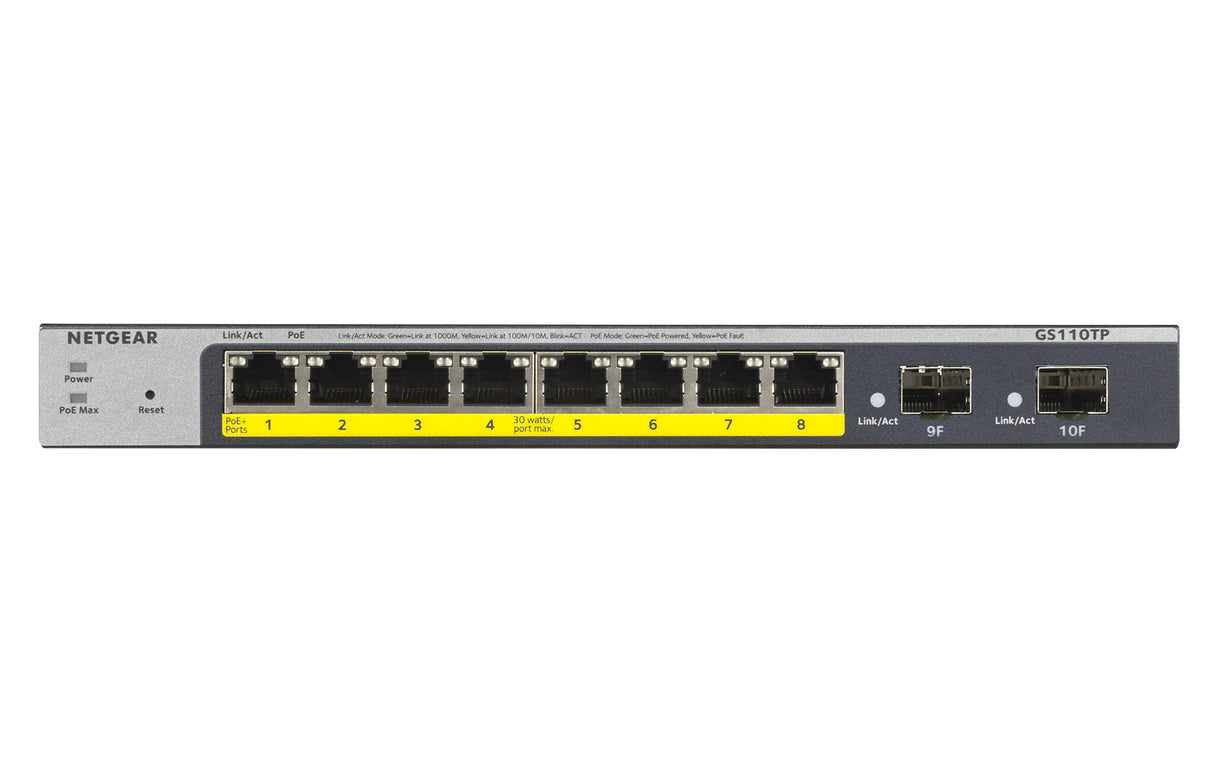

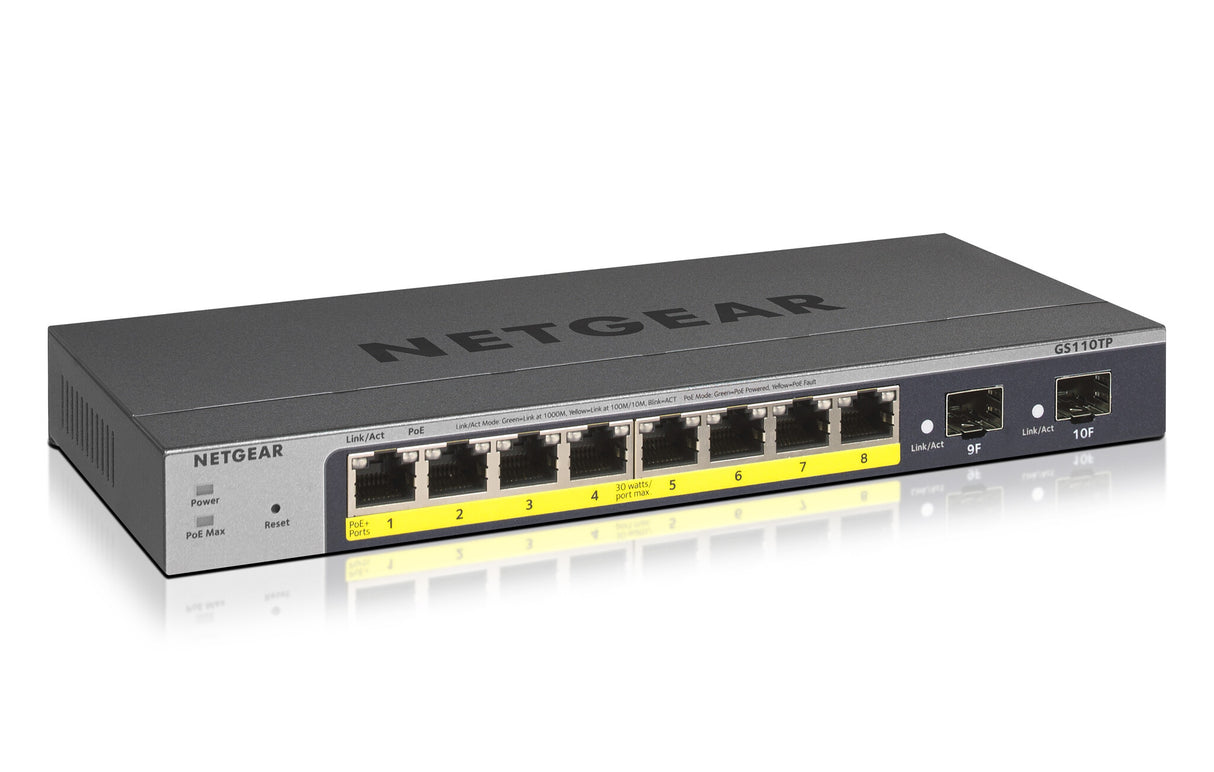

The NETGEAR GS110TPv3 8-Port Gigabit PoE+ Ethernet Smart Managed Pro Switch comes with 8 PoE copper ports and 2 dedicated SFP ports for fiber uplinks. Cautious spender organizations can now deploy PoE devices with a reasonable PoE power budget of 55W. Each PoE port can provide up to 30 watts to power up the connected devices. Fanless, the GS110TPv3 supports perfectly silent desktop operation or wall mounting. The GS110TPv3 Smart Managed Pro Switch offers an easy-to-use, Web browser-based management GUI with configurable L2 network features like VLANs and PoE operation scheduling, allowing SMB customers to deploy PoE-based VoIP phones and IP surveillance. This switch also comes with NETGEAR Insight Cloud management activation (free for the first two devices) for anytime remote management and monitoring through an intuitive app or Cloud Portal. Advanced features such as IPv4 Layer 2+ static routing including IPv6 management, ACL, DiffServ QoS, LACP link aggregation and Spanning Tree will satisfy even the most advanced small business networks. The GS110TPv3 features Energy Efficient Ethernet (IEEE 802.3az) for maximum power savings and is backed by NETGEAR’s Lifetime Limited Warranty and 24/7 support including lifetime chat.
| Management features | |
|---|---|
| ARP inspection | Yes |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2/L3/L4 |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| SFP module slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Network | |
|---|---|
| Number of VLANs | 64 |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| MAC address auto-learning supported | Yes |
| Full duplex | Yes |
| Port mirroring | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Networking standards | IEEE 802.3ab, IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Data transmission | |
|---|---|
| Packet buffer memory | 0.5 MB |
| Jumbo frames support | Yes |
| Store-and-forward | Yes |
| Switching capacity | 20 Gbit/s |
| MAC address table | 8000 entries |
| Security | |
|---|---|
| MAC address filtering | Yes |
| Security algorithms | 802.1x RADIUS |
| IGMP snooping | Yes |
| Access Control List (ACL) IPv6 entries | 100 |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP client |
| Multicast features | |
|---|---|
| Number of multicast groups filtered | 256 |
| IPv4 multicast entries | 32 |
| Multicast support | Yes |
| Protocols | |
|---|---|
| Supported network protocols | HTTP, HTTPS |
| Data link protocols | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Switching protocols | SNMP |
| Management protocols | SNMP |
| Design | |
|---|---|
| Certification | CE, FCC, VCCI Class B, C-Tick |
| LED indicators | Activity, LAN, Link, PoE, Power, Speed |
| Product colour | Grey |
| Rack mounting | No |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 1200041 h |
| Flash memory | 32 MB |
| Internal memory | 128 MB |
| Memory type | RAM |
| Processor frequency | 500 MHz |
| Power | |
|---|---|
| Power consumption (max) | 15.1 W |
| Input current | 1.25 A |
| DC input voltage | 54 V |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power supply included | Yes |
| Power over Ethernet (PoE) | |
|---|---|
| Total Power over Ethernet (PoE) budget | 69.5 W |
| Power over Ethernet (PoE) power per port | 55 W |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
|---|---|
| Heat dissipation | 237.38 BTU/h |
| Non-operating altitude | 0 - 3000 m |
| Operating altitude | 0 - 3000 m |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
|---|---|
| Weight | 610 g |
| Height | 27 mm |
| Depth | 101 mm |
| Width | 236 mm |
| Packaging data | |
|---|---|
| Package weight | 1.49 kg |
| Package height | 86 mm |
| Package depth | 267 mm |
| Package width | 161 mm |
| Manual | Yes |
| Package type | Box |
| Logistics data | |
|---|---|
| Products per master (outer) case | 6 pc(s) |
| Master (outer) case gross weight | 9.73 kg |
| Master (outer) case height | 309 mm |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case length | 350 mm |
| Master (outer) case width | 274 mm |
-
