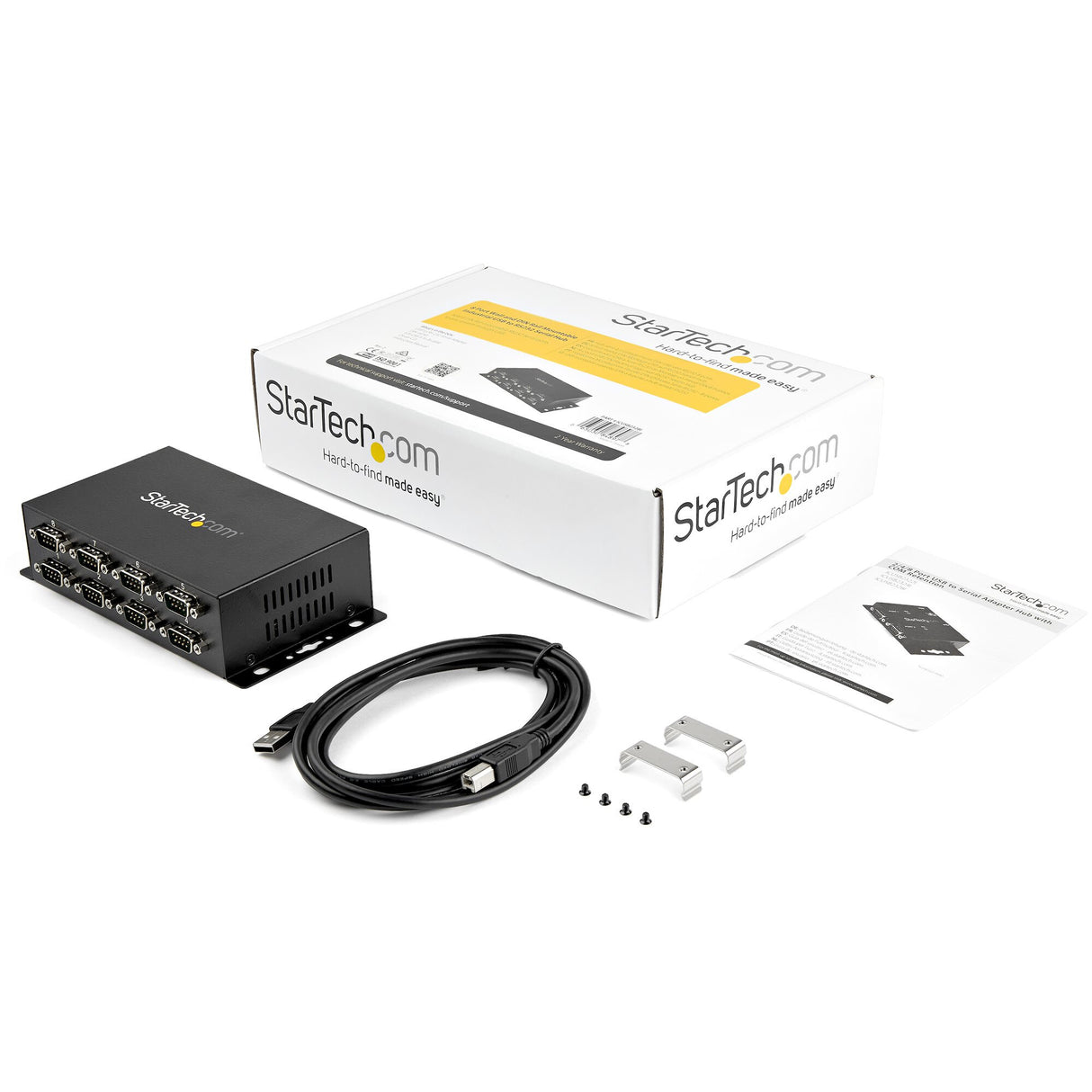

StarTech.com 8 Port USB to DB9 RS232 Serial Adapter Hub – Industrial DIN Rail and Wall Mountable
StarTech.com 8 Port USB to DB9 RS232 Serial Adapter Hub – Industrial DIN Rail and Wall Mountable is backordered and will ship as soon as it is back in stock.
StarTech.com 8 Port USB to DB9 RS232 Serial Adapter Hub – Industria...
Add 8 DIN Rail-mountable RS232 Serial ports to any system through USB
The ICUSB2328I Industrial 8-Port USB to Serial Hub with DIN Rail Clips converts a single USB port into eight RS232 serial ports, enabling you to connect to, monitor and control your serial devices.
Featuring rugged metal construction, with sturdy wall-mounting brackets and top-hat DIN Rail clips (included), this 8 port USB to RS232 Serial Hub provides versatile mounting options and a robust solution for both harsh industrial environments and simple desktop installations.
This USB powered adapter also retains assigned serial COM port values once connected, allowing the same values to be automatically reassigned to the USB serial hub ports.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
| Ports & interfaces | |
|---|---|
| Card reader integrated | No |
| RS-232 ports | 8 |
| Hub interfaces | Serial |
| Host interface | USB 2.0 Type-B |
| Ports quantity | 8 |
| Features | |
|---|---|
| LED indicators | Activity |
| Product colour | Black |
| Housing material | Steel |
| Power | |
|---|---|
| USB powered | Yes |
| Power plug type | Type M |
| Input current | 0.25 A |
| Input voltage | 5 V |
| System requirements | |
|---|---|
| Other operating systems supported | Windows XP Embedded |
| Server operating systems supported | Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016 |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 2000, Windows 2000 Professional, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows 98SE, Windows CE, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Weight & dimensions | |
|---|---|
| Weight | 544 g |
| Height | 43.2 mm |
| Depth | 180 mm |
| Width | 100 mm |
| Packaging data | |
|---|---|
| Package weight | 862 g |
| Package height | 71 mm |
| Package depth | 191 mm |
| Package width | 296 mm |
| Packaging content | |
|---|---|
| DIN rail kit included | Yes |
| Drivers included | Yes |
| Cables included | USB |
| Manual | Yes |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -20 - 85 °C |
| Operating temperature (T-T) | 0 - 55 °C |
| Sustainability | |
|---|---|
| Sustainability compliance | Yes |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 146300 h |
| Baud rate | 921.6 Kbit/s |
| FIFO (First In, First Out) | 4048 B |
| Parity bit | Even, Mark, No, Odd, Space |
| Stop bits | 1, 2 |
| Data bits | 7, 8 |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84719000 |
| Products per master (outer) case | 14 pc(s) |
| Master (outer) case height | 320 mm |
| Master (outer) case length | 510 mm |
| Master (outer) case width | 405 mm |
| Technical details | |
|---|---|
| Compliance certificates | CE, RoHS |
| Other features | |
|---|---|
| Chipset | FTDI - FT232RL |
-
