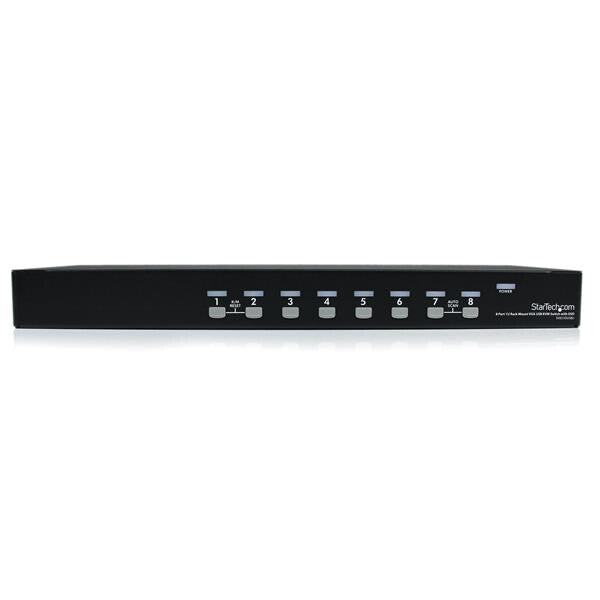

StarTech.com 8 Port 1U Rackmount USB KVM Switch with OSD
Control up to 8 VGA and USB computers from a single keyboard, mouse and monitor
The SV831DUSBU 8 Port 1U Rack Mount USB KVM Switch with OSD offers a dependable computer management tool that allows you to control up to 8 USB-connected computers from a single keyboard, mouse and monitor.
The KVM switch offers maximum control, allowing you to switch computers using hotkey commands or front panel push-buttons, and offers added configuration options and convenience through an On Screen Display (OSD).
A suitable addition to server room operations, the 8 port switch can be rack mounted into 1U of cabinet space, and can be cascaded with multiple KVM switches to deliver control of up to 64 computers from this single switch.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Extracting the keyboard strokes from the USB connection this KVM enables hot key support for wireless keyboard and mouse combo kits that use a single USB receiver
- Cascade configuration supported for one spot control of up to 64 computers
- Rugged, rack mountable 1U metal chassis is ideal for any environment
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| Audio connections | No |
| Console ports | USB A, VGA (D-Sub) |
| Console USB ports quantity | 2 |
| VGA (D-Sub) ports quantity | 9 |
| Video port type | VGA |
| Mouse port type | USB |
| Keyboard port type | USB |
| Number of computers controlled | 8 |
| Performance | |
|---|---|
| Daisy chain | Yes |
| Plug and Play | Yes |
| Maximum resolution | 1920 x 1440 pixels |
| Design | |
|---|---|
| Certification | CE, FCC, TAA, REACH |
| Mean time between failures (MTBF) | 150000 h |
| LED indicators | Yes |
| Housing material | Steel |
| Product colour | Black |
| Rack capacity | 1U |
| Rack mounting | Yes |
| Display | |
|---|---|
| On Screen Display (OSD) | Yes |
| Built-in display | No |
| Power | |
|---|---|
| Power plug type | Type M |
| Compatible power plug types | EU, UK, US |
| Output current | 1.5 A |
| Output voltage | 12 V |
| Input current | 0.8 A |
| Input voltage | 100 - 240 V |
| Sustainability | |
|---|---|
| Compliance certificates | RoHS |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 0 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 5 - 40 °C |
| Weight & dimensions | |
|---|---|
| Weight | 2.9 kg |
| Height | 45 mm |
| Depth | 180 mm |
| Width | 540 mm |
| Packaging data | |
|---|---|
| Package weight | 3.3 kg |
| Package height | 268 mm |
| Package depth | 573 mm |
| Package width | 89 mm |
| Packaging content | |
|---|---|
| AC adapter included | Yes |
| Rubber feet | Yes |
| Manual | Yes |
| Other features | |
|---|---|
| Audio support | No |
| IP control | No |
| Power requirements | 110 - 240 AC |
| Dimensions (WxDxH) | 540 x 180 x 45 mm |
| Ports quantity | 8 |
| Connectivity technology | Wired |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176200 |
-
