Lindy 5m Cat.6A S/FTP LSZH Network Cable, Grey

LINDY  |  SKU: 47136  |  Condition: Brand New  |  Barcode: 4002888471367
£29.99
£13.99 Save £16.00 £29.99
£11.66 excluding VAT @20%
iFrame

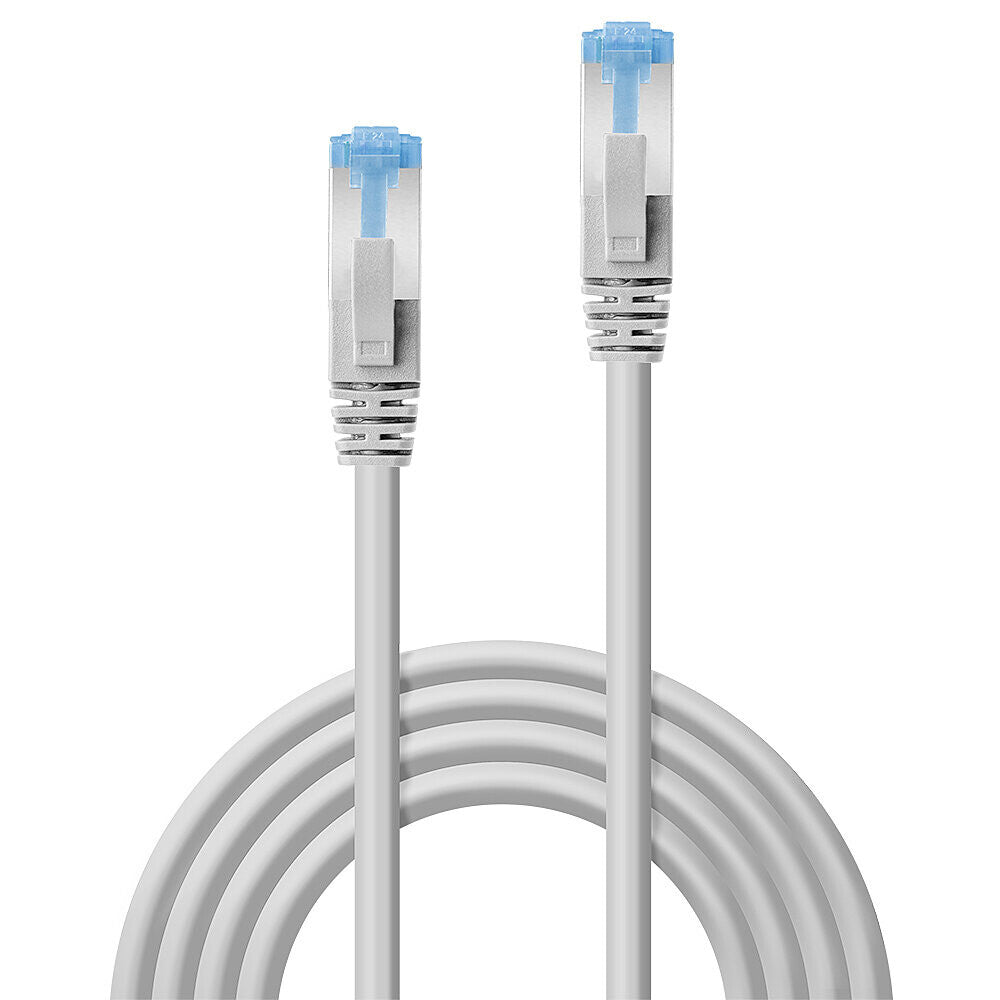

5m Cat.6A S/FTP LSZH Network Cable, Grey

Cat.6A S/FTP network cable with support for bandwidth up to 500MHz and features a snagless design with gold plated contacts for ethernet standards up to 10 GBase-T.

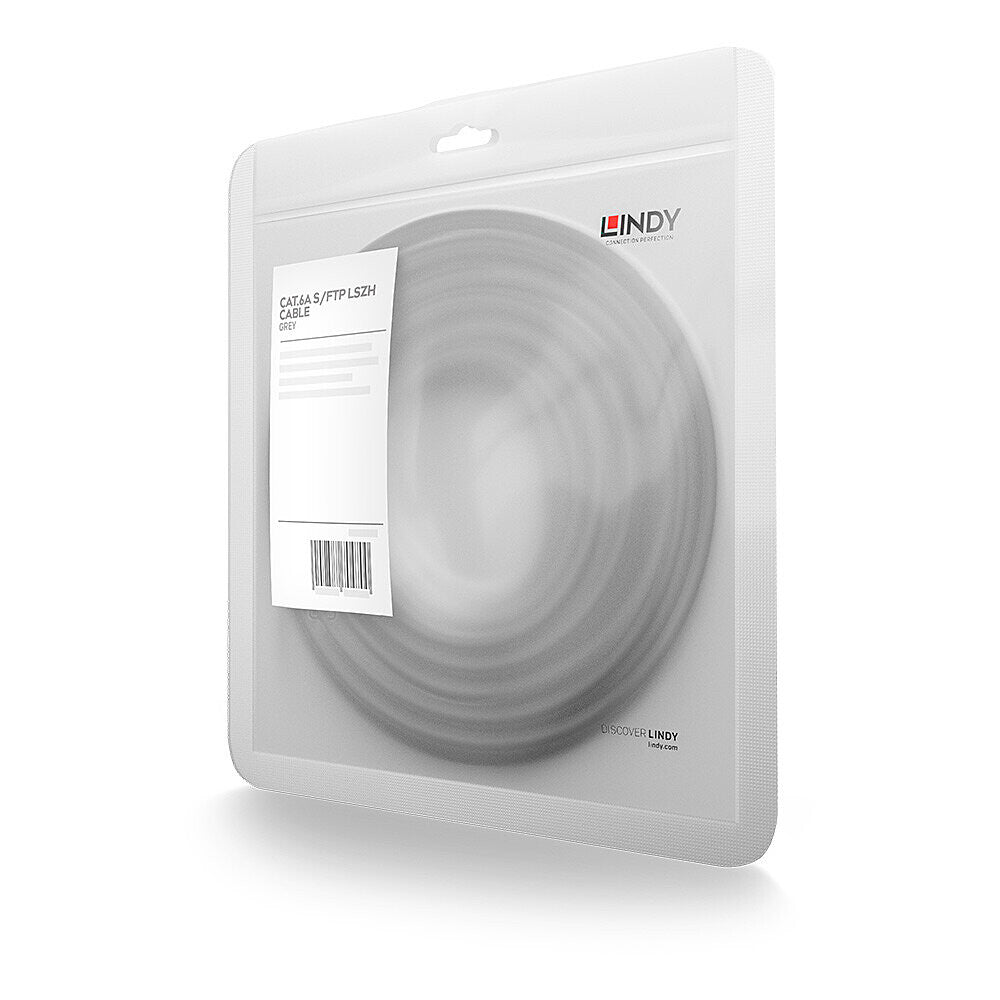

Cat.6A cable, shielded with braid as overall shield and foil shield for the individual wire pairs (S/FTP). Cat.6A cables meet the requirements of 10 Gigabit Ethernet (10GBaseT) with an operating frequency of up to 500MHz. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.

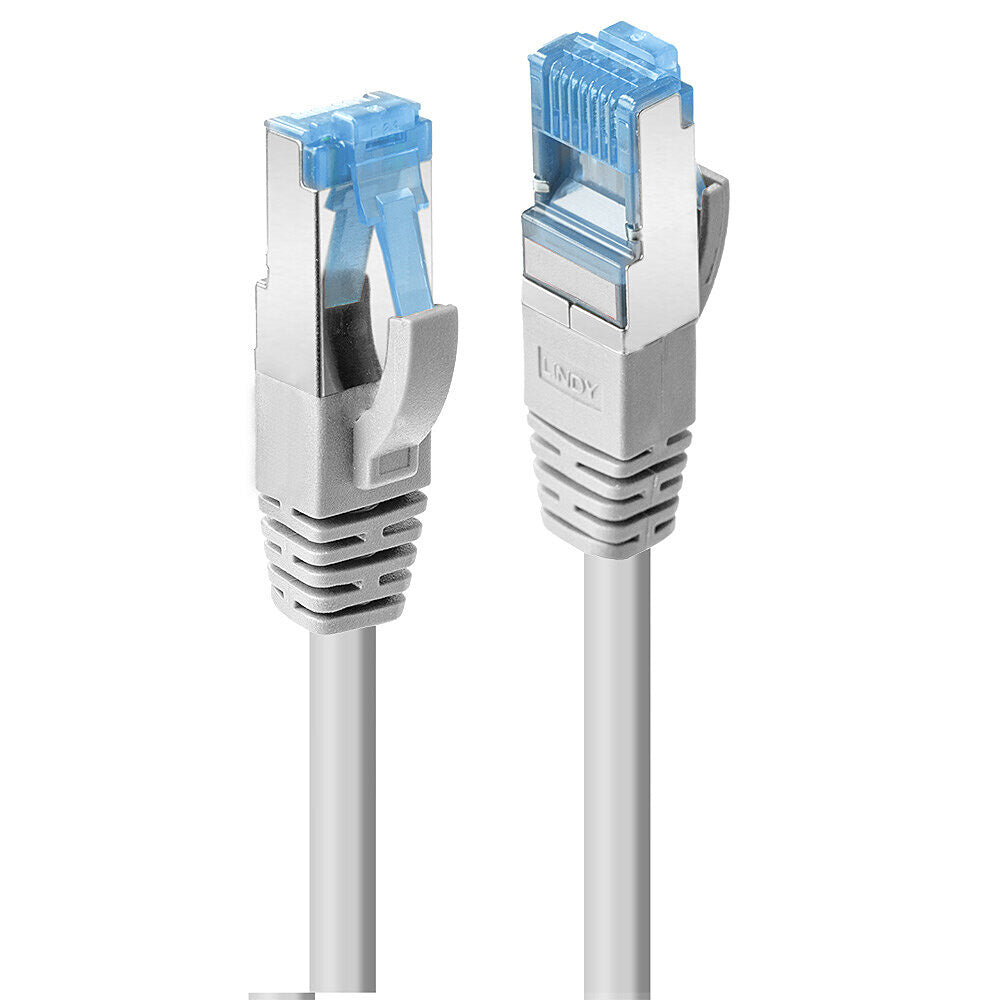

The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
The halogen-free sheath material of the LSZH cable makes the product suitable for use in public spaces with its low smoke emission and elimination of toxic halogen emissions.
Available lengths: 0.3m, 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m, 30m.
Available colours: Black, Blue, Grey, Red, White

Features
Cable length 5 m
Cable standard Cat6a
Cable shielding S/FTP (S-STP)
Product colour Grey
Connector 1 RJ-45
Connector 2 RJ-45
Connector 2 gender Male
Connector 1 gender Male
Connector contacts plating Nickel/Gold
Connector shielding Yes
Connector shield material Aluminium
Jacket material Low smoke zero halogen (LSZH)
Conductor material Copper
Cable class Ea
Cabling technology 10/100/1000Base-T(X)
AWG wire size 27
Data transfer rate 1000 Mbit/s
Frequency 500 MHz
Bend radius (min) 7.2 cm
Plug and Play Yes
Nominal attenuation 49.3dB/100m @ 500MHz
Certification RoHS, REACH, UL
Operational conditions
Operating temperature (T-T) -10 - 60 °C
Storage temperature (T-T) -20 - 75 °C
Weight & dimensions
Width 11.6 mm
Depth 21.5 mm
Outer diameter 6 mm
Connector 2 dimensions (WxDxH) 11.6 x 21.5 x 8.3 mm
Connector 1 dimensions (WxDxH) 11.6 x 21.5 x 8.3 mm
Packaging data
Quantity per pack 1 pc(s)
Package width 259 mm
Package depth 236 mm
Package height 20 mm
Package type Polybag
Technical details
Compliance certificates REACH, RoHS
Proposition 65 Yes
Logistics data
Harmonized System (HS) code 84733080
Products per master (outer) case 35 pc(s)
Other features
Connector(s) RJ45 Male to RJ45 Male
Cable diameter 6 mm
