StarTech.com 4-Port DisplayPort KVM Switch with Mouse Roaming and Multi-View / Picture-in-Picture, 4K 60Hz, USB 3.0 (5Gbps) Hub, Hotkey Control, TAA Compliant

STARTECH  |  SKU: P4AD122M-KVM-SWITCH  |  Condition: Brand New  |  Barcode: 0065030908481
£2,011.99
£1,961.99 Save £50.00 £2,011.99
£1,634.99 excluding VAT @20%
iFrame
StarTech 4-Port DisplayPort KVM Switch with Mouse Roaming and Multi-View / Picture-in-Picture, 4K 60Hz, USB 3.0 (5Gbps) Hub, TAA

Control up to four DisplayPort computers with mouse roaming, quad view, and picture-in-picture support

Streamline complex workflows by managing up to four DisplayPort computers from a single keyboard, mouse, and display. With support for true 4K 60 Hz (4:4:4) resolution, this multiview KVM delivers crisp text and precise visuals across Windows, macOS, and Linux workstations.

Multiview Monitoring

Maintain full awareness and react faster by viewing multiple systems at once. Flexible display modes including Quad-View, Picture-in-Picture (PiP), and Picture-by-Picture (PbP) let you monitor and compare the four sources.

Instant Switching With Continuous Video

Move seamlessly between systems using mouse roaming with zero latency and no screen blackout. Continuous video output keeps every system visible at all times, eliminating delays caused by switching or waiting for auto-scan cycles, reducing disruption in control rooms, industrial environments, and other time-sensitive operations.

Switch Your Way

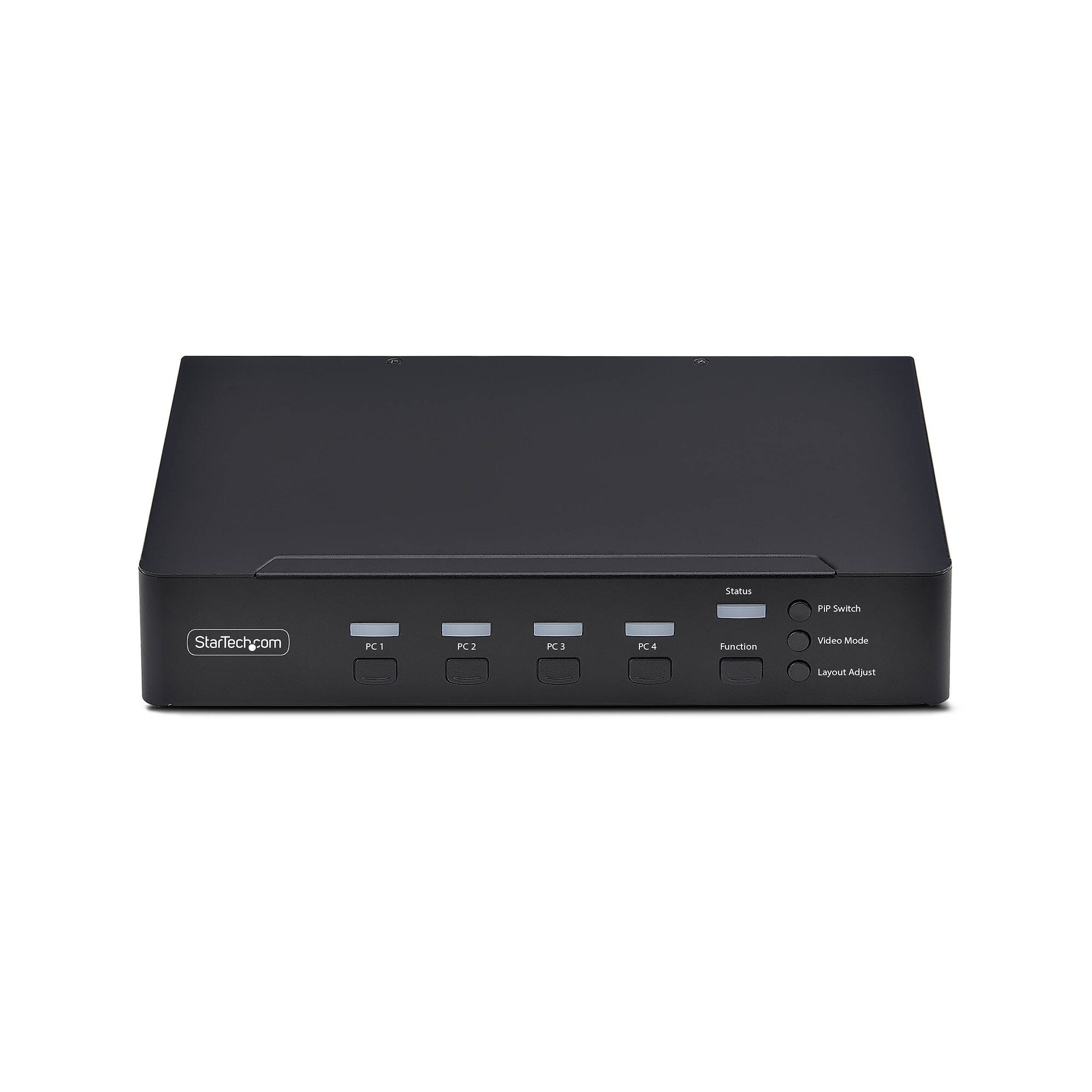

Adapt the KVM to your environment with multiple switching methods. Use front-panel buttons, keyboard hotkeys, mouse roaming, mouse side buttons, or serial control via RJ-11 or USB-C to support hands-on use, remote management, or automated workflows.

Built-In Dual Display Output

Mirror the KVM output to two displays simultaneously using DisplayPort and HDMI. Use a local desktop monitor for hands-on control while displaying the same view on a larger wall-mounted TV for monitoring or team visibility. This dual console output improves visibility, collaboration, and redundancy without requiring external splitters or additional hardware.

Ports & interfaces
Number of computers controlled 4
Keyboard port type USB
Mouse port type USB
Video port type DisplayPort
DisplayPorts quantity 4
DisplayPort version 1.2
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity 4
Console USB ports quantity 4
Console ports DisplayPort, USB A, USB C
Console DisplayPorts ports quantity 1
Console HDMI ports quantity 1
USB hub Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity 1
Audio connections Yes
Headphone outputs 5
RJ-11 ports quantity 1
DC-in jack Yes
Performance
HD type 4K Ultra HD
Maximum resolution 3840 x 2160 pixels
Daisy chain No
Design
Rack mounting No
Product colour Black
Housing material Steel, Aluminium
LED indicators Yes
Push button Yes
Hot keys Yes
Mean time between failures (MTBF) 130000 h
Display
Built-in display No
On Screen Display (OSD) No
Power
Power source DC
Input voltage 100 - 240 V
Input current 1 A
Output voltage 12 V
Output current 3 A
Compatible power plug types EU, UK, US, AU
External power adapter Yes
Power consumption (typical) 36 W
Sustainability
Compliance certificates Trade Agreements Act (TAA), Federal Communications Commission (FCC), RoHS
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -20 - 60 °C
Operating relative humidity (H-H) 0 - 80%
Weight & dimensions
Width 130 mm
Depth 220 mm
Height 40 mm
Weight 1.05 kg
Packaging data
Package width 365 mm
Package depth 235 mm
Package height 75 mm
Package weight 195 g
Packaging content
Rubber feet Yes
Manual Yes
Other features
IP control No
Logistics data
Master (outer) case width 495 mm
Master (outer) case length 385 mm
Master (outer) case height 265 mm
Products per master (outer) case 6 pc(s)
