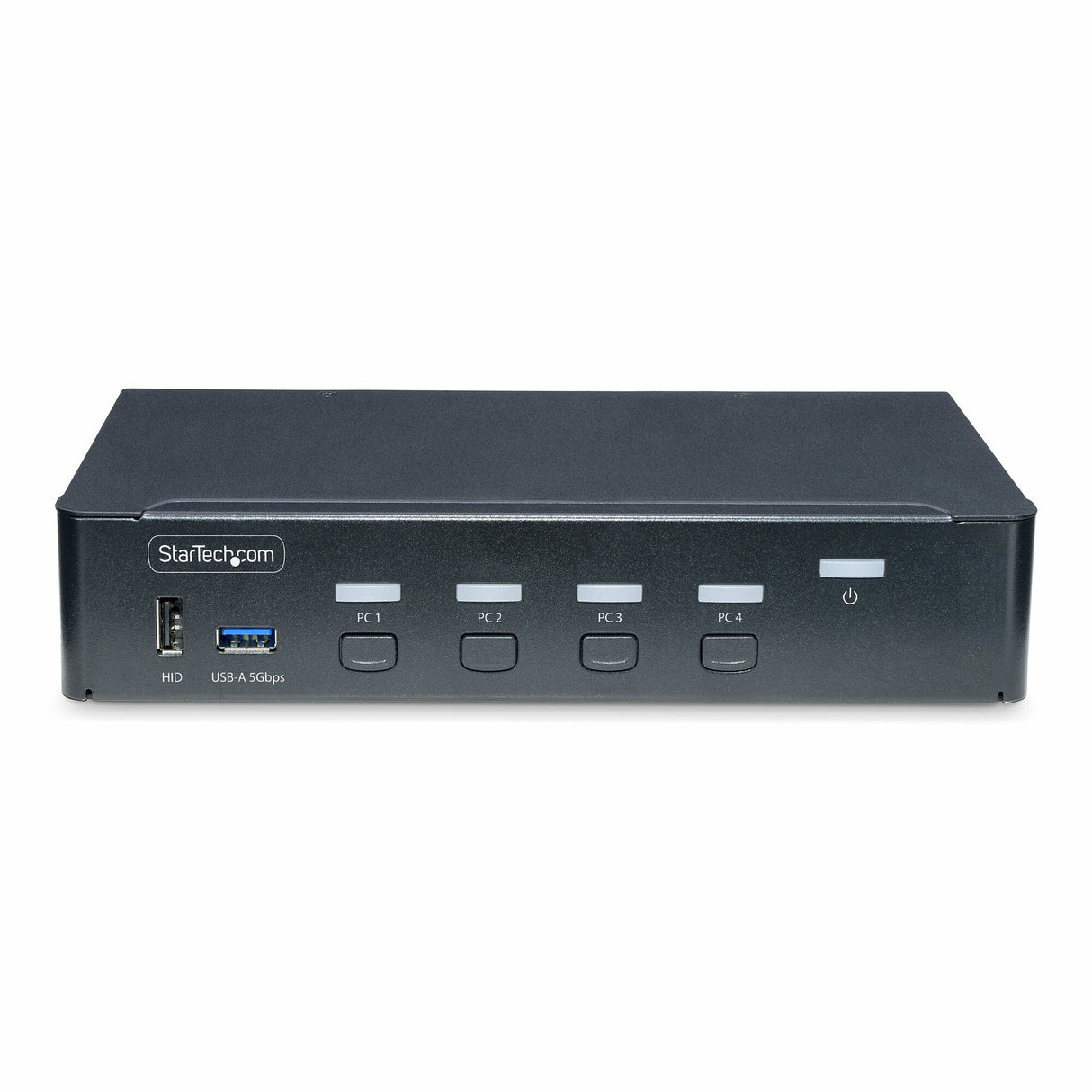

StarTech.com 4-Port DisplayPort KVM Switch, Single 4K 60Hz Monitor, 6x USB Ports, Push-Button & Hotkey Switching, DisplayPort 1.2, OS Independent, TAA Compliant
StarTech.com 4-Port DisplayPort KVM Switch, Single 4K 60Hz Monitor, 6x USB Ports, Push-Button & Hotkey Switching, DisplayPort 1.2, OS Independent, TAA Compliant is backordered and will ship as soon as it is back in stock.
StarTech.com 4-Port DisplayPort KVM Switch, Single 4K 60Hz Monitor,...
Share a mouse, keyboard, USB 5Gbps hub, audio output device, and 4K 60Hz DisplayPort display between four DisplayPort-enabled computers
This DisplayPort KVM Switch enables users to switch between four desktops equipped with USB-A and DisplayPort. It facilitates sharing a 4K 60Hz DisplayPort monitor, a keyboard, mouse, two USB 5Gbps devices, a stereo audio output device, and four USB 2.0 devices.
High-Resolution 4K 60Hz Video
This KVM supports resolutions up to 4K 60Hz, making it ideal for applications such as CAD/CAM, video editing, and content creation. In addition, its support for High Dynamic Range (HDR) enhances contrast, brightness, color, and overall vibrancy.
Customizable Switching
This universal KVM switch offers hotkey and push-button switching. Hotkeys allow independent switching of audio and video, enabling audio playback from one computer while controlling another. An audible buzzer confirms hotkey inputs, and LEDs provide visual status feedback for the selected host.
Universal Compatibility
The TAA-compliant KVM Switch offers universal compatibility and works with all operating systems, including Windows, macOS, ChromeOS, and Linux. The KVM provides BIOS/UEFI control and is compatible with all hardware platforms, including Intel, AMD, and Apple Silicon (M1/M2/M3).
Reliable Performance
The rugged metal case helps prevent electromagnetic interference (EMI). 8kV Air/6kV Contact ESD protection enhances the reliability and longevity of the KVM. The included set of rubber feet protect the work surface from scratches and keep KVM in place during operation.
The StarTech.com Advantage
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| Headphone outputs | 4 |
| Audio connections | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 2 |
| USB hub | Yes |
| Console DisplayPorts ports quantity | 1 |
| Console ports | 3.5mm headphone, DisplayPort, USB A |
| Console USB ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 4 |
| DisplayPort version | 1.2 |
| DisplayPorts quantity | 4 |
| Video port type | DisplayPort |
| Mouse port type | USB |
| Keyboard port type | USB |
| Number of computers controlled | 4 |
| Performance | |
|---|---|
| HDCP version | 1.4 |
| Chipset | GL3523 |
| Audio channels | 2.0 |
| Plug and Play | Yes |
| HDCP | Yes |
| Scan interval | 3,8,15,30 s |
| Data transfer rate (max) | 5 Gbit/s |
| Maximum resolution | 4096 x 2160 pixels |
| HD type | 4K Ultra HD |
| Design | |
|---|---|
| Mean time between failures (MTBF) | 130000 h |
| Hot keys | Yes |
| Push button | Yes |
| LED indicators | Yes |
| Housing material | Metal |
| Product colour | Black |
| Rack mounting | Yes |
| Display | |
|---|---|
| On Screen Display (OSD) | No |
| Built-in display | No |
| Power | |
|---|---|
| Power consumption (typical) | 36 W |
| Power plug type | Type M |
| Compatible power plug types | AU, EU, UK, US |
| Output current | 3 A |
| Input current | 1 A |
| Input voltage | 100 - 240, 12 V |
| Power source | DC |
| Sustainability | |
|---|---|
| Sustainability compliance | Yes |
| Compliance certificates | RoHS, Trade Agreements Act (TAA) |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 0 - 80% |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
|---|---|
| Weight | 1 kg |
| Height | 44 mm |
| Depth | 220 mm |
| Width | 130 mm |
| Packaging data | |
|---|---|
| Package weight | 1.2 kg |
| Package height | 87 mm |
| Package depth | 410 mm |
| Package width | 212 mm |
| Packaging content | |
|---|---|

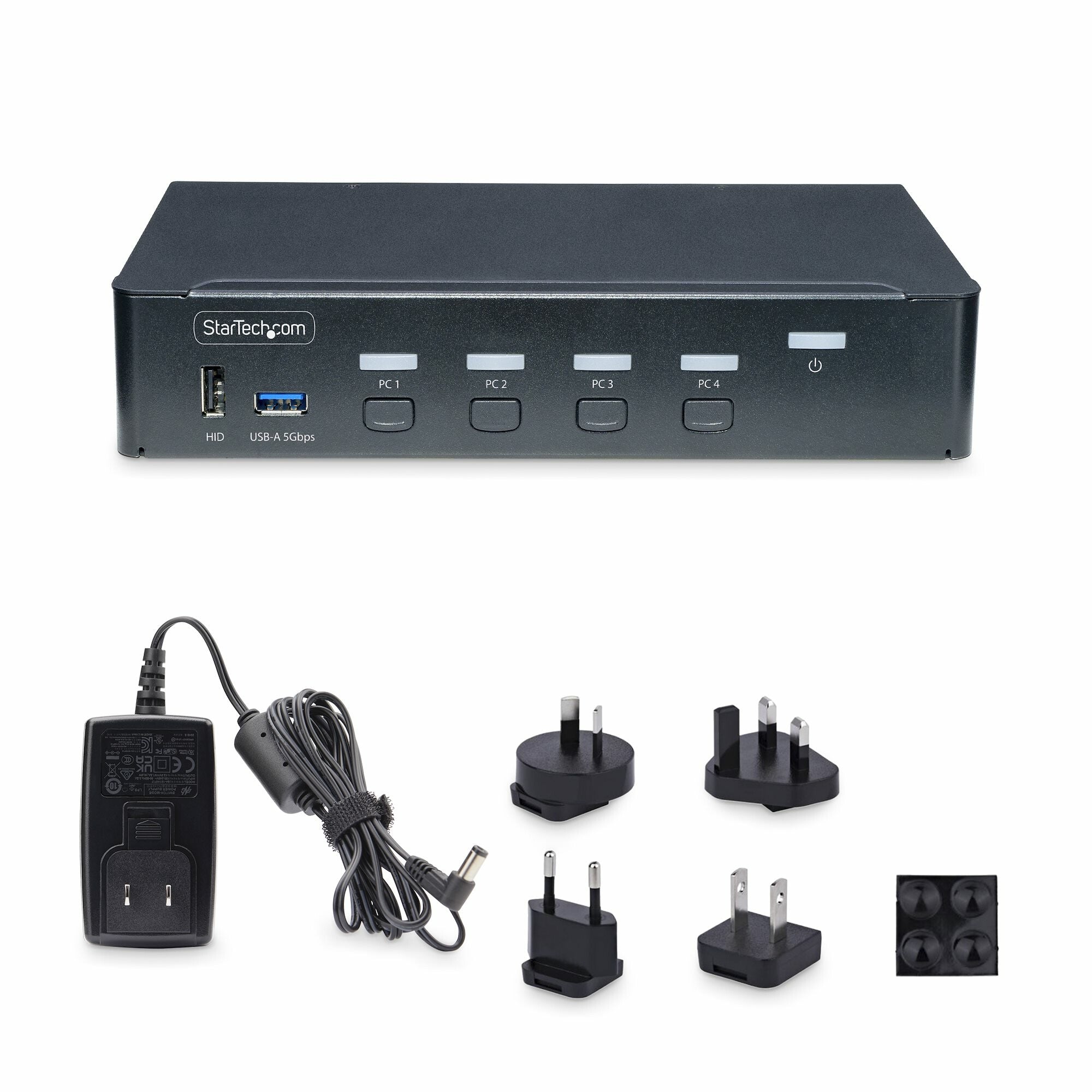

| Quick installation guide | Yes |
| Rubber feet | Yes |
| Other features | |
|---|---|
| Display resolution at frequency | 3840x2160 @ 60hz3840x2160 @ 30hz2560x1600 @ 60hz2560x1600 @ 30hz2560x1440 @ 60hz2048x1536 @ 60hz2048x1536 @ 30hz1920x1440 @ 60hz1920x1200 @ 60hz1920x1080 @ 60hz1680x1050 @ 60hz1600x1200 @ 60hz1600x1024 @ 60hz1600x900 @ 60hz1440x1080 @ 60hz1366x768 @ 60hz1360x768 @ 60hz1280x1024 @ 60hz1280x960 @ 60hz1280x800 @ 60hz1280x768 @ 60hz1280x720 @ 60hz1176x664 @ 60hz1152x864 @ 60hz1024x768 @ 60hz800x600 @ 60hz |
| IP control | No |
| Colour depth | 10 bit |
| Logistics data | |
|---|---|
| Products per master (outer) case | 6 pc(s) |
| Master (outer) case height | 258 mm |
| Master (outer) case length | 433 mm |
| Master (outer) case width | 545 mm |
-
