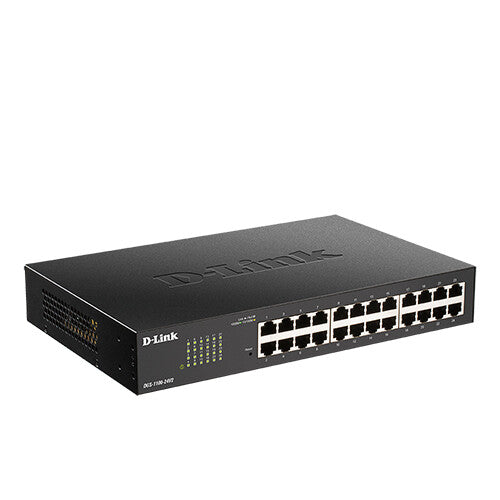

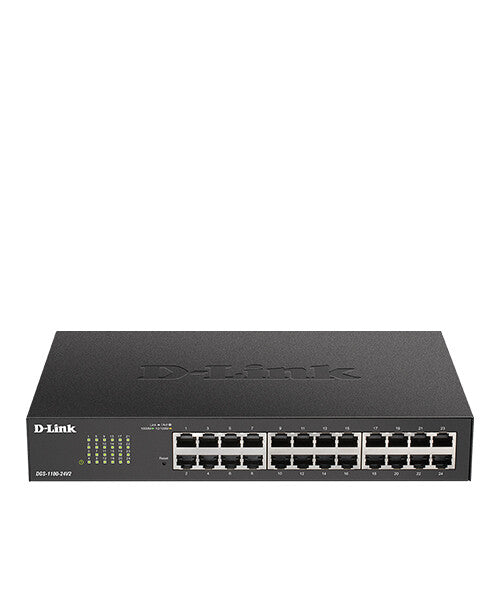

D-Link 24-Port Gigabit Smart Managed Switch
Powerful Switching for your Business
The DGS-1100 Series is a range of powerful switches that offer a lot of bang for your buck. They are great for busy SMBs who expect a lot of their network, including support for surveillance and VoIP. They are packed with traffic management & optimization features that keep your network congestion free. Meanwhile, management tools are flexible and intuitive, making your life easier.
Easy to Use & Easy to Install
D-Link Network Assistant Utility (DNA) can quickly discover and do initial setup for D-Link Networking devices such as the DGS-1100 Series, which greatly improves efficiency for solution deployment.
VLANs: Stronger Security & Better Traffic Management
Relatively easy to set up, VLANs can be a big boon for your network. They can isolate sensitive areas of your network, keeping them safe from those with malicious intent, or keeping bandwidth open for latency-sensitive traffic such as VoIP.
For Voice
If VoIP calls make up a large slice of your network usage, separating them onto their own VLAN can ensure they get the bandwidth they need for smooth conversations without lag or jitters.
For Surveillance
If you have surveillance cameras and devices attached to your network, putting them onto their own VLAN keeps surveillance footage running seamlessly. At the same time, it can help prevent a variety of malicious attacks by restricting access to different network areas.
Green Technology
D-Link Green technology enables the DGS-1100 Smart Managed Switches to save power without sacrificing performance. Most of the models in the series utilize a fanless design, for silent and energy-efficient operation. All are IEEE 802.3az-compliant and feature Link Status detection and Time-Based PoE.
| Management features | |
|---|---|
| System event log | Yes |
| Web-based management | Yes |
| Switch layer | L2 |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Network | |
|---|---|
| Number of VLANs | 4094 |
| Virtual LAN features | Port-based VLAN, Voice VLAN |
| VLAN support | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| Head-of-line (HOL) blocking | Yes |
| Auto MDI/MDI-X | Yes |
| Port mirroring | Yes |
| Networking standards | IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x |
| Data transmission | |
|---|---|
| Packet buffer memory | 4.1 MB |
| Jumbo frames | 9216 |
| Jumbo frames support | Yes |
| Number of queues | 4 |
| Store-and-forward | Yes |
| Forwarding rate | 35.71 Mpps |
| Switching capacity | 48 Gbit/s |
| MAC address table | 8000 entries |
| Security | |
|---|---|
| Security algorithms | SNMP, SSL/TLS |
| Queue scheduling algorithms | SPQ, Weighted Round Robin (WRR) |
| IGMP entries | 64 |
| IGMP snooping | Yes |
| DHCP features | DHCP client |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| Design | |
|---|---|
| Certification | RoHS 6cUL, CE LVD, CB, BSMI, CCC |
| Electromagnetic compatibility | FCC A, CE A, VCCI A, C-Tick, BSMI, CCC |
| LED indicators | Yes |
| Product colour | Black |
| Form factor | 1U |
| Rack mounting | Yes |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 424762 h |
| Noise level | 0 dB |
| Flash memory | 16 MB |
| Processor frequency | 125 MHz |
| Built-in processor | Yes |
| Power | |
|---|---|
| Power consumption (max) | 15.9 W |
| Power consumption (typical) | 4.5 W |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | No |
| Operational conditions | |
|---|---|
| Heat dissipation | 54.3 BTU/h |
| Operating altitude | 0 - 2000 m |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | -5 - 50 °C |
| Weight & dimensions | |
|---|---|
| Weight | 1.47 kg |
| Height | 44 mm |
| Depth | 180 mm |
| Width | 280 mm |
| Packaging data | |
|---|---|
| Rack mount kit | Yes |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
-
