StarTech.com 2 Port Quad Monitor DisplayPort KVM Switch - 4K 60Hz UHD HDR - Desktop 4K DP 1.2 KVM with 2 Port USB 3.0 Hub (5Gbps) & 4x USB 2.0 HID Ports, Audio - Hotkey Switching - TAA
StarTech.com 2 Port Quad Monitor DisplayPort KVM Switch - 4K 60Hz UHD HDR - Desktop 4K DP 1.2 KVM with 2 Port USB 3.0 Hub (5Gbps) & 4x USB 2.0 HID Ports, Audio - Hotkey Switching - TAA is backordered and will ship as soon as it is back in stock.
StarTech.com 2 Port Quad Monitor DisplayPort KVM Switch - 4K 60Hz U...
KVM with USB | Quad Monitor | TAA Compliant | USB 3.0 Hub | DisplayPort 1.2 | Digital & Analog Audio
This 2-port KVM switch combines 4K (60Hz) digital display capabilities with control of two connected computers.
4K 60Hz Picture and Full Audio Support
The DisplayPort KVM switch supports resolutions up to 4K at 60Hz and drives four large monitors at the full 4K resolution. Includes USB emulation for faster switching times to avoid disrupting your workflow. With support for digital audio (with supporting displays and sources) and separate 3.5 mm stereo audio, the DisplayPort 1.2 KVM switch delivers full audio compatibility.
Integrated USB Hub
The integrated USB 3.0 hub shares two peripherals (in addition to keyboard and mouse) among attached computers as if they were directly connected to your host computer, eliminating the cost of duplicate devices such as printers and scanners.
Windows, Mac & Linux Compatible
While supporting Windows, this DP KVM switch is also compatible with Mac and Linux operating systems.
Easy to Operate

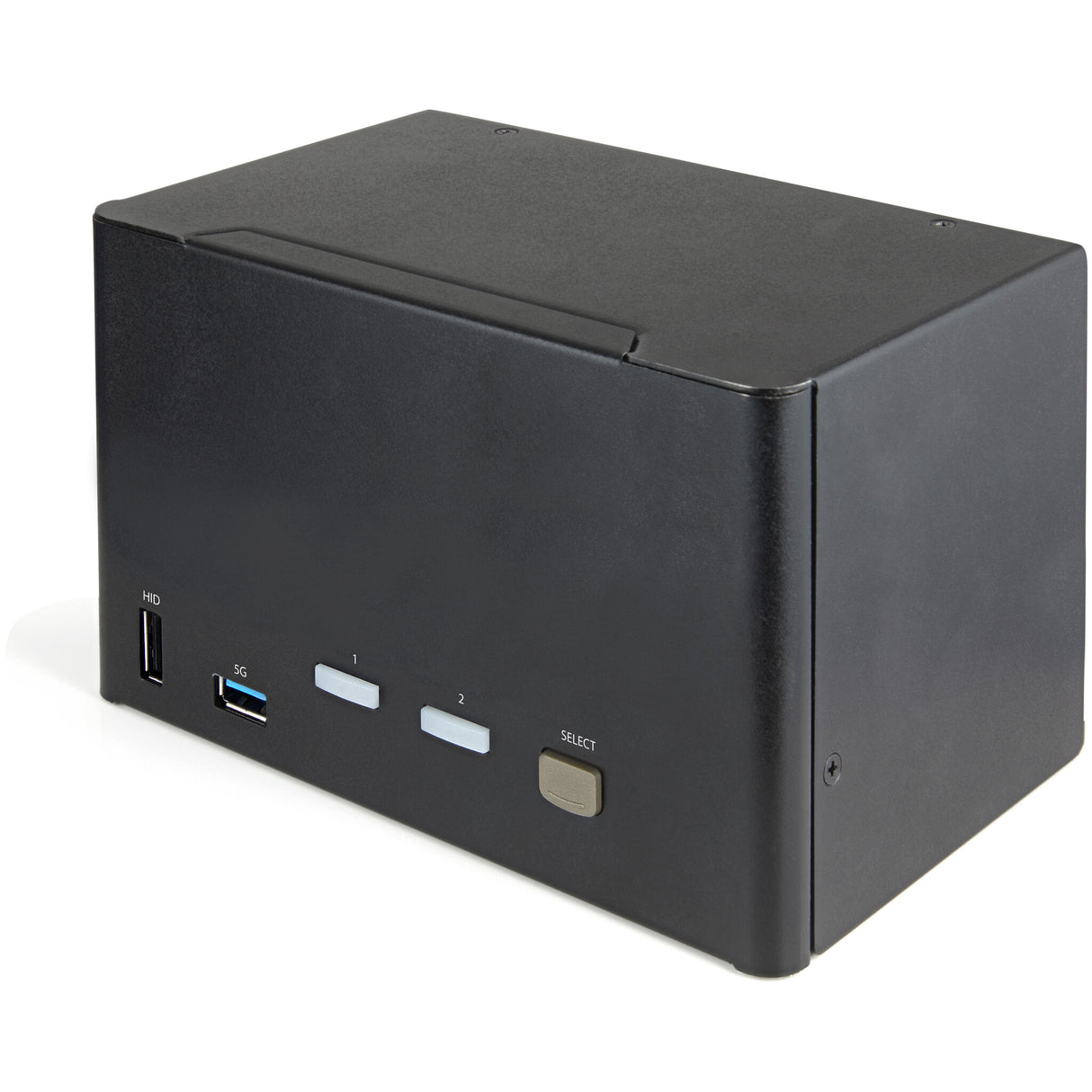

The front-panel pushbuttons make it easy to switch between systems and activate the auto-scan feature. The hotkey functionality makes accessing each system quickly, while a buzzer sound confirms the switch.
StarTech.com offers a wide selection of high-quality KVM switches and KVM-related products to help you access your systems more efficiently without the expense and clutter of extra keyboards, mice, and monitors. This 2-port DisplayPort KVM switch is backed by a 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| Headphone outputs | 3 |
| Audio connections | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 2 |
| USB hub | Yes |
| Console ports | 3.5mm headphone, 3.5mm mic, DisplayPort, USB A |
| Console USB ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 2 |
| DisplayPort version | 1.2 |
| DisplayPorts quantity | 12 |
| Video port type | DisplayPort |
| Mouse port type | USB |
| Keyboard port type | USB |
| Number of computers controlled | 2 |
| Performance | |
|---|---|
| Number of displays supported | 4 |
| Chipset | Genesys Logic - GL3523 |
| Audio channels | 5.1 |
| Daisy chain | No |
| HDCP | Yes |
| Scan interval | 3,8,15,30 s |
| Data transfer rate (max) | 5 Gbit/s |
| Video bandwidth | 60 Hz |
| Maximum resolution | 3840 x 2160 pixels |
| HD type | 4K Ultra HD |
| Design | |
|---|---|
| Certification | CE, FCC, RoHS |
| Mean time between failures (MTBF) | 156000 h |
| Hot keys | Yes |
| Push button | Yes |
| LED indicators | Yes |
| Housing material | Steel |
| Product colour | Black |
| Rack mounting | No |
| Display | |
|---|---|
| On Screen Display (OSD) | No |
| Built-in display | No |
| Power | |
|---|---|
| Power consumption (typical) | 36 W |
| External power adapter | Yes |
| Power plug type | Type M |
| Compatible power plug types | EU, JP, UK, US |
| Output current | 3 A |
| Output voltage | 12 V |
| Input current | 1 A |
| Input voltage | 100 - 240 V |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 0 - 80% |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
|---|---|
| Weight | 959 g |
| Height | 43 mm |
| Depth | 438 mm |
| Width | 180 mm |
| Packaging data | |
|---|---|
| Package height | 100 mm |
| Package depth | 250 mm |
| Package width | 185 mm |
| Packaging content | |
|---|---|
| Rubber feet | Yes |
| Manual | Yes |
| Other features | |
|---|---|
| IP control | No |
| Logistics data | |
|---|---|
| Products per master (outer) case | 6 pc(s) |
| Master (outer) case height | 275 mm |
| Master (outer) case length | 395 mm |
| Master (outer) case width | 325 mm |
| Harmonized System (HS) code | 85176200 |
-
