StarTech.com 2 Port DVI VGA Dual Monitor KVM Switch USB with Audio ...
Share a keyboard and mouse as well as 1 VGA and 1 DVI displays/monitors between 2 multimedia computers

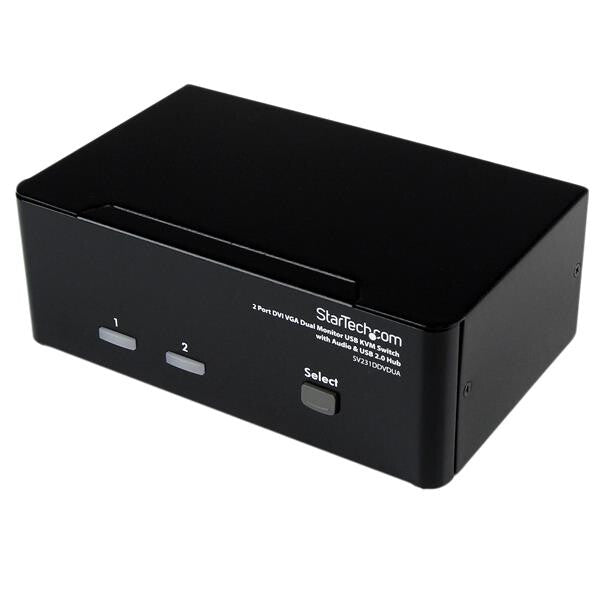

The SV231DDVDUA 2-port Dual Monitor KVM Switch (DVI+VGA) offers a complete multimedia switching solution, letting users control two Dual Display computers using a single USB mouse and keyboard peripheral set.
With support for high-resolution video interfaces, this dual view KVM switch provides one VGA (analog) and one DVI-I port per computer connection, as well as audio switching capability between connected computers.
Delivering versatility for virtually any application, the DVI/VGA KVM switch features an integrated 2-port USB hub that allows connected USB 2.0 peripherals to be shared between connected computers, eliminating the need to purchase duplicate peripherals.
Suitable for any workspace, the dual monitor KVM switch offers a compact desktop KVM design and features a rugged metal chassis that helps ensure durable performance.
Please Note: This KVM switch supports DVI-D (digital) signaling only and it is recommended wherever possible to use DVI-D cabling across all PC to KVM and KVM to Console connections to ensure proper function. Please contact technical support if you require assistance identifying the proper cables.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
- High-resolution DVI and VGA ports support almost any dual display scenario; even with one DVI + VGA PC, and one dual DVI PC, an adapter can be used with this KVM to support your configuration
- Integrated USB 2.0 hub and Mic/Audio ports allow the user to have full multimedia control of two computers and share USB peripherals eliminating the expense of duplicate devices
- Absolutely no software or drivers required providing a completely OS independent KVM solution
| Ports & interfaces | |
|---|---|
| Number of microphone inputs | 3 |
| Headphone outputs | 3 |
| Audio connections | Yes |
| USB connector type | USB Type-A |
| USB 2.0 ports quantity | 4 |

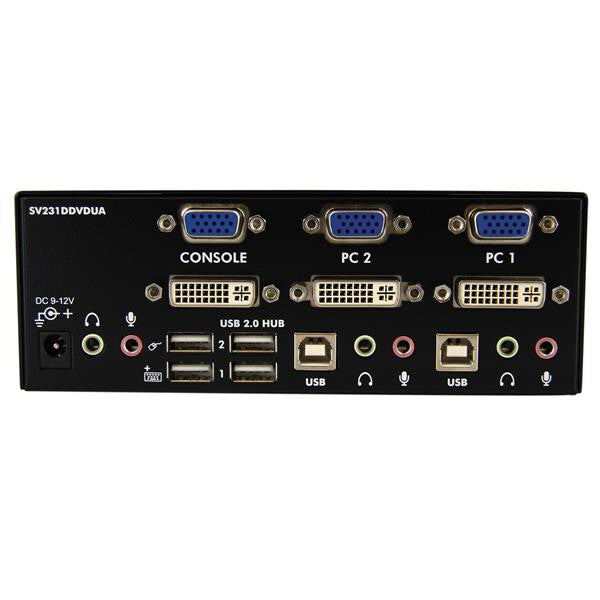

| Console ports | 3.5mm headphone, DVI-I, VGA (D-Sub) |
| Video port type | VGA/DVI-I |
| Mouse port type | USB |
| Keyboard port type | USB |
| Number of computers controlled | 2 |
| Performance | |
|---|---|
| Number of users | 1 user(s) |
| Daisy chain | No |
| HDCP | Yes |
| DDC2B support | Yes |
| Maximum resolution | 1920 x 1200 pixels |
| Maximum digital resolution | 1920 x 1200 pixels |
| HD type | WUXGA |
| Design | |
|---|---|
| Certification | CE, FCC |
| Mean time between failures (MTBF) | 64691 h |
| LED indicators | Power |
| Housing material | Steel |
| Product colour | Black |
| Rack mounting | No |
| Display | |
|---|---|
| Built-in display | No |
| Power | |
|---|---|
| Power consumption (typical) | 18 W |
| External power adapter | Yes |
| Power plug type | Type M |
| Compatible power plug types | AU, EU, UK, US |
| Output current | 1.5 A |
| Output voltage | 12 V |
| Input current | 0.8 A |
| Input voltage | 100-240 V |
| Sustainability | |
|---|---|
| Compliance certificates | RoHS |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 0 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
|---|---|
| Weight | 750 g |
| Height | 57 mm |
| Depth | 163 mm |
| Width | 160 mm |
| Packaging data | |
|---|---|
| Package weight | 1.29 kg |
| Package height | 72 mm |
| Package depth | 199 mm |
| Package width | 295 mm |
| Packaging content | |
|---|---|
| AC adapter included | Yes |
| Rubber feet | Yes |
| Manual | Yes |
| Other features | |
|---|---|
| Audio support | Yes |
| IP control | No |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176200 |
-
