Lindy 2 Port Dual Head HDMI 4K60, USB 3.0 KVM Switch

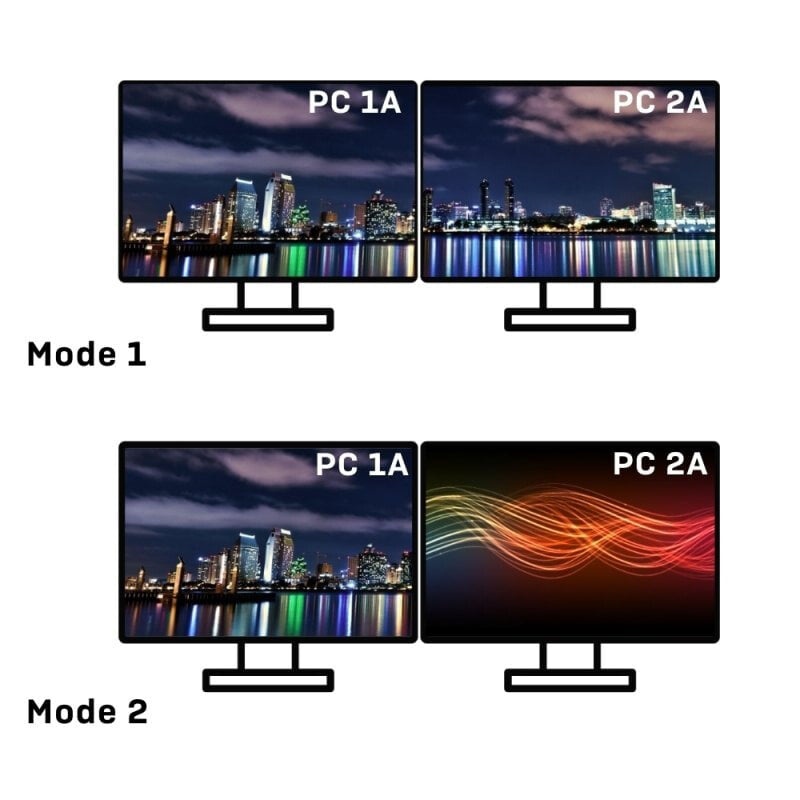

This KVM Switch can share 2 displays and USB devices between 2 computers in different modes: Single PC mode with both video showing the dual head input from one source; Dual PC mode with the first display fixed on the first PC1 input and the second display fixed on the first PC2 input.
Switching methods are:
- Front panel buttons
- Hotkeys (with on/off button)
- IR remote control
- RS-232 commands
Support for resolutions up to 4K Ultra HD 60Hz ensures the highest image quality, perfect for demanding graphical content in gaming setups, video editing or dual system control workstations. The additional support for (HDR) High-Dynamic Range ensures video content can be seen with enhanced brightness, greater contrasts and a much wider colour gamut. The audio output port also allow users to connect headphones or speakers to add immersive 2CH audio.
USB ports allow the connection of mouse, keyboard and additional USB 3.2 Gen 1 devices such as web cam, flash drive, printer, etc. Auto-switch function enables automatic switching between connected PCs and DDM function ensures that all connected USB devices retain their settings and functionality when switching between PCs ensuring the maximum compatibility.
With advanced features and different switching methods, this switch is the perfect solution for professional KVM installations, plug and play presentations and home offices.
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| Headphone outputs | 2 |
| Audio connections | Yes |
| USB connector type | USB Type-A, USB Type-B |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 4 |
| Console ports | 3.5mm headphone, HDMI, USB A |
| Console USB ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 2 |
| HDMI ports quantity | 4 |
| HDMI version | 2.0 |
| Video port type | HDMI |
| Mouse port type | USB |
| Keyboard port type | USB |
| Number of computers controlled | 4 |
| Performance | |
|---|---|
| HDCP version | 2.3 |
| HDCP | Yes |
| Video bandwidth | 60 Hz |
| Maximum resolution | 4096 x 2160 pixels |
| HD type | 4K Ultra HD |
| Design | |
|---|---|
| Certification | CE, UKCA, FCC, RoHS, REACH & California Proposition 65 |
| Hot keys | Yes |
| Push button | Yes |
| LED indicators | Status |
| Housing material | Metal |
| Product colour | Black |
| Rack mounting | No |
| Display | |
|---|---|
| Built-in display | No |
| Power | |
|---|---|
| Output current | 1 A |
| Input voltage | 12 V |
| Power source | DC |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 20 - 90% |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
|---|---|
| Weight | 609 g |
| Height | 30 mm |
| Depth | 100 mm |
| Width | 220 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 1.61 kg |
| Package height | 115 mm |
| Package depth | 185 mm |
| Package width | 300 mm |
| Packaging content | |
|---|---|
| Quick installation guide | Yes |
| Rack mount kit | Yes |
| Remote control included | Yes |
| Manual | Yes |
| Cables included | DC, HDMI, USB Type-A to Micro USB-B |
| Other features | |
|---|---|
| Warranty period | 2 year(s) |
-
