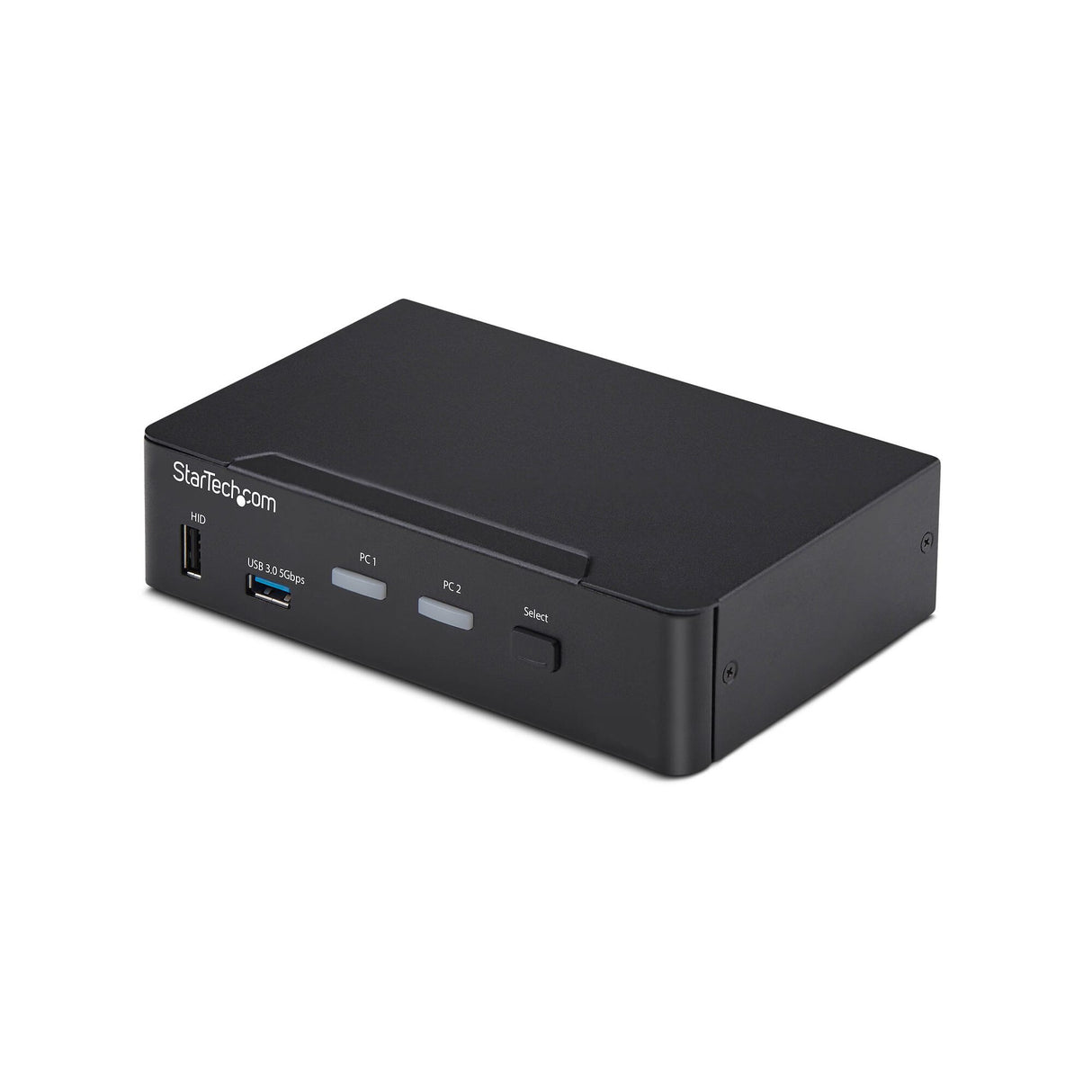

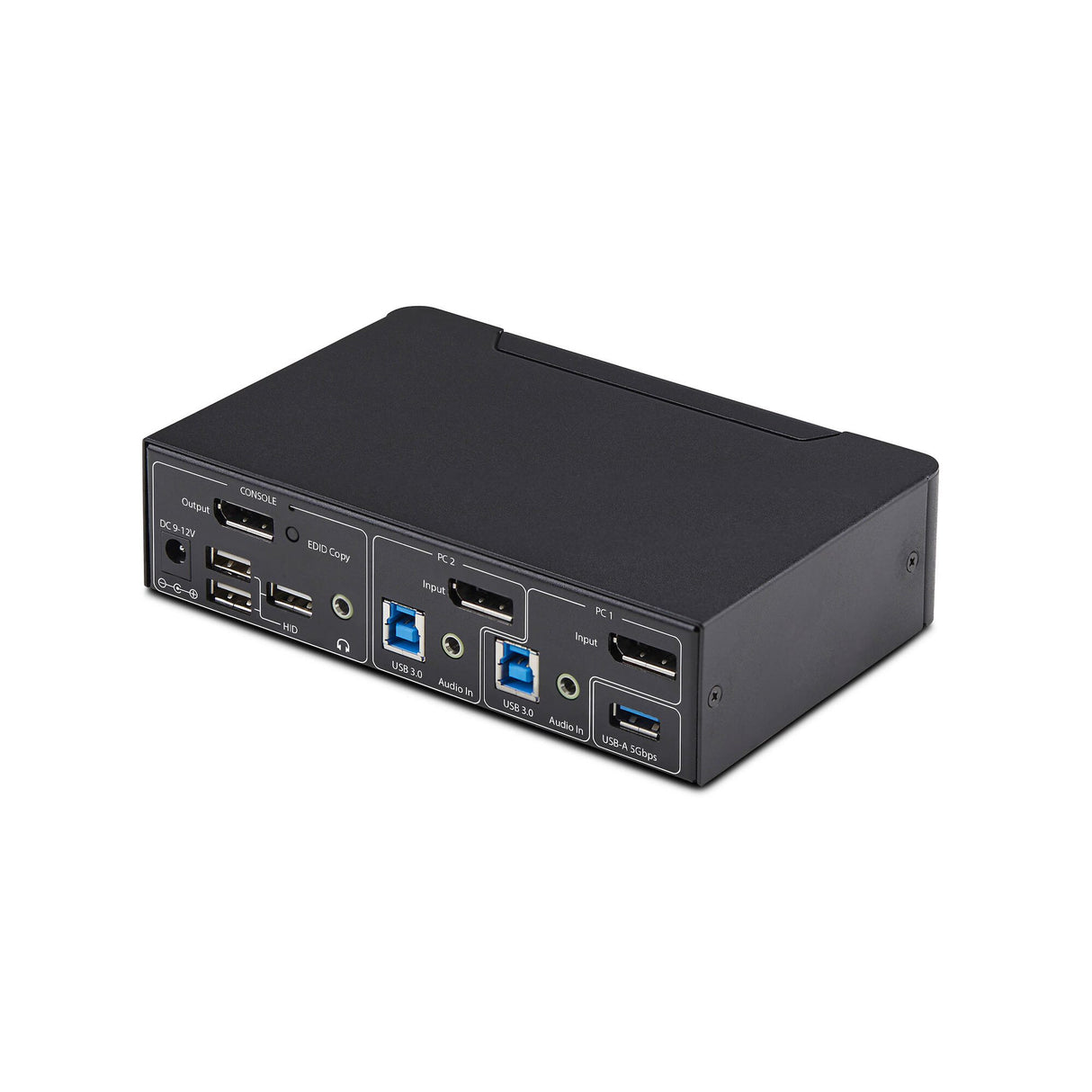

StarTech.com 2-Port DisplayPort KVM Switch, 4K 60Hz, DP 1.2, EDID Management, 2-Port USB 3.0 Hub, 4x USB HID Ports, TAA Compliant

STARTECH  |  SKU: P2AD122-KVM-SWITCH  |  Condition: Brand New  |  Barcode: 0065030906548

MORE INFO

£418.99
£349.16 excluding VAT @20%
iFrame
StarTech.com 2-Port DisplayPort KVM Switch, 4K 60Hz, DP 1.2, HDCP 1.4, EDID Management, 2-Port USB 3.0 Hub, TAA Compliant

Share a mouse, keyboard, USB 5Gbps hub, and 4K 60Hz DisplayPort display between two DisplayPort-enabled computers, featuring EDID Emulation and HDCP engine

This DisplayPort KVM Switch enables users to switch between two desktops equipped with USB-A and DisplayPort. It allows sharing of a 4K 60Hz DisplayPort monitor, a keyboard, mouse, two USB 5Gbps devices, a stereo audio output device, and two additional USB 2.0 devices.

EDID Control for Display Compatibility

The P2AD122-KVM-SWITCH ensures a frictionless switching experience with 4K 60Hz clarity and HDCP-protected content playback. Advanced EDID management and emulation maintain monitor settings across sources, preventing resolution drops, desktop reshuffling, or blank screens when switching. IT teams save time troubleshooting display mismatches, while end-users enjoy uninterrupted workflows for CAD, content creation, and high-end editing.

Customizable Switching

This universal KVM switch offers hotkey and push-button switching. Hotkeys allow independent switching of audio and video, enabling audio playback from one computer while controlling another. An audible buzzer confirms hotkey inputs, and LEDs provide visual status feedback for the selected host.

No Drivers or Software Required

The TAA-compliant KVM Switch offers universal compatibility and works with all operating systems, including Windows, macOS, ChromeOS, and Linux. The KVM provides BIOS/UEFI control and is compatible with all hardware platforms, including Intel, AMD, and Apple Silicon (M-Series).

Reliable Performance

The rugged metal case helps prevent electromagnetic interference (EMI). 4kV Air/4kV Contact ESD protection enhances the reliability and longevity of the KVM. The included set of rubber feet protect the work surface from scratches and keep KVM in place during operation.

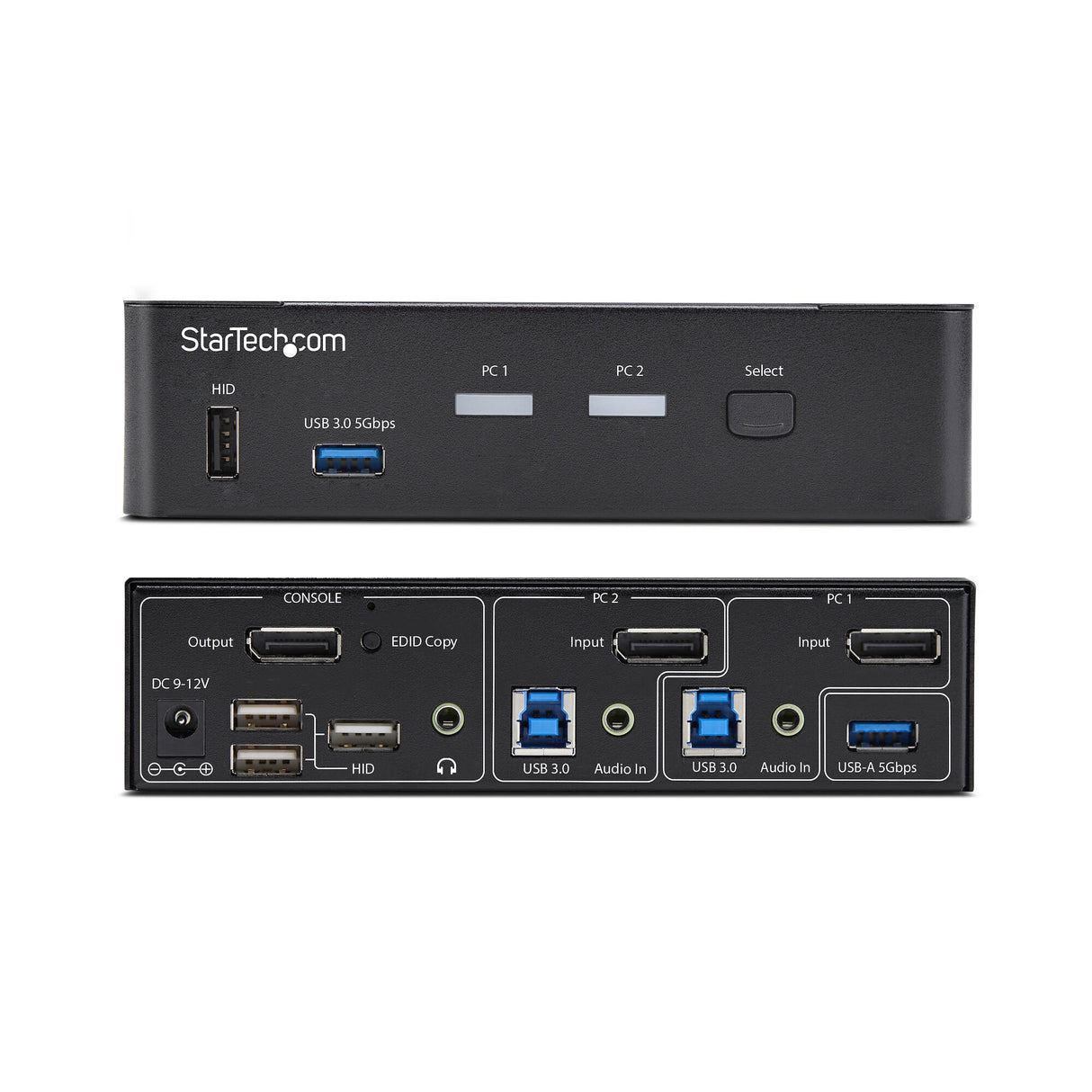

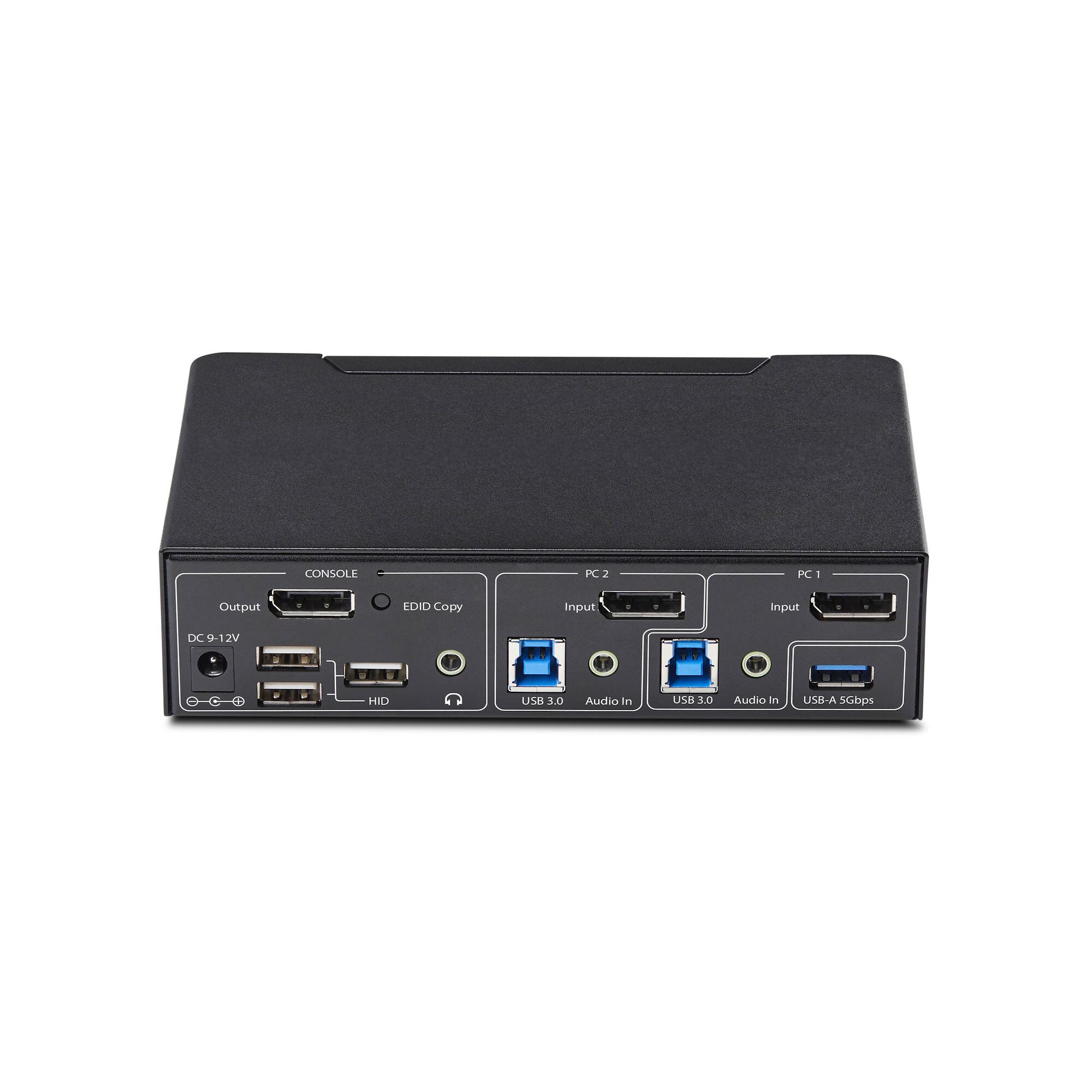

Ports & interfaces
DC-in jack Yes
Number of microphone inputs 2
Audio connections Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity 2
USB hub Yes
Console DisplayPorts ports quantity 1
Console ports 3.5mm headphone, DisplayPort, USB A
Console USB ports quantity 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity 2
DisplayPort version 1.2
DisplayPorts quantity 2
Video port type DisplayPort
Mouse port type USB
Keyboard port type USB
Number of computers controlled 2
Performance
Scan interval 3,8,15,30 s
Data transfer rate (max) 5 Gbit/s
Maximum resolution 3840 x 2160 pixels
HD type 4K Ultra HD
Design
Mean time between failures (MTBF) 130000 h
Hot keys Yes
Push button Yes
LED indicators Yes
Maximum cable length 3 m
Housing material Steel
Product colour Black
Rack mounting No
Display
On Screen Display (OSD) No
Built-in display No
Power
Power consumption (typical) 36 W
Power plug type Type M
Compatible power plug types AU, EU, UK
Output current 3 A
Input current 1 A
Input voltage 100 - 240 V
Power source DC
Sustainability
Compliance certificates Federal Communications Commission (FCC), RoHS, Trade Agreements Act (TAA)
Operational conditions
Operating relative humidity (H-H) 0 - 80%
Storage temperature (T-T) -20 - 60 °C
Operating temperature (T-T) 0 - 40 °C
Weight & dimensions
Weight 640 g
Height 40 mm
Depth 160 mm
Width 100 mm
Packaging data
Package height 89 mm
Package depth 184 mm
Package width 238 mm
Packaging content
AC adapter included Yes
Rubber feet Yes
Other features
IP control No
Logistics data
Products per master (outer) case 6 pc(s)
Master (outer) case height 300 mm
Master (outer) case length 257 mm
Master (outer) case width 397 mm
