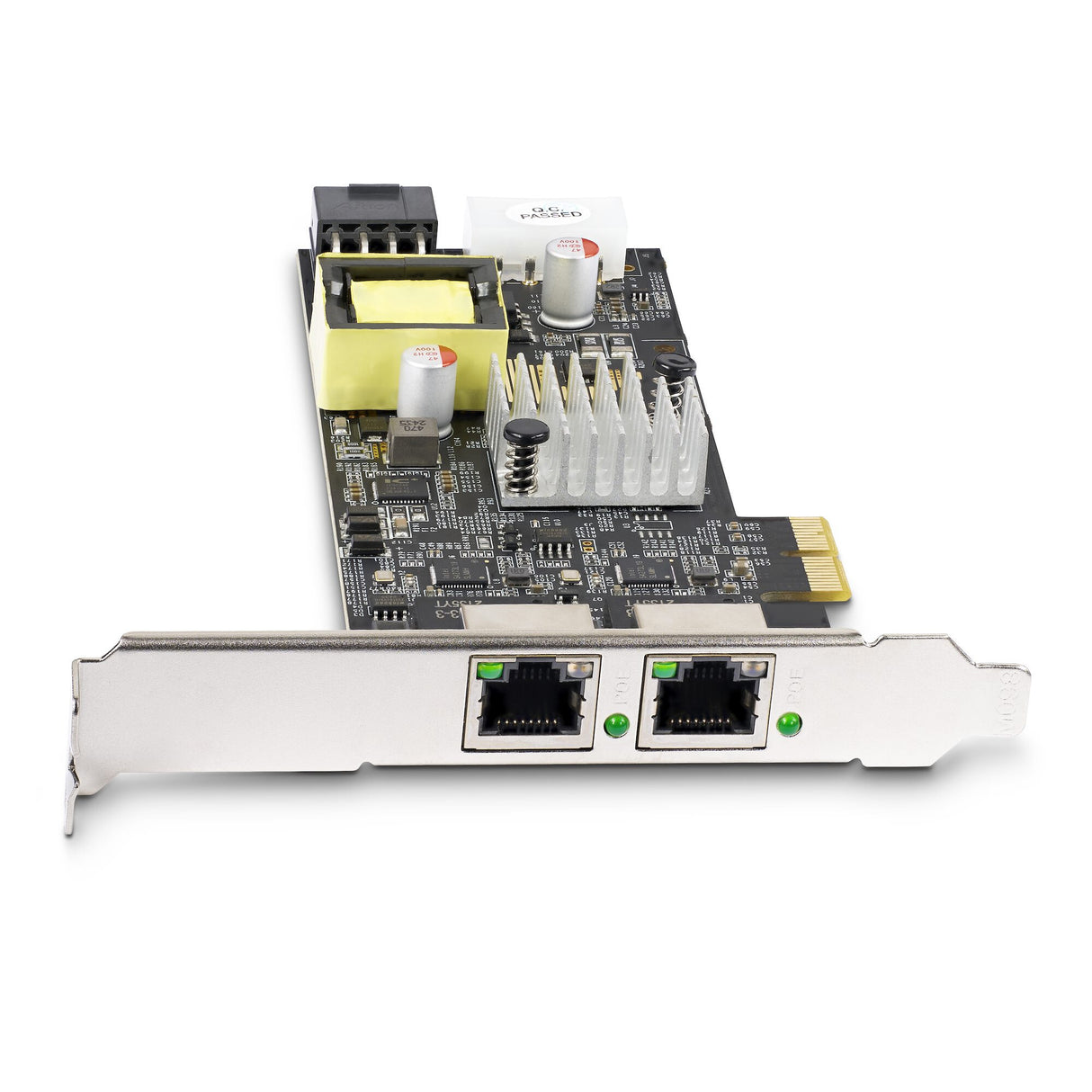

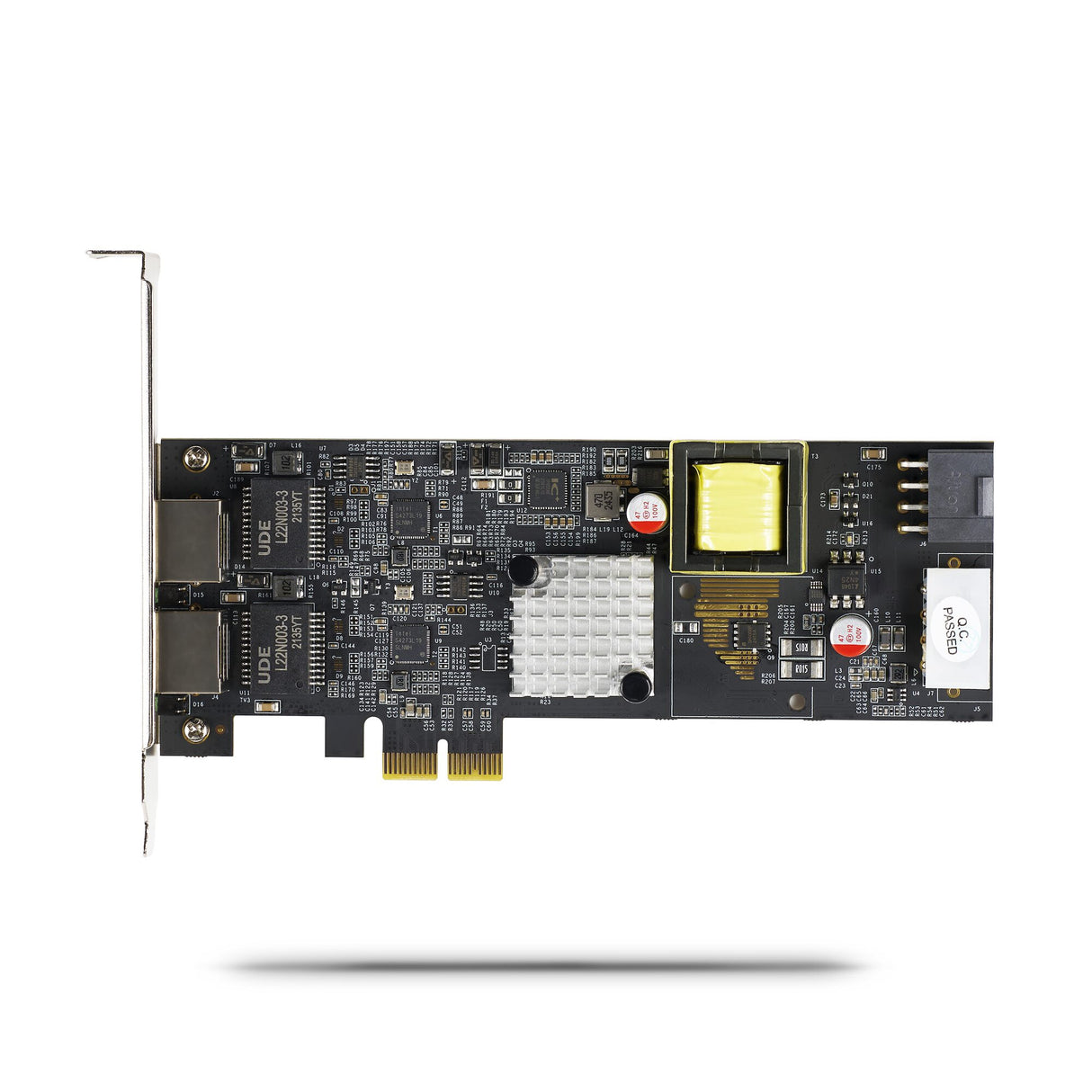

StarTech.com 2-Port 2.5Gbps NBASE-T PoE Network Card, Dual Intel I225-V, 802.3af/at PoE+ Multi-Gigabit NIC, PCI Express Server LAN Card, LP4/8-Pin PCIe-Powered
StarTech.com 2-Port 2.5Gbps NBASE-T PoE Network Card, Dual Intel I225-V, 802.3af/at PoE+ Multi-Gigabit NIC, PCI Express Server LAN Card, LP4/8-Pin PCIe-Powered is backordered and will ship as soon as it is back in stock.
StarTech.com 2-Port 2.5Gbps NBASE-T PoE Network Card, Dual Intel I2...
Add a Power-over-Ethernet (PoE) 2.5Gbps Port to a PCI Express-enabled Computer
This 2.5 GbE network interface card (NIC) features dual Intel I225-V chipsets with Intel vPro technology to enhance performance and data integrity. The variable multispeed options (2.5/1Gbps and 100/10Mbps) enable support for both new and legacy network hardware. Utilize existing CAT5e or CAT6 cabling infrastructure while adding NBASE-T (802.3bz) compatibility for seamless integration.
Power Over Ethernet
The PCIe Ethernet card supports the IEEE 802.3af and IEEE 802.3at (Type 1 and Type 2) standards for Power Sourcing Equipment (PSE) and can deliver up to 48V DC and 25.5W of power per port to compliant Powered Devices (PD). This flexibility eliminates the need for a separate power supplies or PoE injectors for remote networked devices such as IP cameras, access control devices, remote kiosks, and wireless access points.
Increased Network Speed
The PCIe network card leverages Intel vPro technology for remote management and troubleshooting capabilities. Improve bandwidth for data-intensive applications, network sharing, FTPs, online or local storage/backup, and the streaming of online content - while reducing network slowdowns. Access up to 2.5GBASE-T speeds using Cat5e (or better) cabling, to maximize existing networks and equipment.
Enhance Existing Hardware
The network interface card connects through an available PCI Express x2 2.0 (or higher) expansion slot. The card ships with a standard-profile bracket pre-installed and includes a low-profile bracket for installation into small form factor systems and servers. This ethernet NIC card is compatible with Windows, Windows Server, VMware, and Linux.
This card supports the following advanced features: PXE Boot, WoL, VLAN tagging, 9K jumbo frame, full-duplex, and Intel vPro technology.
The StarTech.com Advantage
| Ports & interfaces | |
|---|---|
| PCI version | 2.0 |
| Power over Ethernet (PoE) ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| Host interface | PCI Express |
| Connectivity technology | Wired |
| Network | |
|---|---|
| VLAN support | Yes |
| Quality of Service (QoS) support | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Full duplex | Yes |
| Auto MDIX IEEE | Yes |
| Wake-on-LAN ready | Yes |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Ethernet interface type | 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN | Yes |
| Networking standards | IEEE 1588, IEEE 802.1Q, IEEE 802.1as, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u |
| Maximum data transfer rate | 2500 Mbit/s |
| Design | |
|---|---|
| LED indicators | Yes |
| Chipset | Intel I225-V |
| Component for | PC/Server |
| Internal | Yes |
| Power | |
|---|---|
| Output voltage | 48 V |
| System requirements | |
|---|---|
| Server operating systems supported | Windows Server 2019, Windows Server 2022 |
| Linux operating systems supported | Yes |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64 |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating temperature (T-T) | 0 - 55 °C |
| Weight & dimensions | |
|---|---|
| Weight | 111 g |
| Height | 22 mm |
| Depth | 180 mm |
| Width | 121 mm |
| Packaging data | |
|---|---|
| Package weight | 106 g |
| Package height | 38 mm |
| Package depth | 144 mm |
| Package width | 207 mm |
| Packaging content | |
|---|---|
| Quick installation guide | Yes |
| Mounting brackets included | Yes |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
| Logistics data | |
|---|---|
| Products per master (outer) case | 40 pc(s) |
| Master (outer) case height | 320 mm |
| Master (outer) case length | 420 mm |
| Master (outer) case width | 440 mm |
-
