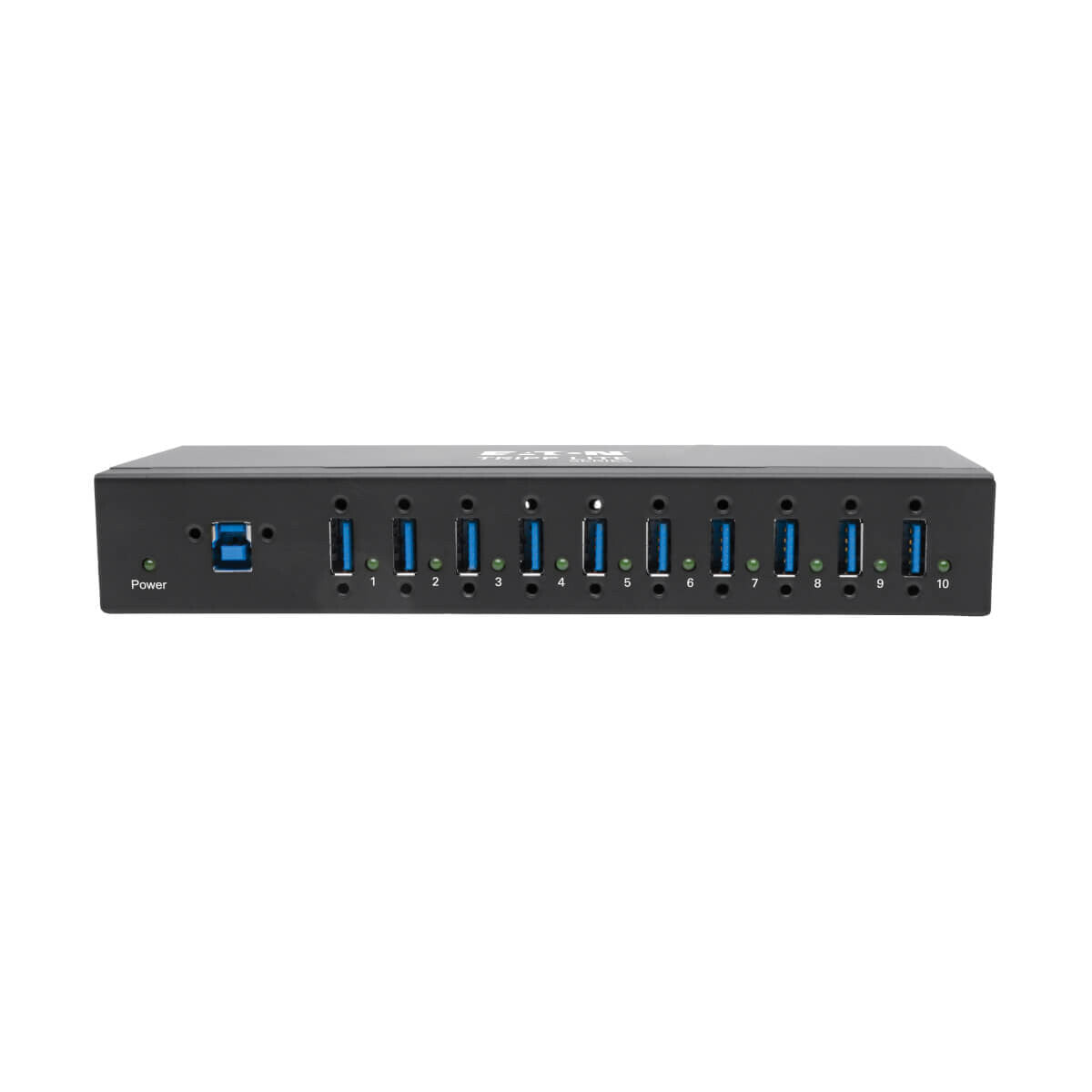

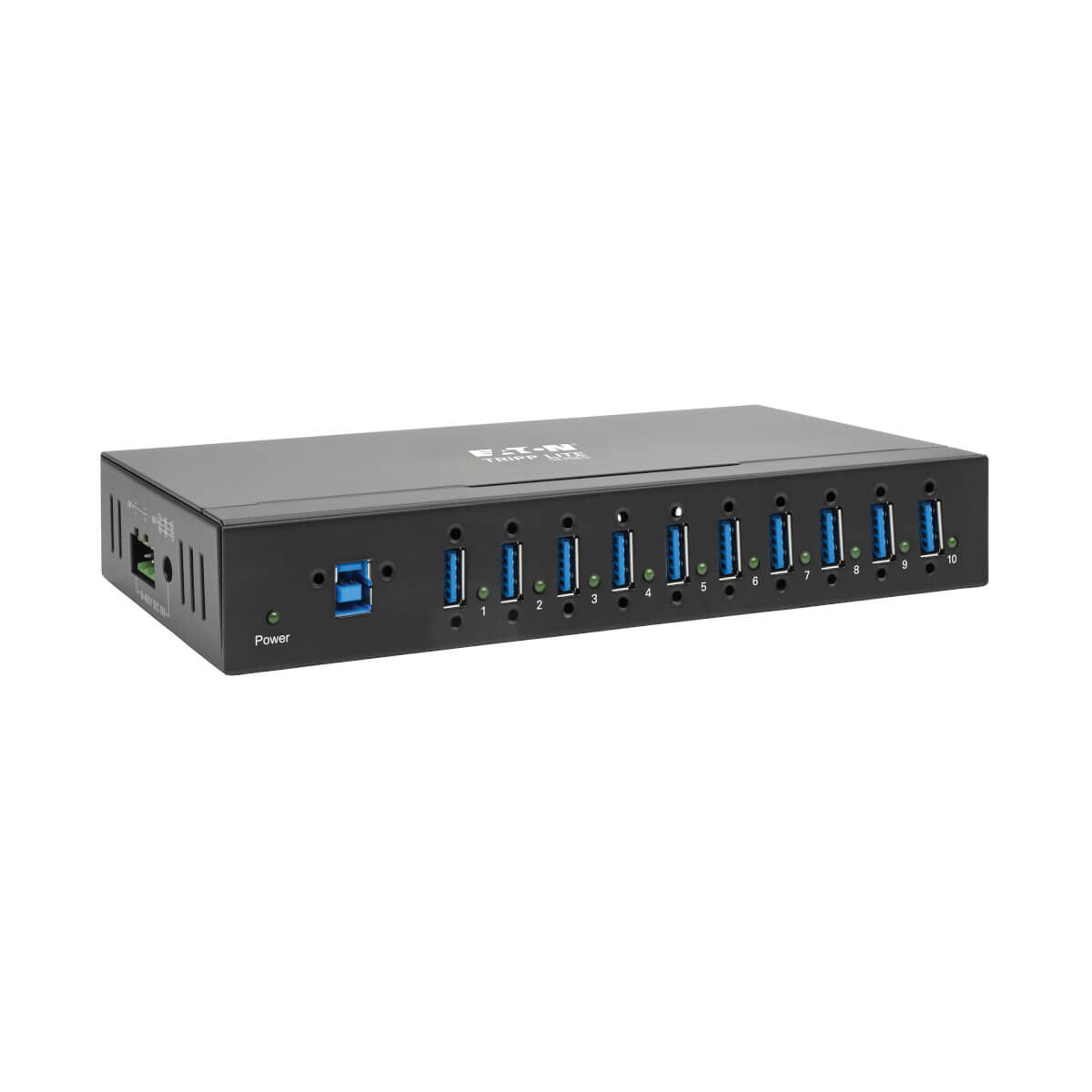

Tripp Lite U360-010-IND 10-Port Industrial-Grade USB 3.x (5Gbps) Hub - 20 kV ESD Immunity, Metal Housing, Mountable
Tripp Lite U360-010-IND 10-Port Industrial-Grade USB 3.x (5Gbps) Hub - 20 kV ESD Immunity, Metal Housing, Mountable is backordered and will ship as soon as it is back in stock.
Industrial-Grade USB 3.0 Hub Adds up to 10 USB Devices to Your Computer
This 10-port USB 3.0 hub with a heavy-duty all-metal housing connects as many as 10 USB devices, such as external hard drives, industrial printers, barcode scanners, serial devices and sensors, to your host PC, server or thin client. The durable metal housing withstands harsh physical conditions in industrial and commercial applications, such as factories, construction sites, supply rooms and warehouses.
Supports SuperSpeed USB 3.0 to Ensure Fast Data Transfers
The hub supports USB 3.0 SuperSpeed data transfer rates up to 5 Gbps, which is 10 times faster than USB 2.0. It is especially recommended for high-bandwidth USB 3.0 devices, such as security cameras and high-resolution webcams. Each downstream port provides up to 900 mA for charging mobile devices. The hub is backward compatible with previous USB standards, so you can also continue using older peripherals while getting maximum performance from current devices.
Protects Your Devices against Electrostatic Discharge (ESD) and Overcurrent
Machines on the shop floor can generate electrostatic discharges, wiping out data and damaging sensitive electronics. This 10-port hub includes ESD protection to ±20 kV, reducing potential static damage to your connected peripherals. This feature works in tandem with ±2.5kV-per-port overcurrent protection to safeguard your connected devices against damage and data loss from power surges.
Plug-and-Play Hub Offers Flexible Power and Mounting Options

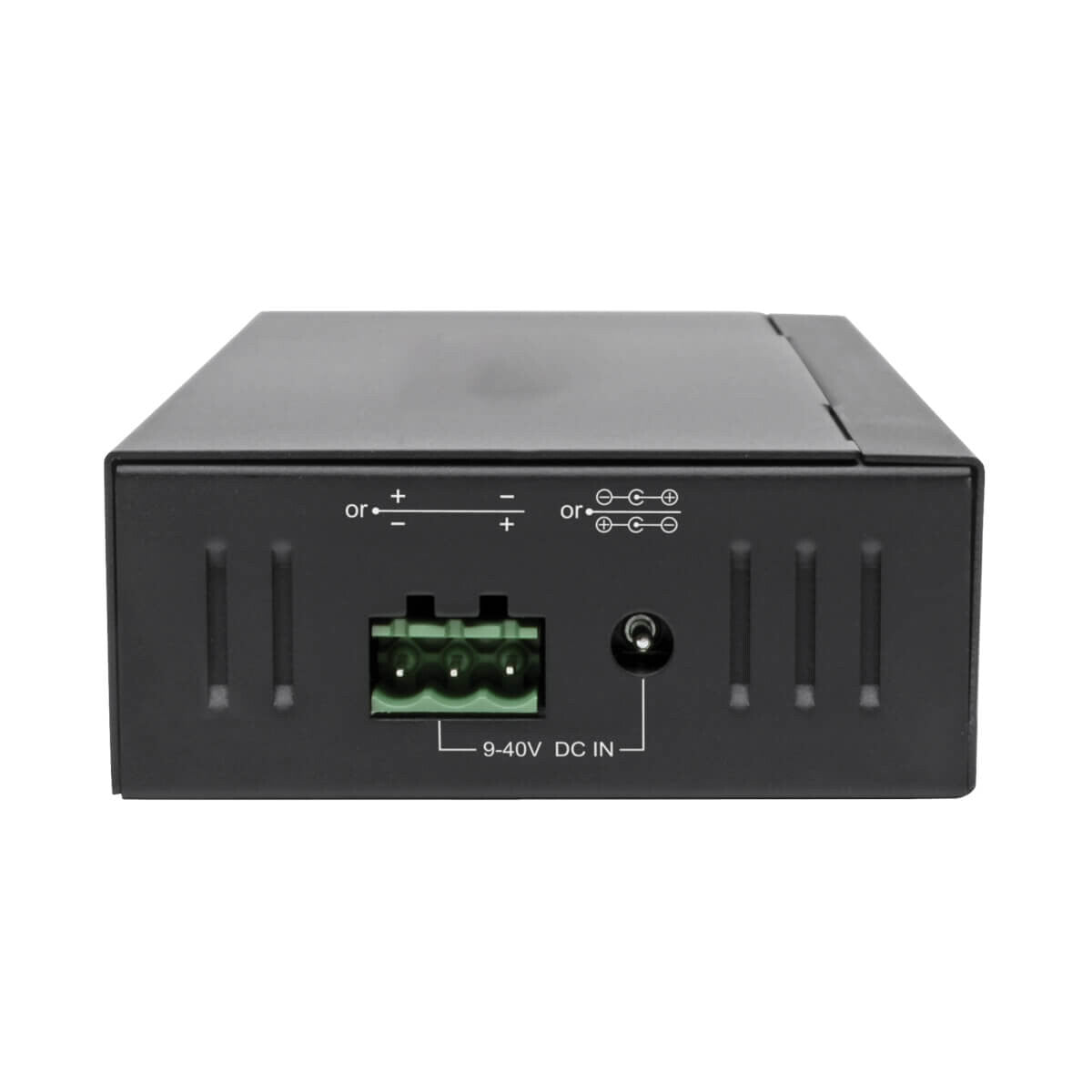

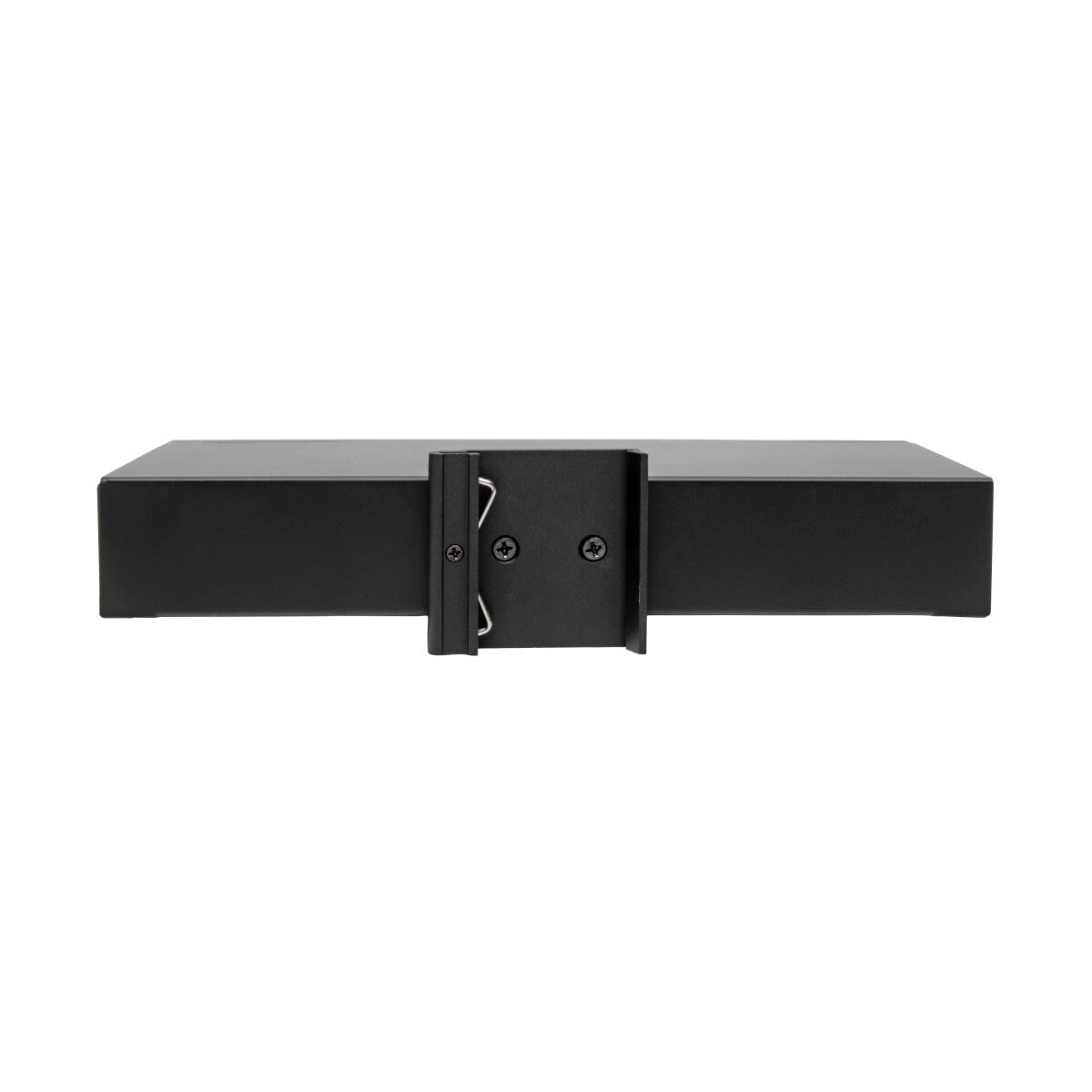

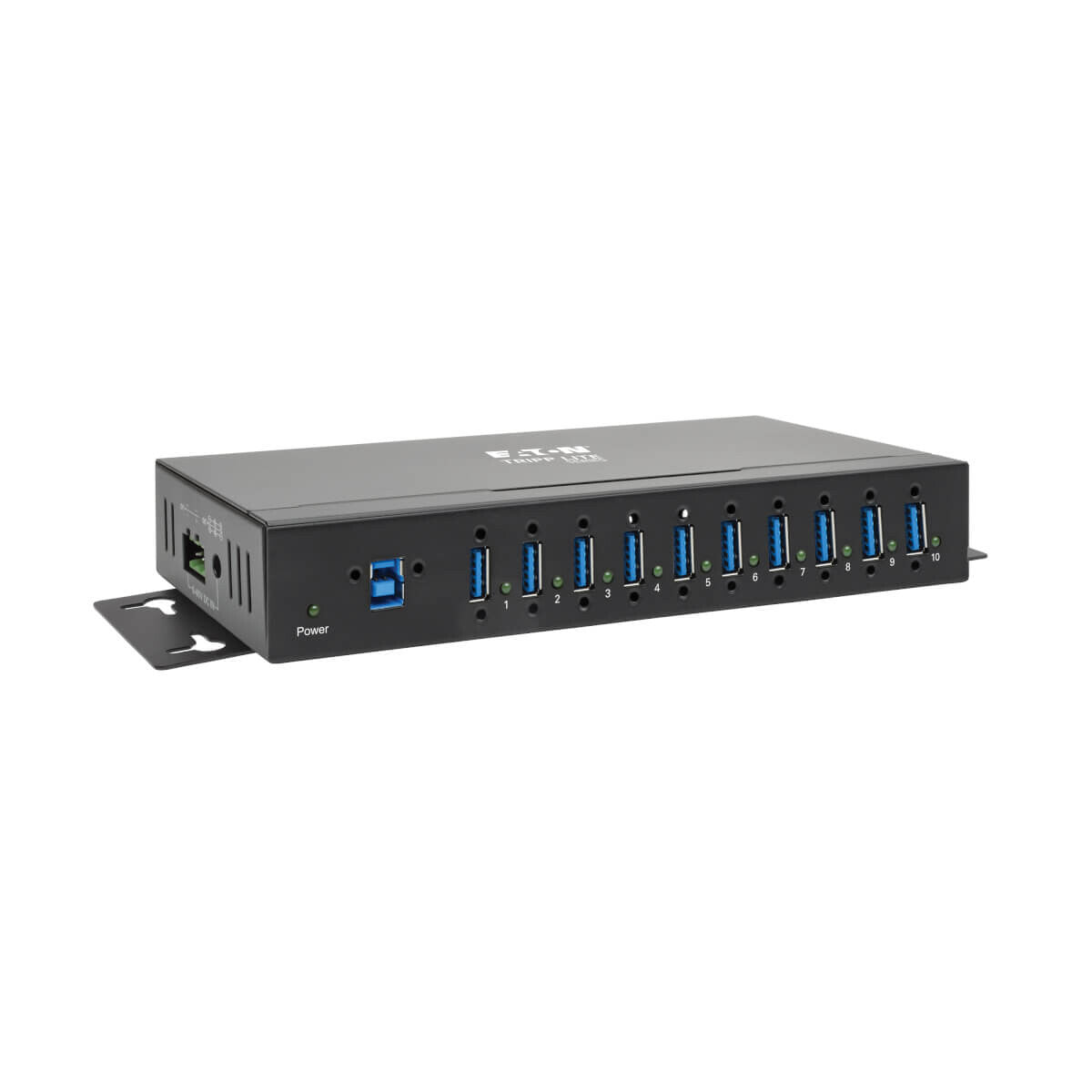

The U360-010-IND requires no software or drivers to download and install. It draws power from the connected computer through the included USB cable. You can also plug the included 3-wire terminal block into the hub to draw power from a power terminal, or connect a compatible 9–40V DC LPS power supply (not included) to a standard AC outlet. The hub mounts easily to a wall or DIN rail using the included hardware.
| Ports & interfaces | |
|---|---|
| Ports quantity | 10 |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-B |
| Hub interfaces | USB 3.2 Gen 1 (3.1 Gen 1) Type-A |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 10 |
| Terminal block port | Yes |
| Features | |
|---|---|
| Data transfer rate | 5000 Mbit/s |
| Housing material | SGCC |
| Product colour | Black |
| Overcurrent protection | Yes |
| LED indicators | Yes |
| Country of origin | Malaysia |
| Plug and Play | Yes |
| Certification | CE, FCC, RoHS, REACH |
| Power | |
|---|---|
| Power consumption (max) | 51.3 W |
| AC input frequency | 50 - 60 Hz |
| Input current | 0.6 A |
| Input voltage | 100 - 240 V |
| Output voltage | 9 - 40 V |
| Output current | 3 A |
| USB charging port | Yes |
| Weight & dimensions | |
|---|---|
| Width | 201 mm |
| Depth | 81 mm |
| Height | 33 mm |
| Weight | 430 g |
| Packaging data | |
|---|---|
| Package width | 114.3 mm |
| Package depth | 228.6 mm |
| Package height | 66 mm |
| Package weight | 640 g |
| Package type | Box |
| Packaging content | |
|---|---|
| Wall mounting kit | Yes |
| Terminal block included | Yes |
| DIN rail kit included | Yes |
| Manual | Yes |
| Cables included | USB |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 32 - 104 °F |
| Storage temperature (T-T) | -10 - 55 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Logistics data | |
|---|---|
| Master (outer) case width | 246.4 mm |
| Master (outer) case length | 350.5 mm |
| Master (outer) case height | 256.5 mm |
| Master (outer) case gross weight | 6.94 kg |
| Products per master (outer) case | 10 pc(s) |
| Master (outer) case GTIN (EAN/UPC) | 10037332231243 |
| Harmonized System (HS) code | 84719000 |
-
