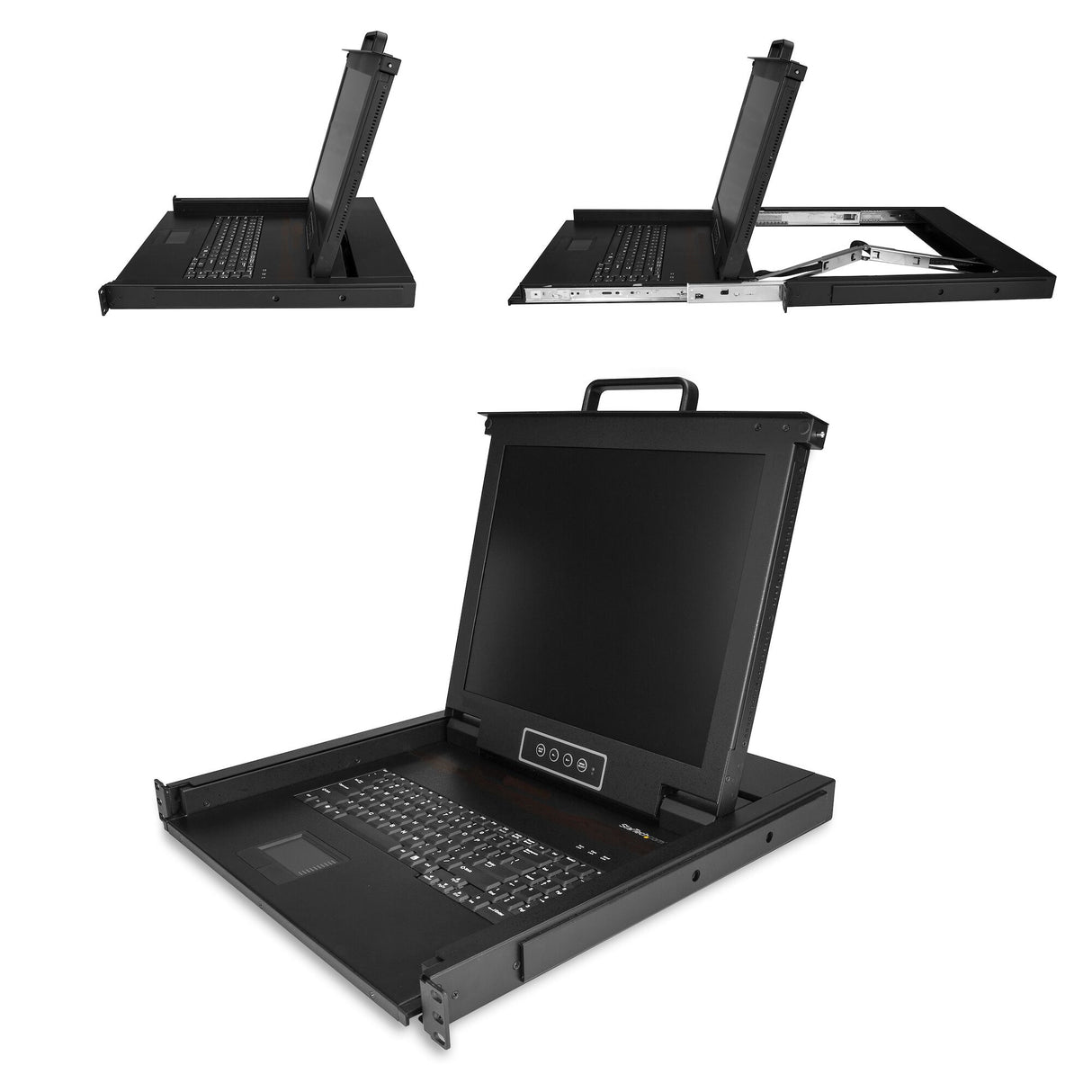

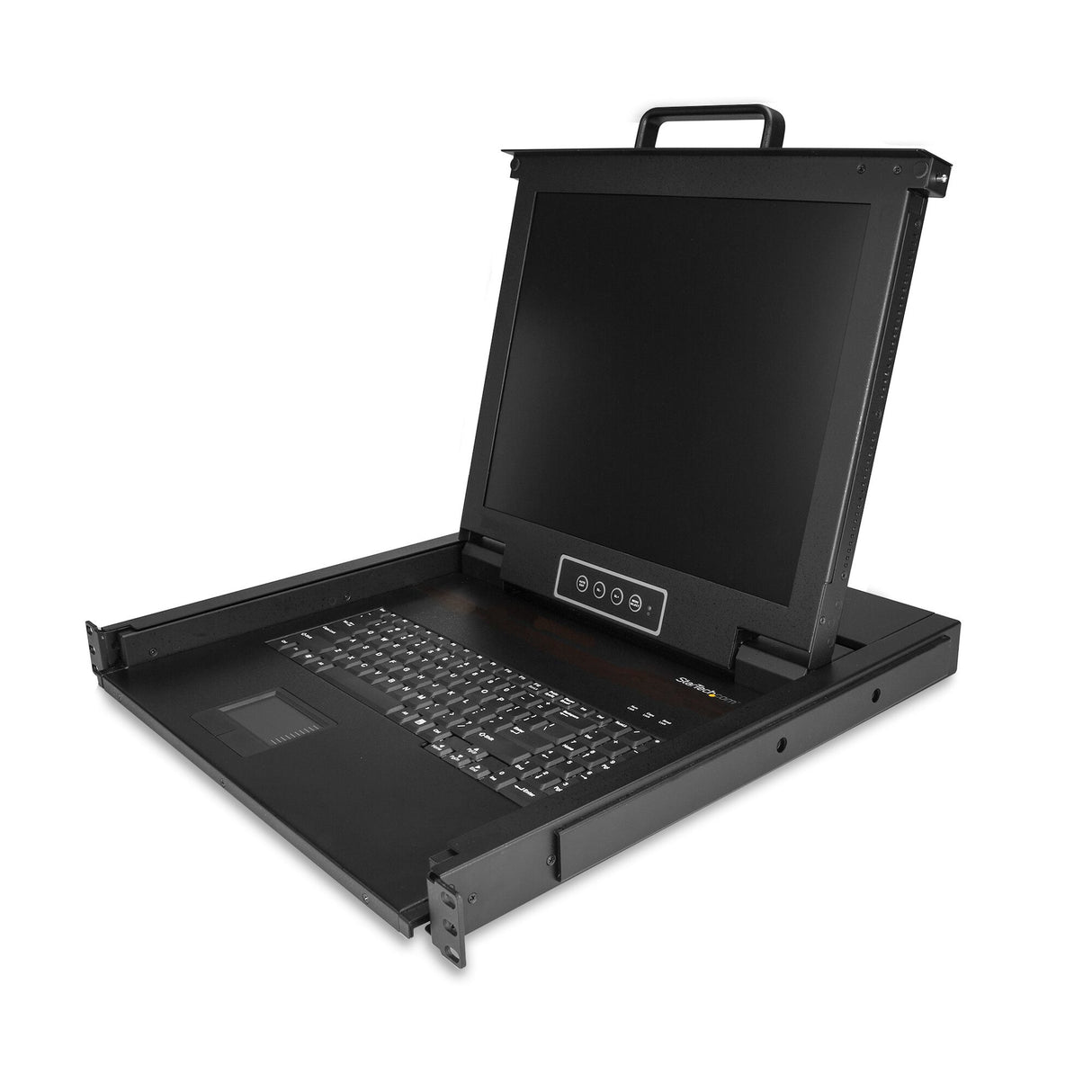

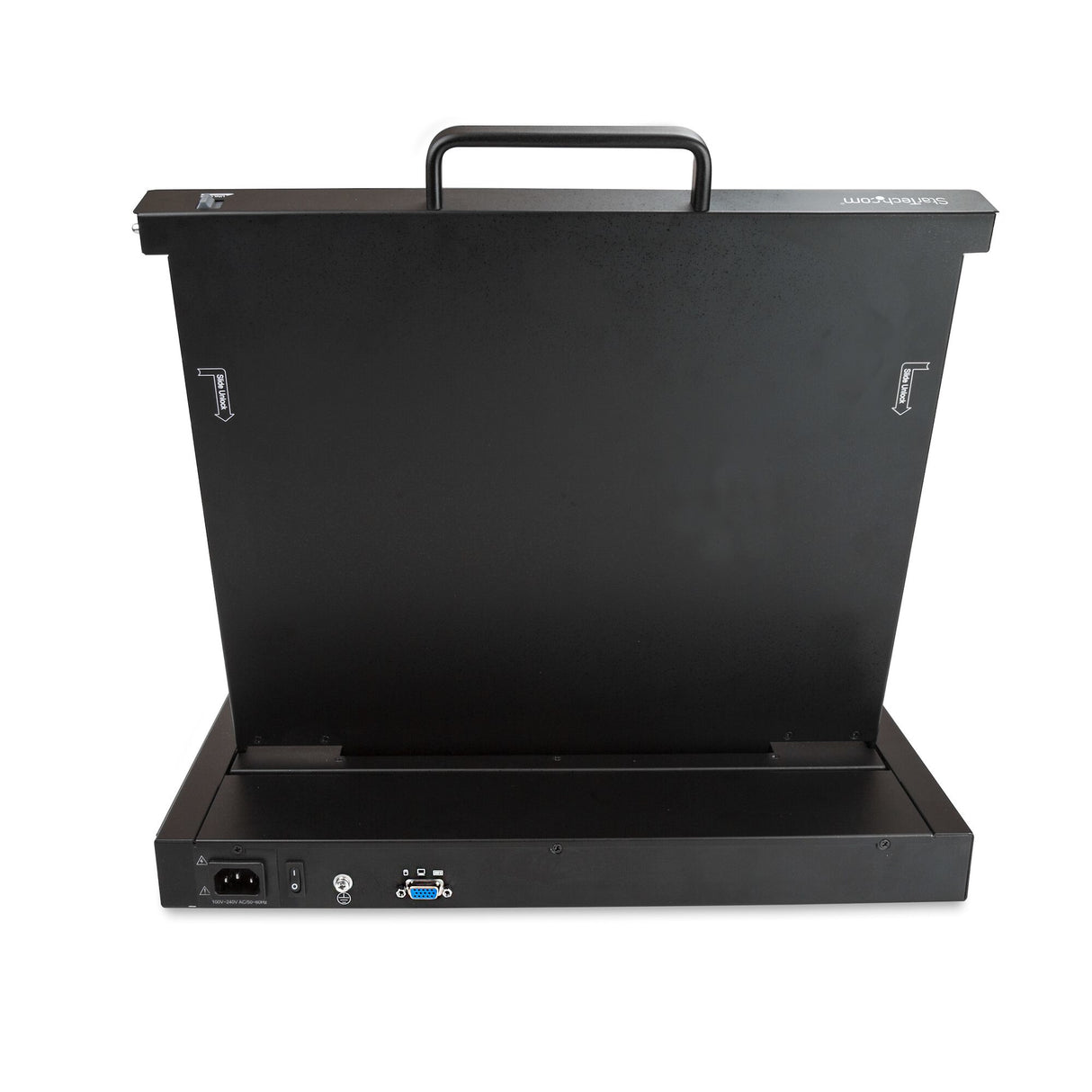

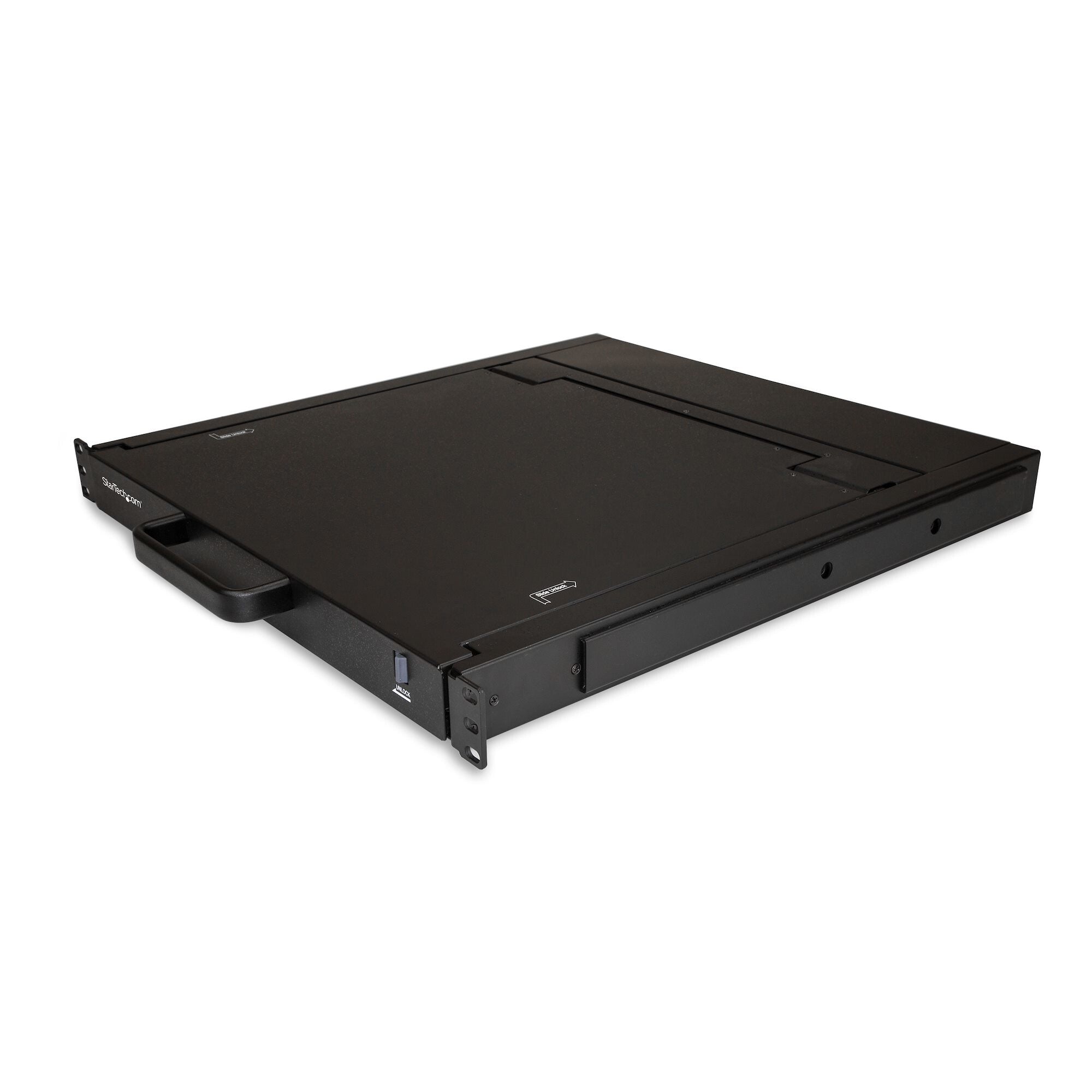

StarTech.com Rackmount KVM Console - Single Port VGA KVM with 17" LCD Monitor for Server Rack - Fully Featured Universal 1U LCD KVM Drawer w/Cables & Hardware - USB Support - 50,000 MTBF
StarTech.com Rackmount KVM Console - Single Port VGA KVM with 17" LCD Monitor for Server Rack - Fully Featured Universal 1U LCD KVM Drawer w/Cables & Hardware - USB Support - 50,000 MTBF is backordered and will ship as soon as it is back in stock.
StarTech.com Rackmount KVM Console - Single Port VGA KVM with 17&qu...
KVM Console | 1U | VGA | 1280x1024 | Cable & Mounting Hardware Included
Providing centralized control of your PC, server, or KVM switch, this single-port rackmount KVM console gives you easy access to your connected system. With a minimal footprint, it mounts in a server rack or cabinet using only 1U of rack space.
An All-Inclusive Solution
The 1U rackmount console features a built-in keyboard (QWERTY), a touchpad for intuitive control, and a 17-inch LCD display that supports resolutions up to 1280x1024.

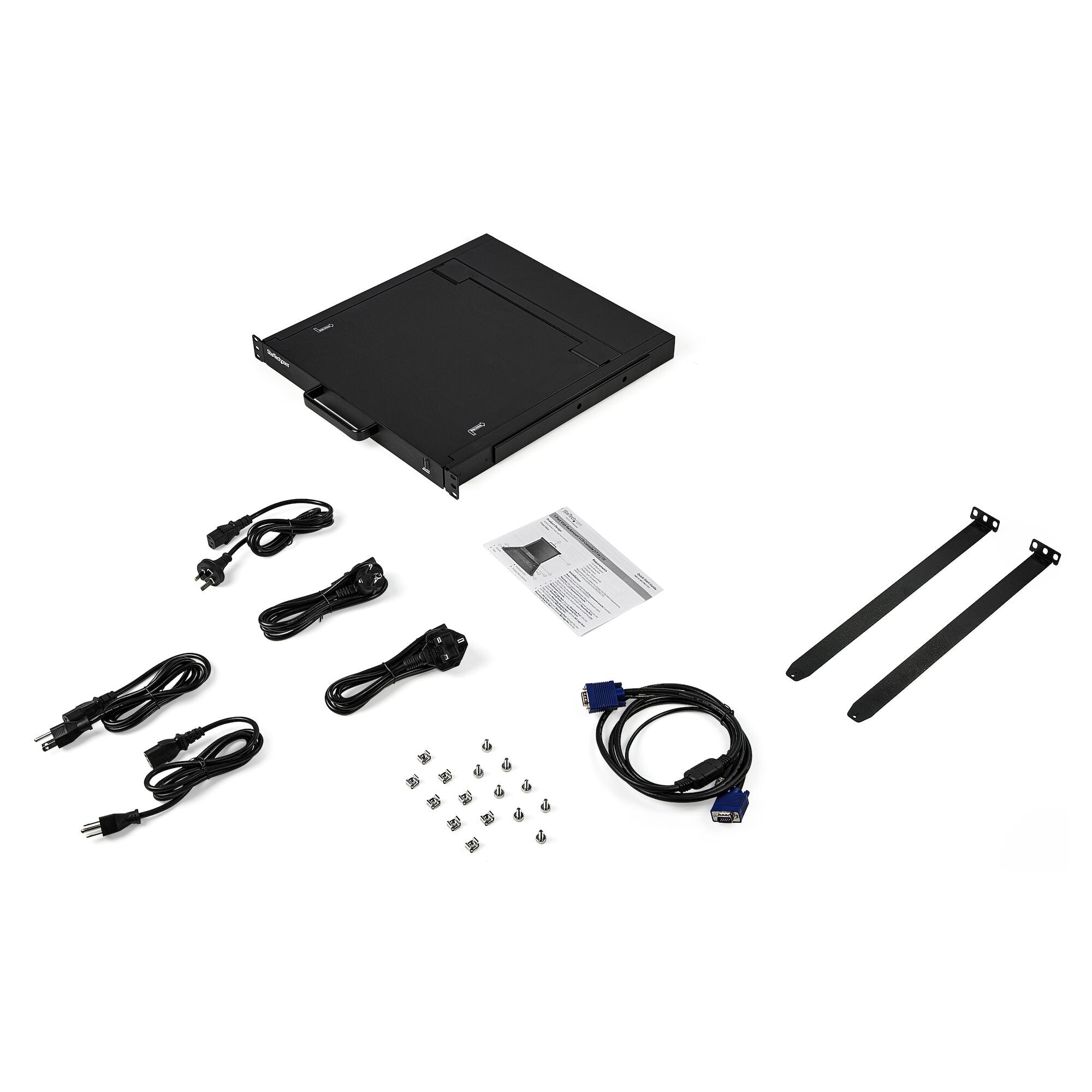

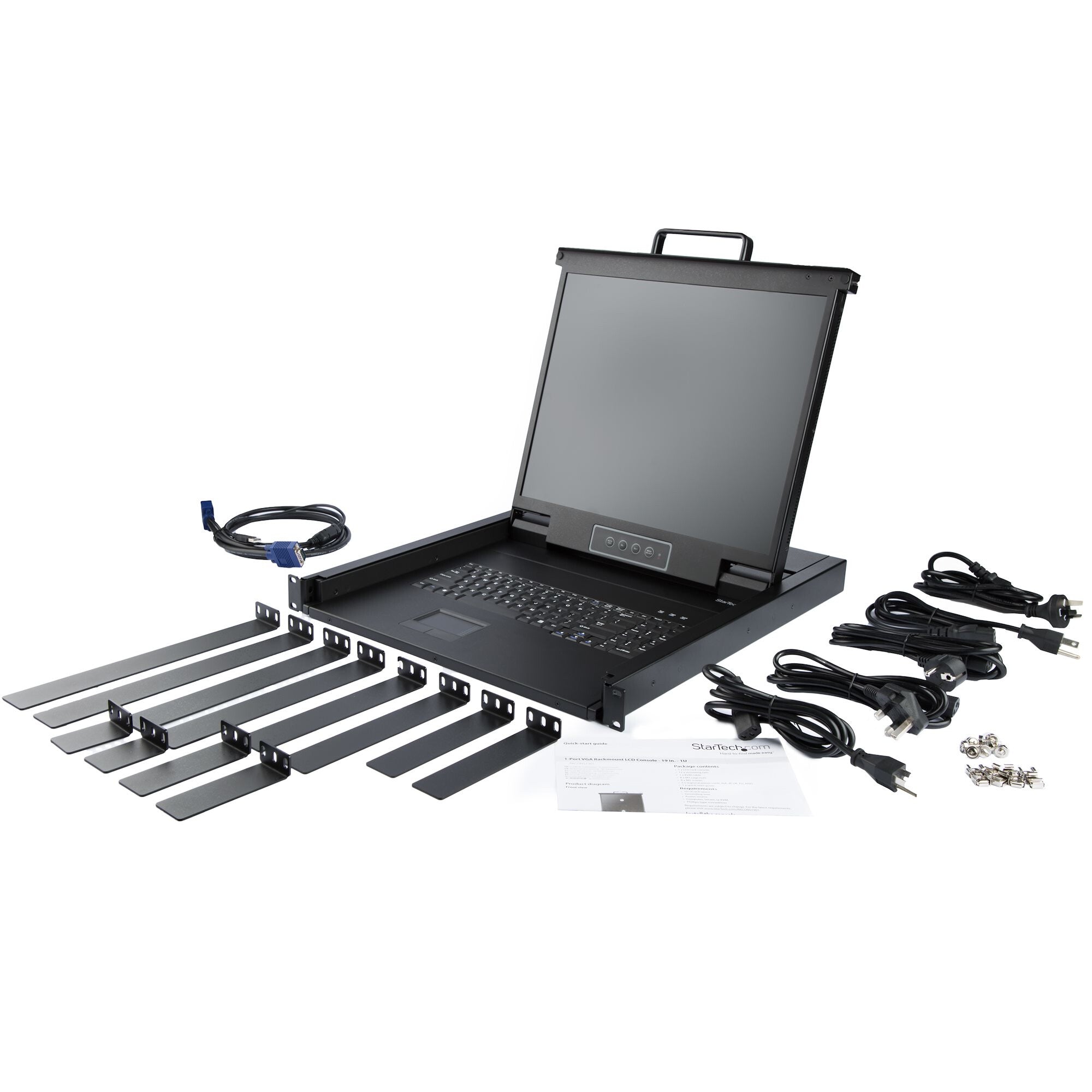

This single-port KVM console includes everything you need to set up right out of the box:
• 1 VGA KVM Cable
• Mounting Rails
• M5 Cage Nuts and Screws
Simple System Integration
The rack console features a single-port KVM module, which can be connected directly to a server or PC, or to a KVM switch for access to multiple systems. The KVM module offers the flexibility you need for easily integrating the console into your existing server infrastructure.
StarTech.com Rack Consoles
Rack consoles provide convenient, rack-mounted control options for single servers or entire server rooms. KVM consoles include LCD display, keyboard, and trackpad, all sliding into 1U of rack space. RKCONS1701 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
| Display | |
|---|---|
| Response time | 5 ms |
| Display brightness | 250 cd/m² |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
| Pixel pitch | 0.264 x 0.264 mm |
| Aspect ratio | 5:4 |
| Display type | LCD |
| Display number of colours | 16.78 million colours |
| Colour depth | 8 bit |
| Display resolution | 1280 x 1024 pixels |
| Display diagonal | 43.2 cm (17") |
| Technical details | |
|---|---|
| IP control | No |
| Key lock | No |
| Mean time between failures (MTBF) | 50000 h |
| Operating relative humidity (H-H) | 10 - 80% |
| Rack mounting | Yes |
| Daisy chain | No |
| LED indicators | Power, Status |
| Cable length | 1.82 m |
| Compliance certificates | RoHS |
| Material | Steel |
| Rack capacity | 1U |
| Ports & interfaces | |
|---|---|
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | VGA |
| Certificates | |
|---|---|
| Certification | CE, FCC, PSE, UL |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Power | |
|---|---|
| Input current | 1.5 A |
| AC adapter input voltage | 100 - 240 V |
| Power consumption (typical) | 13 W |
| Weight & dimensions | |
|---|---|
| Mounting depth (max) | 79 cm |
| Mounting depth (min) | 45 cm |
| Weight | 11.6 kg |
| Depth | 42.5 mm |
| Height | 471 mm |
| Width | 448 mm |
| Packaging data | |
|---|---|
| Package height | 185 mm |
| Package depth | 765 mm |
| Package width | 615 mm |
| Package weight | 17.1 kg |
| Packaging content | |
|---|---|
| Rack mount kit | Yes |
| Quick installation guide | Yes |
| Cage nuts included | Yes |
| Number of cage nuts | 8 |
| Included power plug types | ANZ, EU, JP, NA, UK |
| Mounting brackets included | Yes |
| Screws included | Yes |
| Number of screws | 8 |
| Cables included | KVM |
| Logistics data | |
|---|---|
| Products per master (outer) case | 1 pc(s) |
| Master (outer) case height | 185 mm |
| Master (outer) case length | 765 mm |
| Master (outer) case width | 615 mm |
-
