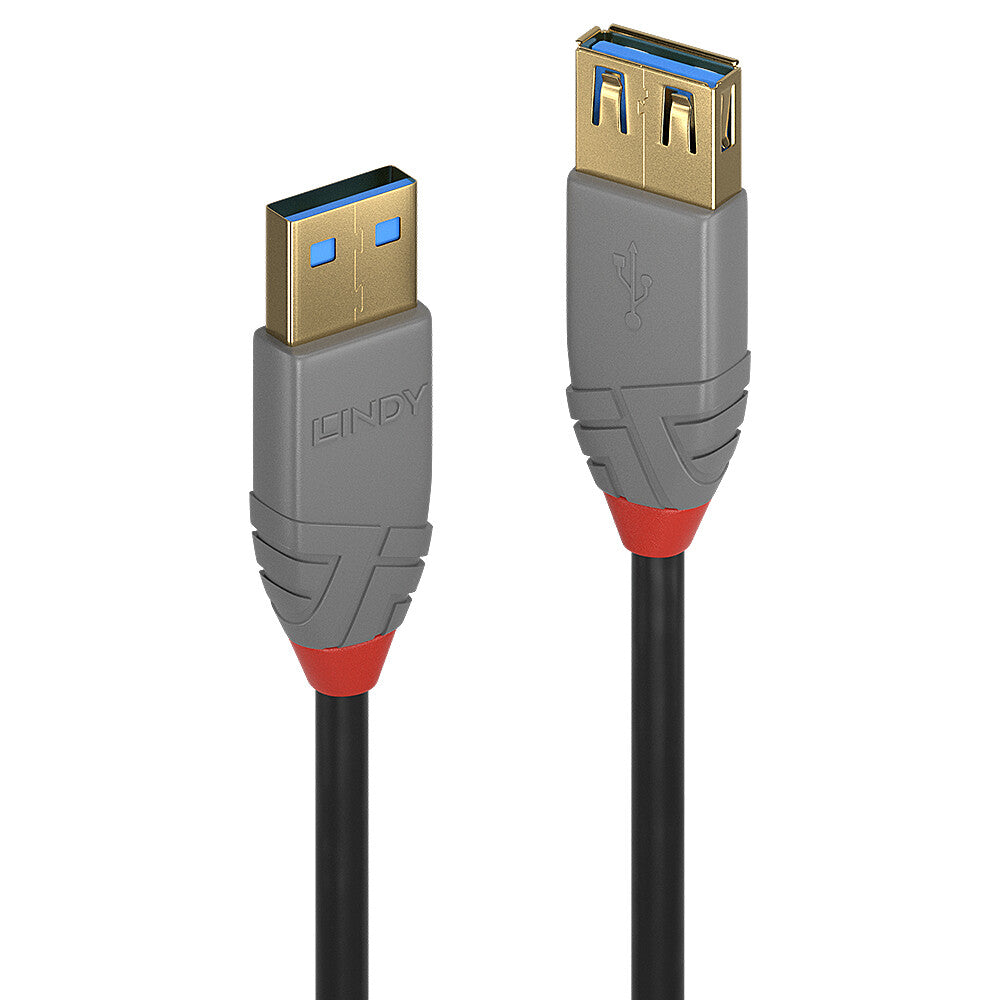

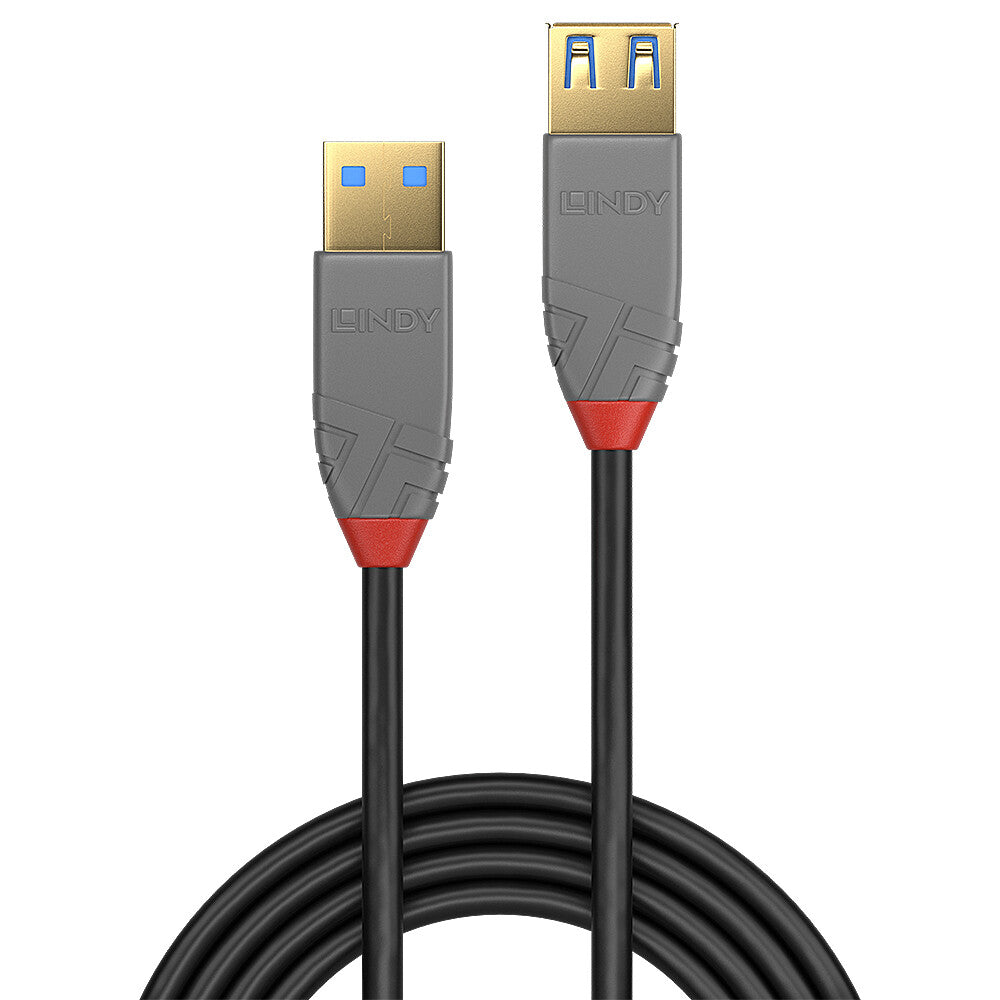

Lindy 0.5m USB 3.2 Type A Extension Cable, 5Gbps, Anthra Line

LINDY  |  SKU: 36760  |  Condition: Brand New  |  Barcode: 4002888367608
$14.00
$11.67 excluding VAT @20%
iFrame
0.5m USB 3.2 Type A Extension Cable, 5Gbps, Anthra Line

The Anthra Line USB 3.2 Type A to A Extension cables from Lindy's Cable Lines concept are the professional choice for high performance connections in commercial AV and IT installations.

Anthra Line USB 3.2 cables are premium connections that feature triple shielded construction with tinned copper conductors for performance and corrosion resistance. High quality gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.

USB bandwidths up to 5Gbps are supported for rapid transfer of large data volumes.

Anthra Line USB 3.2 Type A to A Extension cables are available in the following lengths: 0.5m, 1m, 2m and 3m.

Information about USB generations We have adapted the naming of our USB 3 cables to follow the updated USB specification. USB 3.0 and USB 3.1 Gen 1 have been renamed to USB 3.2 Gen 1, supporting data transfer up to 5Gbps USB 3.1 and USB 3.1 Gen 2 are now called USB 3.2 Gen 2, supporting data transfer rates up to 10 Gbps USB 3.2 Gen 2x2 is a new standard, supporting data transfer rates up to 20 Gbps

USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.

Features
USB version USB 3.2 Gen 1 (3.1 Gen 1)
Connector 1 USB A
Connector 2 USB A
Connector 1 gender Male
Connector 2 gender Female
Connector 1 form factor Straight
Connector 2 form factor Straight
AWG wire size 24/28/30
Connector contacts plating Gold
Cable jacket material Polyvinyl chloride (PVC)
Connector shield material Aluminium
Conductor material Tinned copper
Maximum data transfer rate 5 Gbit/s
Product colour Black
Nominal attenuation 0.5MHz-7.5GHz < 25dB
Certification RoHS, REACH, UL
Weight & dimensions
Cable length 0.5 m
Cable diameter 5.5 mm
Width 17 mm
Depth 35 mm
Height 9.8 mm
Bend radius (min) 4.8 cm
Connector 1 dimensions (WxDxH) 15.5 x 35 x 7.8 mm
Connector 2 dimensions (WxDxH) 17 x 35 x 9.8 mm
Packaging data
Package type Polybag
Package width 144 mm
Package depth 133 mm
Package height 10 mm
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) 0 - 70 °C
Technical details
Housing material Polyvinyl chloride (PVC)
Proposition 65 Yes
Replacement item number 41830
Logistics data
Products per master (outer) case 200 pc(s)
Harmonized System (HS) code 84733080
Other features
Interface USB 3.2
Connector(s) USB 3.2 A Male to A Female
Compliance certificates REACH, RoHS, UL
