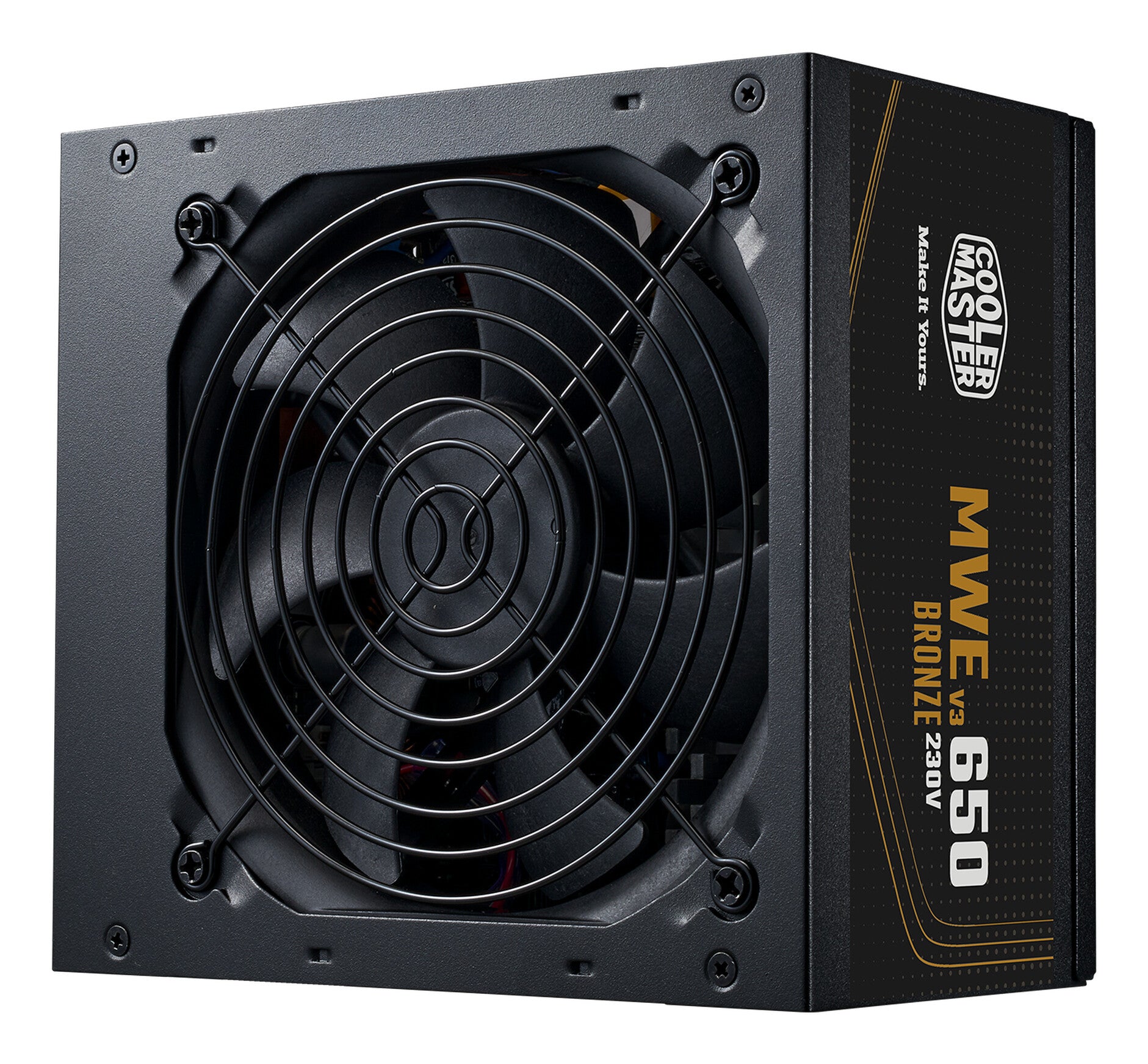

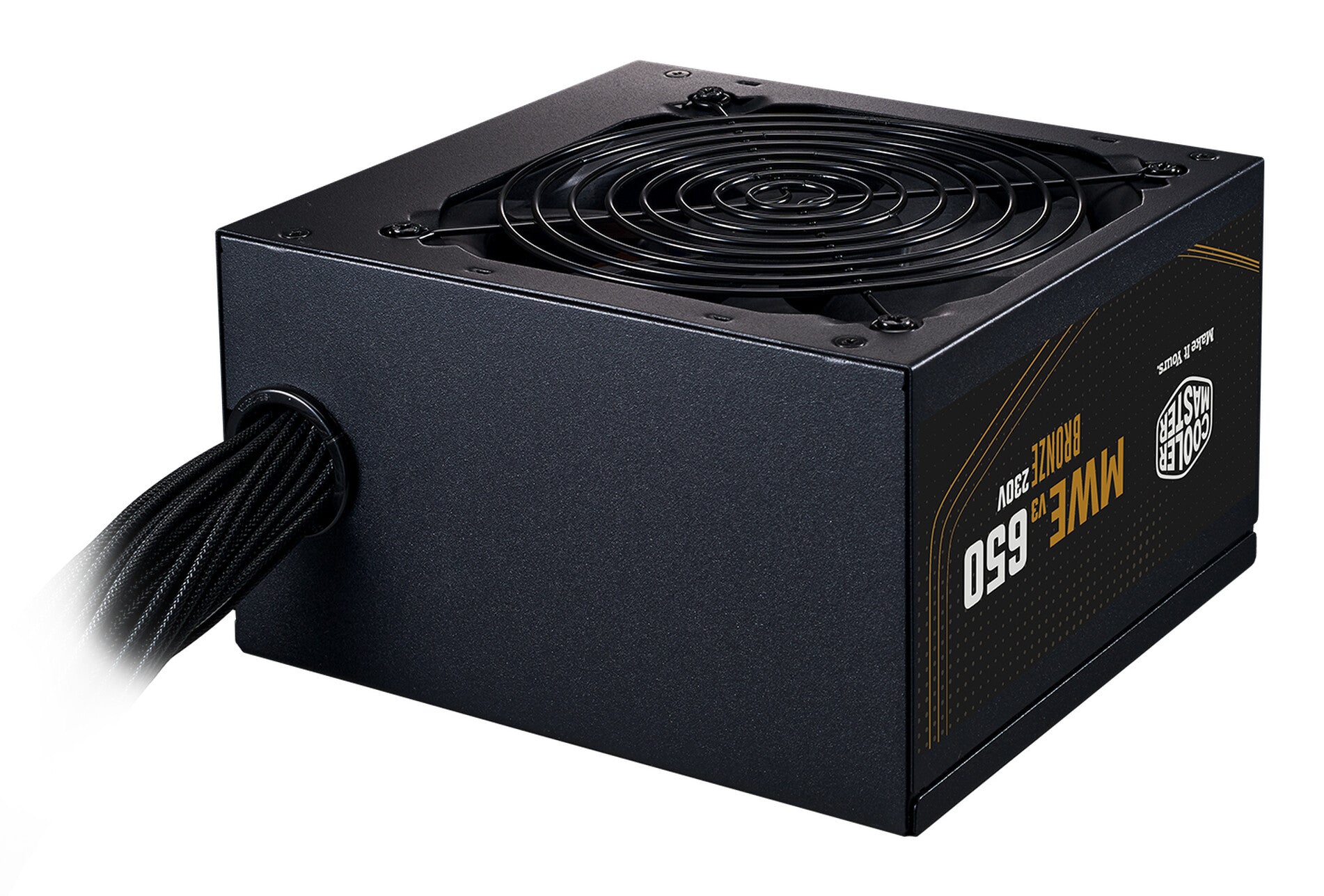

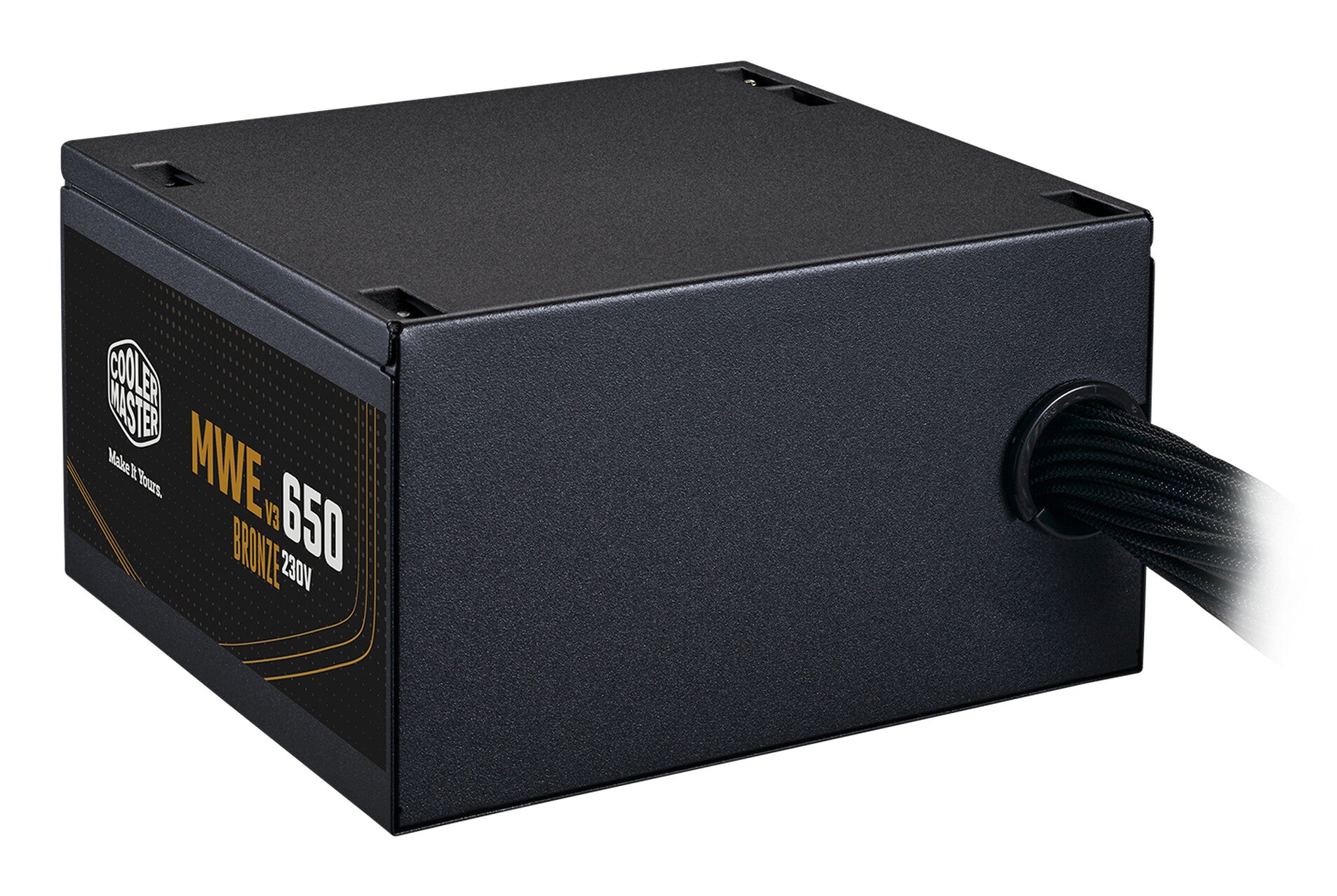

Cooler Master MWE Bronze 650 V3 230V power supply unit 650 W 24-pin ATX ATX Black

COOLER MASTER  |  SKU: MPE-6501-ACABW-3BUK  |  Condition: Brand New  |  Barcode: 471951214521
£64.99
£48.99 Save £16.00 £64.99
£40.83 excluding VAT @20%
iFrame
650 W, ATX 12V V3.1, APFC, ATX 24 Pin, EPS 4+4 Pin, SATA, Peripheral 4 Pin, PCI-e 6+2 Pin, 200-240 V, 6 A, 50/60Hz, 120 mm, HDB, 140 x 150 x 86 mm, 1.65 kg, UK

Power Evolved

ATX 3.1 Support
Compliant with ATX 3.1 to fully support a peak power 1.5 times higher than the rated maximum wattage, this unit is ideal for use with the 40 series GPUs.

Embossed Cable
An embossed cable texture provides a softer and overall improved grip with a pleasing aesthetic.​

Quiet HDB Fan
A hydrodynamic bearing fan delivers long-lasting quiet and effective cooling.

​Certified Efficiency
The MWE Bronze V3 230V is certified to achieve more than 88% efficiency at typical loads.​​​​

High Temperature Resilience
A 40°C operating temperature allows for pushing your machine to the limits.​

PSU Calculator
Need help choosing the right power supply for your system? Try out our comprehensive and easy-to-use PSU calculator.

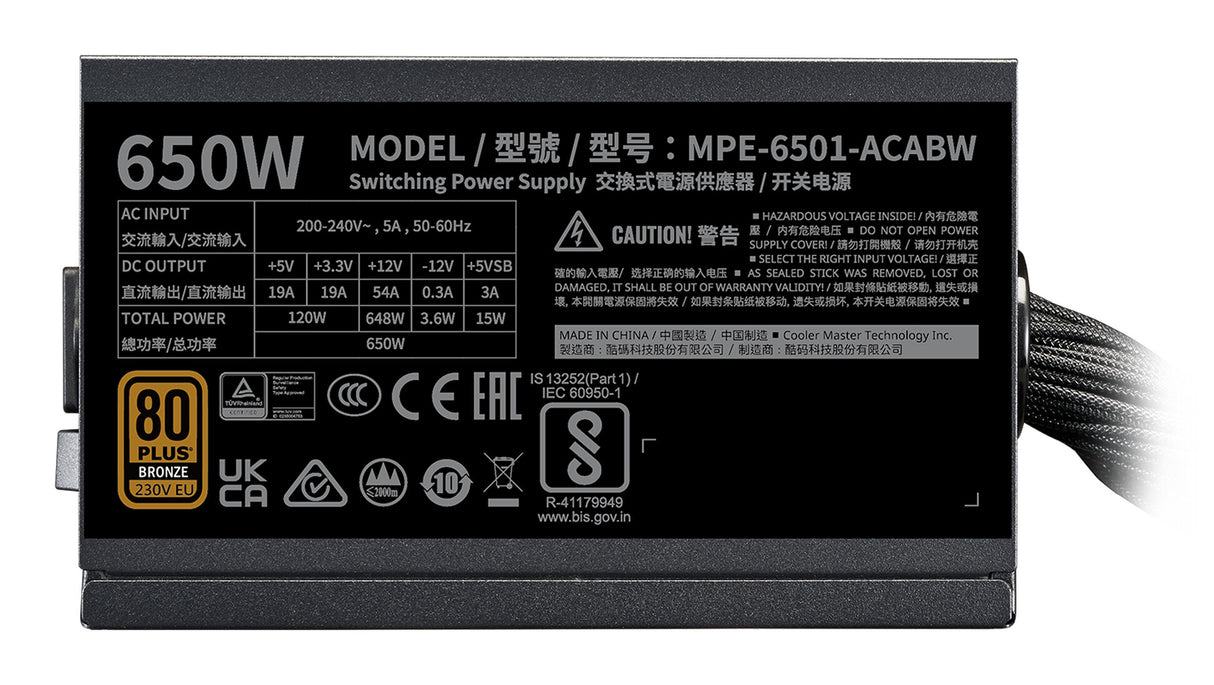

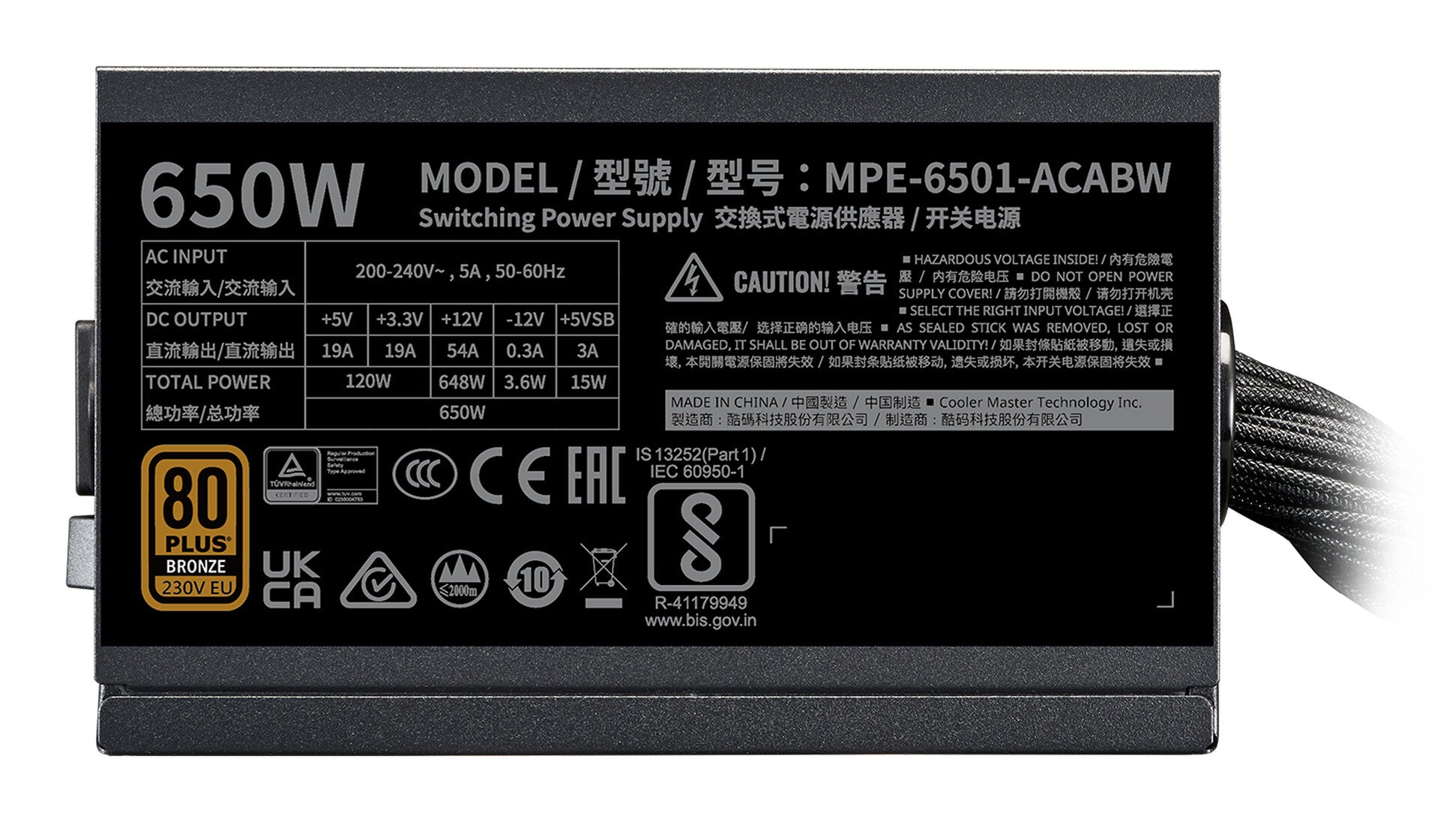

Power
Total power 650 W
AC input voltage 200 - 240 V
AC input frequency 50/60 Hz
Input current 5 A
Power Factor Correction (PFC) type Active
Combined power (+3.3V) 120 W
Combined power (+12V) 648 W
Combined power (+5V) 120 W
Combined power (-12V) 3.6 W
Combined power (+5Vsb) 15 W
Max output current (+3.3V) 19 A
Max output current (+12V) 54 A
Max output current (+5V) 19 A
Max output current (-12V) 0.3 A
Max output current (+5Vsb) 3 A
Power Good signal delay range 100 - 150 ms
Hold time 16 ms
Efficiency 88%
Power protection features Over power, Over voltage, Overheating, Short circuit, Under voltage
Ports & interfaces
Motherboard power connector 24-pin ATX
Motherboard power cable length 50 cm
Number of SATA power connectors 6
SATA power cable length 400,550,700 mm
Peripheral (Molex) power connectors (4-pin) 3
Peripheral (Molex) power cable length 550,700,400 mm
EPS power connector (8-pin) Yes
EPS power connector (4+4 pin) Yes
PCI Express power connectors (6+2 pin) 4
PCI Express power cable length 62 cm
PCI Express connector Yes
Cabling type Non-Modular
Performance
Purpose PC/Server
Power supply unit (PSU) form factor ATX
80 PLUS certification 80 PLUS Bronze
ATX version 3.1
Bearing technology HDB
Mean time between failures (MTBF) 100000 h
Certification ErP 2014 Lot 3
Design
Product colour Black
Cooling type Active
Fan diameter 12 cm
Number of fans 1 fan(s)
Fan location Top
Illumination No

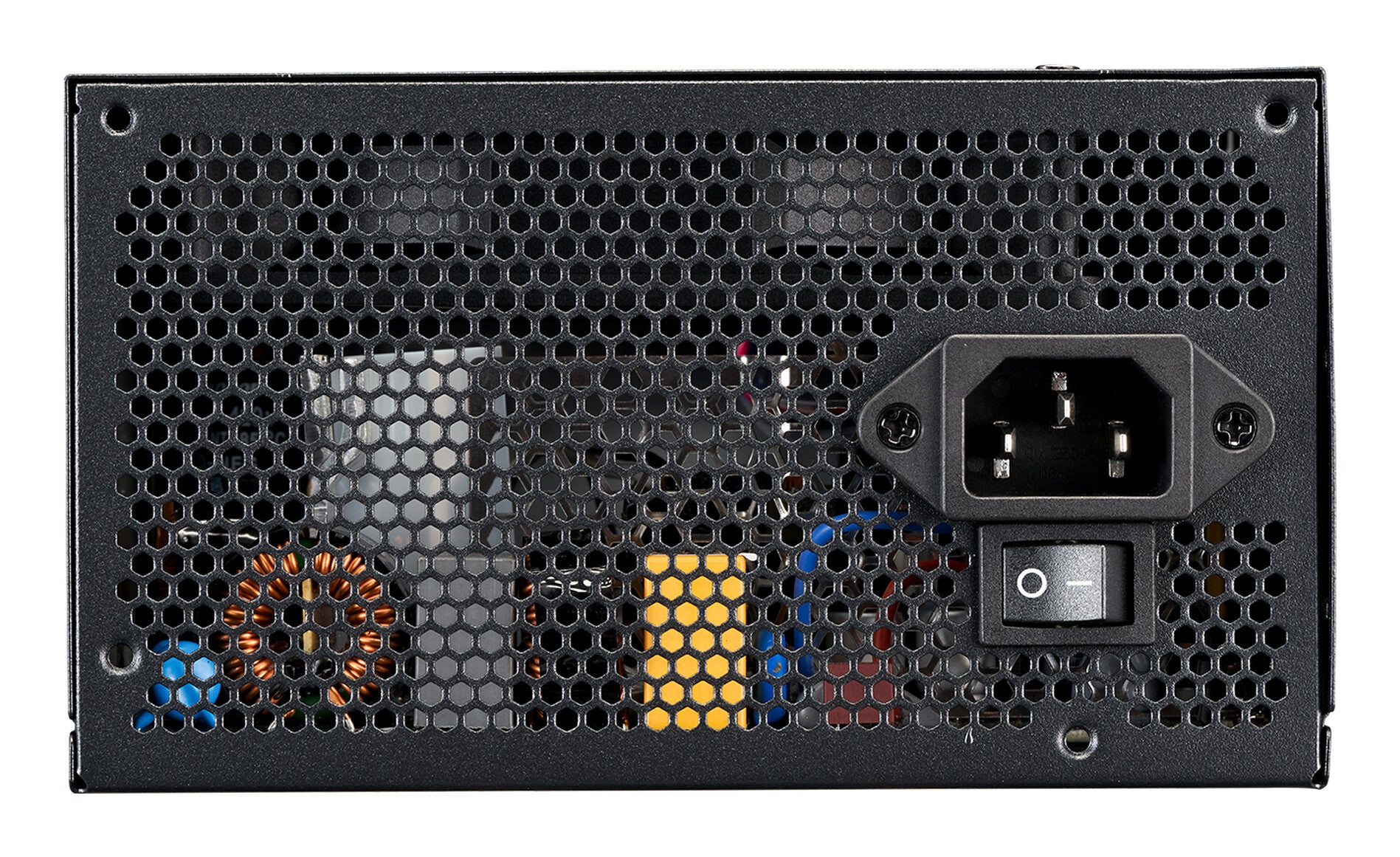

On/off switch Yes
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Weight & dimensions
Width 150 mm
Depth 140 mm
Height 86 mm
Weight 1.65 kg
Packaging data
Package width 190 mm
Package depth 245 mm
Package height 110 mm
Package weight 2.05 kg
Package type Box
Technical details
Compliance certificates BIS, CE, China Compulsory Certification (CCC), EAC, Federal Communications Commission (FCC), RCM, RoHS, UKCA
Logistics data
Master (outer) cases per pallet (air) 32 pc(s)
Master (outer) case width 260 mm
Master (outer) case length 570 mm
Master (outer) case height 215 mm
Products per master (outer) case 5 pc(s)
Other features
EPS cable length 67 cm
