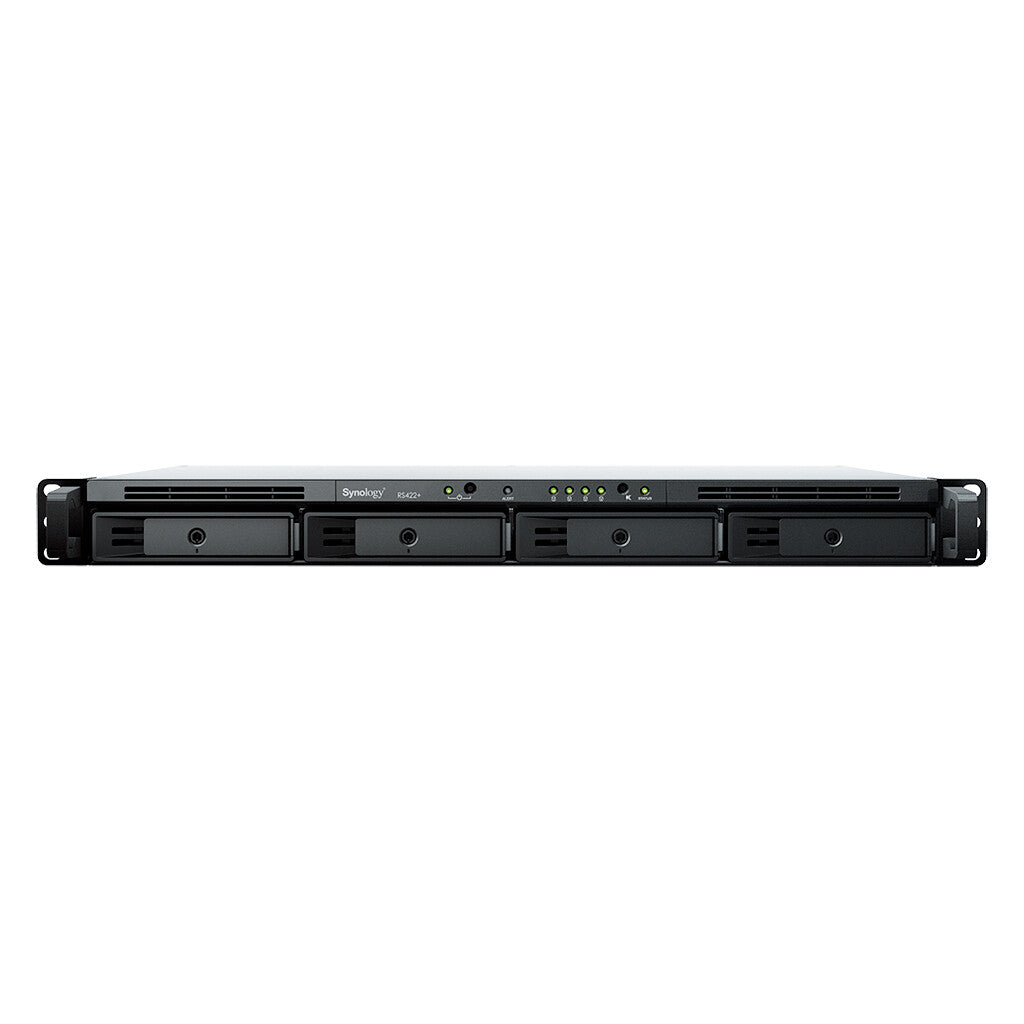

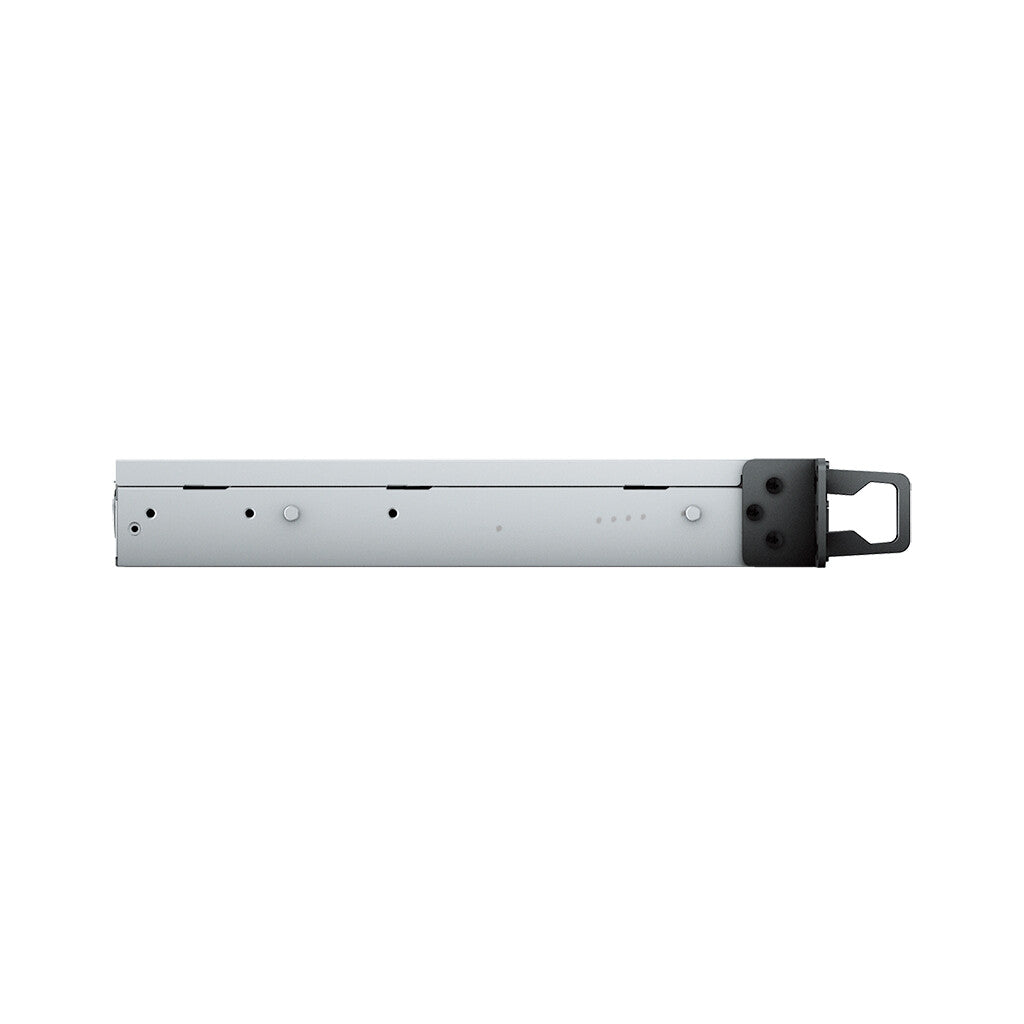

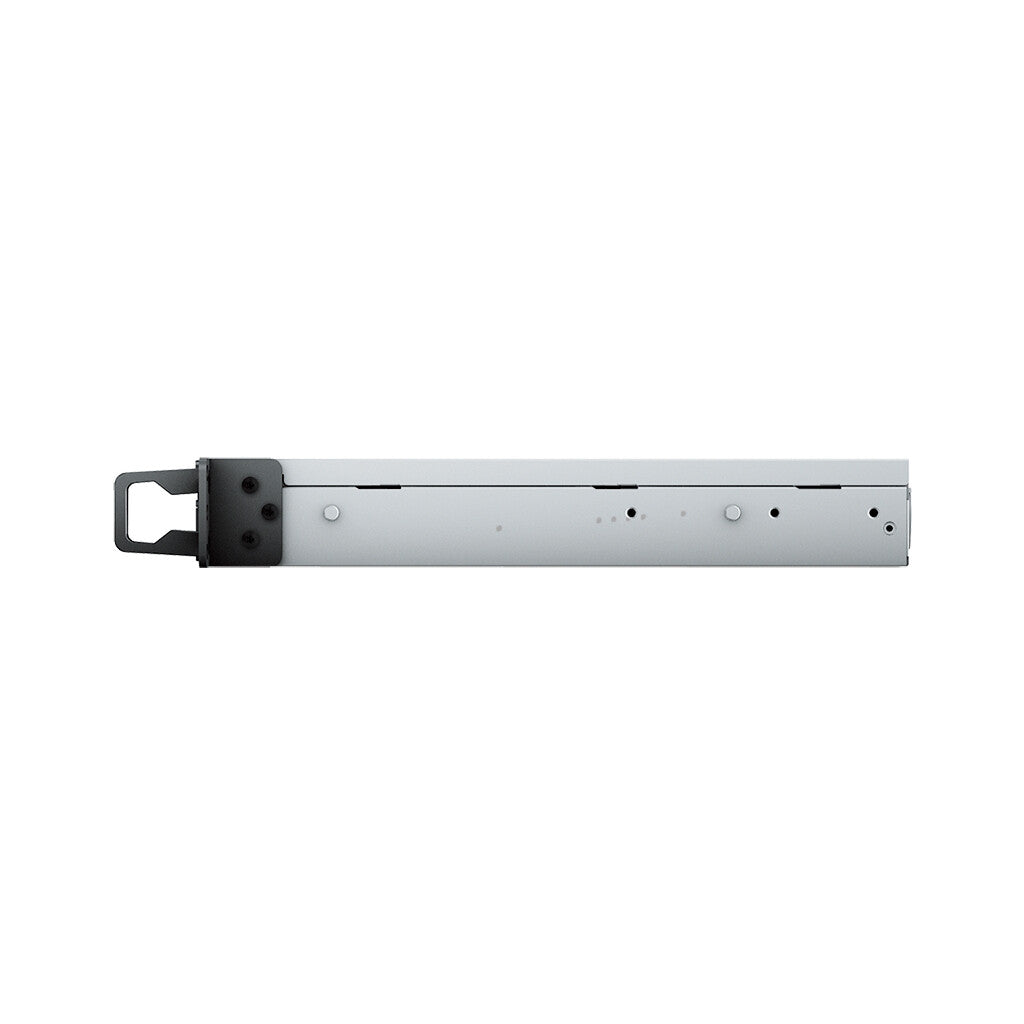

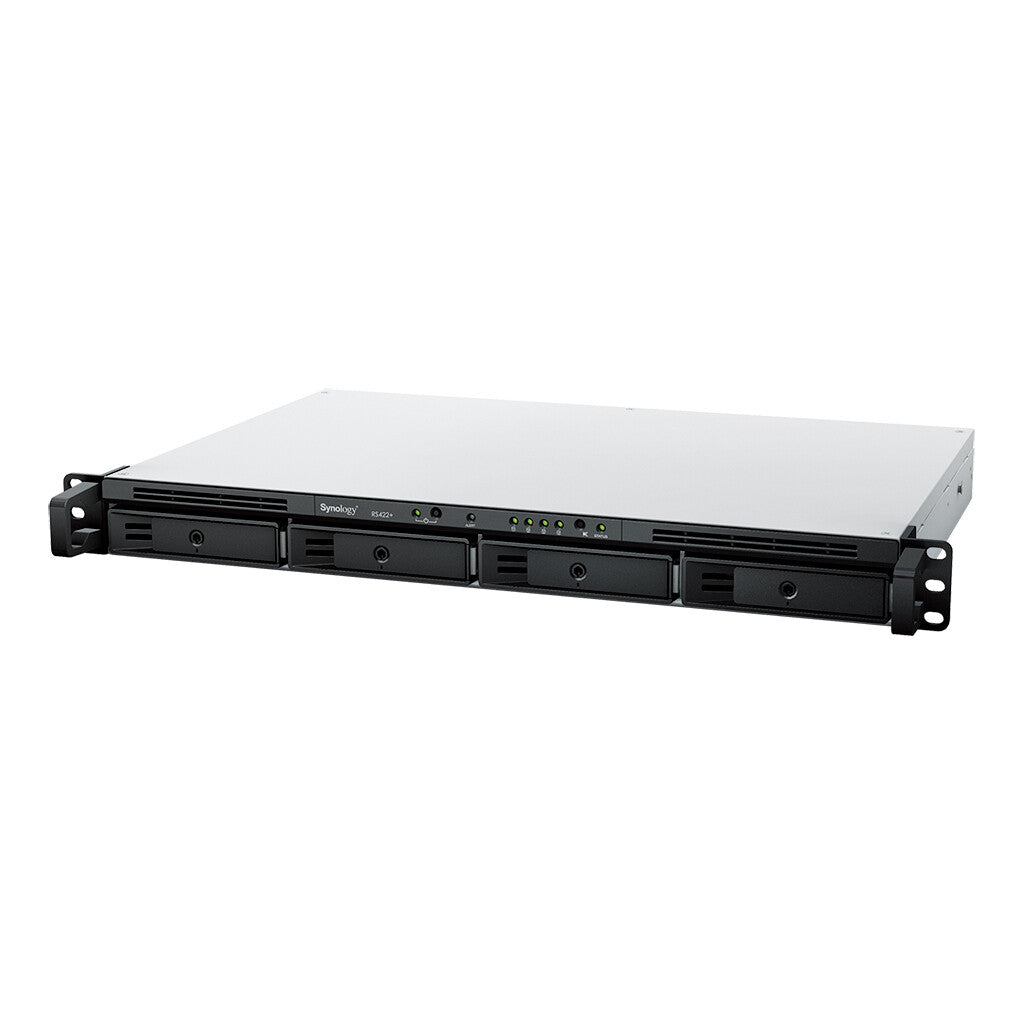

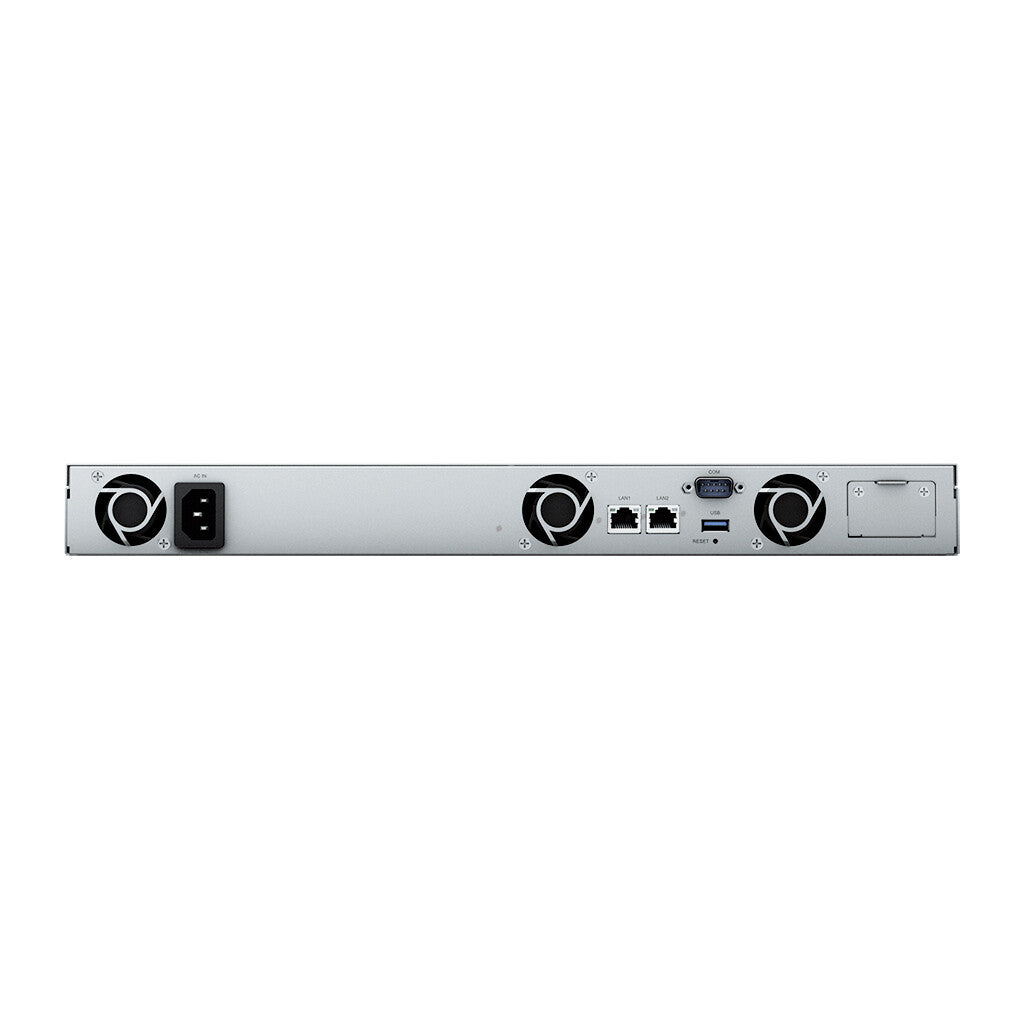

Synology RackStation RS422+ NAS/storage server Rack (1U) Ryzen Embedded R1600 2 GB DDR4 DSM Black
Synology RackStation RS422+ NAS/storage server Rack (1U) Ryzen Embedded R1600 2 GB DDR4 DSM Black is backordered and will ship as soon as it is back in stock.
Synology RackStation RS422+ NAS/storage server Rack (1U) Ryzen Embe...
Streamline your data management
With its compact 1U form factor and powerful Synology DiskStation Manager (DSM) operating system, the 4-bay Synology RackStation RS422+ is an affordable all-in-one solution for small businesses and home lab owners looking to meet their daily data management, sharing, synchronization, and backup needs.
Space-saving design for flexible deployment
Thanks to its compact 1U chassis, the RS422+ fits perfectly in a 2-post or wall mount rack. Deploy it in space-limited environments or anywhere else without investing in costly railkits or other server equipment.
Flexible networking options
Leverage built-in connectivity to integrate the RS422+ into any IT environment, or expand its capabilities by adding plug-and-play modules.
Built-in connectivity
Dual Gigabit ports with support for network failover and load balancing deliver fast and dependable performance out of the box.
Easy upgrade to 10GbE
Add an E10G22-T1-Mini Network Upgrade Module through the easily accessible slot to instantly enable faster networking.
All-in-one data management platform
The RS422+ is designed to support small deployments in tackling common applications such as file management, data backup, and surveillance.
Edge storage for distributed teams
Provide secure and convenient multi-platform file access, sharing, and synchronization across different locations.
Multi-endpoint data protection
Design an effective backup strategy to maximize system availability with a host of native and license-free solutions.
Smart surveillance for small deployments
Leverage flexible deployment options, intuitive management capabilities, and advanced video analytics to secure your premises.
Works best with Synology drives
Enjoy high sustained performance and reliability with enterprise-grade drives designed for Synology systems and featuring built-in data protection.
Powered by Synology DSM
Take advantage of a whole host of native productivity, management, and security solutions available on the web-based DSM operating system.
| Storage | |
|---|---|
| Storage drives installed | No |
| Number of storage drives supported | 4 |
| Installed storage drive type | No |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | Serial ATA |
| Storage drive sizes supported | 2.5,3.5" |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 6, 10, JBOD |
| Hot-swap drive bays | Yes |
| Supported file systems | BTRFS, FAT32, HFS+, NTFS, exFAT, ext3, ext4 |
| Processor | |
|---|---|
| Processor manufacturer | AMD |
| Processor family | Ryzen Embedded |
| Processor generation | AMD Ryzen Embedded R1000 Series |
| Processor model | R1600 |
| Processor frequency | 2.6 GHz |
| Processor boost frequency | 3.1 GHz |
| Processor cores | 2 |
| Processor threads | 4 |
| On-board graphics card model | Not available |
| Memory | |
|---|---|
| Internal memory type | DDR4 |
| Internal memory | 2 GB |
| ECC | Yes |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 1000 Mbit/s |
| Wake-on-LAN ready | Yes |
| Supported network protocols | SMB, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, and VPN (PPTP, OpenVPN, L2TP) |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Expansion ports quantity | 1 |
| Design | |
|---|---|
| Chassis type | Rack (1U) |
| Cooling type | Active |
| Product colour | Black |
| Number of fans | 3 fan(s) |
| Fan diameter | 4 cm |
| LED indicators | Yes |
| Performance | |
|---|---|
| Type | NAS |
| Device class | Home & Home Office |
| Backup function | Yes |
| Number of users | 2048 user(s) |
| Share folder access right management | Yes |
| Share folder | 1024 |
| Browser supported | Google Chrome, Firefox, Microsoft Edge, Safari 13 and later, and Safari (iOS 13.0 and later) on iPad, Chrome (Android 11.0 and later) on tablets |
| On/off switch | Yes |
| Reset button | Yes |
| Access Control List (ACL) | Yes |
| Software | |
|---|---|
| Operating system installed | DSM |
| Operating system version | 7.1 |
| Power | |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| General | |
|---|---|
| Product family | RackStation |
| Weight & dimensions | |
|---|---|
| Width | 430.5 mm |
| Depth | 295.5 mm |
| Height | 44 mm |
| Weight | 4.38 kg |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
| Packaging content | |
|---|---|
| Cables included | AC |
| Quick installation guide | Yes |
| Rack mount kit | Yes |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 35 °C |
| Operating relative humidity (H-H) | 8 - 80% |
| Operating altitude | 0 - 5000 m |
| Storage relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -20 - 60 °C |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84714100 |
| Other features | |
|---|---|
| I/O ports | Console Port |
-
