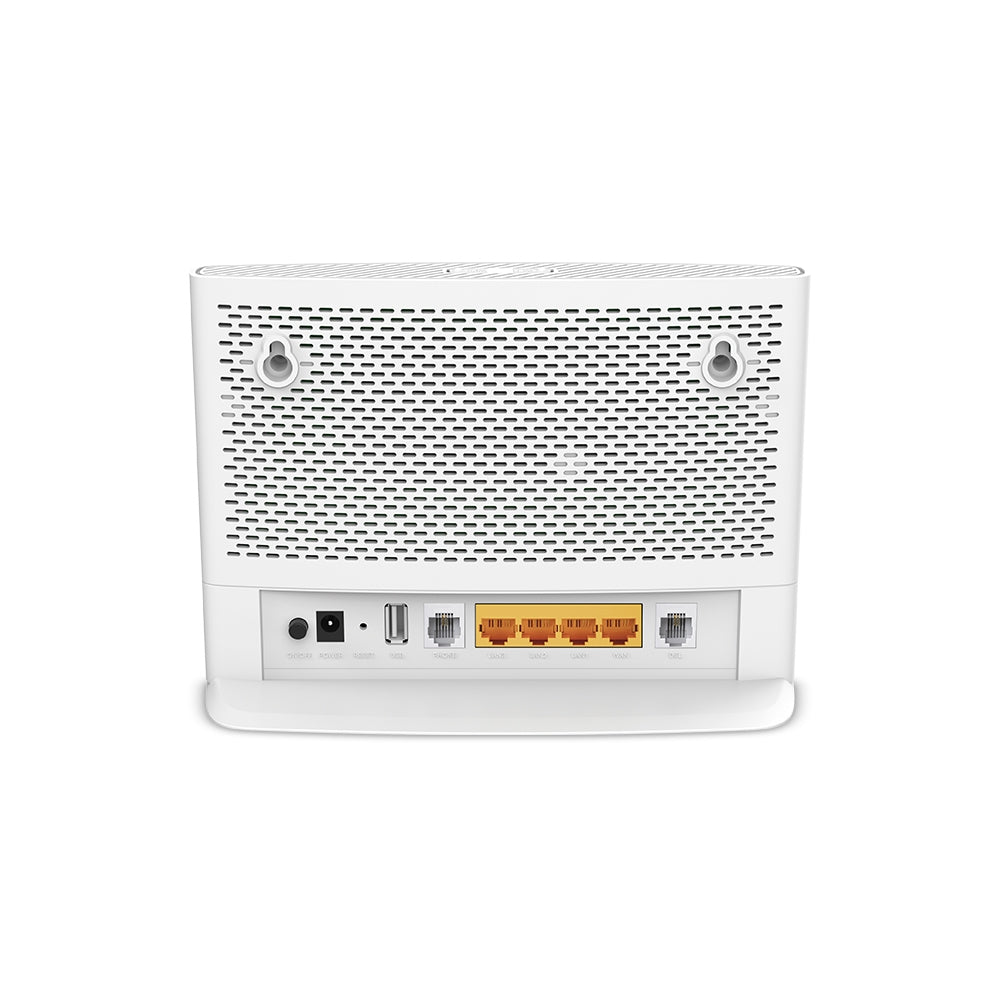

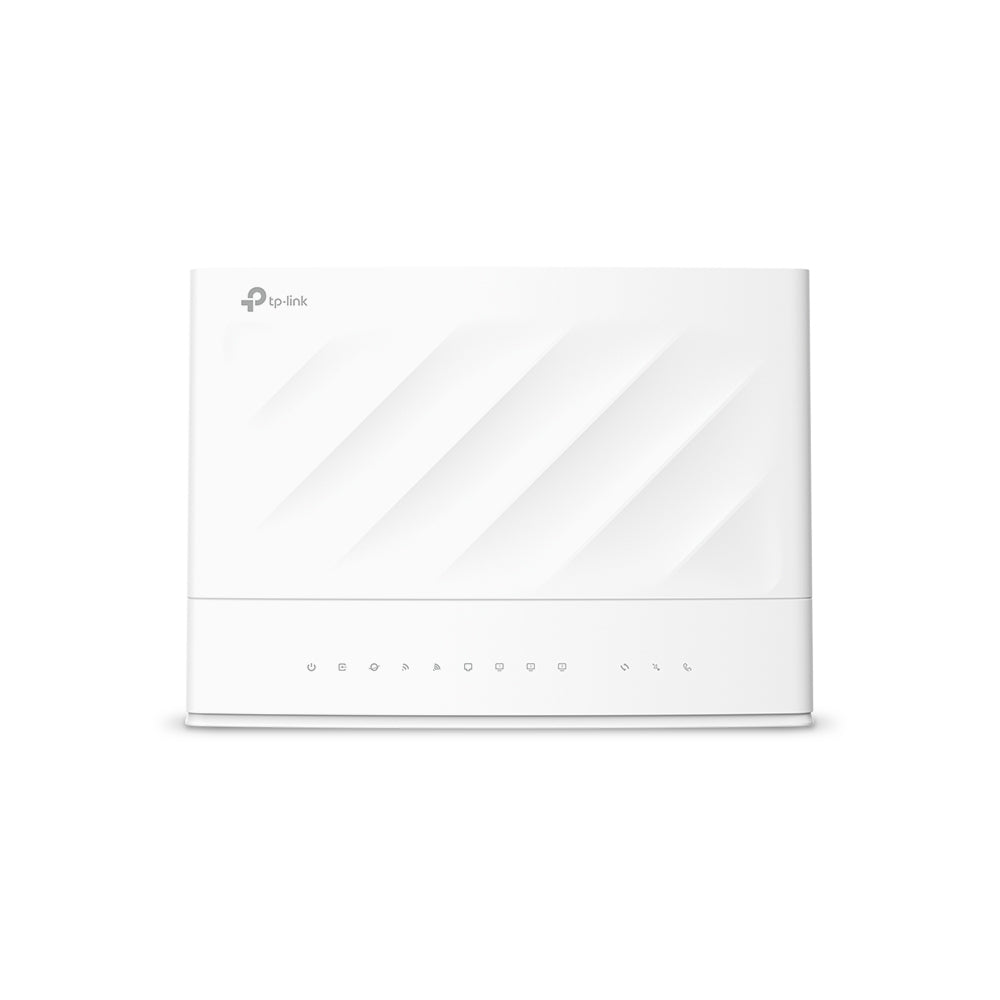

TP-Link VX230v wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) White
Key Details:
- Tabletop router White
- Dual-band (2.4 GHz / 5 GHz) Wi-Fi 6 (802.11ax) 1201 Mbit/s
- Gigabit Ethernet
- Ethernet WAN DSL WAN
- Ethernet LAN (RJ-45) ports: 4
- USB port
- Quality of Service (QoS) support
- MU-MIMO technology
TP-Link VX230v wireless router Gigabit Ethernet Dual-band (2.4 GHz ...
Description
Description
| WAN connection | |
|---|---|
| WAN connection type | RJ-11/RJ-45 |
| 3G/4G USB modem compatibility | No |
| SIM card slot | No |
| DSL WAN | Yes |
| Ethernet WAN | Yes |
| Wireless LAN features | |
|---|---|
| Modulation | 1024-QAM |
| WLAN data transfer rate (second band) | 1201 Mbit/s |
| WLAN data transfer rate (first band) | 574 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (max) | 1201 Mbit/s |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Network | |
|---|---|
| VPN support | OpenVPN, PPTP VPN, IPSec VPN |
| VPN tunnels quantity | 16 |
| Wireless radio | Yes |
| Dynamic DNS (DDNS) | Yes |
| Port forwarding | Yes |
| Port triggering | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| DSL features | |
|---|---|
| VDSL2 | Yes |
| ADSL2+ | Yes |
| ADSL2 | Yes |
| ADSL | Yes |
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| RJ-11 ports quantity | 2 |
| USB 2.0 ports quantity | 1 |
| USB port | Yes |
| Ethernet LAN (RJ-45) ports | 4 |
| Management features | |
|---|---|
| MU-MIMO technology | Yes |
| WPS push button | Yes |
| Reset button | Yes |
| Quality of Service (QoS) support | Yes |
| Security | |
|---|---|
| NAT functionality | NAT Forwarding |
| Protocols | |
|---|---|
| Supported network protocols | IPv4, IPv6 |
| DHCP server | Yes |
| DHCP client | Yes |
| Design | |
|---|---|
| On/off switch | Yes |
| Indication light | Yes |
| Wall mountable | Yes |
| Product colour | White |
| Product type | Tabletop router |
| Packaging content | |
|---|---|
| Quick installation guide | Yes |
| AC adapter included | Yes |
| Cables included | LAN (RJ-45), Phone (RJ-11) |
| Antenna | |
|---|---|
| Antenna design | Internal |
| Power | |
|---|---|
| External power adapter | Yes |
| Output current | 2 A |
| Output voltage | 12 V |
| Power source type | DC |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 60 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| System requirements | |
|---|---|
| Mac compatibility | Yes |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Windows operating systems supported | Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP |
| Weight & dimensions | |
|---|---|
| Width | 199.7 mm |
| Depth | 148.6 mm |
| Height | 67.5 mm |
| Packaging data | |
|---|---|
| Number of products included | 1 pc(s) |
