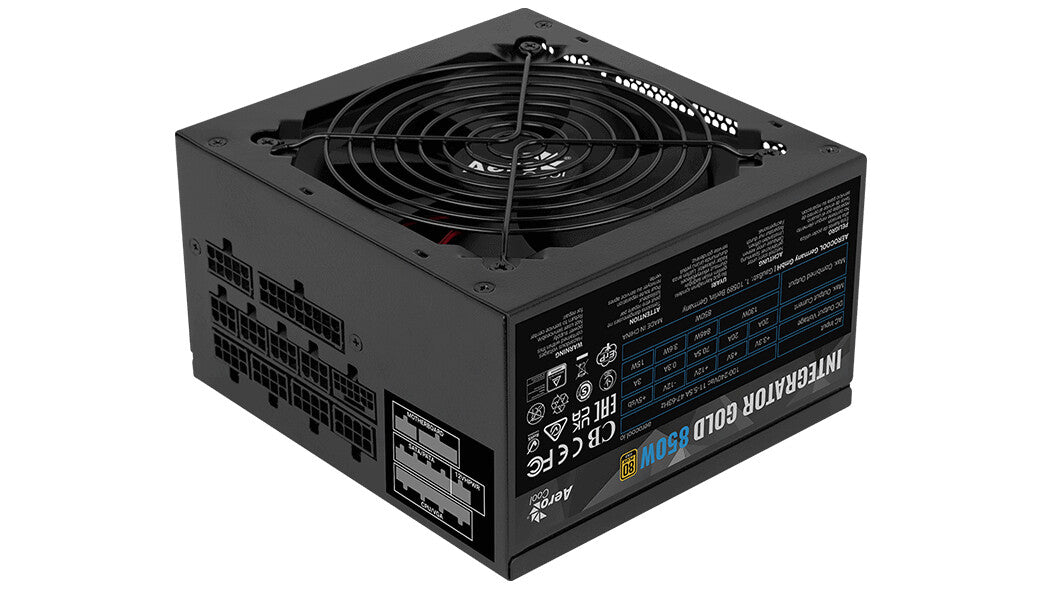

Aerocool Integrator Gold 850W power supply unit 20+4 pin ATX ATX Black
Integrator Gold 850W
80PLUS GOLD FULLY MODULAR PSU
The most affordable 80Plus Gold power supply unit that delivers high efficiency and stable power output with minimum noise. Now with optimized fan speed curve and fully modular soft black cables for better cable management.
UP TO 92%+ EFFICIENCY
80Plus Gold Certified for high efficiency performance.

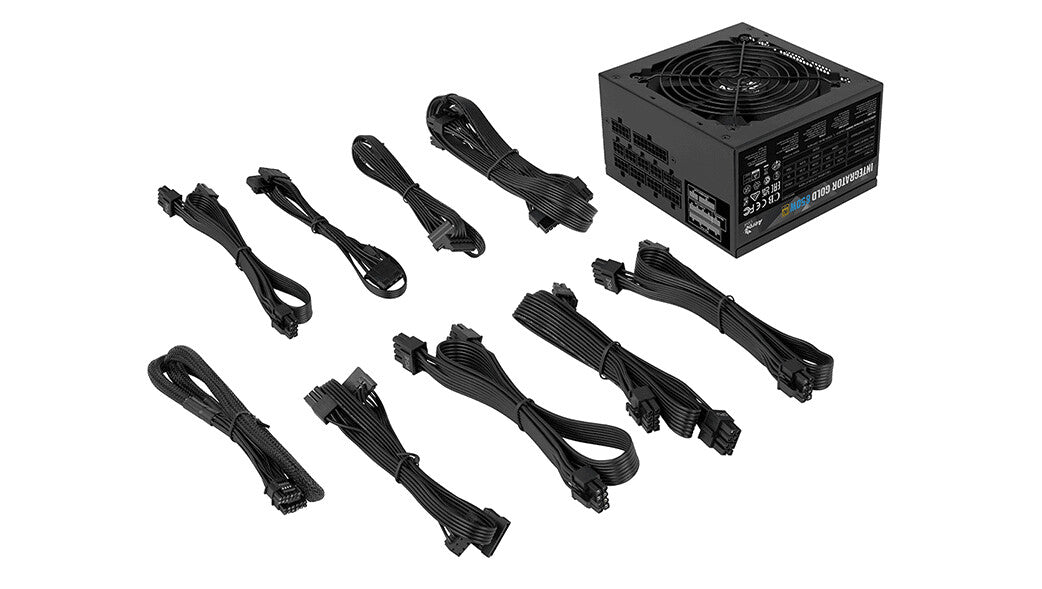

FULL MODULAR POWER SUPPLY
Fully modular design provides you with full control of your cables, allowing for super efficient cable management and improved air flow to achieve the best possible cooling performance.
TESTED FOR RELIABILITY AND PERFORMANCE
Having undergone test after test under strict conditions and the highest standards of quality, the INTEGRATOR GOLD ensures premium reliability, durability, and performance.
ACTIVE POWER FACTOR CORRECTION
Built-in APFC providing higher voltage stabilization and lower power consumption (Active Power Factor Correction rate > 0.9.
PREMIUM 105°C JAPANESE CAPACITORS
Built-in premium 105°C Japanese capacitors provide uncompromised performance, reliability and durability even under the most demanding conditions.
Due to supply chain sourcing, premium capacitors from any of the following brands may be used: Rubycon, Nichicon, and Nippon Chemi-Con.
DC-TO-DC CONVERSION CIRCUIT
Built-in DC-to-DC conversion circuit for higher efficiency and tight voltage regulation even under heavy cross-loading conditions.
OPTIMIZED THERMAL FAN SPEED CONTROL
Optimized fan speed allows for near inaudible fan noise and silent PSU operation.
12cm silent black fan with optimized thermal fan speed control, plus 0RPM mode operation in low load.
CONNECTOR READY TO BE COMPATIBLE WITH HIGH END SYSTEM
DUAL CPU CONNECTORS
PCIe5.0 CONNECTOR for RTX 40 graphic card.
| Power | |
|---|---|
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Surge and inrush, Under voltage |
| Efficiency | 92% |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+12V) | 70.5 A |
| Max output current (+3.3V) | 20 A |
| Combined power (+5Vsb) | 15 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5V) | 130 W |
| Combined power (+12V) | 846 W |
| Combined power (+3.3V) | 130 W |
| Number of +12V rail(s) | 1 |
| Power Factor Correction (PFC) type | Active |
| Power factor | 0.9 |
| Input current | 11 - 5.5 A |
| AC input frequency | 47 - 63 Hz |
| AC input voltage | 100 - 240 V |
| Total power | 850 W |
| Ports & interfaces | |
|---|---|
| Cabling type | Fully-Modular |
| ATX power connector (20+4 pin) | Yes |
| CPU power connector (4+4 pin) | Yes |
| CPU P4 connector (4-pin) | 2 |
| PCI Express power connectors (6+2 pin) | 4 |
| Peripheral (Molex) power cable length | 500,650,800 mm |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| SATA power cable length | 500,650,800 mm |
| Number of SATA power connectors | 6 |
| Motherboard power cable length | 55 cm |
| Motherboard power connector | 20+4 pin ATX |
| Performance | |
|---|---|
| ATX version | 3.0 |
| 80 PLUS certification | 80 PLUS Gold |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
| Design | |
|---|---|
| On/off switch | Yes |
| Fan location | Top |
| Number of fans | 1 fan(s) |
| Fan diameter | 12 cm |
| Cooling type | Active |
| Product colour | Black |
| Packaging content | |
|---|---|
| Cables included | CPU, PCIe, Peripheral (Molex), SATA |
| Technical details | |
|---|---|
| Sustainability compliance | Yes |
| Sustainability certificates | ErP |
| Compliance certificates | CE, RoHS |
-
