GIGABYTE  |  SKU: Z890 UD WIFI6E  |  Condition: Brand New  |  Barcode: 719331865313

GIGABYTE Z890 UD WIFI6E Motherboard - Supports Intel Core Ultra (Series 2) CPUs, 12+1+2 phases VRM, up to 8800MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0, Wi-Fi 6E, 2.5GbE LAN, USB 4

£226.99
Excl VAT £189.16

Key Details:

  • Digital 12+1+2+1 Phases 60A DrMOS VRM with Solid Capacitor
  • Reinforced PCIe UD Slot PCIe 5.0 with PCIe EZ-Latch Design
  • PCIe M.2 design (Up to 25110) with Thermal Guard
  • Fully Covered MOSFET Heatsinks
  • 2x2 Wi-Fi 6E with WIFI EZ-Plug Design
  • 2.5GbE LAN, USB 4.0 Type-C, USB 3.2 Gen2 Type-C
Z890 UD WIFI6E Motherboard - Supports Intel Core Ultra (Series 2) CPUs, 12+1+2 phases VRM, up to 8800MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0, Wi-Fi 6E, 2.5GbE LAN, USB 4

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

Processor
Maximum internal memory supported by processor 256 GB
Supported processor sockets LGA 1851
Compatible processor series Intel Core Ultra (Series 2)
Processor socket LGA 1851 (Socket V1)
Processor manufacturer Intel
Memory
Supported memory module capacities 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 24GB, 32GB, 40GB, 48GB, 64GB
Maximum internal memory 256 GB
Supported memory clock speed (max) 8800 MHz
Supported memory clock speeds 5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600,7800,7900,7950,8000,8200,8266,8400,8600 MHz
ECC сompatibility Non-ECC
Memory channels Dual-channel
Memory slots type DIMM
Number of memory slots 4
Supported memory types DDR5-SDRAM
Storage controllers
RAID levels 0, 1, 5, 10
RAID support Yes
Number of HDDs supported 7
Number of storage drives supported 4
Supported storage drive interfaces M.2, SATA III
Supported storage drive types HDD & SSD
Graphics
DirectX version 12.0
On-board graphics card No
Internal I/O
RGB LED pin header Yes
TPM connector Yes
12V power connector Yes
EPS power connector (8-pin) Yes
ATX Power connector (24-pin) Yes
Total number of SATA connectors 4
Number of SATA III connectors 4
USB 3.2 Gen 2 (3.1 Gen 2) connectors 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
USB 2.0 connectors 2

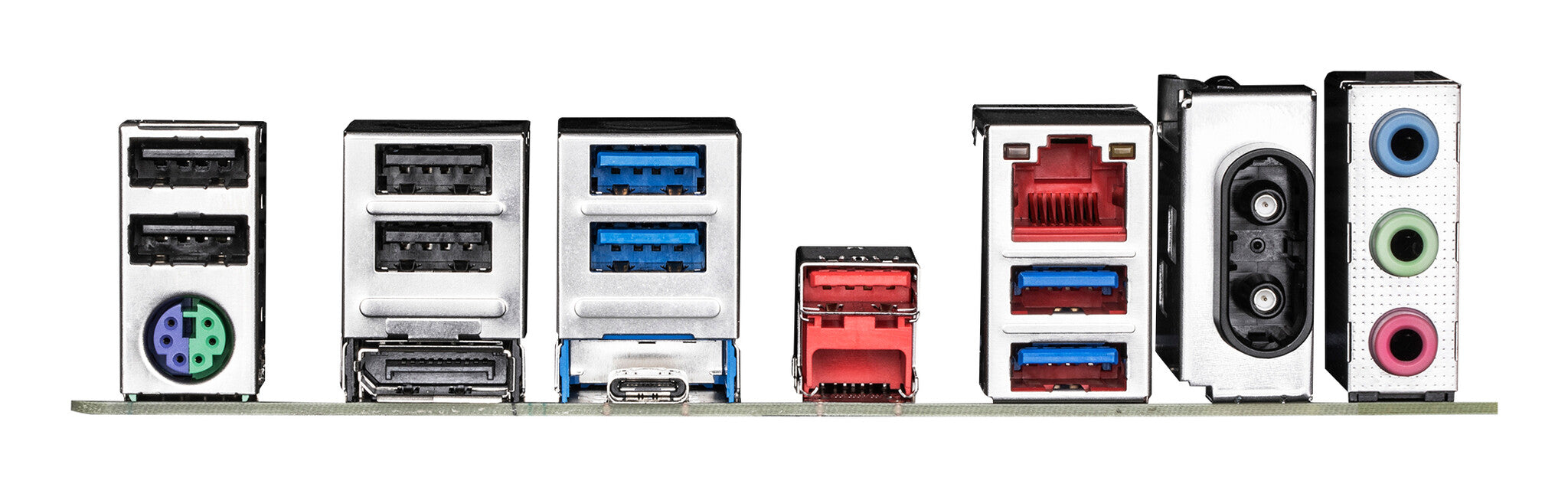

Rear panel I/O ports
Thunderbolt ports quantity 2
S/PDIF out port Yes
Microphone in Yes
DisplayPorts quantity 2
HDMI ports quantity 1
Ethernet LAN (RJ-45) ports 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
USB 2.0 ports quantity 4
Network
Bluetooth version 5.3
Bluetooth Yes
WLAN controller model Intel Wi-Fi 6E AX211
Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Top Wi-Fi standard Wi-Fi 6E (802.11ax)
Wi-Fi Yes
Ethernet interface type 2.5 Gigabit Ethernet
Ethernet LAN Yes
Features
Windows operating systems supported Windows 11 x64
PC health monitoring Fan, Temperature, Voltage
Product colour Black
Audio output channels 7.1 channels
Motherboard chipset Intel Z890
Motherboard chipset family Intel
Motherboard form factor ATX
Component for PC
Expansion slots
Number of M.2 (M) slots 3
PCI Express x16 (Gen 5.x) slots 1
PCI Express x16 (Gen 4.x) slots 3
BIOS
Desktop Management Interface (DMI) version 2.7
System Management BIOS (SMBIOS) version 2.7
Clear CMOS button Yes
Clear CMOS jumper Yes
ACPI version 5.0
BIOS memory size 256 Mbit
BIOS type UEFI AMI
Battery
Battery type CR2032
Battery technology Lithium-Manganese Dioxide (LiMnO2)
Number of battery cells 1
Battery weight 3 g
Lithium weight per battery 0.07 g
Packaging data
Package weight 2.02 kg
Package height 80 mm
Package depth 270 mm
Package width 335 mm
Logistics data
Country of origin China
Products per shipping (inner) case 1 pc(s)
Weight & dimensions
Height 35 mm
Depth 244 mm
Width 305 mm
Packaging content
Bundled software Norton® Internet Security (OEM version)LAN bandwidth management software
Batteries included Yes
Other features
Weight 1.78 kg
Technical details
Warranty period 3 year(s)
