Neomounts DS70-810BL1 Monitor arm 17-32" - gas spring - space saving - 180°-stop
Powered by Autify Digital Ltd
Neomounts DS70-810BL1 Monitor arm 17-32" - gas spring - space saving - 180°-stop is backordered and will ship as soon as it is back in stock.
Neomounts DS70-810BL1 Monitor arm 17-32" - gas spring - space ...

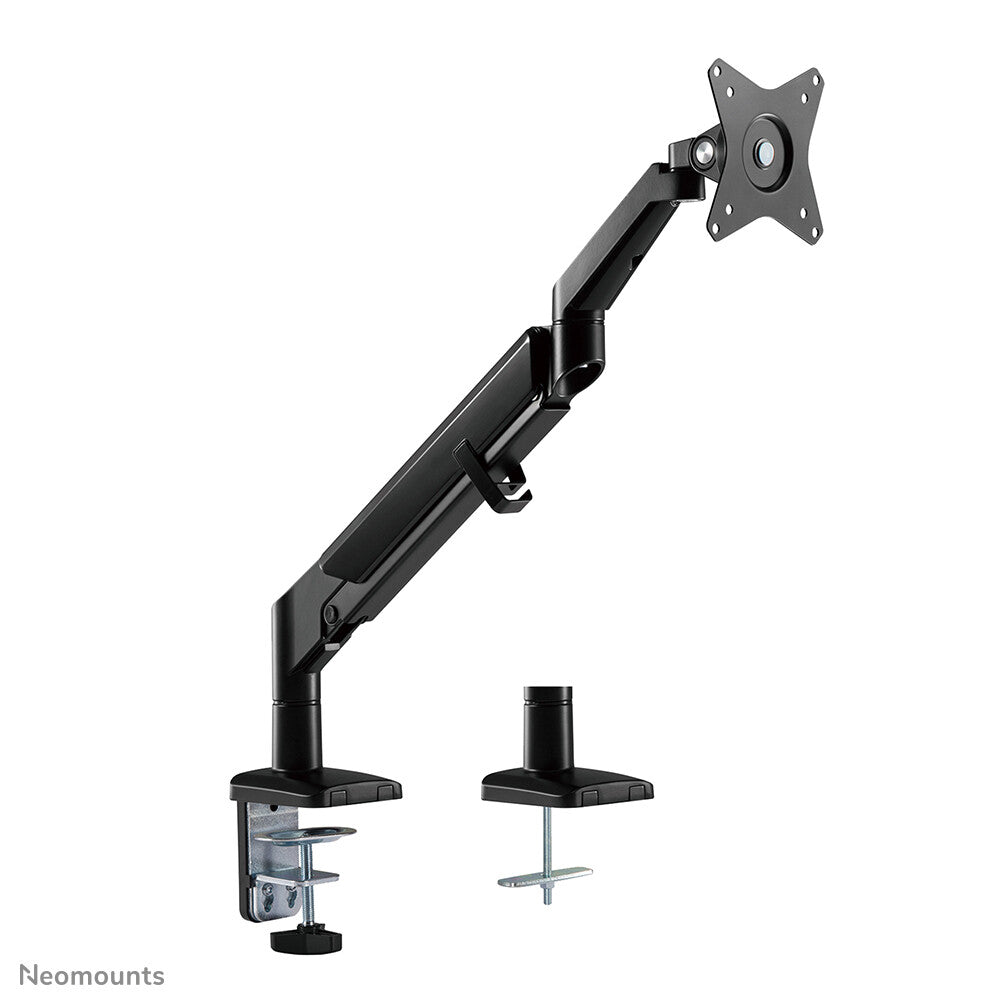

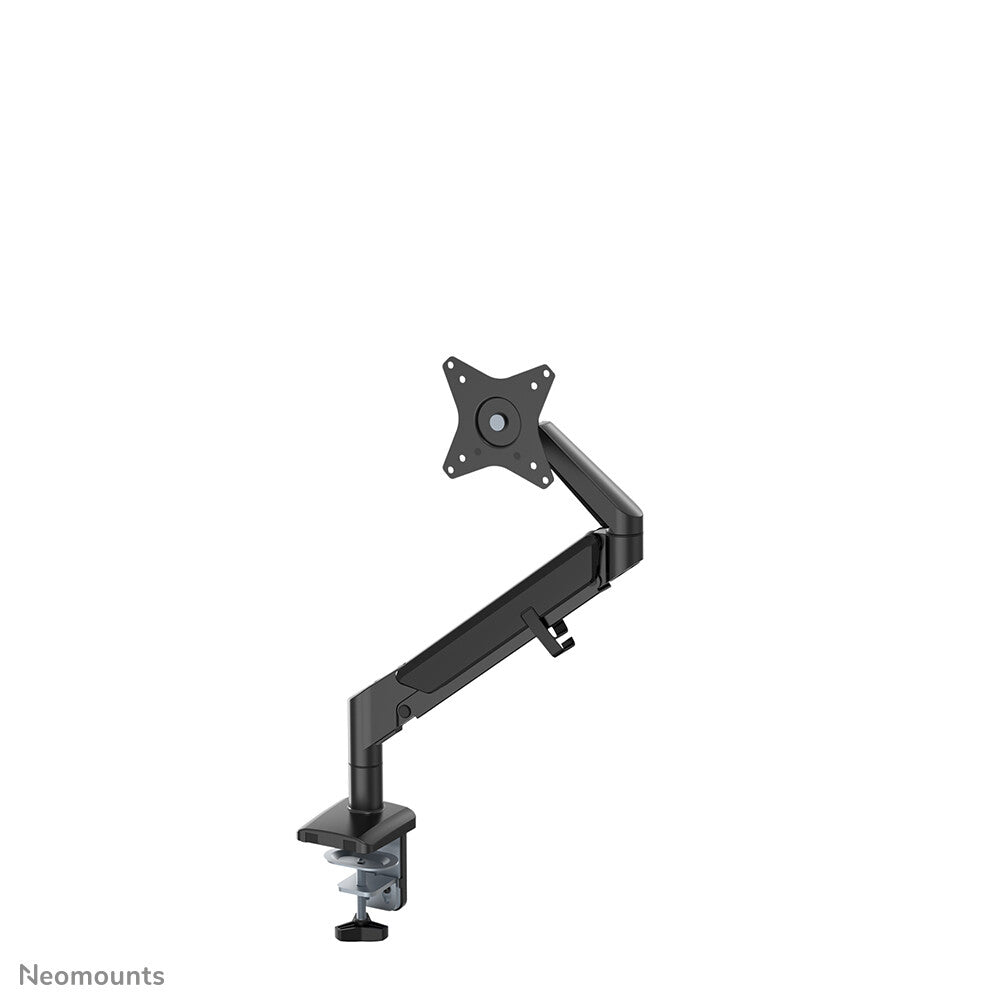

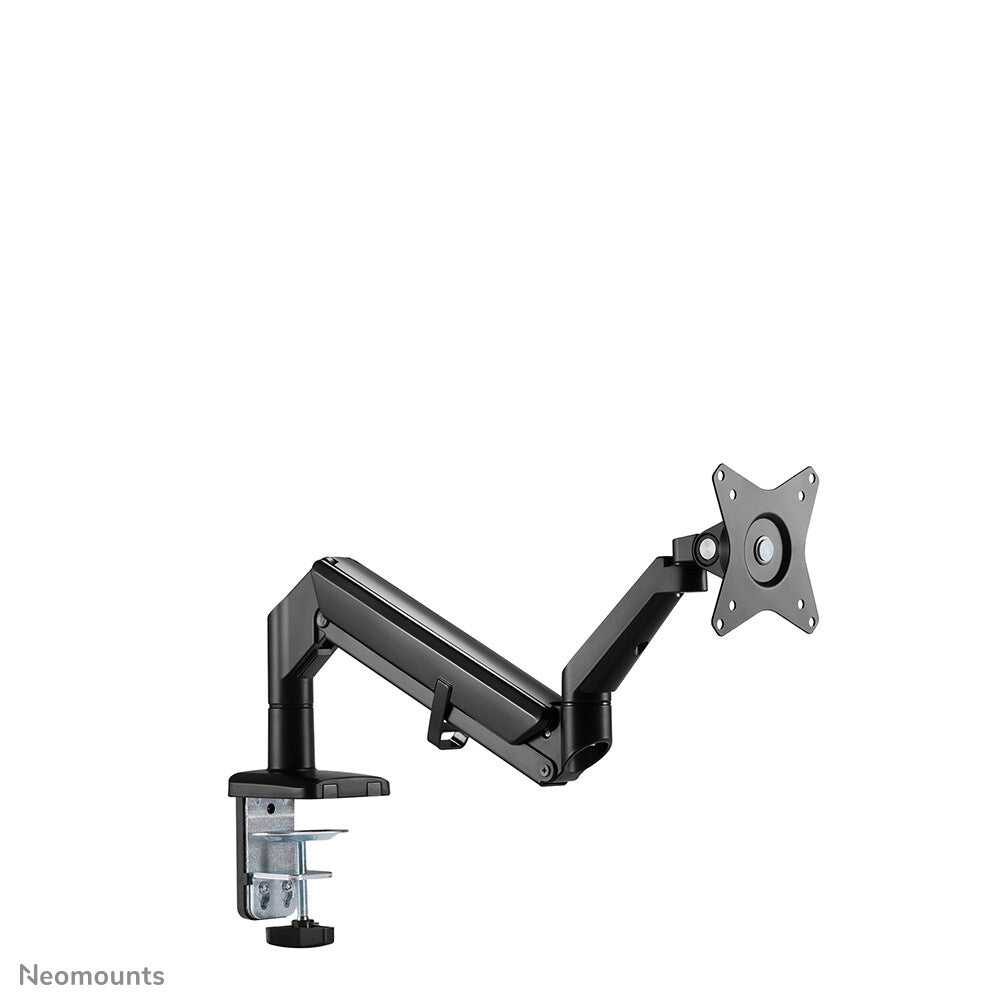

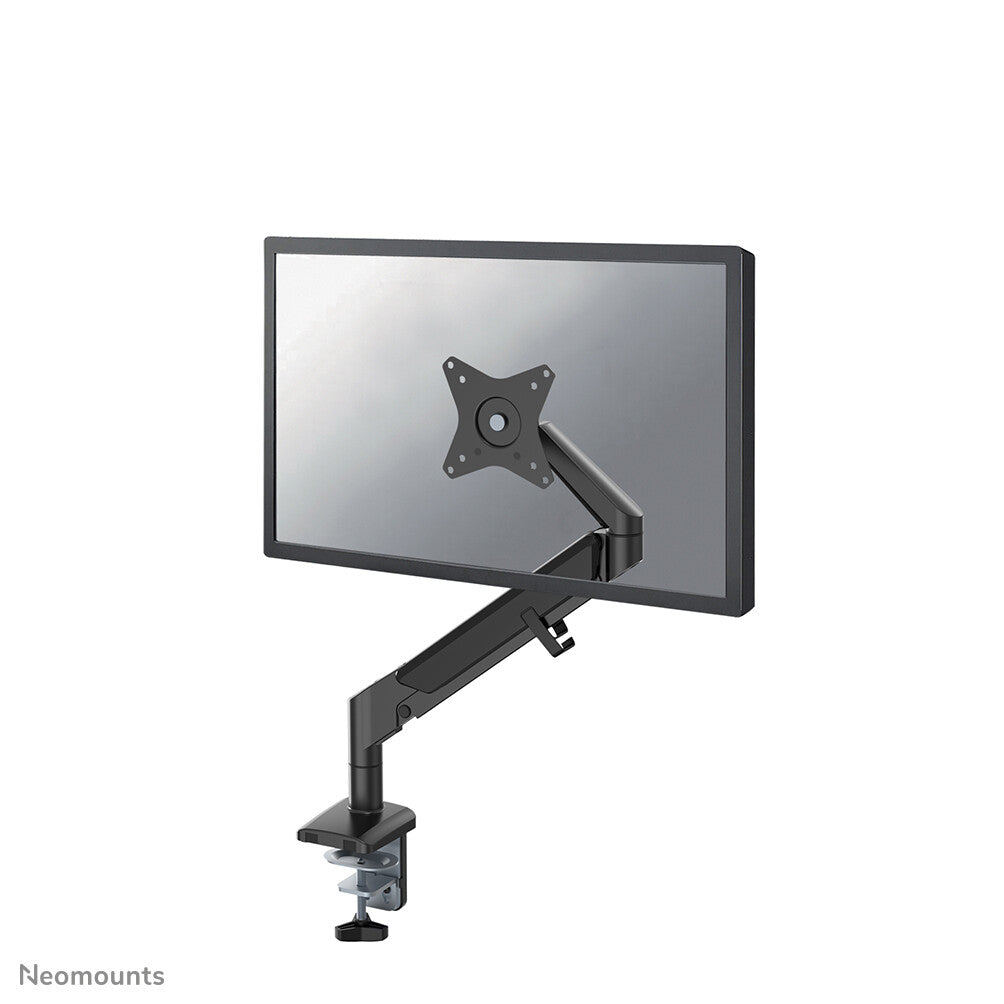

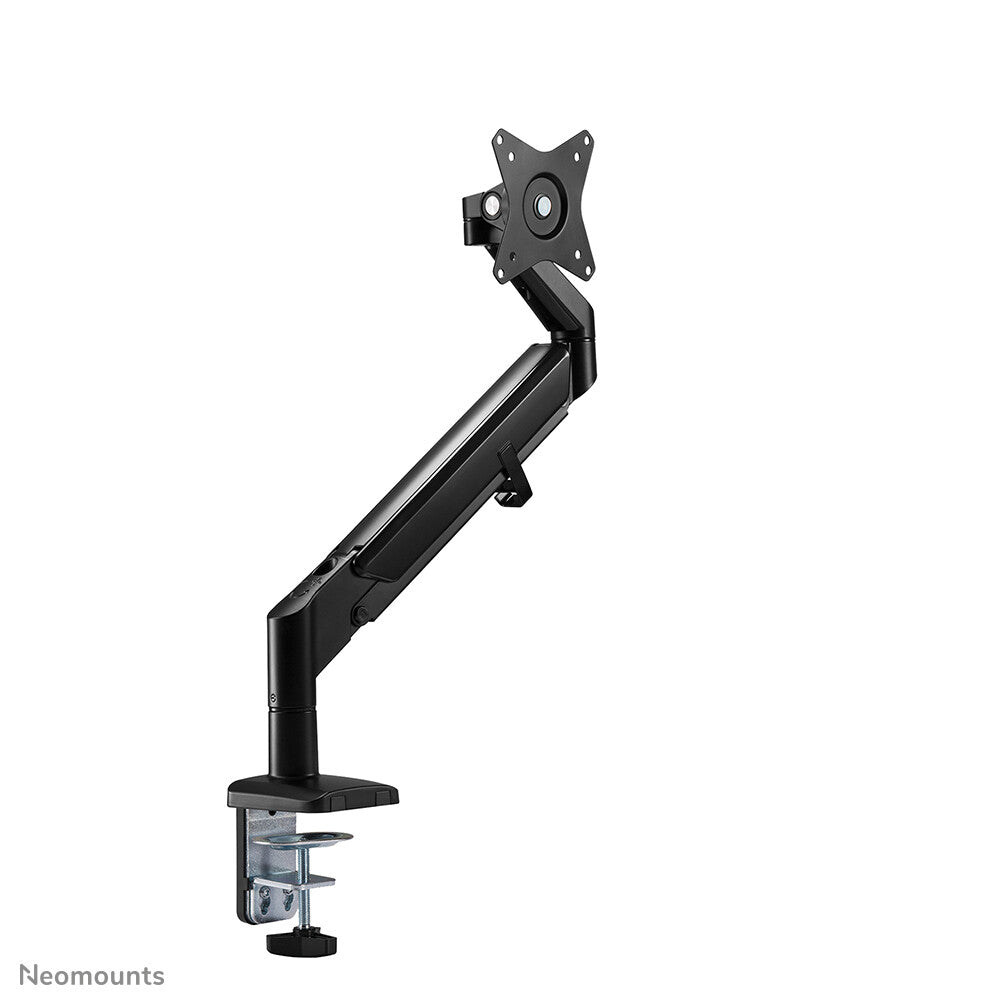

The Neomounts DS70-810BL1 is a full motion desk mount for one flat screen up to 32" with a maximum weight capacity of 9 kg. The versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of your screen. Additionally, the mount features gas spring height adjustment (26,5-55 cm) and depth adjustment (0-49 cm), to create the perfect working position. Additionally, the DS70-810BL1 features the nifty 180° stop mechanism, that allows you to safely adjust the mount even when it's placed close to a wall or separation panel without making contact with the wall. The smart cable management clips ensure orderly routing of the cables.
Due to the short T-Rex® upper arm, only minimal depth is required when placed near a wall or separation panel. This allows the screen to be positioned further away from the user which is better for the eyes and also leaves more space for good ergonomic working posture. The DS70-810BL1 is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Unused hole patterns can be covered using one of Neomounts VESA adapter plates. The DS70-810BL1 is equipped with an Quick-release VESA system for easy installation and comes with both desk clamp and grommet.
| Mounting | |
|---|---|
| Desk thickness (max) | 8.5 cm |
| Desk thickness (min) | 1 cm |
| Number of displays supported | 1 |
| Panel mounting interface | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Minimum VESA mount | 75 x 75 mm |
| Mounting | Clamp/Grommet |
| Maximum weight capacity (per curved/ultra-wide display) | 9 kg |
| Maximum weight capacity (per display) | 9 kg |
| Mounting type | Desk |
| Maximum screen size | 81.3 cm (32") |
| Minimum screen size | 43.2 cm (17") |
| Maximum weight capacity | 9 kg |
| Ergonomics | |
|---|---|
| Rotating | Yes |
| Tilt adjustment | Yes |
| Cable management | Yes |
| Pivot angle | -180 - 180° |
| Angle of rotation | 360° |
| Swivel angle range | -90 - 90° |
| Swivelling | Yes |
| Tilt angle range | -45 - 45° |
| Depth adjustment range | 0 - 490 mm |
| Adjustable depth | Yes |
| Height adjustment range | 265 - 550 mm |
| Height adjustment type | Gas spring |
| Height adjustment | Yes |
| Design | |
|---|---|
| Orientation | Landscape/Portrait |
| Housing material | Steel |
| Product colour | Black |
| Weight & dimensions | |
|---|---|
| Package weight | 3.6 kg |
| Package height | 400 mm |
| Package depth | 117 mm |
| Package width | 222 mm |
| Weight | 3 kg |
| Height | 615 mm |
| Depth | 555 mm |
| Width | 117 mm |
| Packaging data | |
|---|---|
| Package net weight | 3.6 kg |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
|---|---|
| Master (outer) case net weight | 18 kg |
| Products per pallet (EU) | 72 pc(s) |
| Harmonized System (HS) code | 7326909890 |
| Products per master (outer) case | 6 pc(s) |
| Master (outer) case gross weight | 22.3 kg |
| Master (outer) case height | 370 mm |
| Master (outer) case length | 415 mm |
| Master (outer) case width | 465 mm |
| Other features | |
|---|---|
| Minimum weight | 1 kg |
| Country of origin | China |
-
