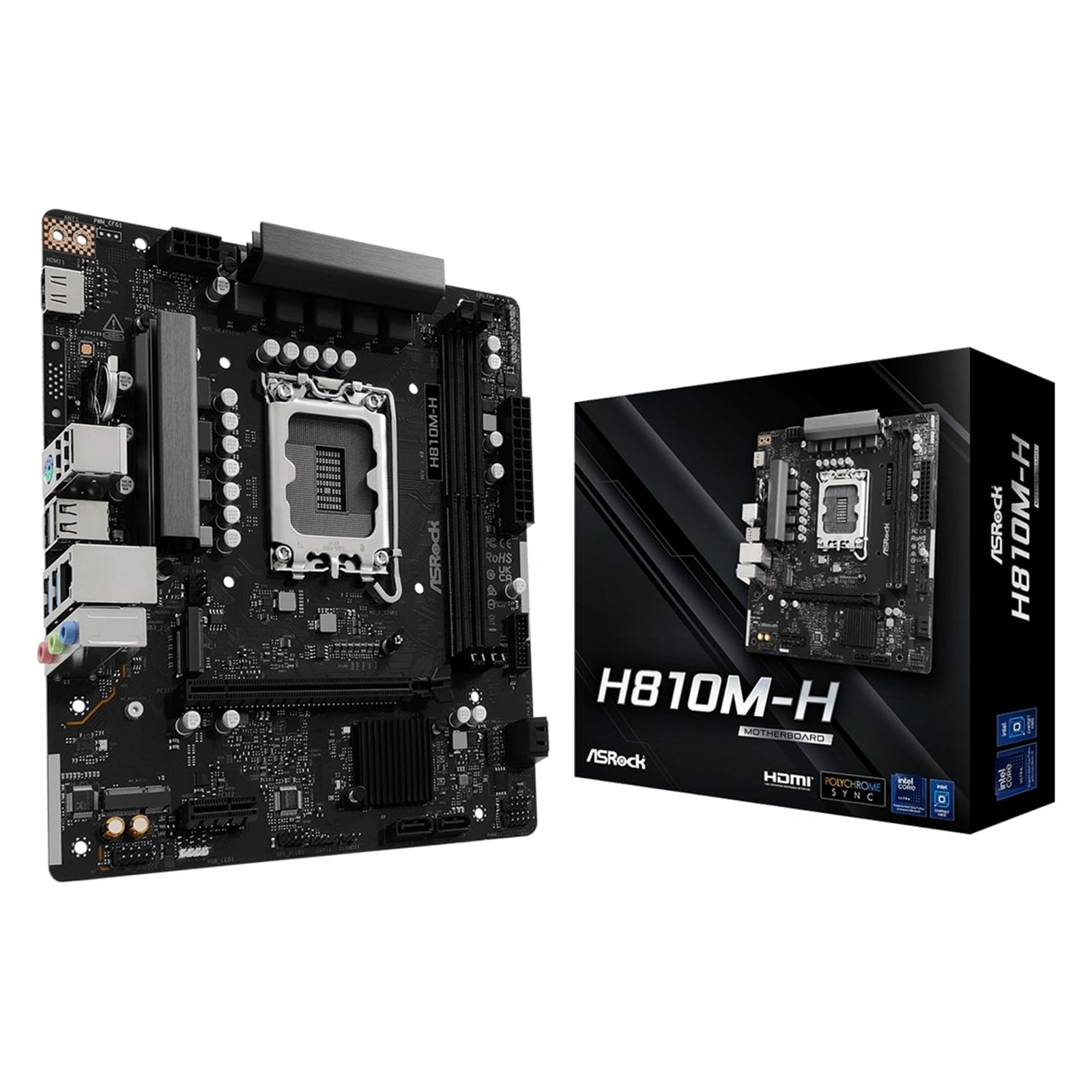

ASRock H810M-H Intel Socket 1851 Motherboard, 2 x DDR5 DIMM Slots, 1 x Hyper M.2 Socket , ASRock Intel 4-Layer Memory POOL 1 x HDMI Port/ 1 x Display Port
Powered by Autify Digital Ltd
ASRock H810M-H Intel Socket 1851 Motherboard, 2 x DDR5 DIMM Slots, 1 x Hyper M.2 Socket , ASRock Intel 4-Layer Memory POOL 1 x HDMI Port/ 1 x Display Port is backordered and will ship as soon as it is back in stock.
ASRock H810M-H Intel Socket 1851 Motherboard, 2 x DDR5 DIMM Slots, ...
6+1+1+1+1 Power Phase
2 x DDR5 DIMMs
Supports Dual Channel, up to 6400
1 PCIe 4.0 x16, 1 PCIe 4.0 x1, 1 M.2 Key E for WiFi
Graphics Output Options: 1 HDMI
Realtek ALC897 7.1 CH HD Audio Codec
4 SATA3
1 Hyper M.2 (PCIe Gen4x4)
4 USB 3.2 Gen1 (2 Rear, 2 Front)
6 USB 2.0 (4 Rear, 2 Front)
Realtek Gigabit LAN
High Speed M.2 Solution
Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.
Intelligent Cooling Design
The first thing that catches the eye is the optimized Aluminum Heatsink Design. Heatsinks are crucial for efficient heat dissipation, especially during heavy workloads like gaming or productivity tasks. Motherboard that built with heatsinks can effectively manage thermal performance, hence ensure system stability and durability effortlessly.
M.2 (KEY E) For WiFi
Besides the onboard LAN port, users may also choose wireless connections by M.2 (Key E) slot.
*Wi-Fi module is not included.
POLYCHROME RGB
This motherboard features onboard RGB headers and addressable RGB headers that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
Unique Feature
Superb Productivity
Dual Channel DDR5
Rock-Solid Durability
6+1+1+1+1 Power Phase
ASRock Intel 4-Layer Memory POOL (Planes on Outer Layers) Technology
EZ Update
ASRock Auto Driver Installer
CPU
Supports Intel Core Ultra Processors (Series 2) (LGA1851)
Supports Intel Hybrid Technology
Supports Intel Turbo Boost Max 3.0 Technology
Supports Intel Thermal Velocity Boost (TVB)
Supports Intel Adaptive Boost Technology (ABT)
Integrated NPU for dedicated AI acceleration
Chipset
Intel H810
Memory
Dual Channel DDR5 Memory Technology
2 x DDR5 DIMM Slots
Supports DDR5 non-ECC, un-buffered memory up to 6400
Supports Clocked Unbuffered DIMM (CUDIMM)
Max. capacity of system memory: 128GB
Supports Intel Extreme Memory Profile (XMP) 3.0x
BIOS
256Mb AMI UEFI Legal BIOS with GUI support
Graphics
Intel Xe LPG Graphics Architecture
1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
Audio
7.1 CH HD Audio (Realtek ALC897 Audio Codec)
LAN
Gigabit LAN 10/100/1000 Mb/s
Realtek RTL8111H
Slots
CPU:
1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode
Chipset:
1 x PCIe 4.0 x1 Slot (PCIE2)
1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
Storage
Chipset:
1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
4 x SATA3 6.0 Gb/s Connectors
USB
Chipset:
4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front)
6 x USB 2.0 (4 Rear, 2 Front)
Connector
1 x SPI TPM Header
1 x Power LED and Speaker Header
1 x RGB LED Header
2 x Addressable LED Headers
1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)
1 x Chassis Fan Connector (4-pin) (Smart Fan Speed Control)
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector
1 x Front Panel Audio Connector
1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
Rear Panel I/O
2 x Antenna Mounting Points
1 x PS/2 Mouse/Keyboard Port
1 x HDMI Port
2 x USB 3.2 Gen1 Ports
4 x USB 2.0 Ports
1 x RJ-45 LAN Port
HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI
Software
ASRock Motherboard Utility (A-Tuning)
ASRock Polychrome SYNC
UEFI
ASRock EZ Mode
ASRock Full HD UEFI
ASRock My Favorites in UEFI
ASRock Auto Driver Installer
ASRock Instant Flash
Accessories
1 x I/O Shield
2 x SATA Data Cables
1 x Screw for M.2 Socket
Form Factor
Micro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm
OS
Microsoft Windows 11 64-bit
Certifications
FCC, CE
ErP/EuP ready (ErP/EuP ready power supply is required)
- Socket: 1851
- CPU Compatibility: Intel Core Ultra
- Chipset: Intel H810
- Form Factor: Micro ATX
- Memory Slots: DDR5 - 2 Slots
- M.2 Compatibility: PCIe4.0 x 4
- USB C: No
-
