TP-Link Archer T4E Internal WLAN 867 Mbit/s
802.11ac - Dual Band Wi-Fi for Faster Connections
TP-LINK's Archer T4E supports the advanced Wi-Fi standard of IEEE 802.11ac, offering 3 times transferring rates as IEEE 802.11n. You can send emails and browse the web with 2.4GHz network, while keeping the speedy 5GHz band free for gaming, HD streaming and other bandwidth intensive applications.

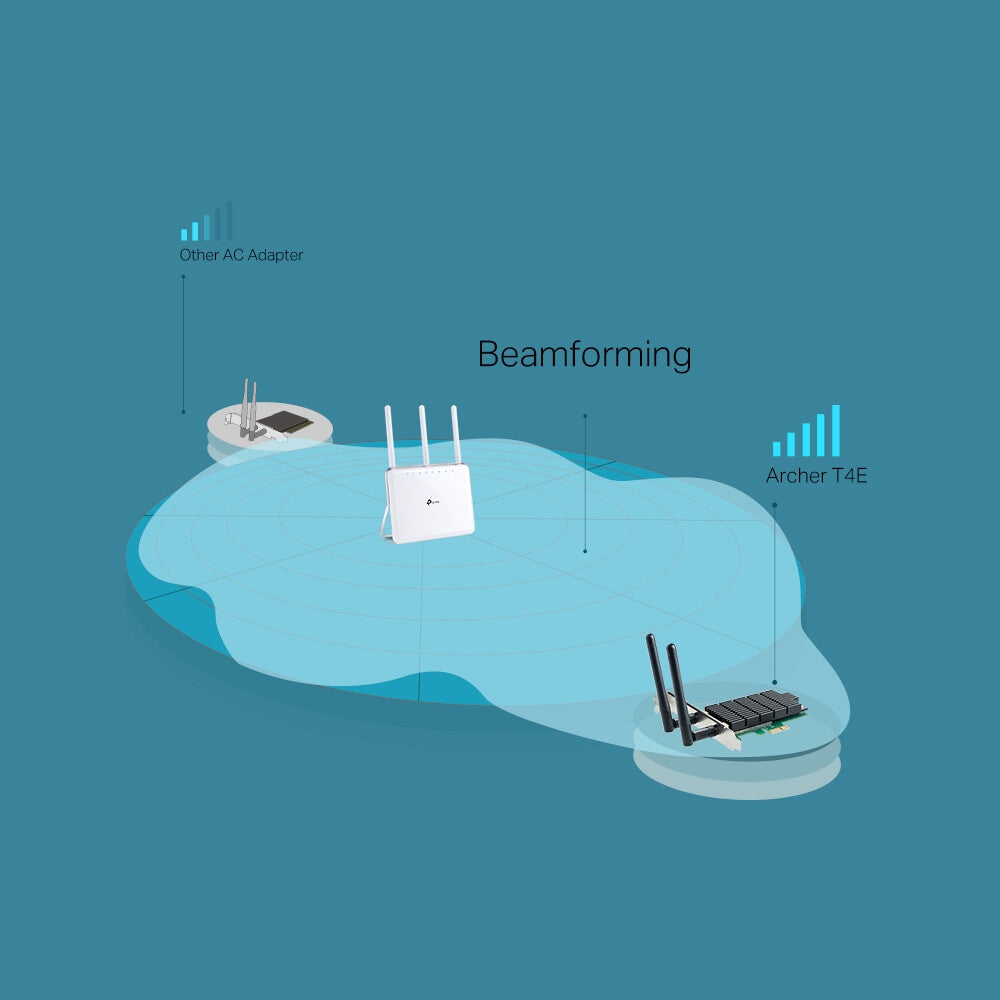

Greater Coverage with Beamforming
Beamforming technology smartly focuses Wi-Fi signals towards connected devices for stable connections and boosted range.

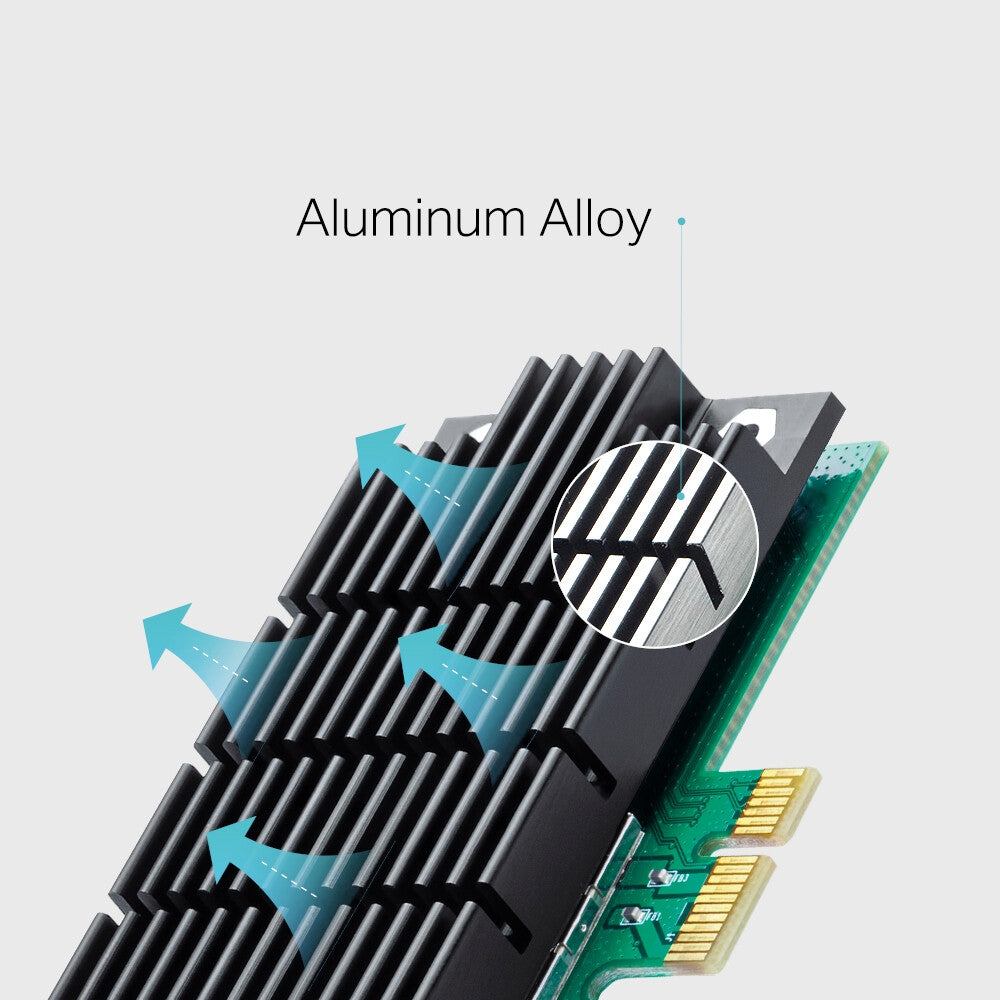

Heat Sink for Ultimate Stability
A heat sink helps to dissipate the thermal energy generated by the adapter, which in turn improves stability. Additionally, lower temperatures help to extend the product lifespan.
External Antennas for More Targeted signal
Two external antennas utilize the latest wireless technology to achieve stable connections and boosted coverage.
| Ports & interfaces | |
|---|---|
| PCI Card form factor | Half-height (low-profile) |
| Interface | WLAN |
| Host interface | PCI Express |
| Connectivity technology | Wireless |
| Network | |
|---|---|
| Bandwidth (first) | 2.4 GHz |
| Bandwidth (second) | 5 GHz |
| Security algorithms | 64-bit WEP, 128-bit WEP, 802.1x RADIUS, WPA, WPA-PSK, WPA2, WPA2-PSK |
| Modulation | 16-QAM, 64-QAM, 256-QAM, CCK, DBPSK, DQPSK, OFDM |
| WLAN data transfer rates supported | 11,54,300,867 Mbit/s |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Wi-Fi | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Maximum data transfer rate | 867 Mbit/s |
| Design | |
|---|---|
| Operating modes | Infrastructure mode |
| Transmitting power (FCC) | 24 dBm |
| Transmitting power (CE) | 23 dBm |
| Antenna | Yes |
| Antenna design | External |
| Product colour | Black, Green |
| Component for | PC |
| Internal | Yes |
| System requirements | |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 - 90% |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Sustainability | |
|---|---|
| Sustainability compliance | Yes |
| Weight & dimensions | |
|---|---|
| Height | 21.5 mm |
| Depth | 115.2 mm |
| Width | 120.8 mm |
| Packaging data | |
|---|---|
| Package weight | 300 g |
| Package height | 42 mm |
| Package depth | 148 mm |
| Package width | 207 mm |
| Package type | Box |
| Low-profile bracket | Yes |
| Quantity | 1 |
| Packaging content | |
|---|---|
| Quick installation guide | Yes |
| Resource CD | Yes |
| Mounting brackets included | Yes |
| Technical details | |
|---|---|
| Compliance certificates | RoHS, Federal Communications Commission (FCC), CE |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
| Other features | |
|---|---|
| Transmit power range | 59.5 - 92 dBmW |
| Conflict-Free | Yes |
| Antennas quantity | 2 |
| Detachable antenna(s) | Yes |
-
