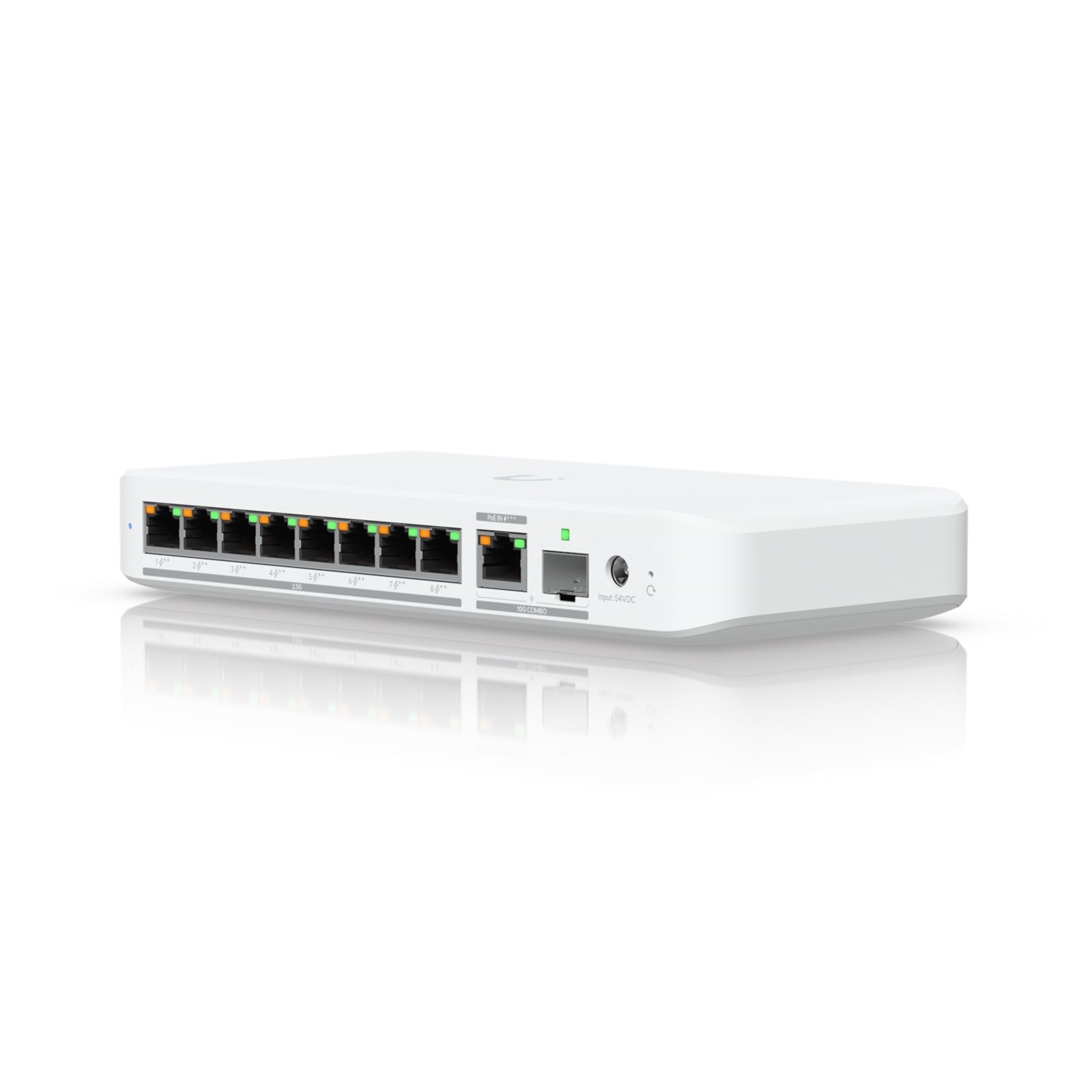

Ubiquiti USW-FLEX-2.5G-8-POE UniFi Flex 2.5G Ultra Compact 8 Port POE/USB-C Powered POE++ Managed Switch
Ubiquiti USW-FLEX-2.5G-8-POE UniFi Flex 2.5G Ultra Compact 8 Port POE/USB-C Powered POE++ Managed Switch is backordered and will ship as soon as it is back in stock.
Note. Actual PoE availability may vary based on input cable length and quality.
AC power adapter sold separately.
Dimensions
212.9 x 99.4 x 33.5 mm
(8.4 x 3.9 x 1.3")
Port Layout
2.5 GbE RJ45
8 (All PoE++)
10 GbE RJ45
1 (PoE+++)
10G SFP+
1
Max. PoE Output
Up to PoE++
Total PoE Availability
PoE+++ input: 76W
PoE++ input: 46W
PoE+ input: 16W
210W AC adapter input: 196W
Form Factor
Compact Desktop, wall, DIN, magnetic
Switching Capacity
60 Gbps
Total Non-Blocking Throughput
30 Gbps
Forwarding Rate
45 Mpps
Supported VLANs
256
MAC Address Table Size
4000
STP & RSTP
Yes
Egress Rate Limit
Yes
Flow Control
Yes
Storm Control
Yes
Multicast & Broadcast Rate Limiting
Yes
Port Isolation
Yes
Port Mirroring
Yes
Jumbo Frames
Yes
Loop Protection
Yes
PoE Ports
PoE++
8
Max. PoE Wattage per Port by PSE
PoE
15.4W
PoE+
32W
PoE++
64W
Max. Power Consumption
14W (Excluding PoE output) with PoE input
17W (Excluding PoE output) with AC adapter input
210W (Including PoE Output)
Power Method
(1) AC/DC adapter (Excluded)
(1) PoE+++
Power Input Method
DC Input
PoE
Supported Voltage Range
50—57V DC/PoE
Management
Ethernet
Weight
567 g (20 oz)
Enclosure Material
Polycarbonate
Mount Material
Polycarbonate
Certifications
CE, FCC, IC
- Speed: 2.5 GbE
- Ports: 24
- POE Capability: 48v
- Managed or Unmanaged: Managed
- Rack Mountable: Yes
-
