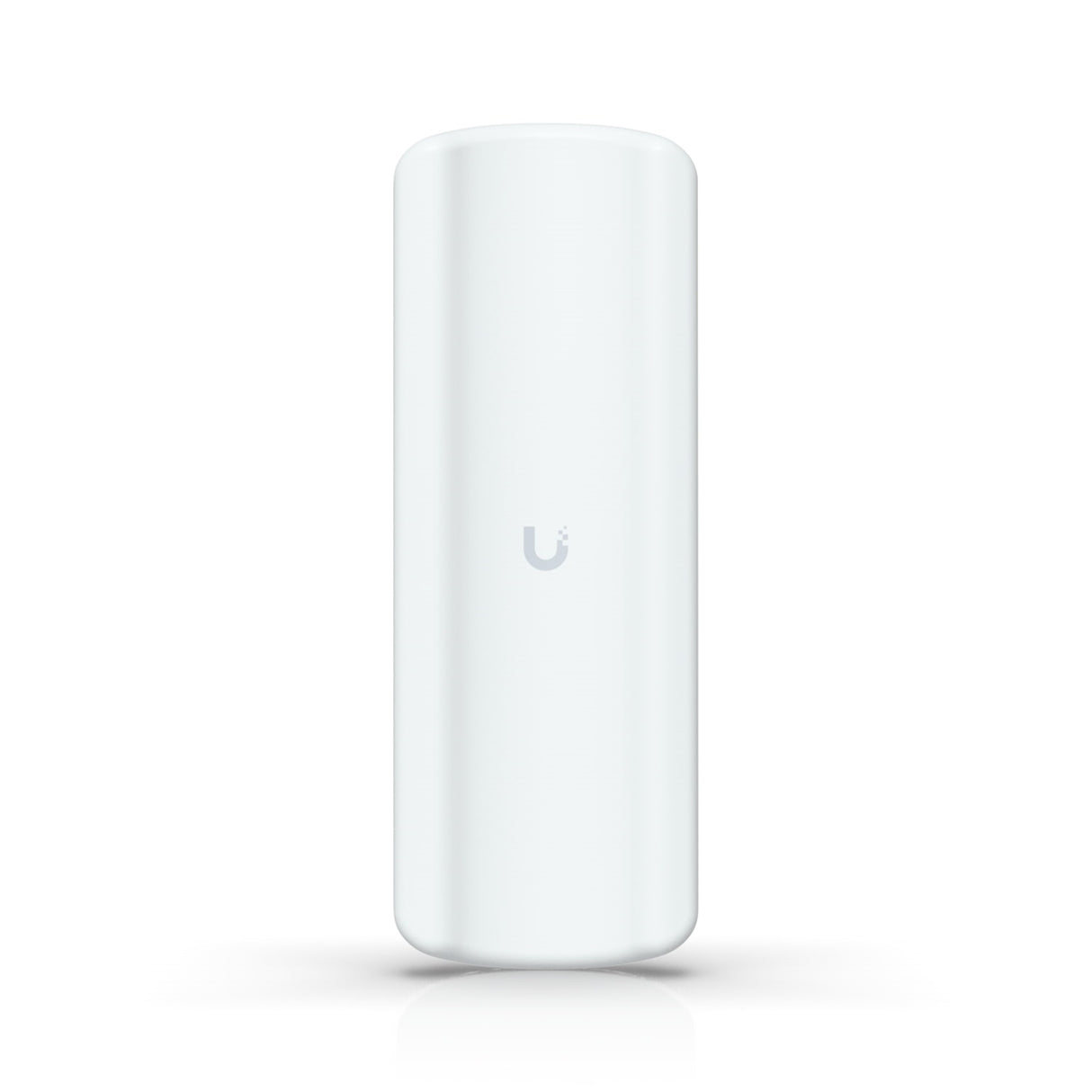

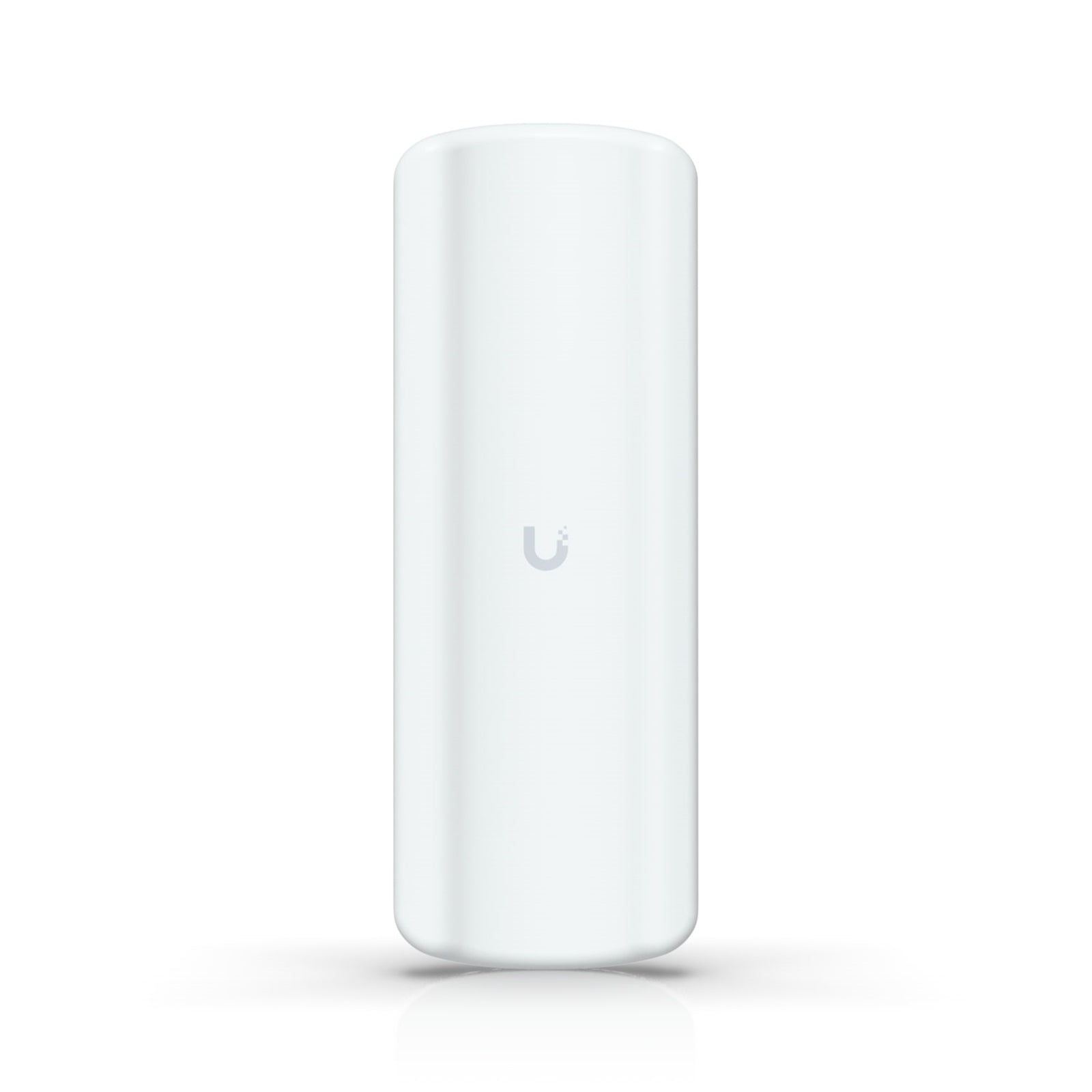

Ubiquiti UDB-Pro-Sector UniFi Device Bridge Pro Sector WiFi 5 Point To Multi-Point Link (PtMP)
Powered by Autify Digital Ltd
Ubiquiti UDB-Pro-Sector UniFi Device Bridge Pro Sector WiFi 5 Point To Multi-Point Link (PtMP) is backordered and will ship as soon as it is back in stock.
Ubiquiti UDB-Pro-Sector UniFi Device Bridge Pro Sector WiFi 5 Point...
5 GHz point-to-multipoint access point that wirelessly bridges 40+ Device Bridge Pro clients at 5+ km distances.
Overview
Dimensions
360.9 x 129.6 c 71.4 mm
(14.2 x 5.1 x 2.8")
WiFi Standard
WiFi 5
Spatial Streams
2
Coverage Area
5 km (3.1 mi)
Mounting Locations
Pole
Weatherproofing
IPX6
Power Method
PoE
Performance
MIMO
5 GHz - 2 x 2
Max. Data Rate
5 GHz - 400 Mbps (BW40)
Antenna Gain
5 GHz - 17 dBi
Max. TX Power
5 GHz - 25 dBm
Max. Conducted TX Power
25 dBm (Combined)
Supported Data Rates
802.11ac (WiFi 5) - 6.5 Mbps to 400 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40)
802.11n - 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11a - 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Wireless Security
WPA2 AES
Hardware
Max. Power Consumption
6W
Supported Voltage Range
42.5—57V DC
Networking Interface
(1) GbE RJ45 port
Antennas
Internal
Management
Ethernet
WiFi
Channel Bandwidth
20/40 MHz
Wind Loading
128.2N at 200 km/h
Weight
Device: 782 g (1.7 lb)
With mount: 835 g (1.8 lb)
Enclosure Material
UV-stabilized polycarbonate
Mount Material
UV-stabilized polycarbonate, stainless steel
Pole Mount Diameter
0.9—2.4" (24—60 mm)
Button
(1) Factory-reset
LEDs
System - Power, Ethernet
NDAA Compliant
Yes
Certifications
CE, FCC, IC
Ambient Operating Temperature
-40 to 60°C (-40 to 140°F)
Ambient Operating Humidity
5 to 95% noncondensing
- Type: Device Bridge
- Speed: 400Mbps
- Indoor or Outdoor: Indoor/Outdoor
- POE Capability: 42.5/57v
- Pack Size: Single
-
