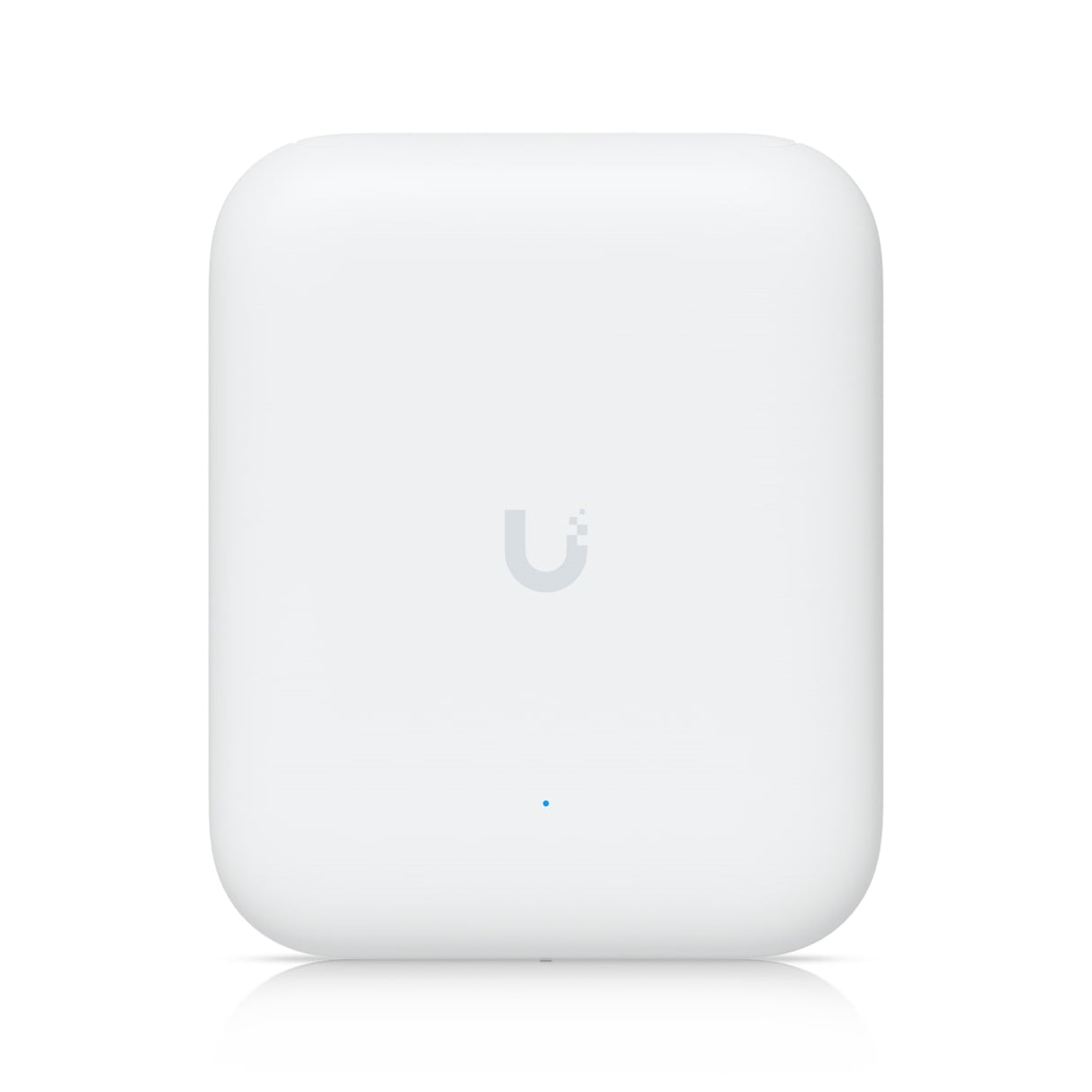

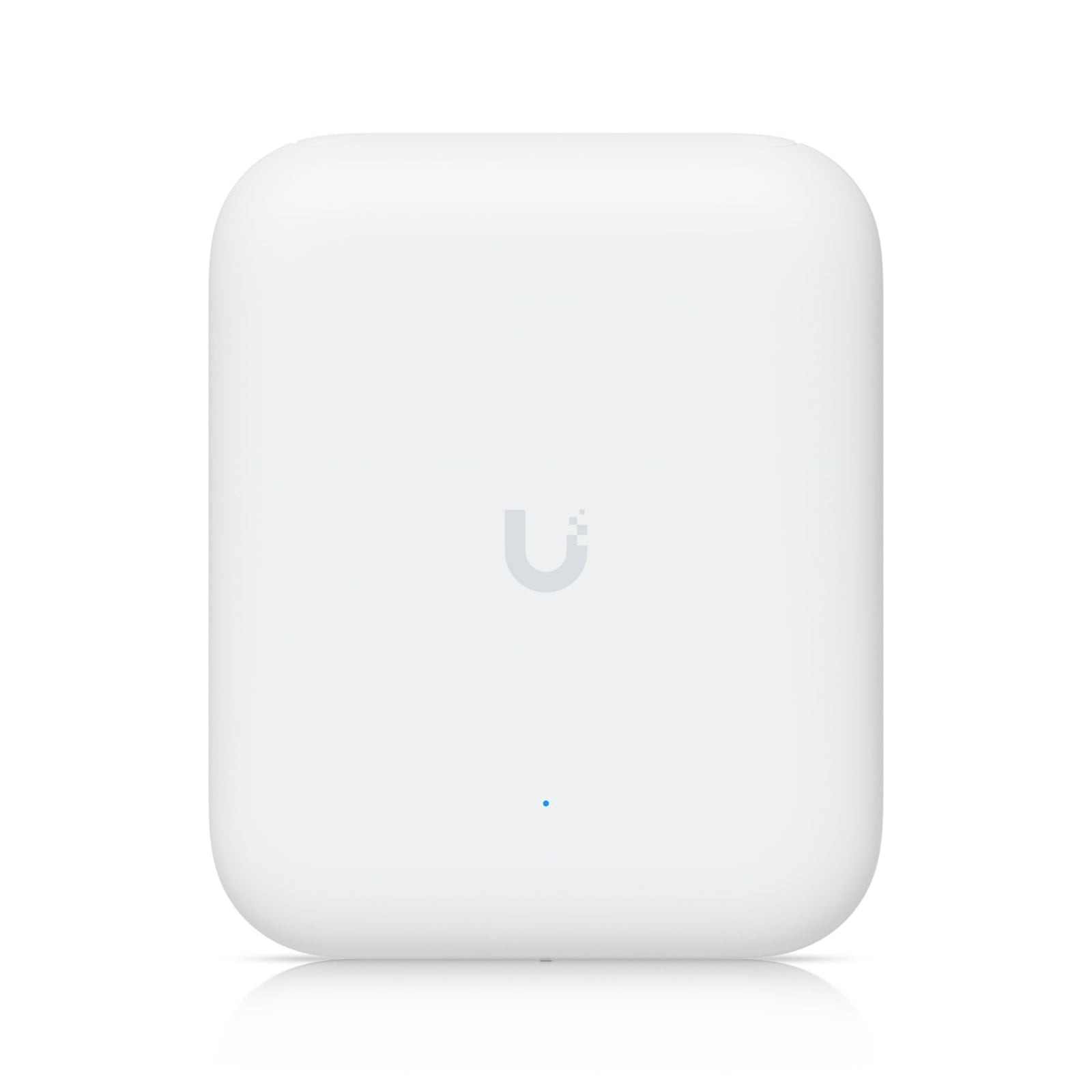

Ubiquiti U7-OUTDOOR UniFi U7 Outdoor WiFi 7 All Weather Access Point

Ubiquiti U7 Outdoor WiFi 7 Access Point

Key Features
WiFi 7
4 spatial streams
465 m² (5,000 ft²) open space coverage
Integrated directional super antenna
Software-adjustable antenna beamwidth
200+ connected devices
Powered using PoE+
2.5 GbE uplink
Versatile wall and pole mounting
IPX6 Weatherproof (outdoor exposed)

Introducing the Ubiquiti UniFi U7-Outdoor, the ultimate solution for reliable outdoor WiFi 7 connectivity. Designed to withstand the elements, this access point features a durable, weather-resistant enclosure and delivers tri-band performance across the 2.4 GHz, 5 GHz, and 6 GHz bands.

The UniFi U7-Outdoor ensures seamless, high-speed connectivity in outdoor environments. Advanced technologies like OFDMA and MU-MIMO enhance network efficiency, making it ideal for campuses, parks, and large outdoor events. Easy to install and manage, the U7-Outdoor is the perfect choice for extending your network outdoors.

Specifications

Mechanical

Dimensions
170 x 208 x 54.5 mm (6.7 x 8.2 x 2.1")

Weight
1.2 kg (2.6 lb)

Enclosure Material
UV-stabilized polycarbonate, aluminum alloy

Mount Material
Polycarbonate, SGCC steel

Pole Mount Diameter
25–60 mm (1–2.36") on pipe outer diameter

Wind Survivability#
74.6 N at 200 km/h (16.8 lbf at 125 mph)

Weatherproofing
IPX6

Hardware

Networking Interface
(1) 1/2.5 GbE RJ45 port

Management Interface
Ethernet

Power method
PoE+

Power Supply
UniFi PoE Switch

Supported Voltage Range
42.5—57V DC

Max. Power Consumption
19W

Max. TX Power
2.4 GHz - 23 dBm
5 GHz - 26 dBm
6 GHz - No

MIMO
2.4 GHz - 2 x 2
5 GHz - 2 x 2
6 GHz - No

Throughput Rate
2.4 GHz - 688 Mbps
5 GHz - 4324 Mbps

Antenna Gain
2.4 GHz - Directional internal: 8 dBi / External omni: 3 dBi
5 GHz - Directional internal: 12.5 dBi / External omni: 4 dBi
6 GHz - No

Antenna Beamwidth
2.4 GHz - 90 degrees
5 GHz - 45 degrees
6 GHz - No

Antennas
(1) Directional internal antenna
(2) External omni antennas
(2) RP-SMA connectors for external antenna

LEDs
(1) Power: white/blue
(4) Mesh signal: blue

Button
Factory reset

Mounting
Wall, ceiling, pole (Included)

Ambient Operating Temperature
-30 to 60° C (-22 to 140° F)

Ambient Operating Humidity
5 to 95% noncondensing

Certifications
CE, FCC, IC

Software

WiFi Standards
802.11a/b/g/n/ac/ax/be

Wireless Security
WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)

BSSID
8 per radio

VLAN
802.1Q

Advanced QoS
Per-user rate limiting

Guest Traffic Isolation
Supported

Concurrent Clients
200+

Supported Data Rates

802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11b
1, 2, 5.5, 11 Mbps

802.11g
6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

802.11ac (WiFi 5)
6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)

802.11ax (WiFi 6)
7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)

802.11be (WiFi 7)
7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)

Box Contents
1 x U7-Pro-Wall
2 x External antennas
1 x Wall plate template level
1 x Wall plate mount
1 x Multipurpose mount
2 x Jubilee clips
All mounting hardware

• Type: Access Point
• Speed: WiFi 7
• Indoor or Outdoor: Outdoor
• POE Capability: POE+
• Pack Size: Single
