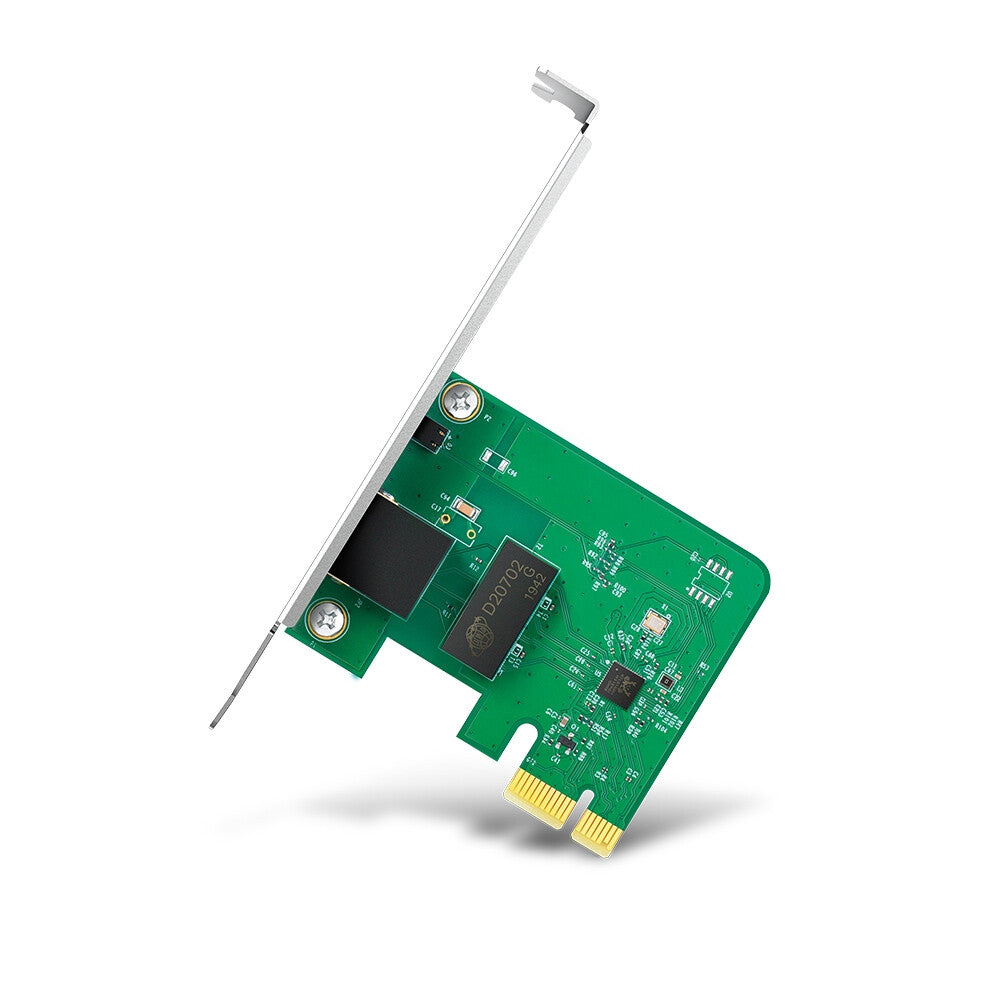

TP-Link TG-3468 network card Internal Ethernet 2000 Mbit/s
Description
Description

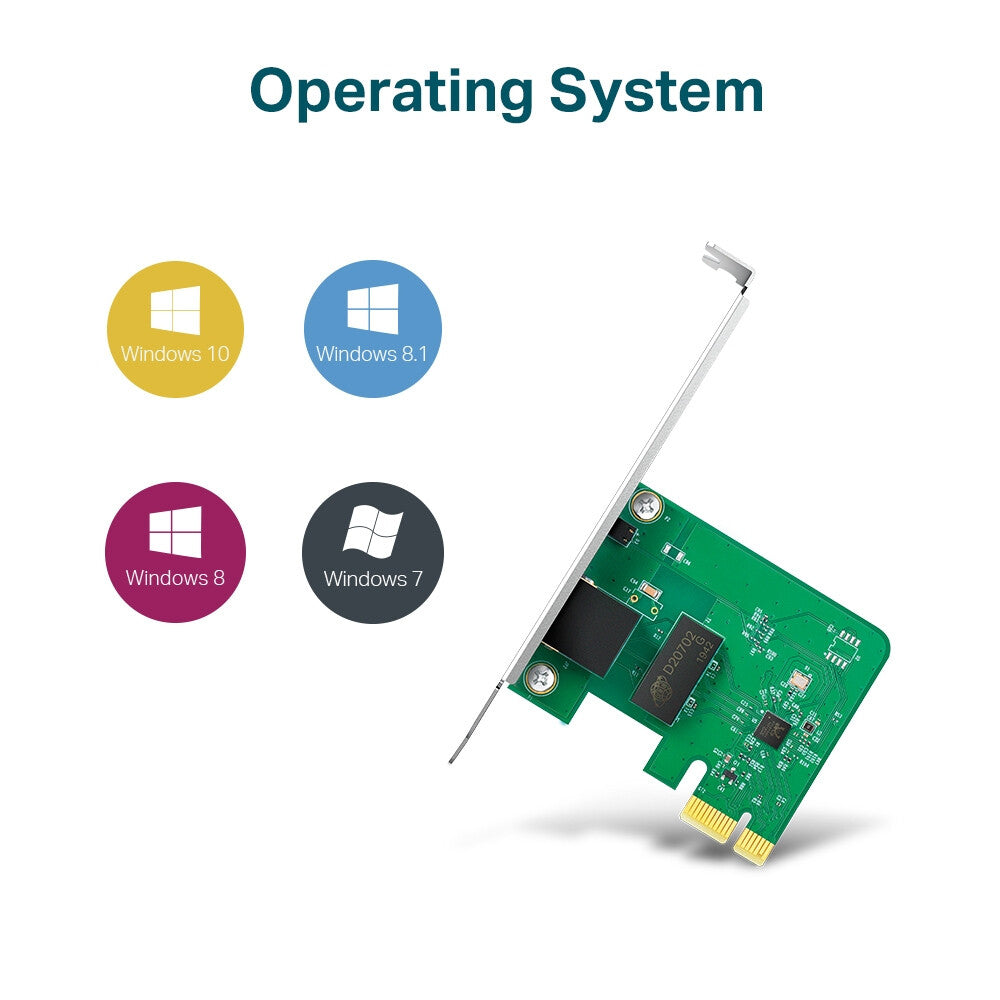

Operating System
Supports operating systems include Windows 10/8.1/8/7/Vista/XP
Low-Profile Bracket
In addition to standard bracket, low-profile bracket is also provided for mini tower computer case
Wake On LAN
Remotely power on/off your computer with WOL, good for centralized management
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Interface | Ethernet |
| Host interface | PCI Express |
| Connectivity technology | Wired |
| Network | |
|---|---|
| Maximum operating distance | 100 m |
| Quality of Service (QoS) support | Yes |
| VLAN tagging | Yes |
| Auto-negotiation | Yes |
| Full duplex | Yes |
| Auto MDIX IEEE | Yes |
| Wake-on-LAN ready | Yes |
| Cabling technology | 10/100/1000BaseT(X) |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Maximum data transfer rate | 2000 Mbit/s |
| Design | |
|---|---|
| Certification | FCC, BSMI, VCCI |
| LED indicators | Status |
| Product colour | Green, Grey |
| Component for | PC |
| Internal | Yes |
| System requirements | |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 - 90% |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Sustainability | |
|---|---|
| Sustainability compliance | Yes |
| Weight & dimensions | |
|---|---|
| Height | 21.5 mm |
| Depth | 120.8 mm |
| Width | 78.5 mm |
| Packaging data | |
|---|---|
| Package weight | 100 g |
| Package height | 30 mm |
| Package depth | 135 mm |
| Package width | 160 mm |
| Packaging content | |
|---|---|
| Quick installation guide | Yes |
| Resource CD | Yes |
| Mounting brackets included | Yes |
| Technical details | |
|---|---|
| Compliance certificates | BSMI, CE, Federal Communications Commission (FCC), RoHS |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
| Other features | |
|---|---|
| Flow control support | Yes |
