TP-Link Omada Hardware Controller
Key Details:
- Centralized Management: Supports up to 500 Omada access points, 100 Omada routers, a maximum of 100 Omada switches, and a maximum of 5 certain DeltaStream GPON OLTs†
- Free Cloud Access: Manage and monitor with the Omada app or Web UI from anywhere, anytime
- On-Premises Management: Locally monitor and manage devices with the ultimate security and stability
- Industry-Leading Hardware Design: A powerful chipset, durable metal casing, USB 3.0 port for auto backup, and two Gigabit ports
- Easy and Intelligent Network Monitoring: The easy-to-use dashboard makes it simple to see the real-time network status and traffic distribution
- Real-Time Network Topology: Helps IT admins quickly see and troubleshoot connections at a glance
- Easier Network Maintenance: WiFi heatmap simulator, visualizable network report, and batch & multi-site management benefit network maintenance
Description
Description

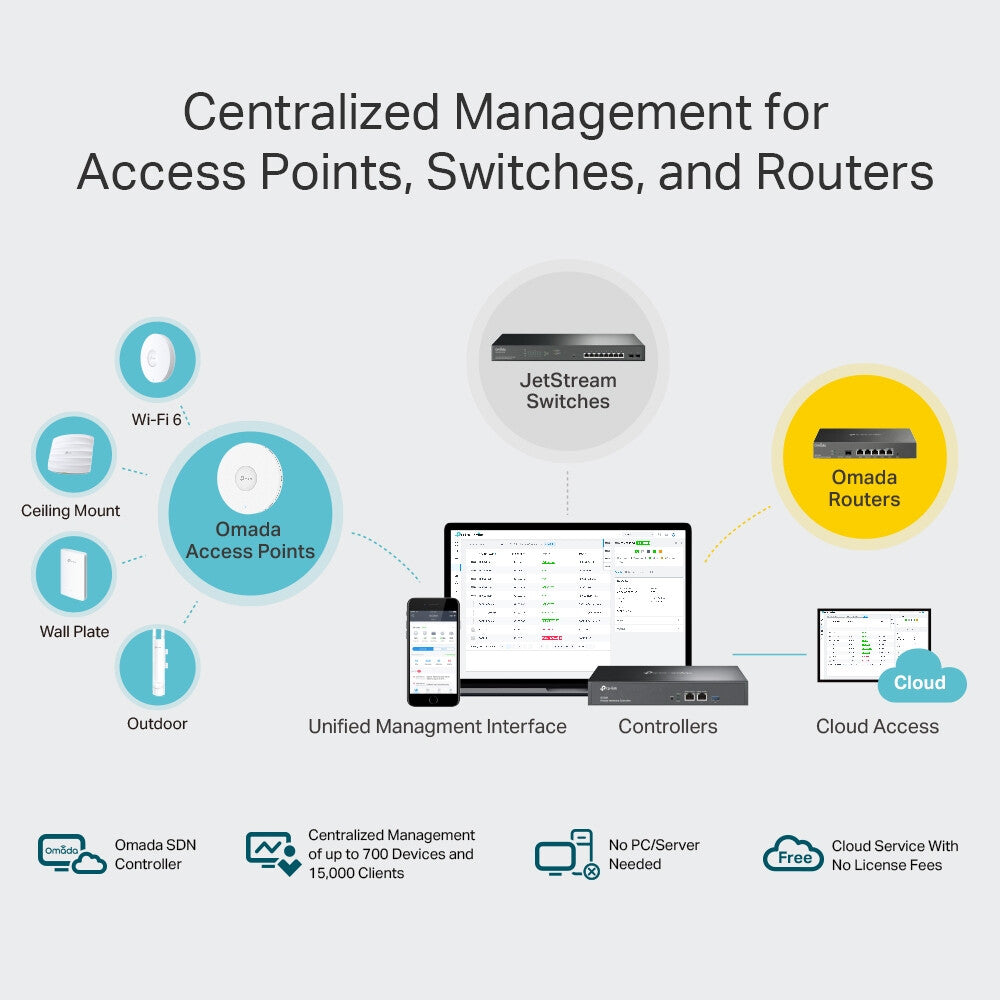

Centralized Management for
Access Points, Switches, and Routers
OC300, the professional on-premises hardware controller for the Omada Software Defined Networking (SDN) platform, provides 100% centralized management of Omada access points, Omada switches, and Omada routers—all controlled from a single interface.

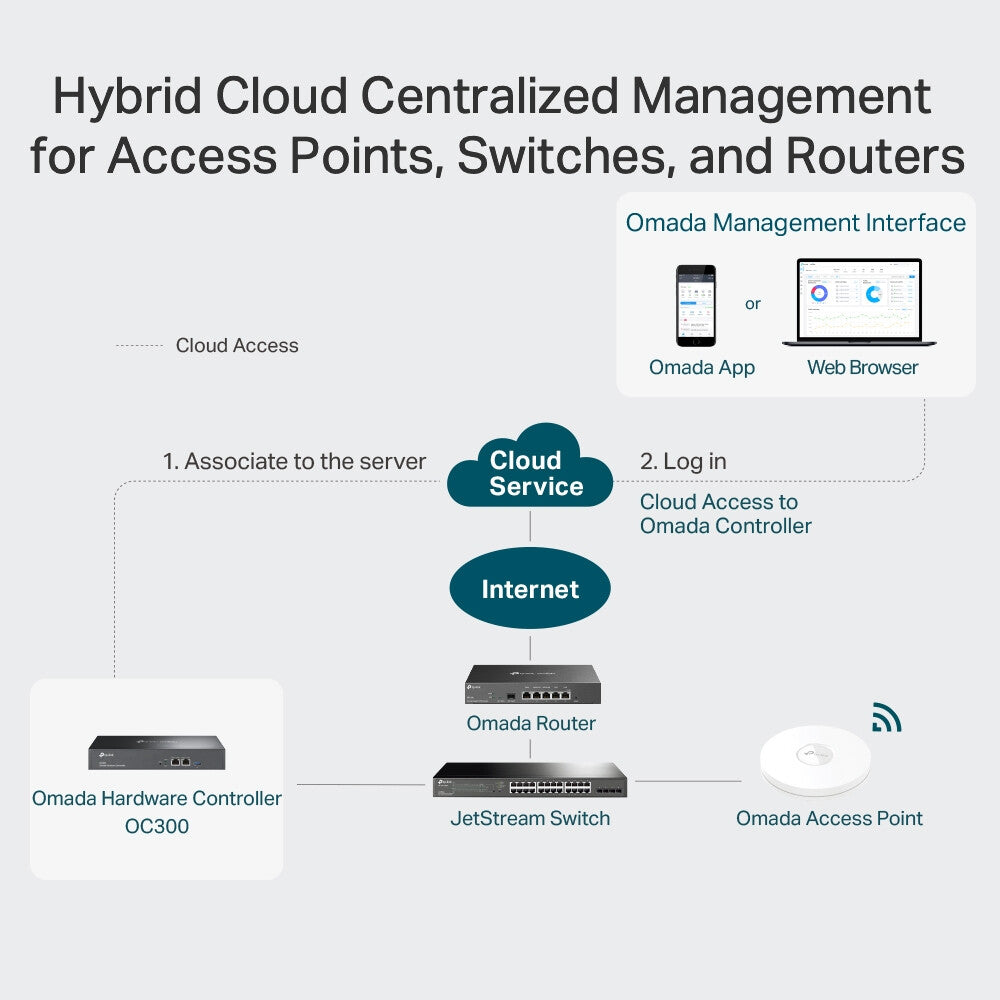

Hybrid Cloud for Maximum Convenience
Featuring hybrid cloud technology, the Omada Hardware Controller OC300 allows you to remotely control the whole network wherever you are in the world with cloud access. Locally manage devices with the ultimate security and stability.

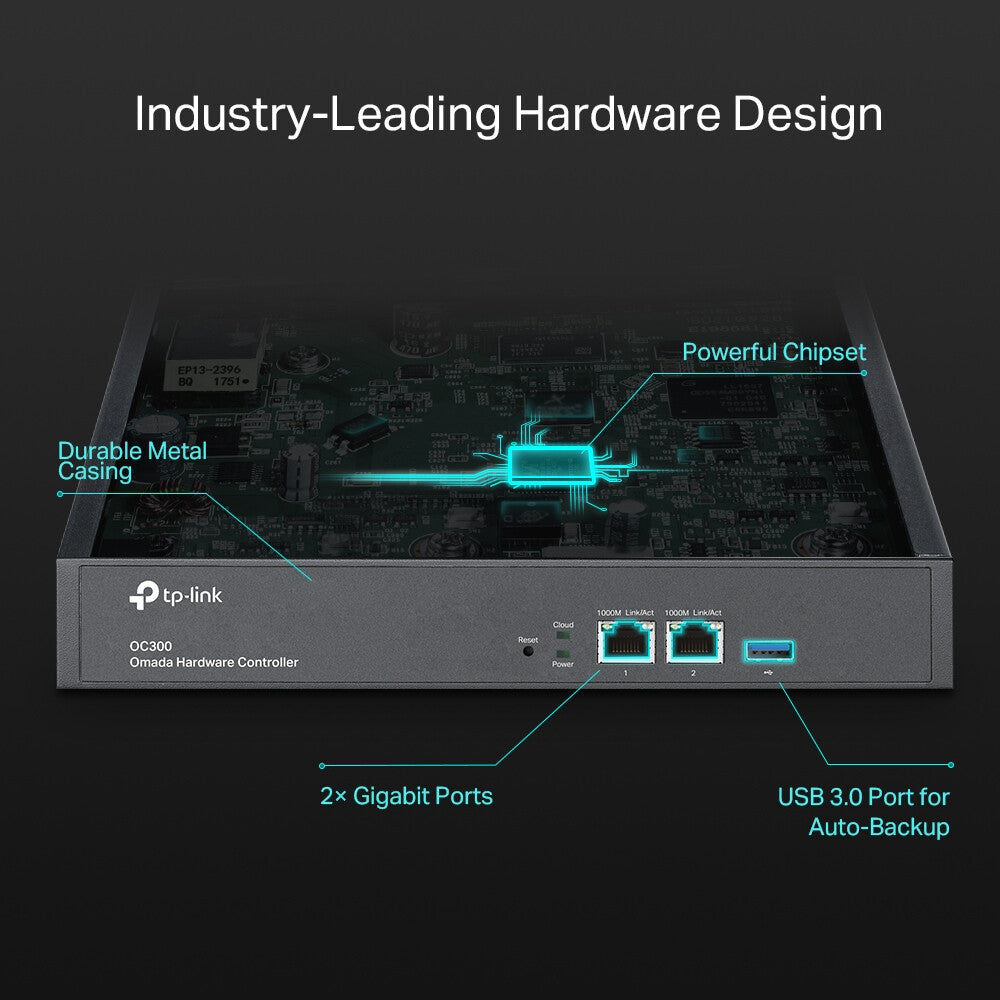

Industry-Leading Hardware Design
Equipped with an advanced design and the latest chipset, OC300 has enough processing power to support the massive management of your business network. Rackmount/desktop design benefits easier and flexible installation.
Easy and Intelligent Network Monitoring
The easy-to-use dashboard makes it easy to see your real-time network status; check network usage and traffic distribution; receive network condition logs, abnormal event warnings, and notifications; or even track key data for better business results. Network topology helps IT admins quickly see and troubleshoot connections at a glance.
Multiple Factors Guarantee Easier Network Maintenance
WiFi Heatmap Simulator
Generate a Wi-Fi solution by simulating the wireless coverage effect of APs in the actual site. Determine the appropriate number and location of APs according to the coverage requirements.
Visualizable Network Report for Conveniently Summary
Help service providers easily report network service quality to their customers through reports. IT administrators also easily report network operation status through reports.
Batch Management, Multi-Site Management, and Remote Firmware Updates
Improve network maintenance without needing to configure on-site or manage devices one by one.
Powerful Scheduling
Maintain your network easily with more agile and effective processing. No manual tasks required.
Greater Convenience with the Omada App
Remotely access and configure your whole network with a tap of your phone from anywhere in the world.
| Design | |
|---|---|
| Certification | CE, FCC, RoHS |
| LED indicators | Yes |
| Rack capacity | 1U |
| Product colour | Black |
| Performance | |
|---|---|
| Flash memory | 2 MB |
| Internal memory | 2000 MB |
| Internal memory type | DDR4 |
| Number of processors installed | 1 |
| Processor manufacturer | ARM |
| Processor family | ARM Cortex |
| Built-in processor | Yes |
| Control display unit | No |
| Protocols | |
|---|---|
| Supported protocols | Routing/NAT/Session Limit/Bandwidth ControlVPN (IPSec/L2TP/PPTP/OpenVPN)RADIUS (Authentication/MAC Auth/Accounting)802.1x |
| Network | |
|---|---|
| VPN support | VPN (IPSec/L2TP/PPTP/OpenVPN) |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Security | |
|---|---|
| Network address translation (NAT) | Yes |
| Security algorithms | SNMP, SSH |
| MAC address filtering | Yes |
| Access Control List (ACL) | Yes |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Management features | |
|---|---|
| Traffic statistics | Yes |
| Syslog | Yes |
| Web-based management | Yes |
| Power | |
|---|---|
| Input frequency | 50/60 Hz |
| Input voltage | 100 - 240 V |
| Power consumption (max) | 14.8 W |
| Power consumption (typical) | 9 W |
| Weight & dimensions | |
|---|---|
| Depth | 180 mm |
| Height | 44 mm |
| Width | 294 mm |
| Packaging data | |
|---|---|
| Package weight | 1.91 kg |
| Package width | 250 mm |
| Package depth | 400 mm |
| Package height | 80 mm |
| Packaging content | |
|---|---|
| Cables included | LAN (RJ-45) |
| Quick installation guide | Yes |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 - 90% |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| General | |
|---|---|
| Product family | Omada |
