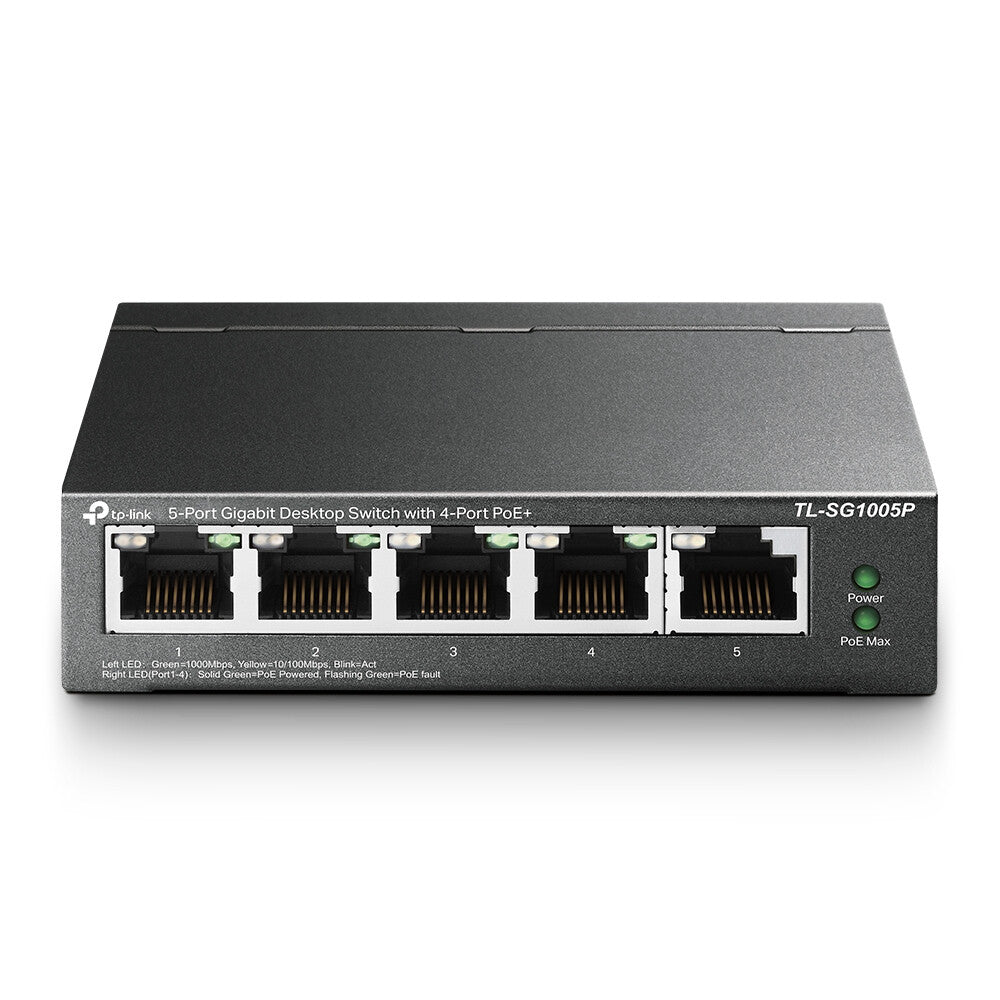

TP-Link TL-SG1005P network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Key Details:
- 5 10/100/1000Mbps RJ45 ports
- With four PoE+ ports, transfers data and power on one single cable
- Working with IEEE 802.3af/at compliant PDs, expands home and office network
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
- Supports PoE Power up to 30W for each PoE port
- Supports PoE Power up to 65W for all PoE ports

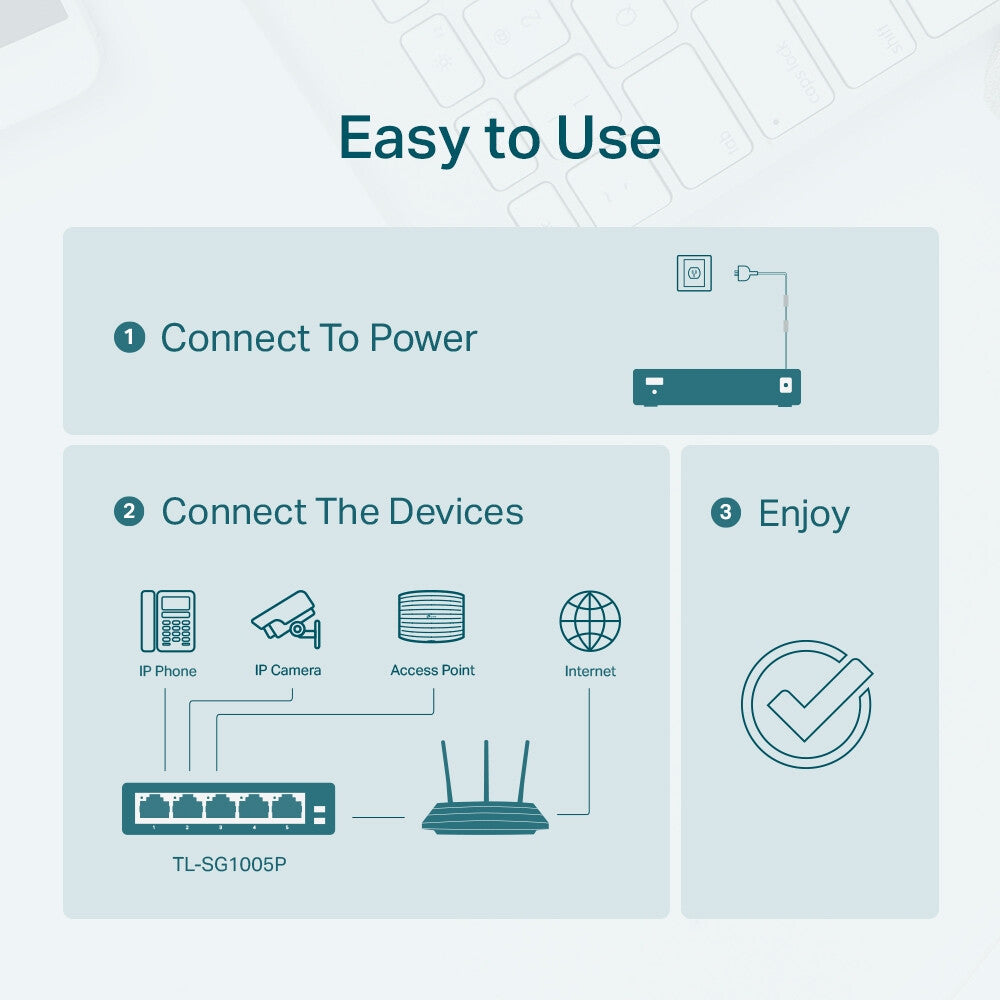

- Requires no configuration and installation
TP-Link TL-SG1005P network switch Unmanaged Gigabit Ethernet (10/10...
Description
Description
PoE Switches for Your Ultra Convenience
5-Port Gigabit Desktop Switch with 4-Port PoE

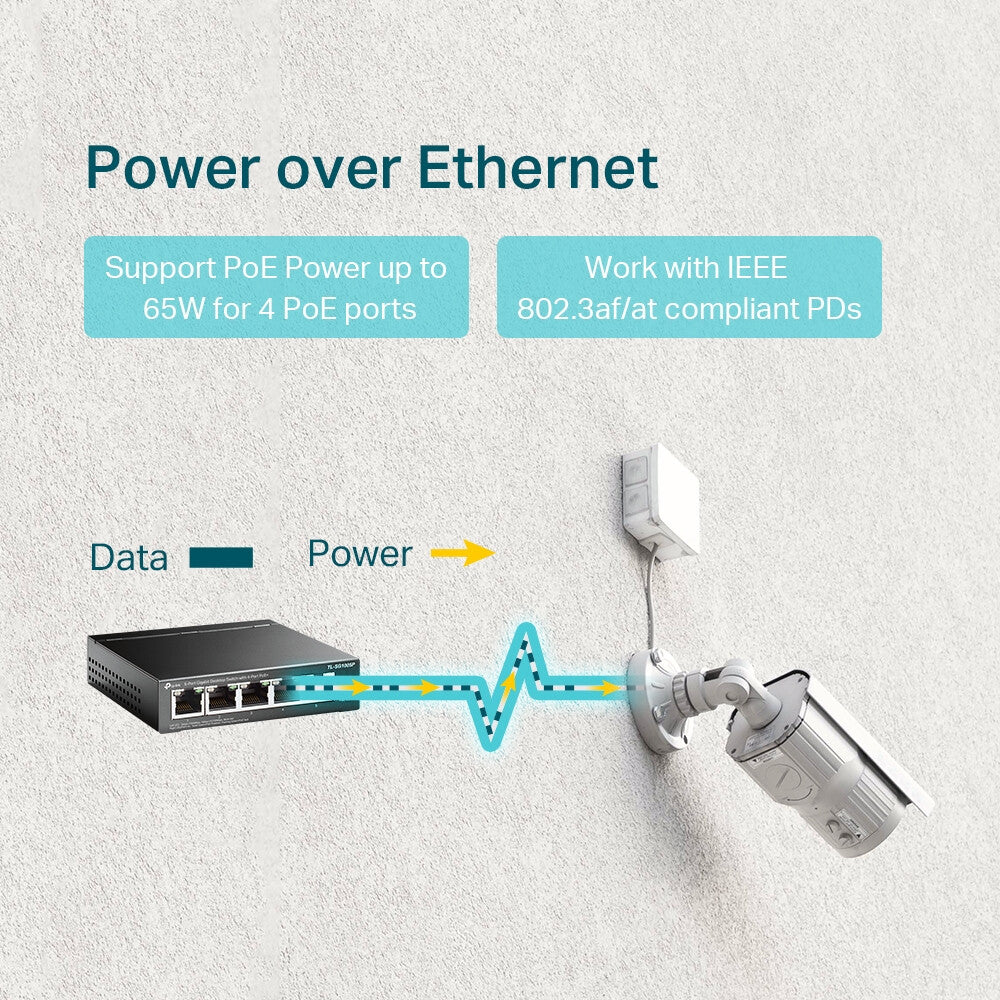

Power over Ethernet
4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).

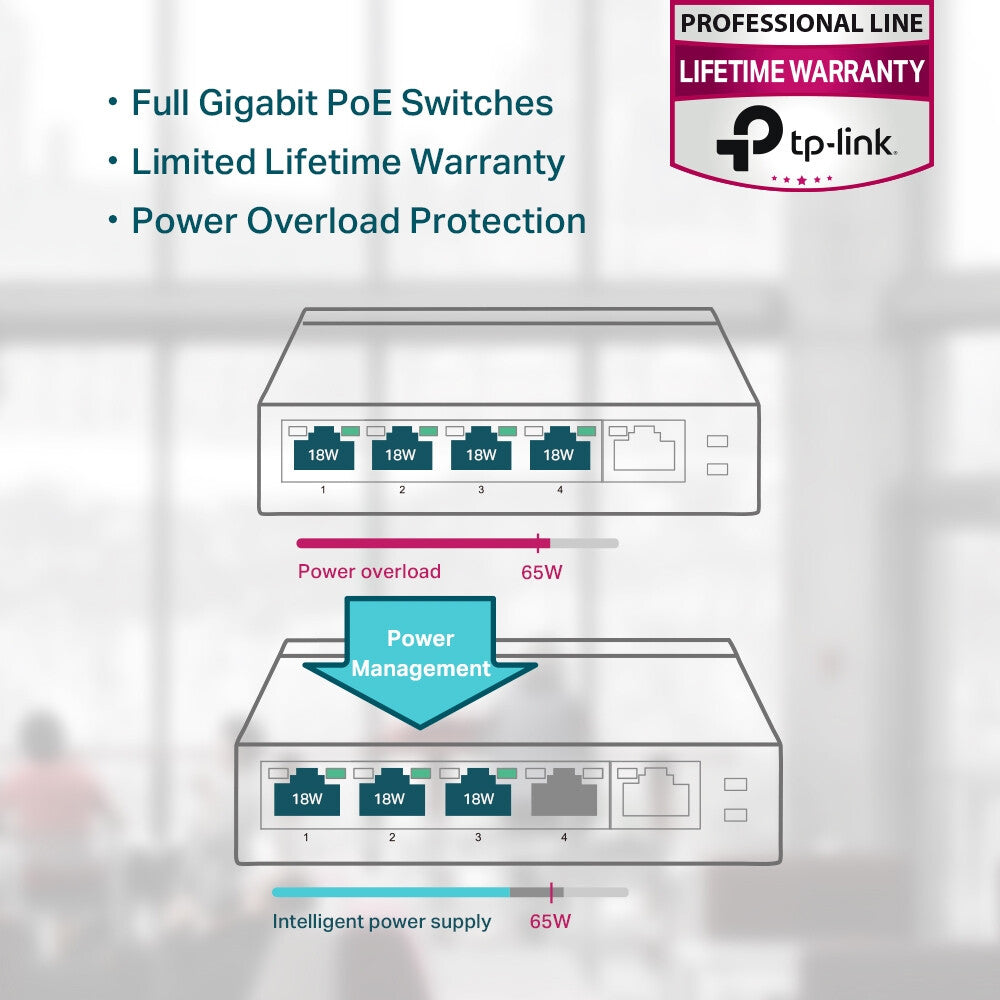

Intelligent Power Management
When total power consumption excels 56W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation.
Sturdy Metal Casing
Sturdy, compact metal casing and shielded RJ45 ports, with desktop/wall-mounting design, to meet your needs in any environment. Besides, fanless design ensures quiet operation.
| Management features | |
|---|---|
| Quality of Service (QoS) support | Yes |
| Switch type | Unmanaged |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Network | |
|---|---|
| VLAN support | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| MAC address auto-aging supported | Yes |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e, Cat6 |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| 10G support | No |
| Networking standards | IEEE 802.1p, IEEE 802.3af, IEEE 802.3x |
| Data transmission | |
|---|---|
| Store-and-forward | Yes |
| Switching capacity | 10 Gbit/s |
| MAC address table | 2000 entries |
| Security | |
|---|---|
| IGMP snooping | Yes |
| Design | |
|---|---|
| Certification | FCC, CE, RoHS |
| LED indicators | Yes |
| Product colour | Black |
| Rack mounting | No |
| Power | |
|---|---|
| Power consumption (max) | 63.31 W |
| AC input frequency | 50 Hz |
| AC input voltage | 100 - 220 V |
| Power supply included | Yes |
| Power over Ethernet (PoE) | |
|---|---|
| Total Power over Ethernet (PoE) budget | 56 W |
| Power over Ethernet (PoE) ports quantity | 4 |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 - 90% |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
|---|---|
| Height | 25 mm |
| Depth | 98 mm |
| Width | 99.8 mm |
| Packaging data | |
|---|---|
| Manual | Yes |
| Package type | Box |
| Quick start guide | Yes |
| Cables included | AC |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
