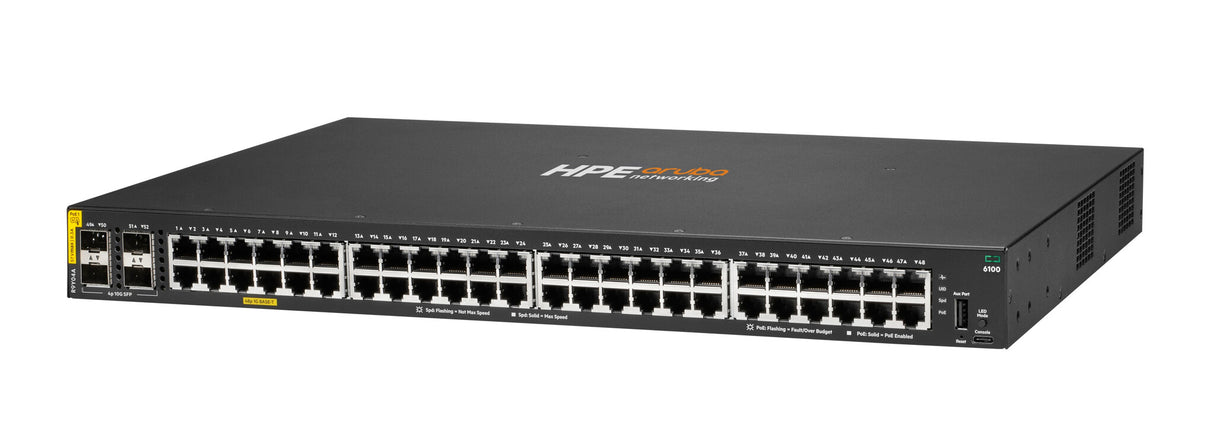

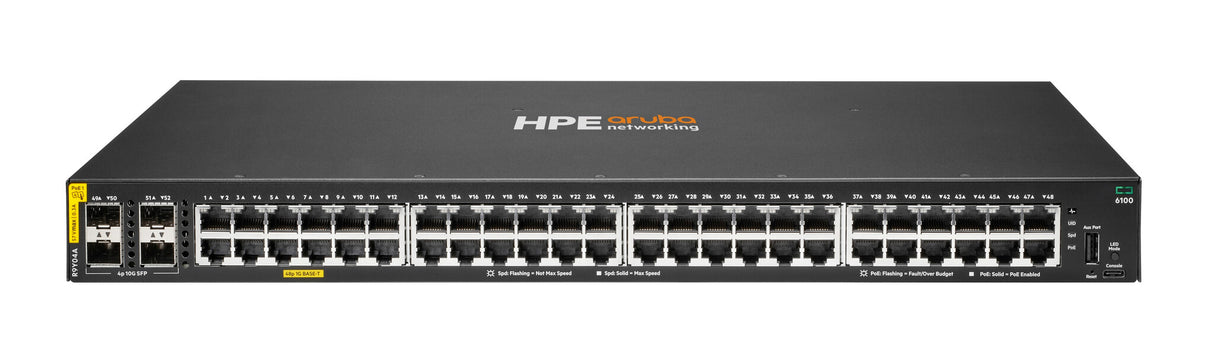

HPE Aruba Networking CX 6100 48G Class4 PoE 4SFP+ 740W Switch

HEWLETT PACKARD ENTERPRISE  |  SKU: R9Y04A  |  Condition: Brand New  |  Barcode: nan
£3,404.99
£3,318.99 Save £86.00 £3,404.99
£2,765.83 excluding VAT @20%
iFrame
Aruba Networking CX 6100 48G Class4 PoE 4SFP+ 740W Switch

The HPE Aruba Networking CX 6100 Switch Series is a modern family of entry-level access switches ideal for branch offices, mid-market enterprises, and SMB networks. Designed for reliable, simple, and secure access, this switch family provides a convenient wired access solution for enterprise networks supporting Internet of Things (IoT), mobile, and cloud applications. Prepare your network for future demands with a powerful ASIC and the programmable HPE Aruba Networking CX Switch Operating System to deliver a more consistent, more efficient operator experience. This Layer 2 switch series has convenient built-in high speed uplinks with up to 740W of IEEE 802.3at Class 4 PoE to support IoT devices such as security cameras and wireless APs. A compact and fanless 12-port model is ideal for use in quiet workspaces. With robust quality of service (QoS), support for static routing, and IPv6, these switches also simplify ownership with no switch software licensing requirements.

What is new supporting point:
The CX 6100 provides flexibility to manage and simplify configurations with HPE Aruba Networking Central, HPE Aruba Networking Switch Multi-Edit Software, easy to use Web GUI, or industry-standard CLI
It offers scalability with a 6-member switch virtual switching framework (VSF) stacking
It simplifies IT operations with next-gen Layer 2 switch series that provides entry-level, reliable, and convenient wired access connectivity
The CX 6100 series provides right size with 12, 24, and 48-port 1U models with convenient built-in 1/10GbE uplinks and up to 740W of Class 4 PoE
It has compact and fan-less 12-port PoE model for space-constrained deployments

Management features
Switch type Managed
Switch layer L2
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 48
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Installed SFP+ modules quantity 4
Network
Networking standards IEEE 802.3af, IEEE 802.3at
10G support Yes
Data transmission
Switching capacity 176 Gbit/s
Throughput 98.6 Mpps
Design
Rack mounting Yes
Form factor 1U
Performance
Built-in processor Yes
Processor model ARM Cortex-A9
Processor frequency 1016 MHz
Memory type DDR3-SDRAM
Internal memory 4096 MB
Flash memory 16 MB
Power
AC input voltage 200 - 240 V
Power consumption note Max. Power (w/o PoE): 49.7W Max. Power (w/ PoE): 890W
Power supply note Fixed power supply
Power over Ethernet (PoE)
Power over Ethernet (PoE) Yes
Power over Ethernet (PoE) power per port 49.7 W
Total Power over Ethernet (PoE) budget 740 W
Operational conditions
Operating temperature (T-T) 0 - 45 °C
Other features
Latency 1 Gbps: 1.9 μSec, 10 Gbps: 1.8 μSec
Fan Fixed fans
Performance management Management flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software
Memory and processor CPU: Dual-core Arm Cortex-A9 @ 1016 MHz Memory: 4 GB DDR3 Flash: 16 GB eMMC
I/O ports 48x 10/100/1000BASE-T Class 4 PoE ports Supports PoE standards IEEE 802.3af, 802.3at 1x USB-C console port 1x USB Type-A host port
