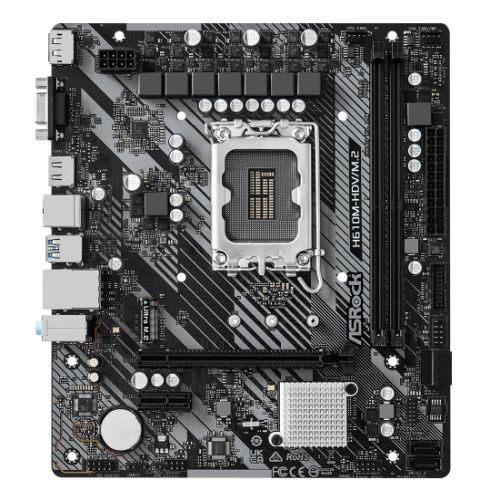

Asrock H610M-HDV/M.2 R2.0, Intel H610, 1700, Micro ATX, 2 DDR4, VGA, HDMI, DP, PCIe4, 1x M.2

MORE INFO

ASROCK  |  SKU: H610M-HDV/M.2 R2  |  Condition: Brand New  |  Barcode: 4710483939860
£73.99
Excl VAT £61.66




H610M-HDV/M.2 R2.0

  • Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
  • 6+1+1 Phase Power Design
  • Supports DDR4 3200MHz
  • 1 PCIe 4.0 x16, 1 PCIe 3.0 x1
  • Graphics Output Options: HDMI, DisplayPort, D-Sub
  • Realtek ALC897 7.1 CH HD Audio Codec
  • 4 SATA3
  • 1 Ultra M.2 (PCIe Gen3 x4)
  • 4 USB 3.2 Gen1 (2 Rear, 2 Front)
  • 6 USB 2.0 (4 Rear, 2 Front)
  • Realtek Gigabit LAN






Digi Power

Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.





Ultra M.2 32Gb/s (PCIe Gen3 x4 & SATA3)

The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules.





Intel® Gigabit LAN

Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!





M.2 (KEY E) For WiFi

Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.
*Wi-Fi module is not included.





3 Graphics Outputs

Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo.
*Supported only with processors with integrated graphics. Please check CPU support list from each motherboard webpage.





Premium Power Choke

Compared to traditional chokes, ASRock’s premium power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.





Sapphire Black PCB

Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.





High Density Glass Fabric PCB

High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.




Full Spike Protection

Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

Description

Specification

  • Motherboard Type: Desktop
  • Form Factor: Micro ATX
  • Socket: Intel 1700
  • Chipset: Intel H610
  • #Hide#DDR Type: DDR4
  • CPU Support: Click here for CPU support
  • RAM Technology: DDR4 (Dual Channel)
  • RAM Slots: 2 x DIMM
  • RAM Speeds: Up to 3200 MHz
  • Maximum Memory: 64GB
  • Graphics: Integrated Graphics*
    *Graphics specifications may vary between CPU types
  • Graphics Ports: 1 x VGA
    1 x HDMI
    1 x DisplayPort
  • PCI/PCI Express: 1 x PCIe 4.0 x16
    1 x PCIe 3.0 3x1
  • Storage: 4 x SATA III
    1 x M.2 (2242/2260/2280) - SATA & PCIe 3.0 x4
  • Wireless: -
  • LAN: GB LAN
  • Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
  • USB Ports Supported: Rear:
    2 x USB 3.2 Gen1
    4 x USB 2.0

    Front:
    2 x USB 3.2 Gen1
    2 x USB 2.0
  • Back Panel I/O Ports: 1 x PS/2 Mouse/Keyboard
    1 x D-Sub
    1 x HDMI
    1 x DisplayPort 1.4
    2 x USB 3.2 Gen1
    4 x USB 2.0
    1 x RJ-45 LAN
    HD Audio Jacks
  • Internal I/O Connectors: 1 x SPI TPM
    1 x Chassis Intrusion and Speaker
    1 x CPU Fan
    1 x Chassis/Water Pump Fan
    1 x 24 pin ATX
    1 x 8 pin 12V
    1 x Front Panel Audio
    1 x USB 2.0
    1 x USB 3.2 Gen1
  • Accessories: "Quick Installation Guide, Support CD, I/O Shield
    2 x SATA Data Cables
    2 x Screws for M.2 Sockets"
  • Additional Features: See Overview
  • Package Type: Retail
  • Package Weight: 0.9000 kg
  • Warranty: 2 Year Replacement Warranty
  • #Hide#M.2 Slot(s): Yes (M.2)
  • #Hide#No. LAN Ports: 1 x LAN
  • #Hide#Max LAN Speed: GB LAN
