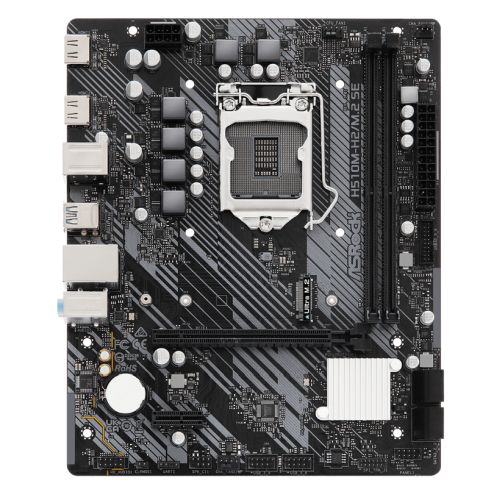

Asrock H510M-H2/M.2 SE, Intel H510, 1200, Micro ATX, 2 DDR4, 2 HDMI...
H510M-H2/M.2 SE
- Supports 10th Gen & 11th Gen Intel® Core™ Processors (LGA1200)
- 4 Power Phase Design
- Supports DDR4 3200 MHz*
- Intel® H470 Chipset
- 1 PCIe 4.0 x16, 1 PCIe 3.0 x1
- Graphics Output Options: 2 HDMI
- Realtek ALC897 7.1 CH HD Audio Codec
- 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)
- 6 USB 3.2 Gen1 (4 Rear, 2 Front),
- 6 USB 2.0 (2 Rear, 4 Front)
- Realtek Gigabit LAN
- Supports ASRock Auto Driver Installer
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules.
Equipped with two of the most widely used HDMI connectors, enjoy better multi-monitor compatibility and an easy setup experience.
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.
Auto Driver Installer
No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
step1: Install Auto Driver Installer
This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 2A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise.
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop
Description
Specification
- Motherboard Type: Desktop
- Form Factor: Micro ATX
- Socket: Intel 1200 - Rocket Lake
- Chipset: Intel H510
- #Hide#DDR Type: DDR4
- CPU Support: Supports 10th Gen & 11th Gen Intel Core Processors
-
RAM Technology: "DDR4, Dual Channel
Supports non-ECC, un-buffered memory
Supports ECC UDIMM modules (operate in non-ECC mode)
Supports Intel®Extreme Memory Profile (XMP) 2.0" - RAM Slots: 2 x DIMM
- RAM Speeds: 3200 / 2933 / 2800 / 2666 / 2400 / 2133 MHz
- Maximum Memory: 64GB
-
Graphics: Integrated Graphics*
*Graphics specifications may vary between CPU types - Graphics Ports: 2 x HDMI
-
PCI/PCI Express: 1 x PCIe 4.0 x16
1 x PCIe 3.0 x1 -
Storage: 4 x SATA III
1 x M.2 (2260/2280) - SATA & PCIe 3.0 x4 - RAID: "Supports RAID 0, 1, 5 and 10 for SATA storage devices"
- Wireless: -
- LAN: GB LAN
- Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
-
USB Ports Supported: Rear:
4 x USB 3.2 Gen1 Type-A
2 x USB 2.0
Front:
2 x USB 3.2 Gen1 Type-A
4 x USB 2.0 -
Back Panel I/O Ports: 1 x PS/2 Mouse/Keyboard
2 x HDMI
2 x USB 2.0
4 x USB 3.2 Gen1
1 x RJ-45 LAN
HD Audio Jacks -
Internal I/O Connectors: 1 x SPI TPM
1 x Chassis Intrusion and Speaker
1 x CPU Fan
2 x Chassis/Water Pump Fan
1 x 24 pin ATX
1 x 8 pin 12V
1 x Front Panel Audio
2 x USB 2.0
1 x USB 3.2 Gen1 -
Accessories: 1 x User Manual
1 x I/O Shield
2 x SATA Data Cables
1 x Screw for M.2 Socket - Additional Features: See Overview
- Package Type: Retail
- Package Weight: 0.7500 kg
- Warranty: 3 Year Replacement Warranty
- #Hide#M.2 Slot(s): Yes (M.2)
- #Hide#No. LAN Ports: 1 x LAN
- #Hide#Max LAN Speed: GB LAN
-
