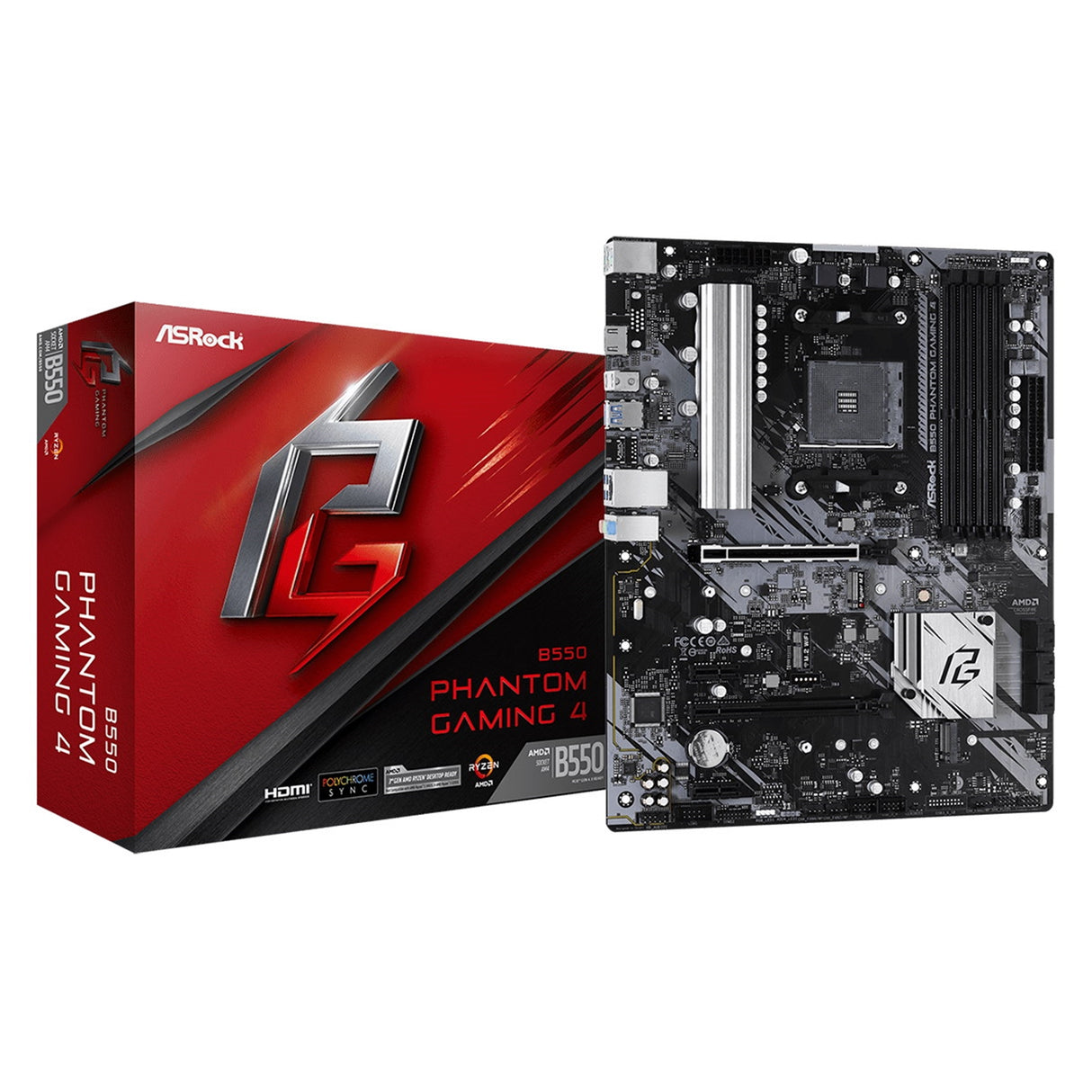

ASRock B550 Phantom Gaming 4 Super Alloy AMD AM4 Socket Motherboard, ATX, 4x DDR4 Slots, 3x M.2 Sockets, GbE LAN, 1x HDMI Port

WINDOWS 11 READY

Supports 3rd Gen AMD AM4 Ryzen / Future AMD Ryzen Processors
8 Power Phase Design, Digi Power
Supports DDR4 4733+ (OC)
1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 2 PCIe 3.0 x1
Graphics Output Options: HDMI
AMD CrossFireX
7.1 CH HD Audio (Realtek ALC1200 Audio Codec), Nahimic Audio
4 SATA3, 1 Hyper M.2 (PCIe Gen4 x4)
8 USB 3.2 Gen1 (2 Front, 6 Rear)
Gigabit LAN

Phantom Gaming is designed by gamers and for gamers! Underneath its relentless appearance lie plentiful gaming oriented features and excellent gaming capabilities. It’s all about bringing a new gaming experience to gamers!

Nahimic Audio
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

8 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.

Premium 50A Power Choke
Compared to traditional chokes, ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

2oz Copper PCB
2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking, it's able to support the latest DDR4 memory modules with most extreme memory performance!

Hyper M.2 (PCIe Gen4 x4)
Supports the next generation PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

Post Status Checker
An easy troubleshooting tool that shows the CPU / DRAM / VGA / BOOT operation every time you start up the system. Post Status Checker is an fast and easy way to identify the source of the problem.

Specifications

Gaming Armor
Memory
- 15µ Gold Contact in DIMM Slots
Cooling
- XXL Aluminum Alloy Heatsink
Audio
- Nahimic Audio

Unique Feature
ASRock Super Alloy
- XXL Aluminum Alloy Heatsink
- Premium 50A Power Choke
- Sapphire Black PCB
- High Density Glass Fabric PCB
- 2oz Copper PCB
ASRock Steel Slot Gen4
ASRock Hyper M.2 (PCIe Gen4x4)
ASRock POST Status Checker (PSC)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop

CPU
Supports 3rd Gen AMD AM4 Ryzen / future AMD Ryzen Processors
Digi Power design
8 Power Phase design
Not compatible with AMD Ryzen 5 3400G and Ryzen 3 3200G.

Chipset
AMD B550

Memory
Dual Channel DDR4 Memory Technology
4 x DDR4 DIMM Slots
AMD Ryzen series CPUs (Matisse) support DDR4 4533+(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory
AMD Ryzen series APUs support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory
Max. capacity of system memory: 128GB
Supports Extreme Memory Profile (XMP) memory modules
15µ Gold Contact in DIMM Slots

BIOS
256Mb AMI UEFI Legal BIOS with GUI support
Supports "Plug and Play"
ACPI 5.1 compliance wake up events
Supports jumperfree
SMBIOS 2.3 support
CPU, CPU VDDCR_SOC, DRAM, VPPM, 1.05V_PROM_S5, 2.5V_PROM, +1.8VSB, VDDP Voltage Multi-adjustment

Graphics
Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU
DirectX 12, Pixel Shader 5.0
Shared memory default 2GB. Max Shared memory supports up to 16GB.
Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required)
Supports HDR (High Dynamic Range) with HDMI 2.1
Supports HDCP 2.3 with HDMI 2.1 Port
Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port
Supports Microsoft PlayReady

Audio
7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec)
Premium Blu-ray Audio support
Supports Surge Protection
PCB Isolate Shielding
Individual PCB Layers for R/L Audio Channel
Nahimic Audio

LAN
PCIE x1 Gigabit LAN 10/100/1000 Mb/s
Realtek RTL8111H
Supports Wake-On-LAN
Supports Lightning/ESD Protection
Supports Energy Efficient Ethernet 802.3az
Supports PXE

Slots
AMD Ryzen series CPUs (Matisse)
- 2 x PCI Express x16 Slots (PCIE1: Gen4x16 mode; PCIE3: Gen3 x4 mode)
AMD Ryzen series APUs
- 2 x PCI Express x16 Slots (PCIE1: Gen3x16 mode; PCIE3: Gen3 x4 mode)
- 2 x PCI Express 3.0 x1 Slots
- Supports AMD Quad CrossFireX and CrossFireX
- 1 x M.2 Socket (Key E) for the optional WiFi-802.11ac module

Storage
4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
1 x Hyper M.2 Socket (M2_1), supports M Key type 2260/2280/22110 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s)

Connector
1 x COM Port Header
1 x SPI TPM Header
1 x Power LED and Speaker Header
2 x RGB LED Headers
2 x Addressable LED Headers
1 x CPU Fan Connector (4-pin)
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector
1 x 4 pin 12V Power Connector
1 x Front Panel Audio Connector
2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)

Rear Panel I/O
Antenna Ports
1 x PS/2 Mouse/Keyboard Port
1 x HDMI Port
6 x USB 3.2 Gen1 Ports (Supports ESD Protection)
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Line in / Front Speaker / Microphone

Software and UEFI
Software
- ASRock Motherboard Utility (Phantom Gaming Tuning)
- ASRock Polychrome SYNC
- ASRock Key Master
- ASRock XFast LAN
UEFI
- ASRock Full HD UEFI
- ASRock Instant Flash

Support CD
Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar

Accessories
Quick Installation Guide, Support CD, I/O Shield
2 x SATA Data Cables
1 x Screw for M.2 Socket

Hardware Monitor
Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans
Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans
Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans
Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, CPU VDDCR_SOC, DRAM, VPPM, 1.05V_PROM_S5, +1.8V, VDDP

Form Factor
ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
Solid Capacitor design
2oz Copper PCB

OS
Microsoft Windows 10 64-vit

Certifications
FCC, CE
ErP/EuP ready (ErP/EuP ready power supply is required)

• Socket: AM4
• CPU Compatibility: AMD Ryzen
• Chipset: AMD B550
• Form Factor: ATX
• Memory Slots: DDR4 - 4 Slots
• M.2 Compatibility: NVMe
• USB C: No
