Description

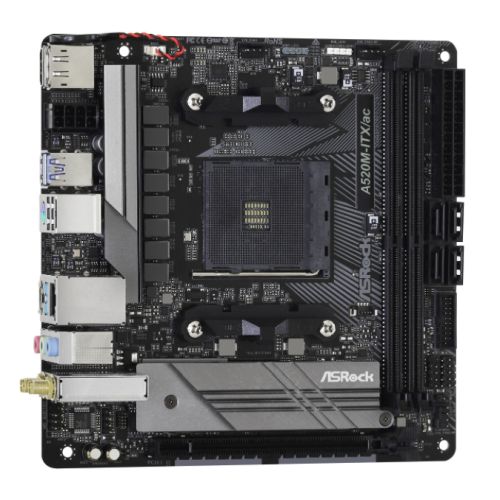

Supports 3rd Gen AMD AM4 Ryzen™ / Future AMD Ryzen™ Processors (3000 and 4000 Series Processors)
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it enhanced performance with the lowest temperature for advanced gamers.
Compared to traditional chokes, ASRock’s premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
Rule Your Own Lighting Way - Polychrome RGB
No one has time for weak WiFi signals and sluggish internet! That's why this motherboard comes with a 802.11ac WiFi (2.4G / 5G WiFi) module which supports wireless networks and Bluetooth v4.2.
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules.
This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen1 ports built on the rear i/o for supporting next generation USB 3.2 Gen1 devices and to deliver up to 5 Gbps data transfer rates.
Dual Graphics Outputs
Complete with two types of most used connectors! Packed with a HDMI + DisplayPort combo, you have more graphics output options now.
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.
Super Alloy Motherboard
Dr. MOS
High Density Glass Fabric PCB
Sapphire Black PCB
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
Description
Specification
- Motherboard Type: Desktop
- Form Factor: Mini ITX
- Socket: AMD AM4
- Chipset: AMD A520
- #Hide#DDR Type: DDR4
-
CPU Support: Click here for CPU support
*Note: not compatible with Ryzen 5 3400G & Ryzen 3 3200G CPUs - RAM Technology: DDR4 (Dual Channel)
- RAM Slots: 2 x DIMM
- RAM Speeds: 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 MHz
- Maximum Memory: 64GB
-
Graphics: Integrated Graphics Processor*
Graphics specifications may vary between CPU types -
Graphics Ports: 1 x VGA
1 x DisplayPort - Multi-GPU Support: -
- PCI/PCI Express: 1 x PCIe 3.0 x16
-
Storage: 4 x SATA III
1 x M.2 (2280) - SATA & PCIe - RAID: "RAID 0, 1, 10"
-
Wireless: Intel 802.11ac WiFi Module
Supports IEEE 802.11a/b/g/n/ac
Supports Dual-Band (2.4/5 GHz)
Supports wireless connections up to 433Mbps
Supports Bluetooth 4.2 - LAN: GB LAN
- Audio: 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
-
USB Ports Supported: "1 x USB 3.2 Gen1 Type-C (at back)
5 x USB 3.2 Gen1 (3 at back, 2 at mid-board)
4 x USB 2.0 (2 at back, 2 at mid-board)" -
Back Panel I/O Ports: 2 x Antenna
1 x PS/2 Mouse/Keyboard
1 x HDMI
1 x DisplayPort 1.4
2 x USB 2.0
3 x USB 3.2 Gen1 Type-A
1 x USB 3.2 Gen1 Type-C
1 x RJ-45 LAN
HD Audio Jacks -
Internal I/O Connectors: 1 x RGB LED
1 x Addressable LED
1 x CPU Fan
2 x Chassis/Water Pump Fan
1 x 24 pin ATX
1 x 8 pin 12V
1 x Front Audio
1 x USB 2.0
1 x USB 3.2 Gen1 -
Accessories: 2 x SATA Data Cables
2 x ASRock WiFi 2.4/5 GHz Antennas - Additional Features: See Overview
- Package Type: Retail
- Package Weight: 0.8300 kg
- Warranty: 2 Year Replacement Warranty
- #Hide#M.2 Slot(s): Yes (M.2)
- #Hide#No. LAN Ports: 1 x LAN
- #Hide#Max LAN Speed: GB LAN
- #Hide#Wi-Fi: Yes (Wi-Fi)
