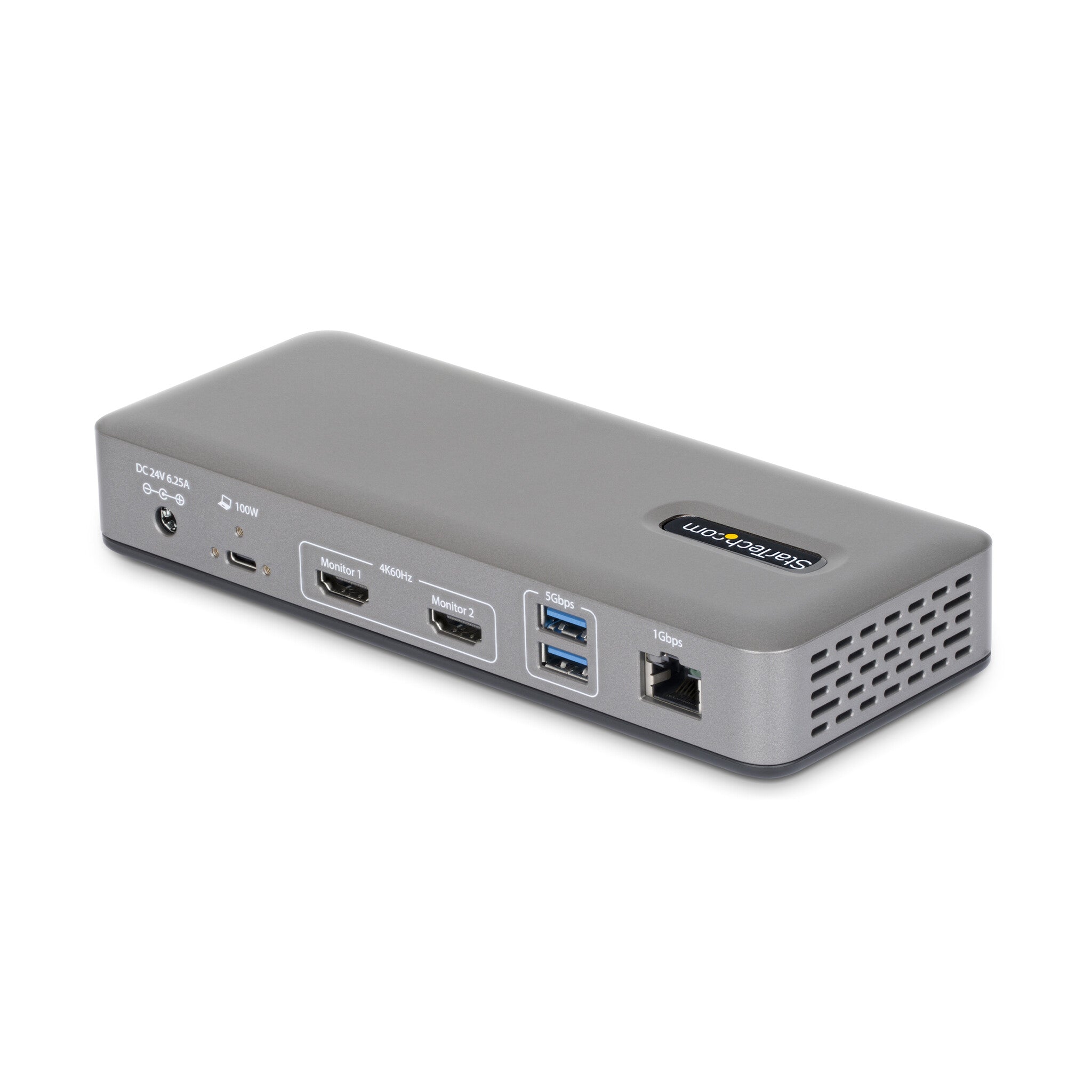

StarTech.com Dual-Monitor USB-C Docking Station, HDMI, 4K 60Hz, 100W Laptop Charging, 1GbE, Driverless, Multi-Monitor Dock For Windows

STARTECH  |  SKU: 196UE-USBC-DOCK  |  Condition: Brand New  |  Barcode: 65030921756
£113.99
£94.99 excluding VAT @20%
iFrame
StarTech Dual-Monitor USB-C Docking Station, Dual 4K 60Hz HDMI, 100W Power Delivery, 6x USB 10Gbps, Gigabit Ethernet, Driverless DP Alt Mode Windows Laptop Dock

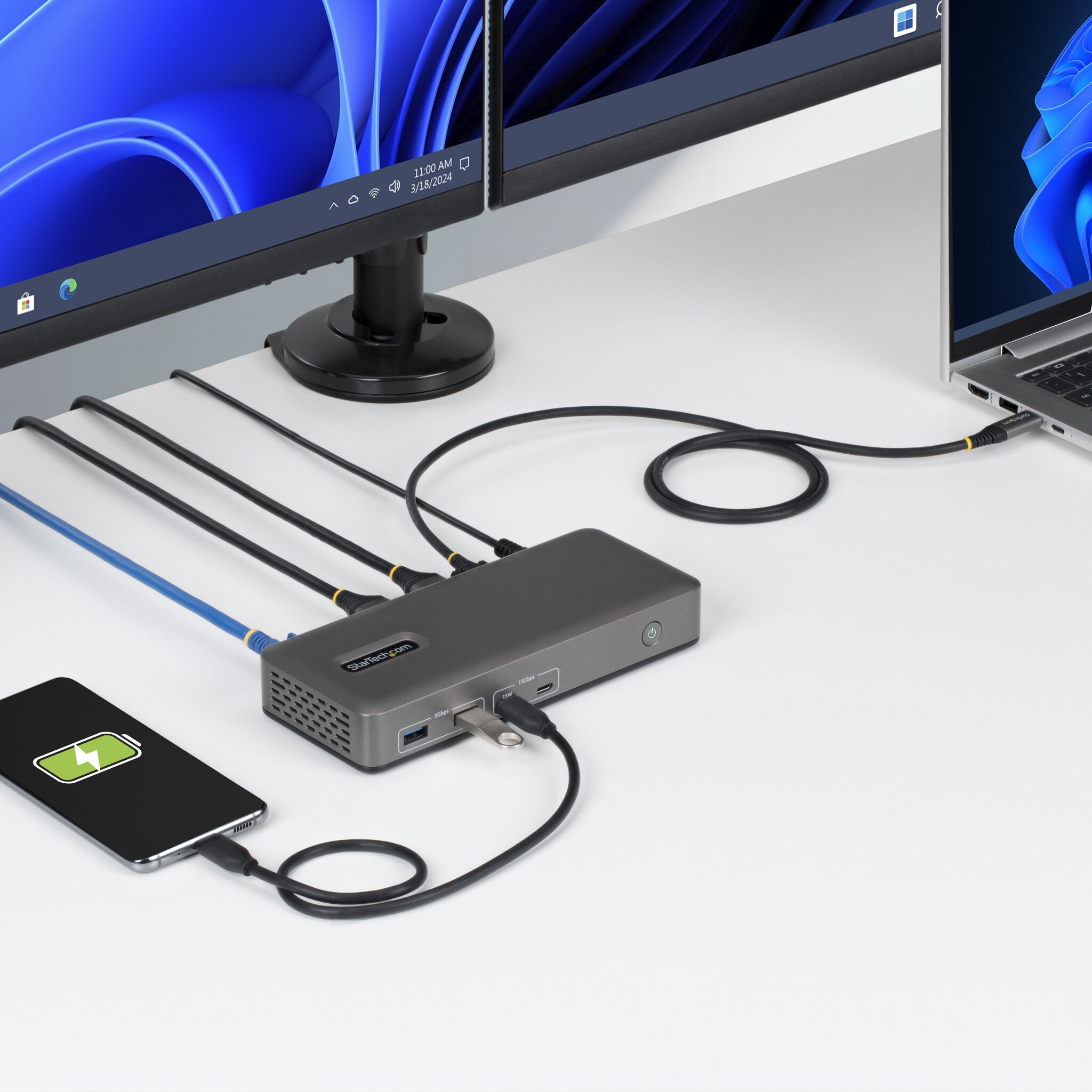

Transform a USB-C laptop into a dual-monitor workstation with HDMI video and USB-A and USB-C ports

Connect up to two 4K 60 Hz HDMI displays through a single USB-C port, while also providing USB-C, USB-A, and Gigabit Ethernet connectivity.

Uncompressed Video Over USB-C

Connect up to two 4K 60Hz HDMI monitors through a single USB Type-C port with uncompressed video powered by your laptop's native GPU; Drive demanding workflows with high-performance visuals and no software compression

Driverless Deployment

Features plug-and-play functionality on Windows with no drivers or software required*. It is engineered for scalable, zero-touch rollouts across shared workspaces, corporate environments, and BYOD deployments.

Flexible, High-Speed I/O

This dock is equipped with 4× USB-A 5 Gbps ports and 2× USB-C 10 Gbps ports (including one with 15 W PD), providing support for both legacy peripherals and modern high-throughput devices without compromising performance. A Gigabit Ethernet port ensures a reliable wired network connection.

Mounting and Security

This multi-monitor dock includes built-in lock slots for enhanced physical security and supports Surface or VESA mounting to keep the dock secure and out of the way. Mounting accessories are sold separately (SSPMSUDWM, DOCK-NUC-VESA-MOUNT, SSPMSVESA).

*Note: Not compatible with macOS or ChromeOS

Ports & interfaces
Connectivity technology Wired
Host interface USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 2
USB Power Delivery Yes
USB Power Delivery revision 3.0
USB Power Delivery up to 100 W
HDMI ports quantity 2
Microphone in No
DC-in jack Yes
Network
Ethernet LAN Yes
Ethernet LAN (RJ-45) ports 1
Ethernet LAN data rates 10,100,1000 Mbit/s
Full duplex Yes
Performance
Product colour Grey
Card reader integrated No
Data transfer rate 1 Gbit/s
Number of displays supported 2
Cable lock slot Yes
Cable lock slot type Kensington, Nano, Noble, Wedge
On/off switch Yes
LED indicators Power
Housing material Plastic
Plug and Play Yes
Power
Power source type DC
AC input voltage 100 - 240 V
Input current 2.5 A
Output current 6.25 A
Output voltage 24 V
Power consumption (max) 150 W
Power plug type Type N
Compatible power plug types UK, EU
Software
Windows operating systems supported Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
Linux operating systems supported Ubuntu 24.04 LTS
Operational conditions
Operating temperature (T-T) 0 - 70 °C
Storage temperature (T-T) 10 - 70 °C
Operating relative humidity (H-H) 10 - 85%
Weight & dimensions
Width 79 mm
Depth 190 mm
Height 27 mm
Weight 300 g
Packaging data
Package width 250 mm
Package depth 205 mm
Package height 50 mm
Package weight 1 kg

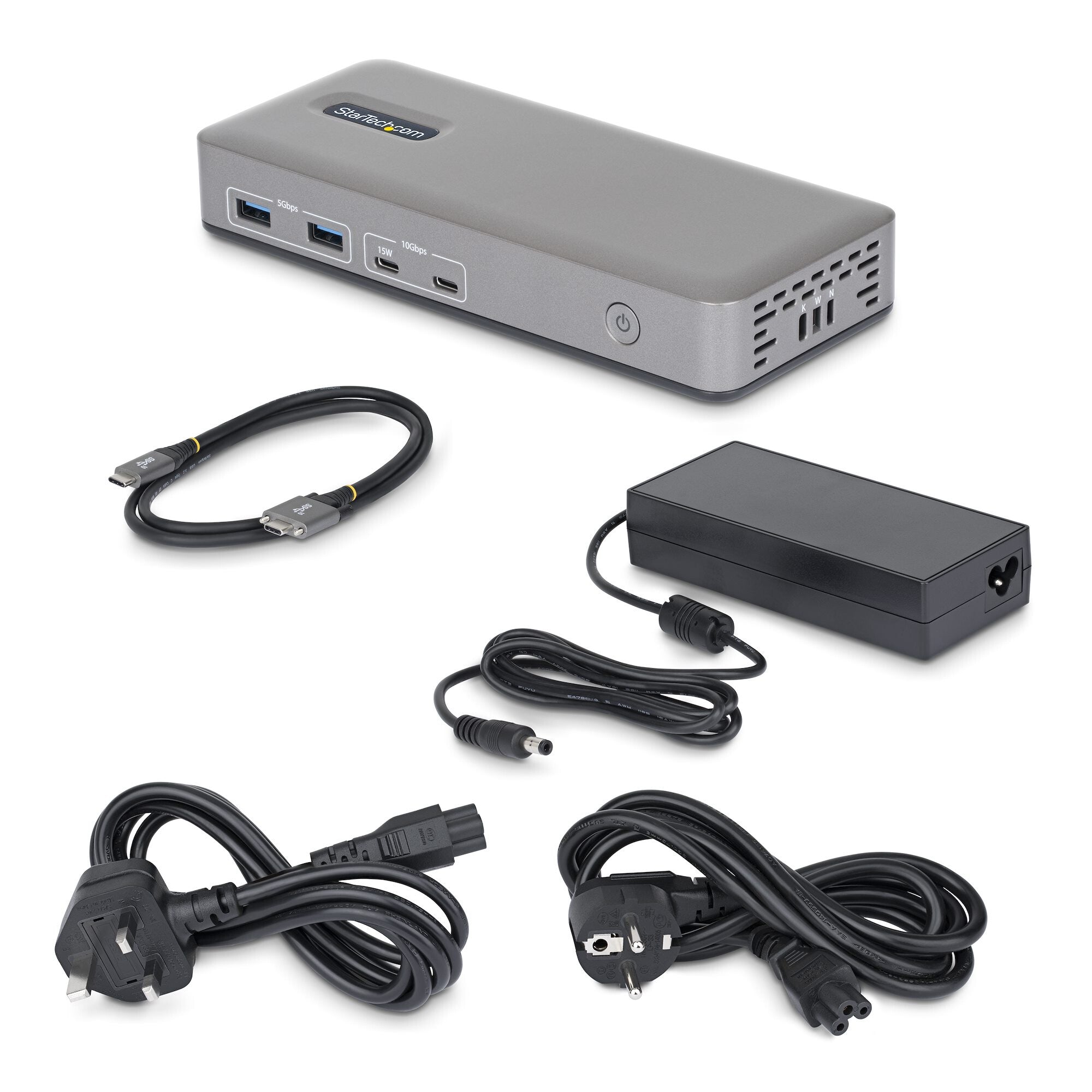

Packaging content
Cables included USB
User guide Yes
Technical details
Compliance certificates Federal Communications Commission (FCC), RoHS
Logistics data
Master (outer) case height 280 mm
Master (outer) case length 270 mm
Master (outer) case width 430 mm
Products per master (outer) case 10 pc(s)
Other features
Chipset VMM5220, VL103R, VL171, VL822Q8T, VP226, RTL8153E, VL817Q7S
