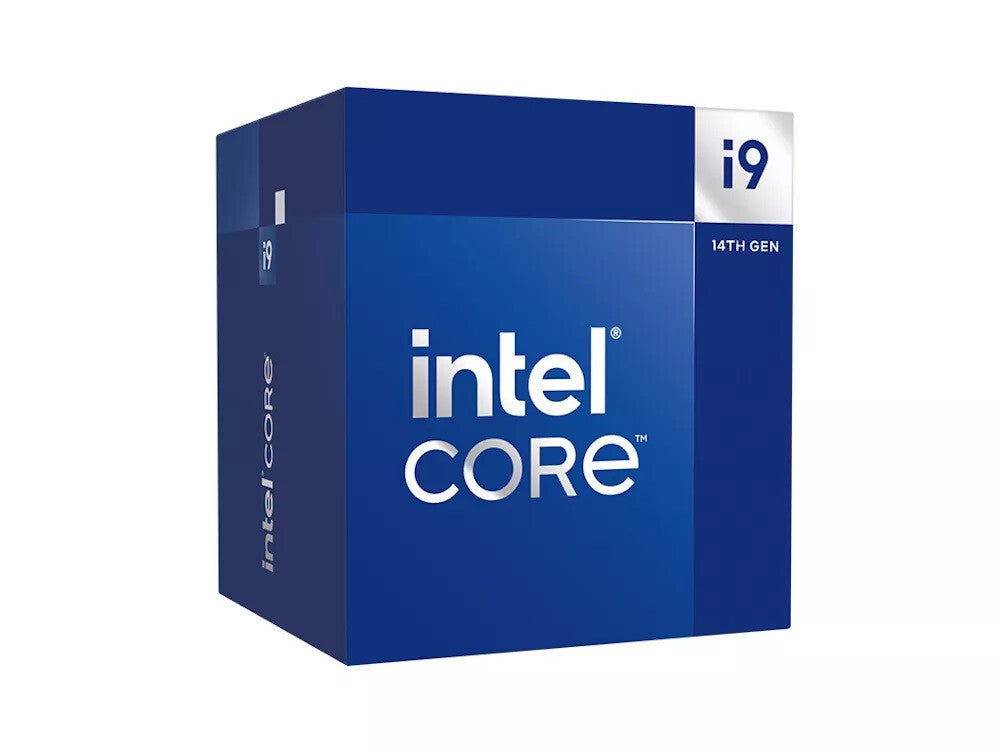

Intel Core i9-14900 processor 36 MB Smart Cache Box
Key Details:
- Intel® Core™ i9 i9-14900
- 36 MB Smart Cache LGA 1700
- Processor cores: 24 64-bit
- Maximum internal memory supported by processor: 192 GB DDR4-SDRAM, DDR5-SDRAM
- On-board graphics card Intel UHD Graphics 770
- Box Cooler included
Intel Core i9-14900 processor 36 MB Smart Cache Box
Description
Description
| Processor | |
|---|---|
| Processor ARK ID | 236793 |
| Processor codename | Raptor Lake |
| Memory bandwidth supported by processor (max) | 89.6 GB/s |
| Maximum number of DMI lanes | 8 |
| Stepping | B0 |
| Processor base power | 65 W |
| Maximum turbo power | 219 W |
| Processor cache type | Smart Cache |
| Processor cache | 36 MB |
| Efficient-core base frequency | 1.5 GHz |
| Efficient-core boost frequency | 4.3 GHz |
| Performance-core base frequency | 2 GHz |
| Performance-core boost frequency | 5.4 GHz |
| Processor boost frequency | 5.8 GHz |
| Efficient cores | 16 |
| Performance cores | 8 |
| Processor operating modes | 64-bit |
| Processor threads | 32 |
| Cooler included | Yes |
| Box | Yes |
| Processor socket | LGA 1700 |
| Processor cores | 24 |
| Processor model | i9-14900 |
| Processor generation | Intel Core i9-14xxx |
| Processor family | Intel® Core™ i9 |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Memory bandwidth (max) | 89.6 GB/s |
| ECC | Yes |
| Memory channels | Dual-channel |
| Memory types supported by processor | DDR4-SDRAM, DDR5-SDRAM |
| Maximum internal memory supported by processor | 192 GB |
| Graphics | |
|---|---|
| Multi-Format Codec Engines | 2 |
| Number of execution units | 32 |
| Discrete graphics card model | Not available |
| On-board graphics card ID | 0xA780 |
| On-board graphics card refresh rate at maximum resolution (DisplayPort) | 60 Hz |
| On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel) | 120 Hz |
| On-board graphics card refresh rate at maximum resolution (HDMI) | 60 Hz |
| On-board graphics card maximum resolution (DisplayPort) | 7680 x 4320 pixels |
| On-board graphics card maximum resolution (eDP - Integrated Flat Panel) | 5120 x 3200 pixels |
| On-board graphics card maximum resolution (HDMI) | 4096 x 2160 pixels |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.5 |
| Number of displays supported (on-board graphics) | 4 |
| On-board graphics card base frequency | 300 MHz |
| On-board graphics card dynamic frequency (max) | 1650 MHz |
| On-board graphics card outputs supported | Embedded DisplayPort (eDP) 1.4b, DisplayPort 1.4a, HDMI 2.1 |
| On-board graphics card model | Intel UHD Graphics 770 |
| On-board graphics card | Yes |
| Discrete graphics card | No |
| Features | |
|---|---|
| Commodity Classification Automated Tracking System (CCATS) | 740.17B1 |
| Export Control Classification Number (ECCN) | 5A992C |
| Direct Media Interface (DMI) Revision | 4.0 |
| Scalability | 1S |
| CPU configuration (max) | 1 |
| Embedded options available | Yes |
| Supported instruction sets | AVX 2.0, SSE4.1, SSE4.2 |
| PCI Express configurations | 1x16+1x4, 2x8+1x4 |
| PCI Express slots version | 4.0, 5.0 |
| Maximum number of PCI Express lanes | 20 |
| Use conditions | Workstation, PC/Client/Tablet |
| Market segment | Desktop |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Processor special features | |
|---|---|
| Intel® Deep Learning Boost (Intel® DL Boost) | Yes |
| Intel® Volume Management Device (VMD) | Yes |
| Mode-based Execute Control (MBE) | Yes |
| Intel® Standard Manageability (ISM) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Secure Key | Yes |
| Intel® OS Guard | Yes |
| Intel 64 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Turbo Boost Max Technology 3.0 | Yes |
| Intel® Boot Guard | Yes |
| Intel® Thread Director | Yes |
| Intel® Control-flow Enforcement Technology (CET) | Yes |
| Intel® Thermal Velocity Boost Frequency | 5.8 GHz |
| Intel® Gaussian & Neural Accelerator (Intel® GNA) 3.0 | Yes |
| Intel® Turbo Boost Max Technology 3.0 frequency | 5.6 GHz |
| Intel® Adaptive Boost Technology | Yes |
| Intel® Thermal Velocity Boost | Yes |
| Intel® Speed Shift Technology | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Operational conditions | |
|---|---|
| Tjunction | 100 °C |
| General | |
|---|---|
| Product family | Core |
| Product series | i9 |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 8542310001 |
| Technical details | |
|---|---|
| Launch date | Q1'24 |
| Status | Launched |
| OpenCL version | 3.0 |
| Weight & dimensions | |
|---|---|
| Processor package size | 45 x 37.5 mm |
| Other features | |
|---|---|
| Graphics output | eDP 1.4b, DP 1.4a, HDMI 2.1 |
| Maximum internal memory | 192 GB |
| L2 cache | 32768 KB |
