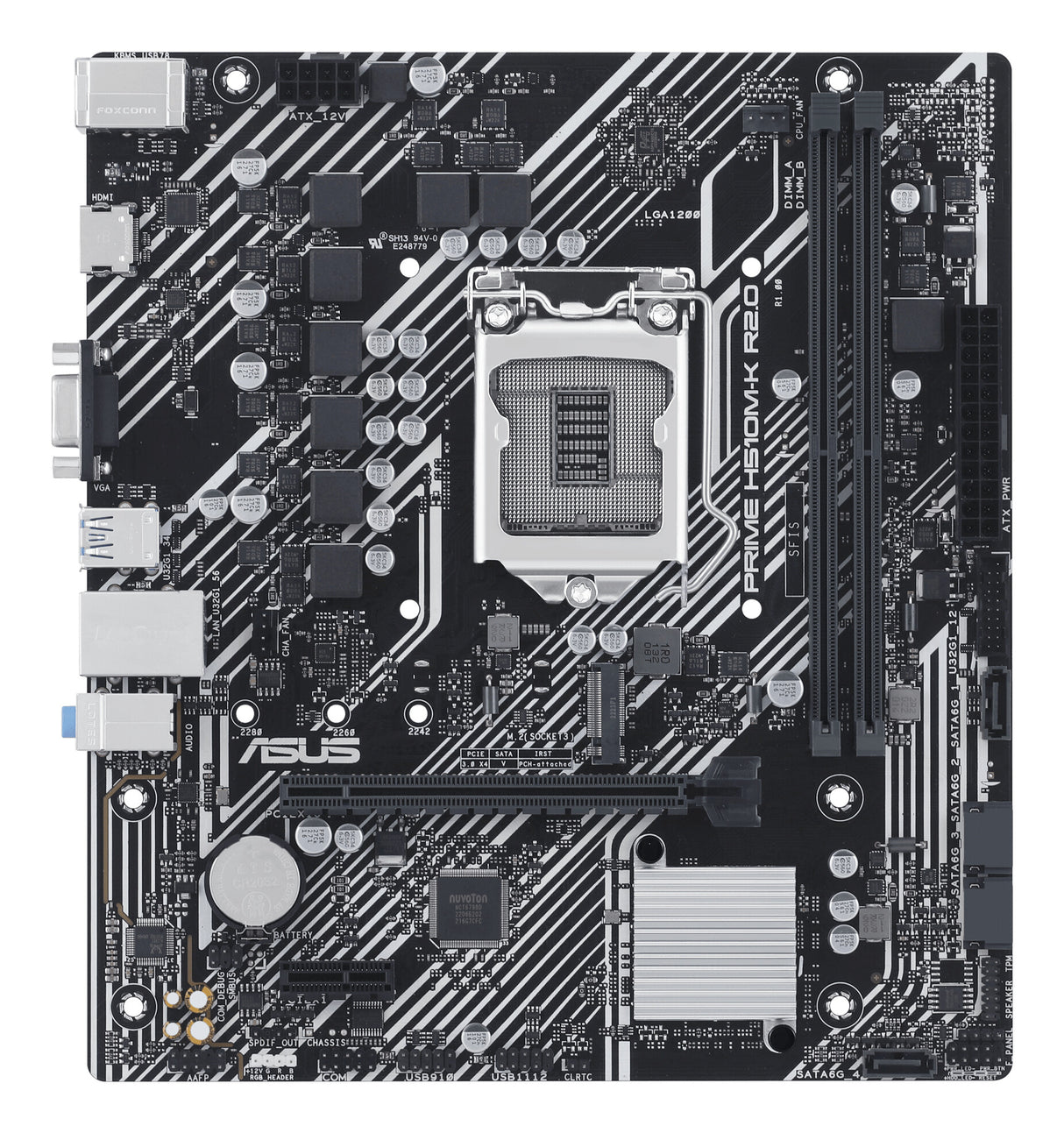

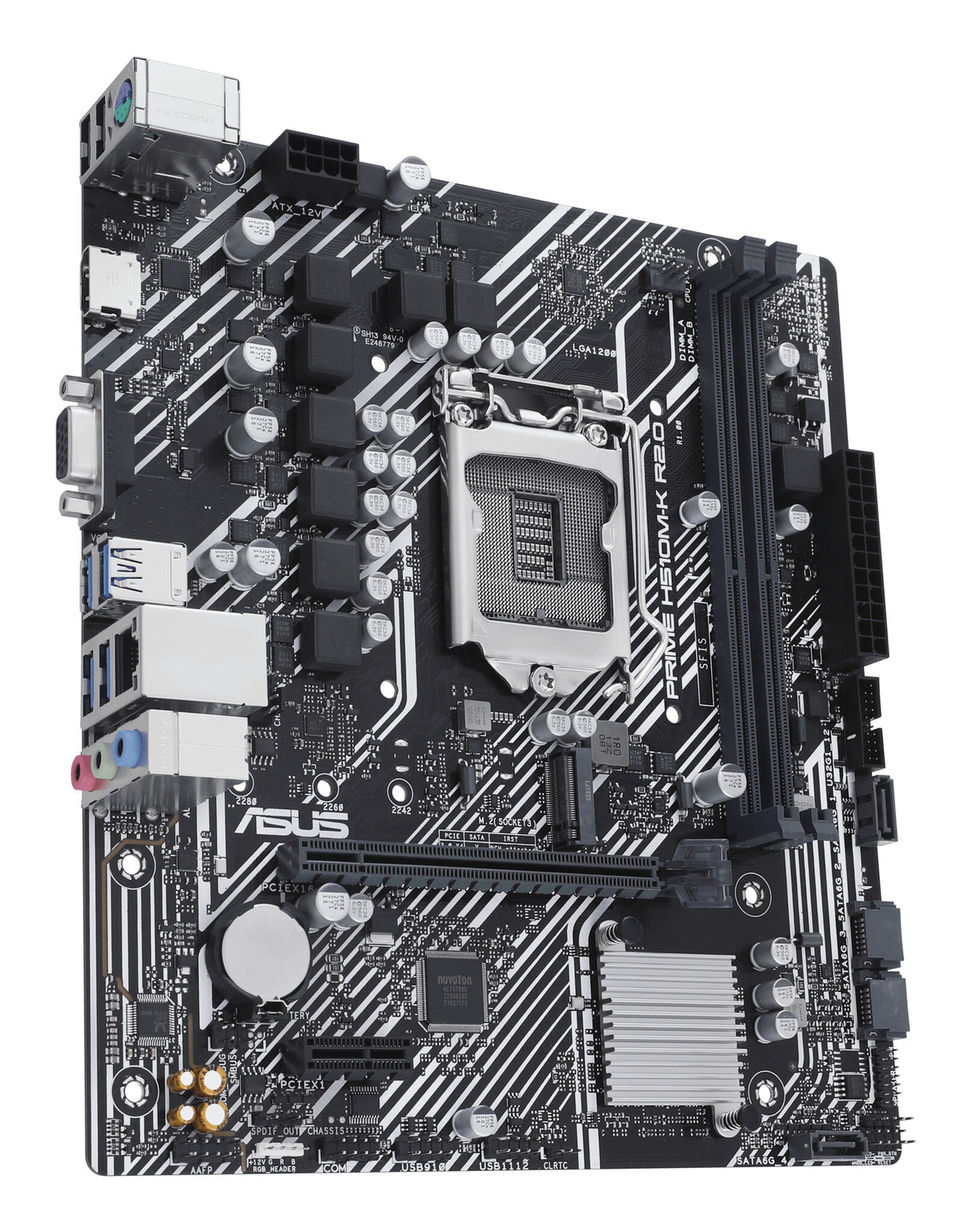

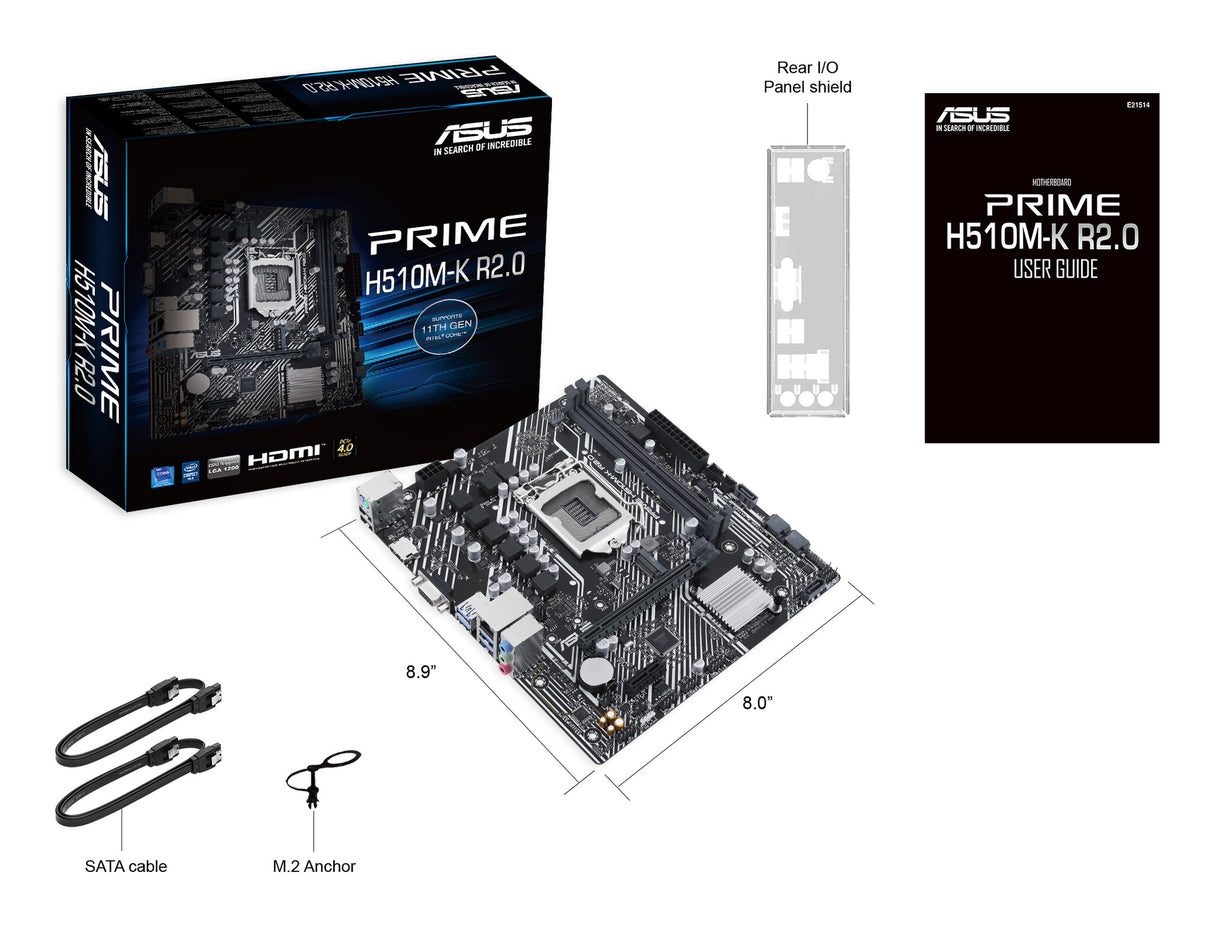

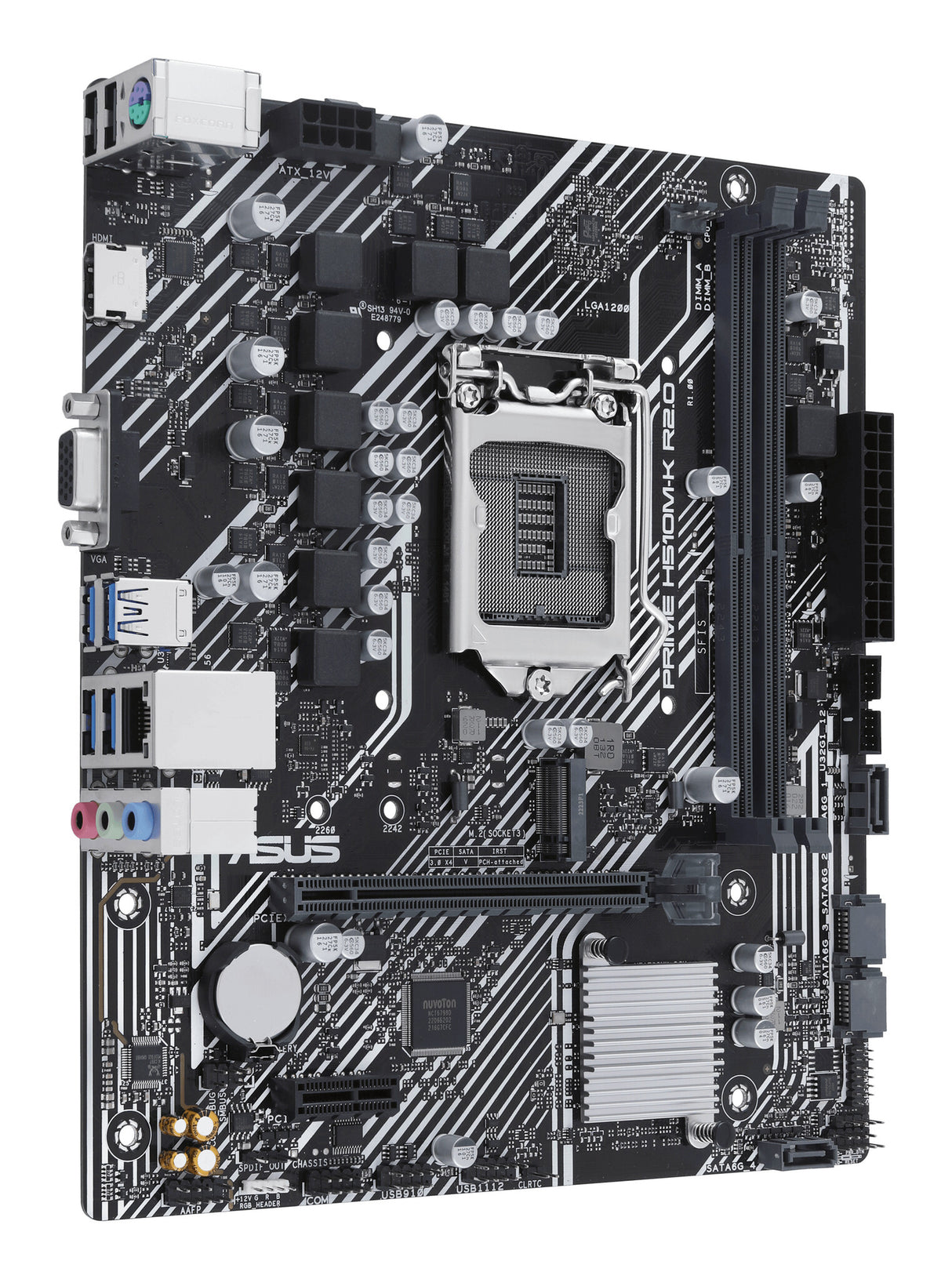

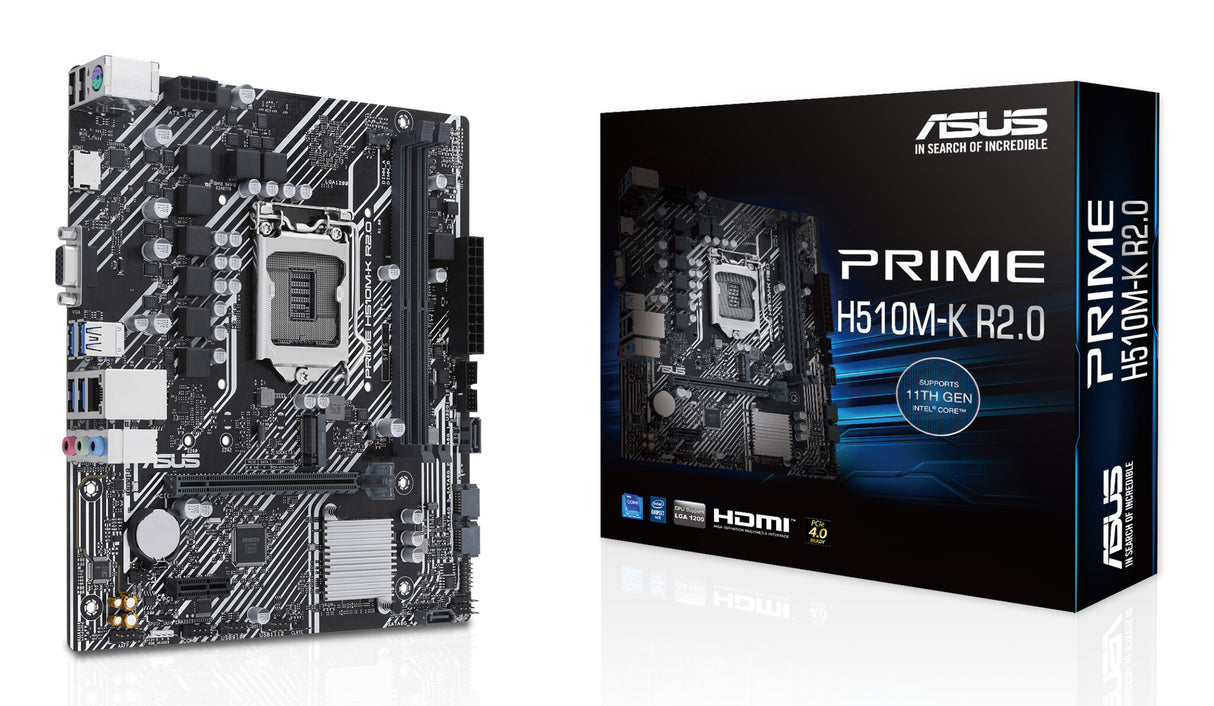

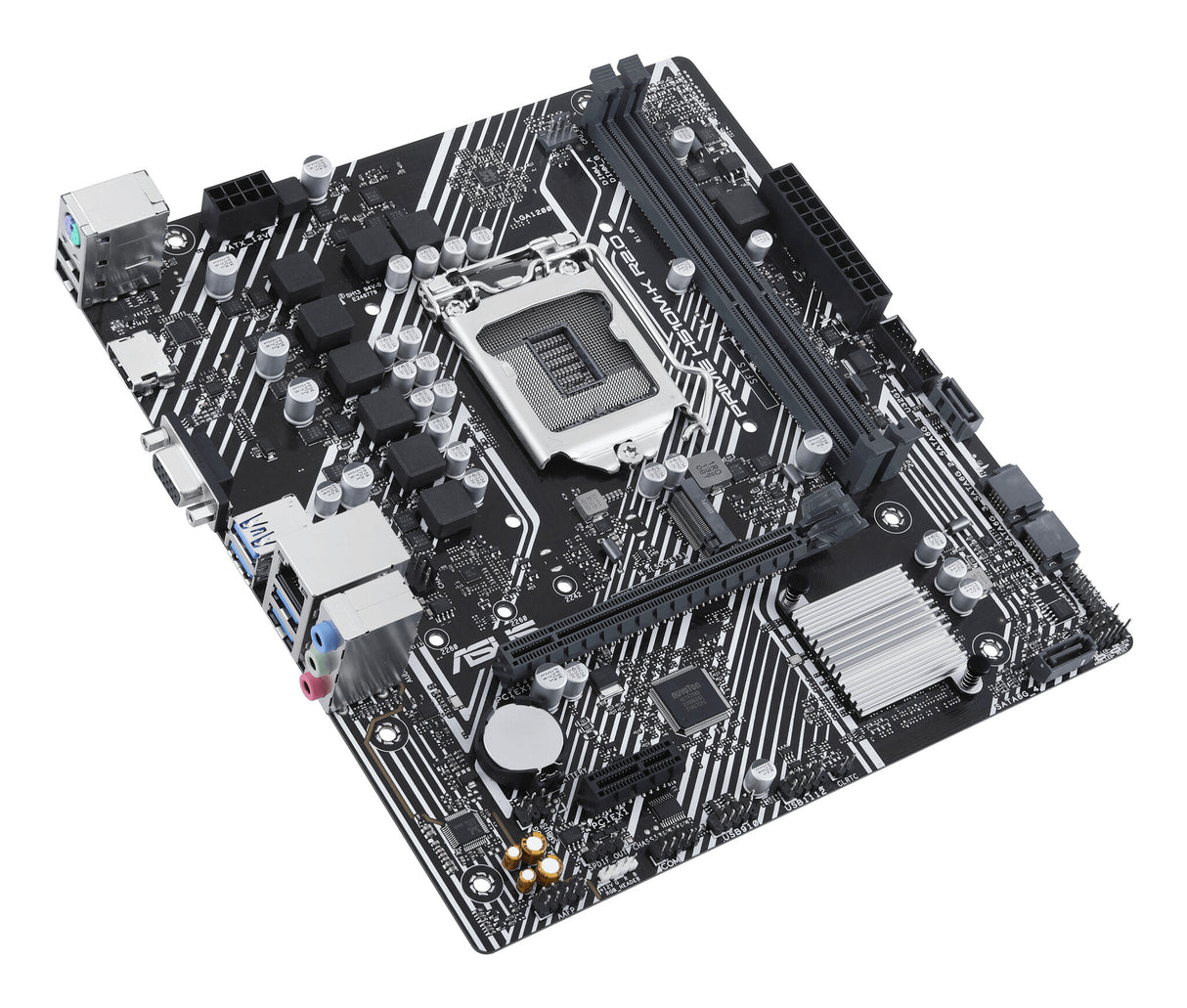

ASUS PRIME H510M-K R2.0 Intel H510 LGA 1200 (Socket H5) micro ATX

ASUS  |  SKU: 90MB1E80-M0EAY0  |  Condition: Brand New  |  Barcode: 4711387113189

£95.99
Excl VAT £79.99

Processor
Compatible processor series Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Processor socket LGA 1200 (Socket H5)
Processor manufacturer Intel
Memory
Unbuffered memory Yes
Maximum internal memory 64 GB
Supported memory clock speeds 2133,2400,2666,2800,2933,3000,3200 MHz
ECC сompatibility Non-ECC
Memory channels Dual-channel
Memory slots type DIMM
Number of memory slots 2
Supported memory types DDR4-SDRAM
Storage controllers
Number of HDDs supported 4
Number of storage drives supported 5
Supported storage drive interfaces M.2, SATA III
Supported storage drive types HDD & SSD
Internal I/O
TPM connector Yes
12V power connector Yes
EPS power connector (8-pin) Yes
Number of chassis fan connectors 1
CPU fan connector Yes
ATX Power connector (24-pin) Yes
Front panel audio connector Yes
S/PDIF out connector Yes
Number of SATA III connectors 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
USB 2.0 connectors 2

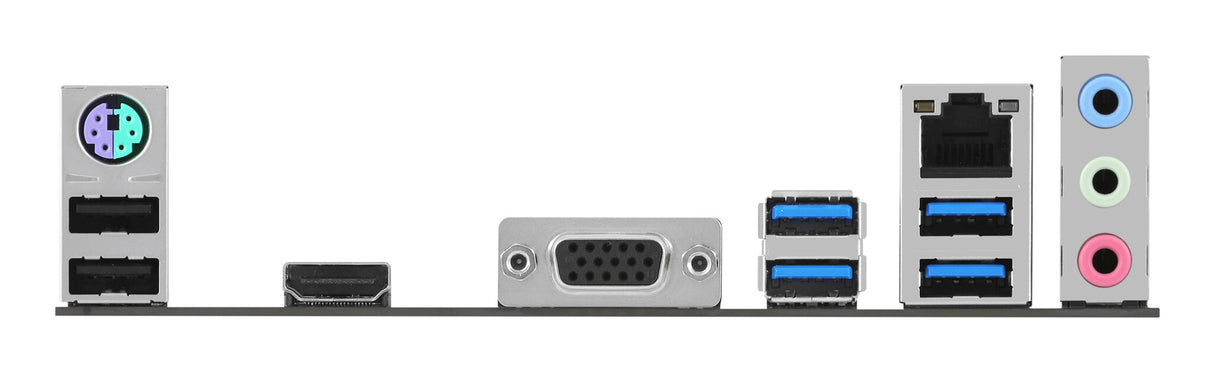

Rear panel I/O ports
COM ports quantity 1
HDMI ports quantity 1
VGA (D-Sub) ports quantity 1
PS/2 ports quantity 1
Ethernet LAN (RJ-45) ports 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
USB 2.0 ports quantity 2
Network
Wi-Fi No
Ethernet interface type Fast Ethernet, Gigabit Ethernet
Ethernet LAN Yes
Features
Windows operating systems supported Windows 10 x64
Audio output channels 7.1 channels
Motherboard chipset Intel H510
Motherboard chipset family Intel
Motherboard form factor micro ATX
Component for PC
Expansion slots
Number of M.2 (M) slots 1
PCI Express x1 (Gen 3.x) slots 1
BIOS
BIOS memory size 128 Mbit
BIOS type EFI AMI
Weight & dimensions
Depth 203 mm
Width 226 mm
