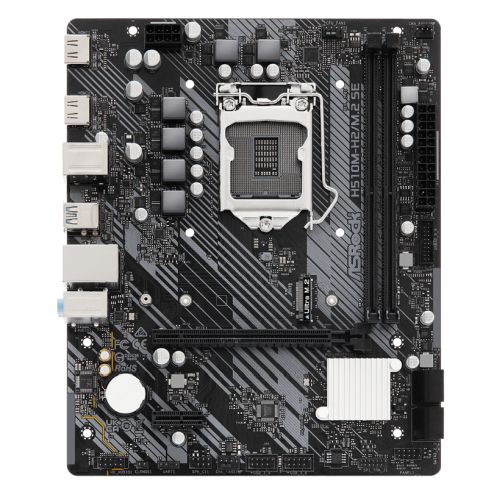

Asrock H510M-H2/M.2 SE, Intel H510, 1200, Micro ATX, 2 DDR4, 2 HDMI, 1x M.2

H510M-H2/M.2 SE

• Supports 10th Gen & 11th Gen Intel® Core™ Processors (LGA1200)
• 4 Power Phase Design
• Supports DDR4 3200 MHz*
• Intel® H470 Chipset
• 1 PCIe 4.0 x16, 1 PCIe 3.0 x1
• Graphics Output Options: 2 HDMI
• Realtek ALC897 7.1 CH HD Audio Codec
• 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)
• 6 USB 3.2 Gen1 (4 Rear, 2 Front),
• 6 USB 2.0 (2 Rear, 4 Front)
• Realtek Gigabit LAN
• Supports ASRock Auto Driver Installer

Description

Specification

• Motherboard Type: Desktop
• Form Factor: Micro ATX
• Socket: Intel 1200 - Rocket Lake
• Chipset: Intel H510
• #Hide#DDR Type: DDR4
• CPU Support: Supports 10th Gen & 11th Gen Intel Core Processors
• RAM Technology: "DDR4, Dual Channel
  Supports non-ECC, un-buffered memory
  Supports ECC UDIMM modules (operate in non-ECC mode)
  Supports Intel®Extreme Memory Profile (XMP) 2.0"
• RAM Slots: 2 x DIMM
• RAM Speeds: 3200 / 2933 / 2800 / 2666 / 2400 / 2133 MHz
• Maximum Memory: 64GB
• Graphics: Integrated Graphics*
  *Graphics specifications may vary between CPU types
• Graphics Ports: 2 x HDMI
• PCI/PCI Express: 1 x PCIe 4.0 x16
  1 x PCIe 3.0 x1
• Storage: 4 x SATA III
  1 x M.2 (2260/2280) - SATA & PCIe 3.0 x4
• RAID: "Supports RAID 0, 1, 5 and 10 for SATA storage devices"
• Wireless: -
• LAN: GB LAN
• Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
• USB Ports Supported: Rear:
  4 x USB 3.2 Gen1 Type-A
  2 x USB 2.0

  Front:
  2 x USB 3.2 Gen1 Type-A
  4 x USB 2.0
• Back Panel I/O Ports: 1 x PS/2 Mouse/Keyboard
  2 x HDMI
  2 x USB 2.0
  4 x USB 3.2 Gen1
  1 x RJ-45 LAN
  HD Audio Jacks
• Internal I/O Connectors: 1 x SPI TPM
  1 x Chassis Intrusion and Speaker
  1 x CPU Fan
  2 x Chassis/Water Pump Fan
  1 x 24 pin ATX
  1 x 8 pin 12V
  1 x Front Panel Audio
  2 x USB 2.0
  1 x USB 3.2 Gen1
• Accessories: 1 x User Manual
  1 x I/O Shield
  2 x SATA Data Cables
  1 x Screw for M.2 Socket
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 0.7500 kg
• Warranty: 3 Year Replacement Warranty
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 1 x LAN
• #Hide#Max LAN Speed: GB LAN
