A Classic Evolved

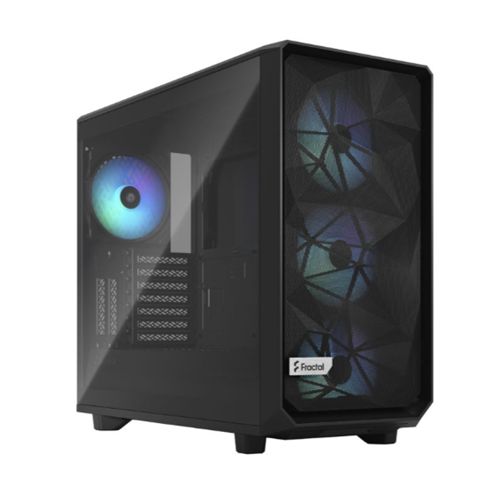

The Meshify2 RGB is a high-performance case with a bold, stealth inspired aesthetic. Its striking exterior features bolt-free, flush tempered glass, a fully removable top granting excellent interior access, and a front with USB-C, hinged mesh panel and removable nylon filter. The flexible dual-layout interior supports large storage arrays and multiradiatorsetups that makes cooling a breeze.
- Comes with 4x Aspect 14 RGB PWM fans pre-installed
- Repositioned front fan mounting sets a wider stage for light and color
- Built in RGB controller on the front/top I/O with iconic Fractal Northern Lights effect
- Iconic angular mesh design provides filtered airflow with a bold, stealth-inspired aesthetic
- Spacious and extensively adaptable dual-layout interior easily accommodates large motherboards up to and including 285 mm E-ATX
- Support for radiators up to 360 mm in front, 360 mm up top, or 280 mm in the base in the default Open Layout
- Includes 6 HDD/SSD trays, 2 SSD brackets, and 1 universal Multibracket for mounting up to 9 drives
- Expandable to 11 trays and 4 SSD brackets with 3 Multibrackets installed in the top and bottom for a max of up to 18 drives in Storage Layout
- New chassis design opens upto fully expose the case interior on three sides for totally unhindered installation and cable routing
- New front nylon filter that can be removed for increased airflow
- New front panel design with hinged removable mesh and tether-free bezel for easier access to front fan mounts
- Three front USB ports including one USB 3.1 Gen 2 Type-C with fast charging support and speeds up to 10Gbps
- Ultra-slim Nexus+ 2 fan hub connects upto three PWM fans and six 3-pin fans directly in line with cable channels along the edge of the case
- Outstanding cooling capacity with a total of nine 120/140 mm fan mounts and four preinstalled Aspect 14 RGB PWM fans
- Detachable PSU cable shield and integrated cable guides with cable ties further simplify cable management behind the board
- Versatile Multibracket that converts any unused fan position to an HDD, SSD or pump mount
- Bridgeless expansion slots ensure obstruction-free connections and allow for a more centered vertical GPU installation via the new Flex B-20 PCIe riser (sold separately)
- Two vertical GPU slots for use with the Flex VRC-25 PCIe riser, available separately
- Easy-to-clean high airflow nylon filters on the front, top and base with full PSU coverage and convenient front access
- Ventilated PSU shroud with two-part removable cover for optimal cable concealment and front radiator support
- Tool-less, top-latching side panels allow quick access while preventing accidental drops
Description
Specification
- Form Factor: E-ATX
- #Hide#Small Form Factor: No
- Power Supply Wattage: No PSU
- Motherboard Support: "E-ATX (max 285mm), ATX, Micro ATX, Mini ITX"
- #Hide#Window(s): Yes (Window)
- #Hide#LED Lighting: Yes (LED Lighting)
-
Connectors / Controls: 1 x USB 3.1 Gen 2 Type-C
2 x USB 3.0
Audio I/O
Power button
RGB control button -
Drive Bays: 6 x 3.5""/2.5"" - 14 positions total + 1 Multibracket
2 x 2.5"" - 4 positions total - Expansion Slots: 7 + 2 Expansion slots
-
Cooling System: Included
Front: 3 x Aspect 14 RGB PWM 140mm fans
Rear: 1 x Aspect 14 RGB PWM 140mm fan
Fan Mounts
Front: 3 x 120 / 140 mm
Top: 3 x 120 / 140 mm
Rear: 1 x 120 / 140 mm
Bottom: 2 x 120 / 140 mm -
.:
Water Cooling options:
Front: Up to 360 / 280 mm radiator
Top: Up to 360 / 420 mm
Rear: 120 mm radiator
Bottom: Up to 240 / 280 mm radiator - Colour: Black
-
Material: Left side panel: Light Tint Tempered Glass
Right side panel: Steel -
Compatibility: GPU max length:
450mm
CPU cooler max height:
185 mm
PSU max length:
250 mm (with HDD cage installed) -
Weight/Dimensions: 11.1 kg
(LxWxH) 542 x 240 x 474 mm
w/o feet/protrusions/screws: 541 x 240 x 454 mm - Additional Features: See Overview
-
Accessories: User manual
Large accessory box - HDD trays
Small accessory box - Package Weight: 13.6000 kg
- Warranty: 2 Years
