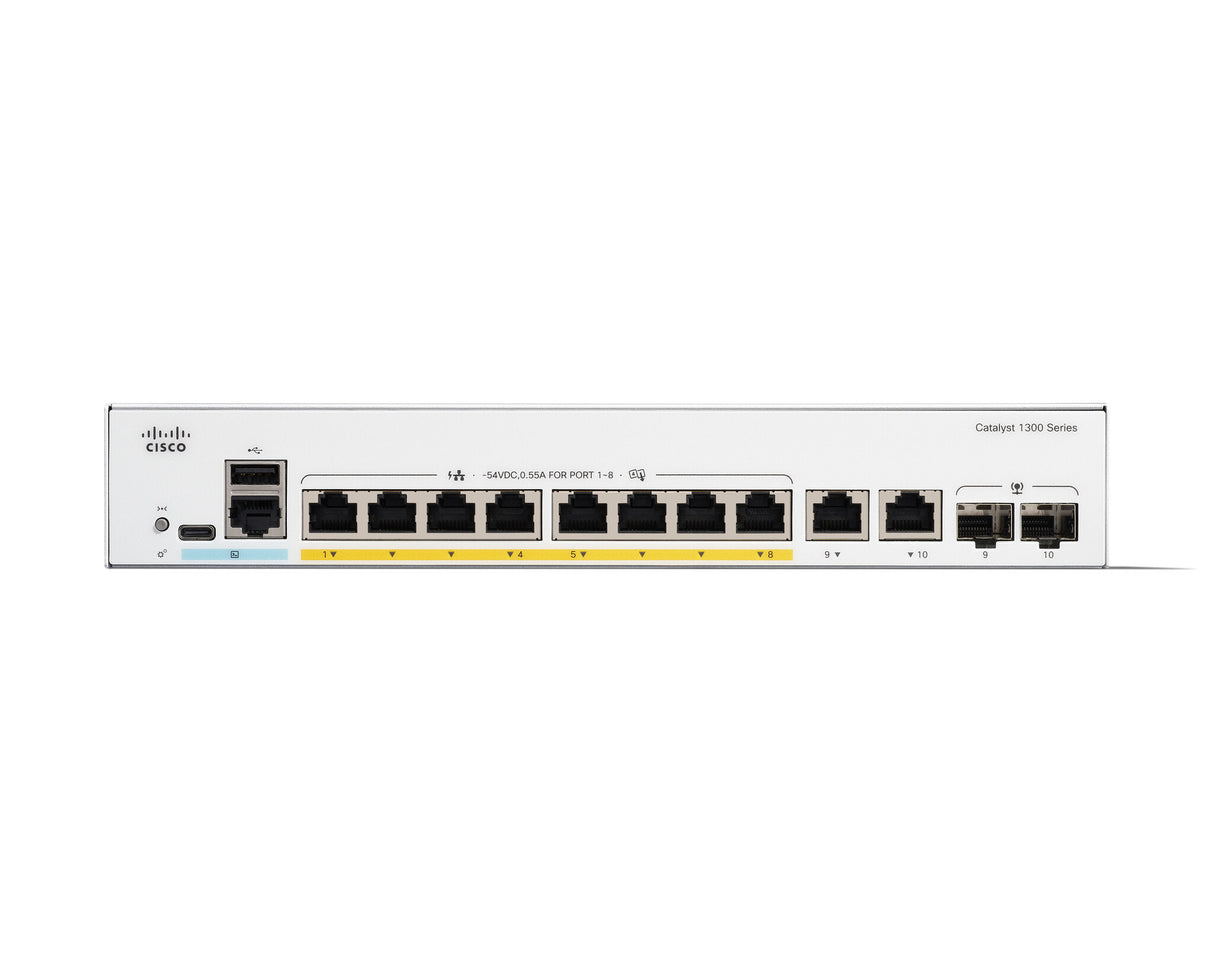

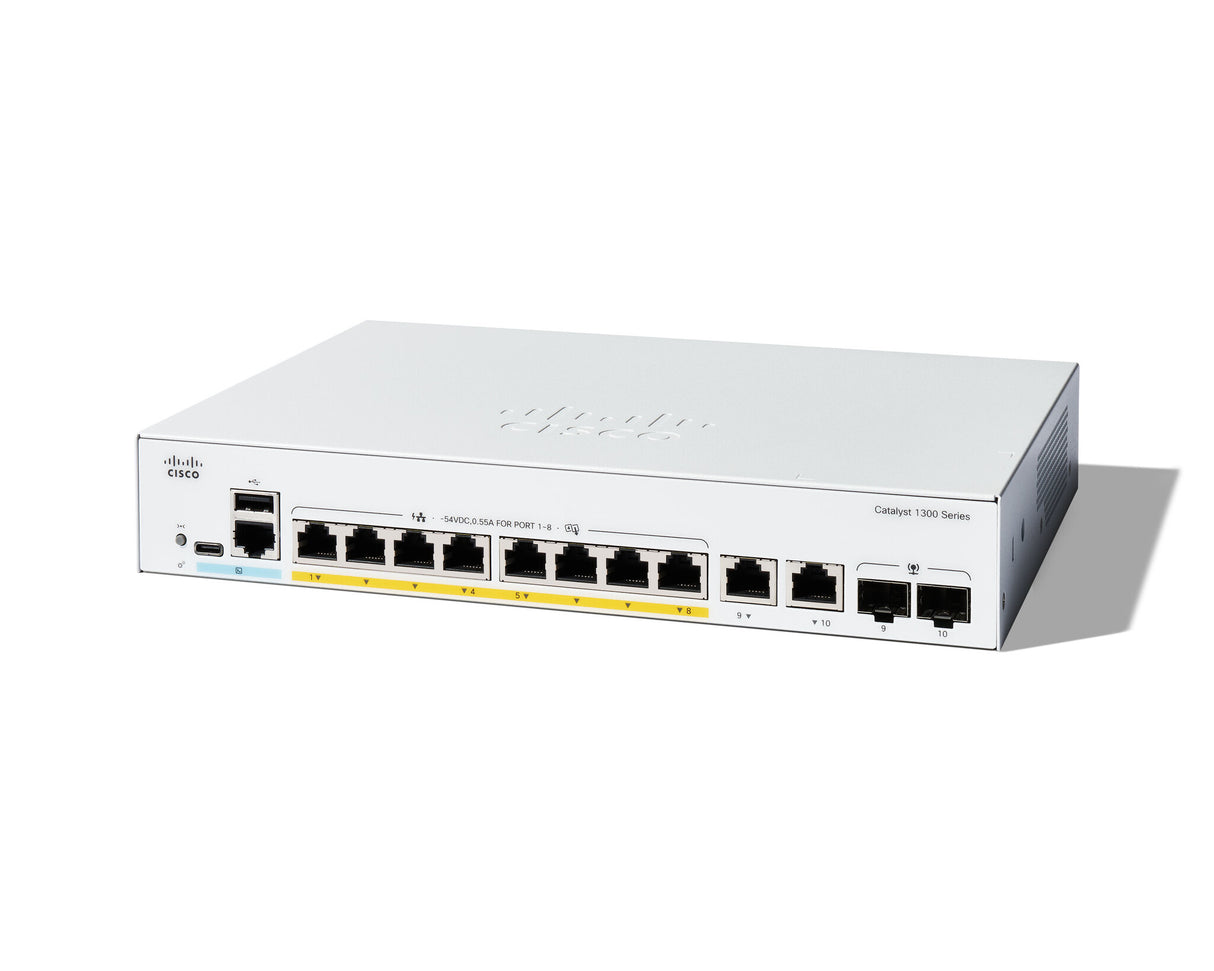

Cisco Catalyst 1300-8FP-2G Managed Switch, 8 Port GE, Full PoE, 2x1GE Combo, Limited Lifetime Protection (C1300-8FP-2G)

CISCO  |  SKU: C1300-8FP-2G  |  Condition: Brand New  |  Barcode: 889728522021

MORE INFO

£475.99
£396.66 excluding VAT @20%
iFrame
Catalyst 1300-8FP-2G Managed Switch, 8 Port GE, Full PoE, 2x1GE Combo, Limited Lifetime Protection (C1300-8FP-2G)

The Cisco Catalyst 1300-8FP-2G switch is part of the fully managed switch line that delivers reliable and secure connectivity for small business networks. These switches accelerate your digital transformation by delivering full Layer 2/3 capabilities, an intuitive web dashboard, advanced networking features and PoE+ support.

Management features
Switch type Managed
Switch layer L2
Quality of Service (QoS) support Yes
Web-based management Yes
Configuring Location Settings (CLI) Yes
MIB support Y
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 8
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity 2
Console port RJ-45/USB Type-C
Network
Networking standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Port mirroring Yes
Spanning tree protocol Yes
Broadcast storm control Yes
Link aggregation Yes
VLAN support Yes
Number of VLANs 4093
Data transmission
MAC address table 16000 entries
Switching capacity 20 Gbit/s
Forwarding rate 14.88 Mpps
Static route Yes
Number of static routes 990
Jumbo frames support Yes
Jumbo frames 9000
Packet buffer memory 1.5 MB
Security
DHCP features DHCP Option 82, DHCP client, DHCP server
Access Control List (ACL) Yes
IGMP entries 2000
IGMP snooping Yes
Authentication type RADIUS
Loop protection Yes
Authentication MAC-based authentication, Web-based authentication
SSH/SSL support Yes
Multicast features
Multicast support Yes
Design
Rack mounting Yes
Product colour Grey
LED indicators Yes
Performance
Mean time between failures (MTBF) 1786412 h
General
Product family Catalyst
Power
Power source AC
AC input voltage 110 - 220 V
AC input frequency 50/60 Hz
Power consumption (max) 148.12 W
Power plug type Type C
Power over Ethernet (PoE)
Power over Ethernet (PoE) Yes
Power over Ethernet plus (PoE+) ports quantity 8
Total Power over Ethernet (PoE) budget 120 W
Operational conditions
Operating temperature (T-T) -5 - 50 °C
Storage temperature (T-T) -25 - 70 °C
Operating relative humidity (H-H) 10 - 90%
Storage relative humidity (H-H) 10 - 90%
Heat dissipation 505.41 BTU/h
Weight & dimensions
Width 297.4 mm
Depth 268.2 mm
Height 43.9 mm
Weight 2.59 kg
Packaging data
Package width 384.8 mm
Package depth 446.8 mm
Package height 95 mm
Package weight 3.42 kg
Logistics data
Country of origin China
Other features
Packaging content Switch, power cable, USB Type C cable and mounting hardware
