Asus PRIME Z790M-PLUS, Intel Z790, 1700, Micro ATX, 4 DDR5, HDMI, DP, GB LAN, PCIe5, 3x M.2
Found a cheaper price online? Contact us so we can try to price match/beat.

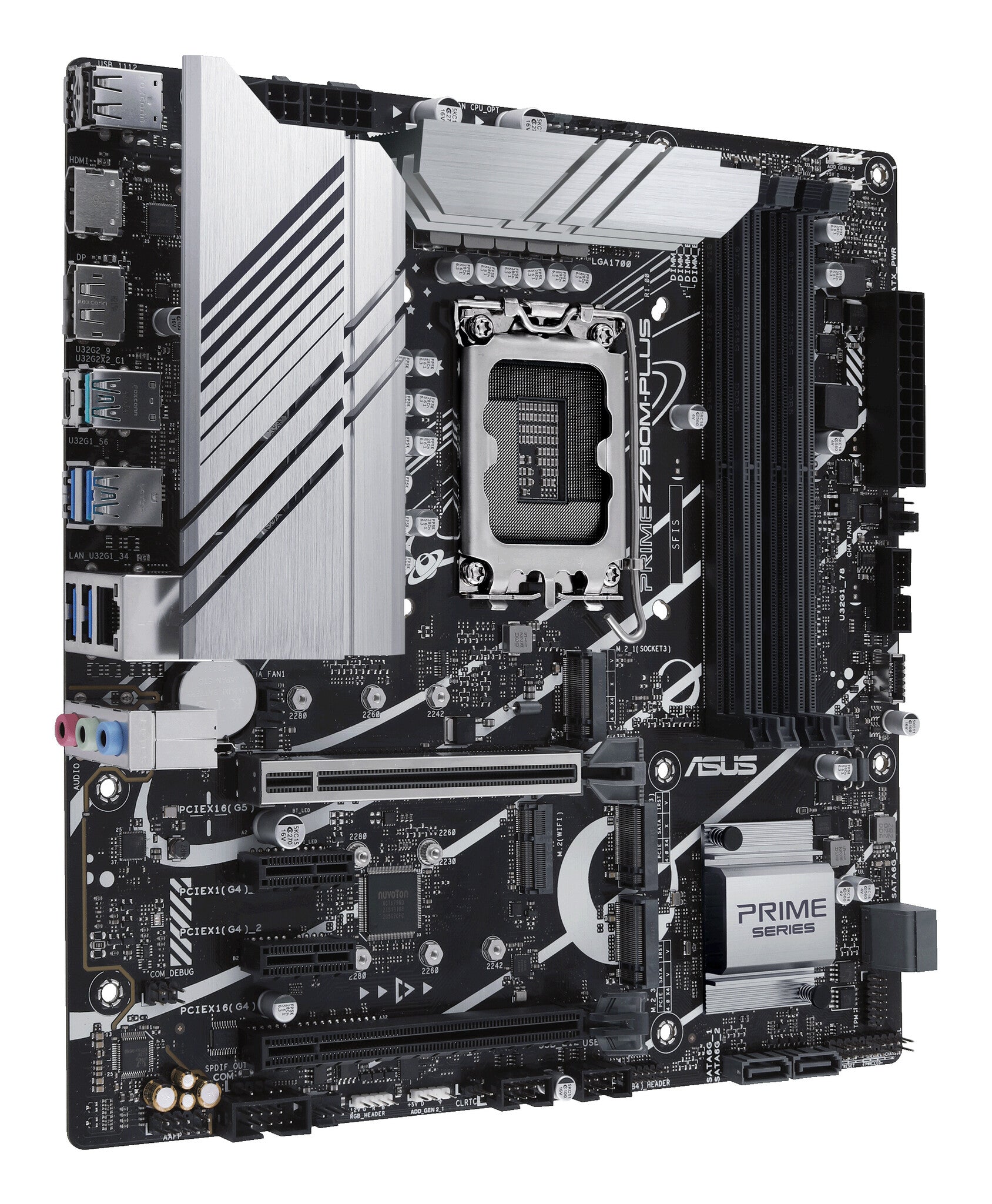

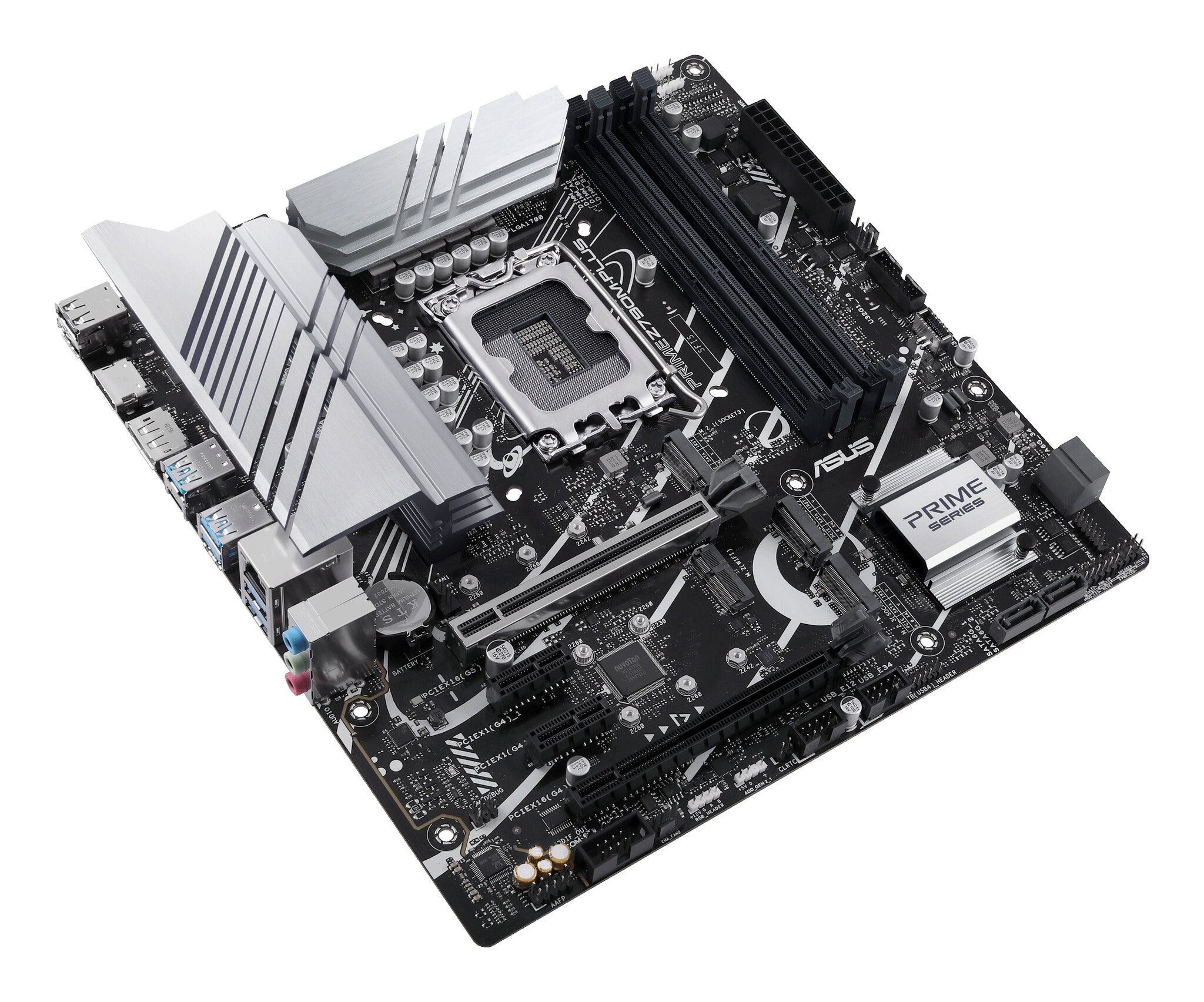

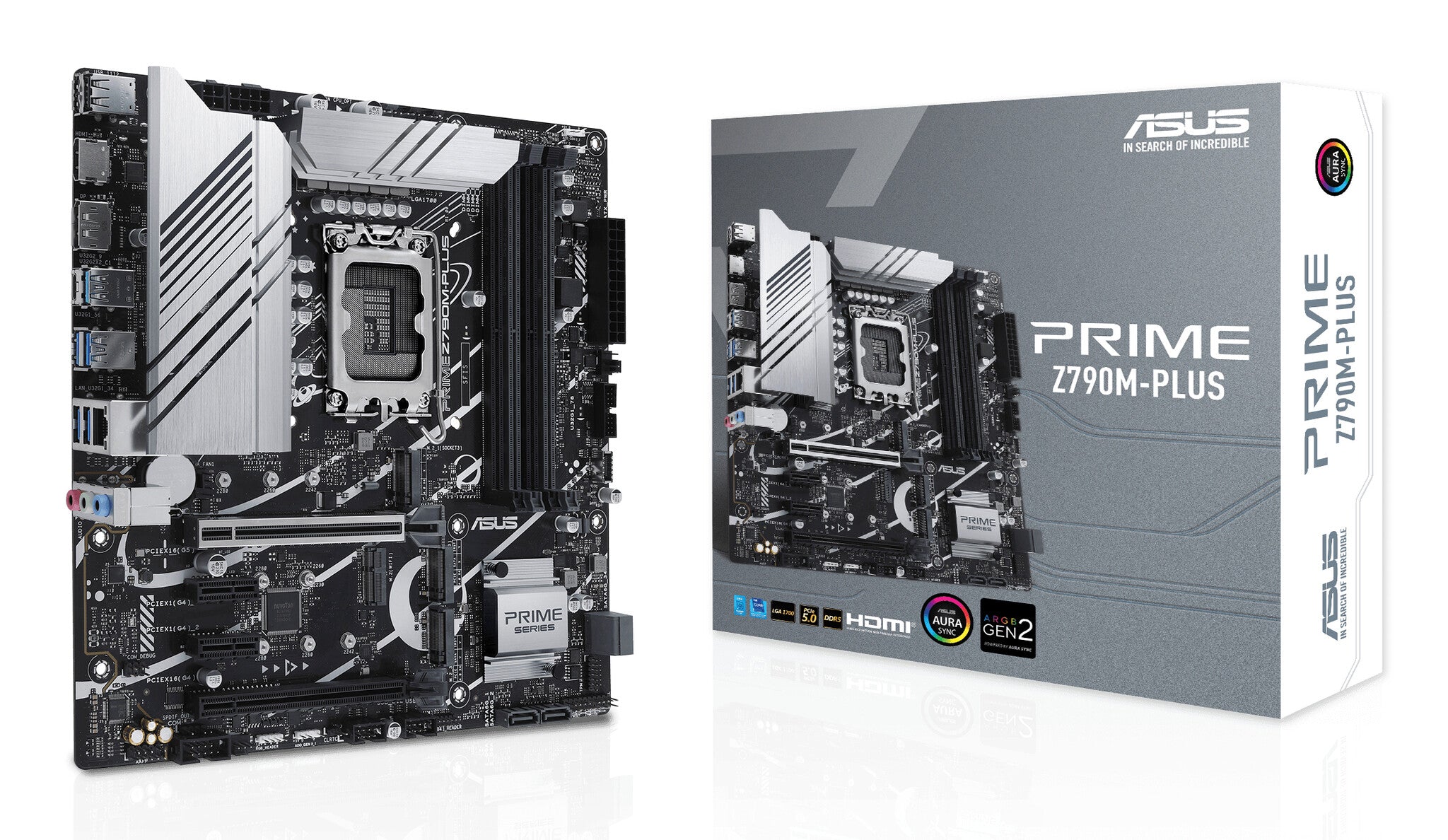

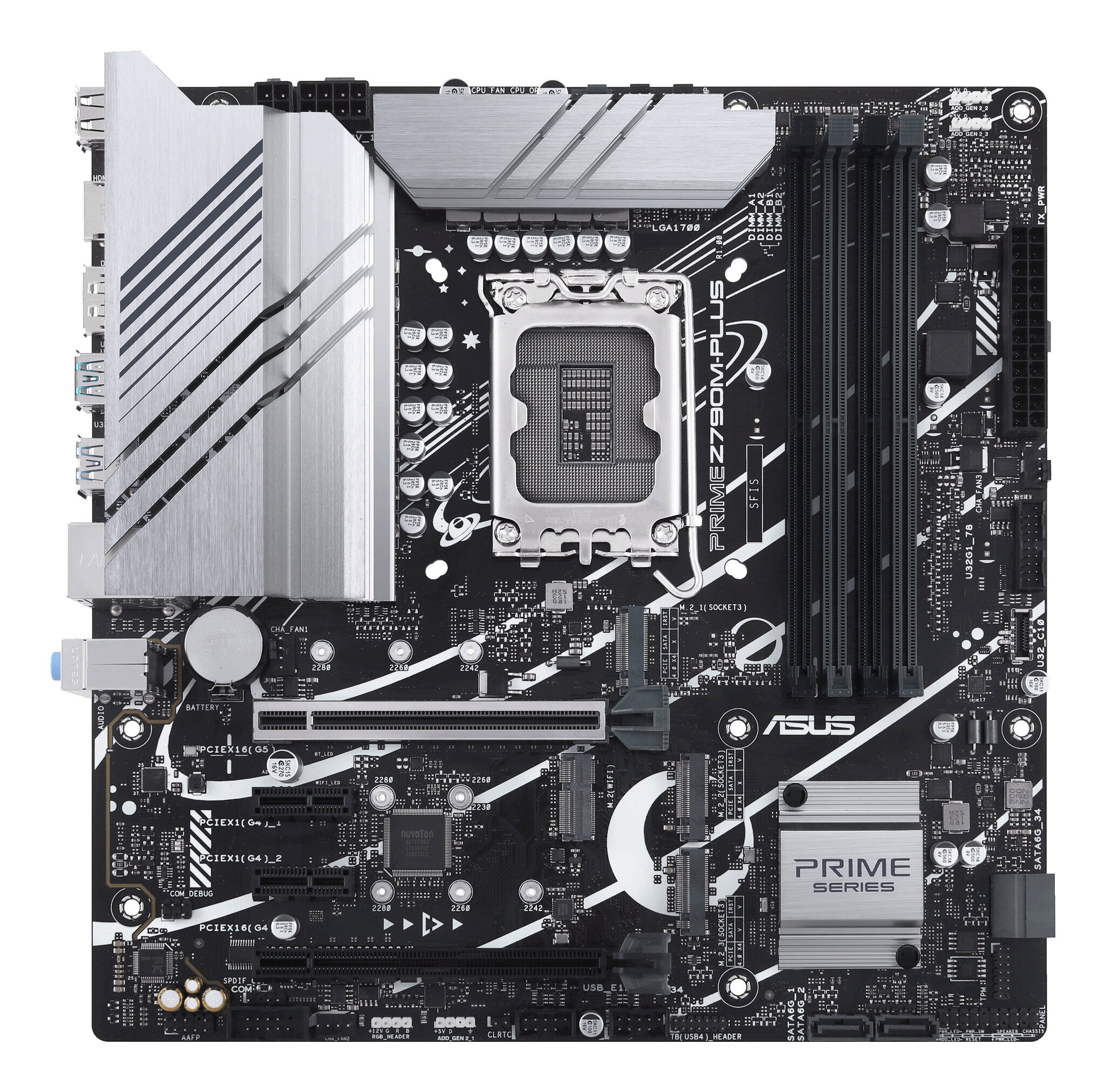

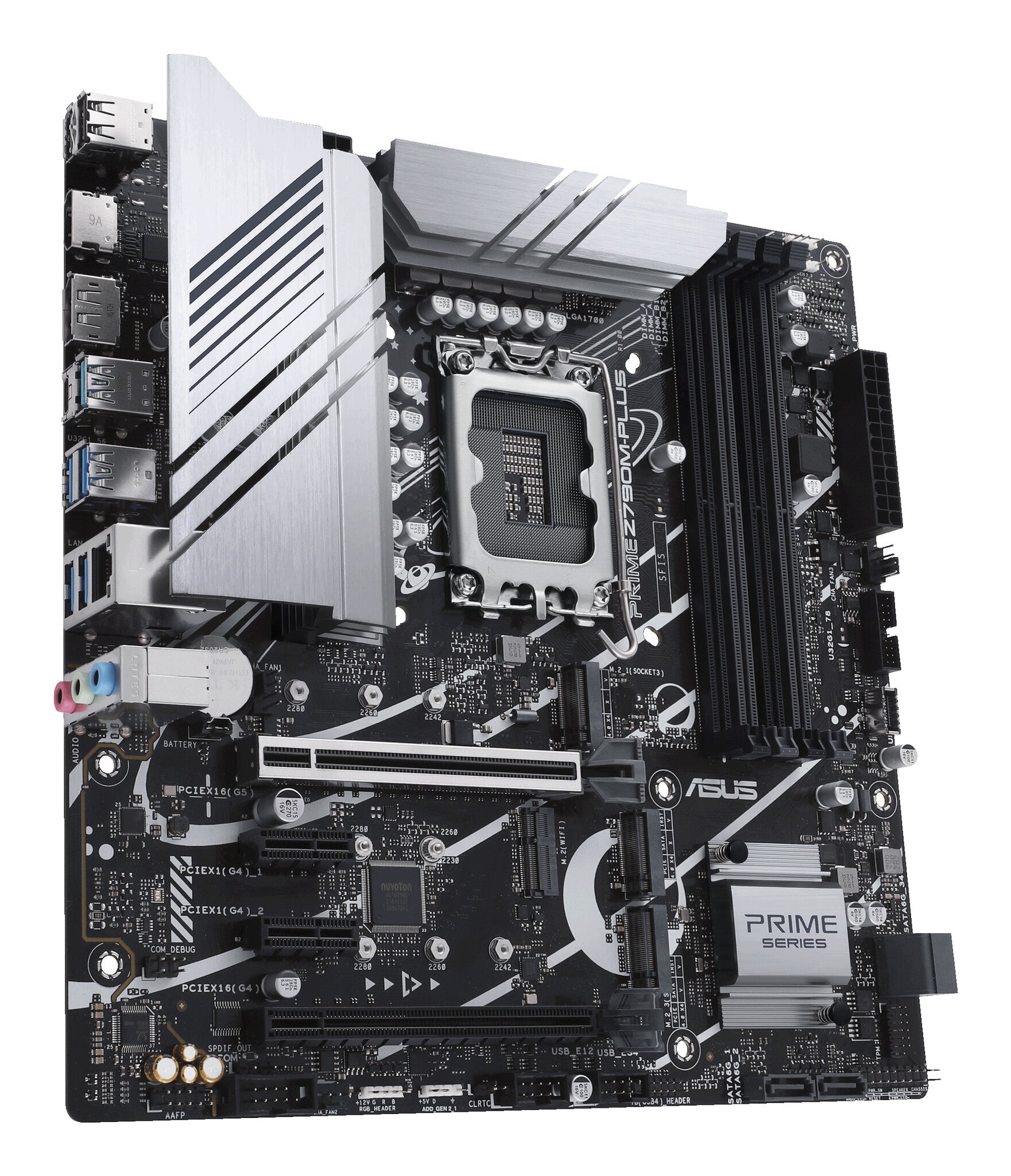

ASUS Prime Z790M-PLUS, an Intel Z790 LGA 1700 mATX motherboard with PCIe® 5.0, three M.2 slots, 10+1 DrMOS, DDR5, Intel® 1 Gb LAN, HDMI®, DP, USB 3.2 Gen 2x2 Type-C®, front USB 3.2 Gen 1 Type-C®, Thunderbolt™ (USB4®) support, Arua Sync
- Intel® LGA 1700 socket: Ready for 12th and 13th Gen Intel® processors
- Enhanced power solution: 10+1 DrMOS, 6-layer PCB, ProCool connectors, alloy chokes and durable capacitors for stable power delivery
- Next-gen connectivity:DDR5 memory, PCIe® 5.0, Intel® 1 Gb Ethernet, USB 3.2 Gen2x2 Type-C®, front panel USB 3.2 Gen 1 Type-C®, Thunderbolt™ (USB4®) header support
- Exclusive Memory Technology:ASUS Enhanced Memory Profile II and ASUS OptiMem II
- Comprehensive cooling:Large VRM heatsinks, PCH heatsink, hybrid fan headers and Fan Xpert 4 with AI Cooling II
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME Z790M-PLUS provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.
** Click here for full product details **
Description
Specification
- Motherboard Type: Desktop
- Form Factor: Micro ATX
- Socket: Intel 1700
- Chipset: Intel Z790
- #Hide#DDR Type: DDR5
- CPU Support: Click here for CPU support
-
RAM Technology: "DDR5 (Dual Channel)
Non-ECC, Un-buffered Memory
Supports Intel Extreme Memory Profile (XMP)
OptiMem II" - RAM Slots: 4 x DIMM
- RAM Speeds: Up to 7200+(OC)
- Maximum Memory: 128GB
-
Graphics: Integrated Graphics*
*Graphics specifications may vary between CPU types -
Graphics Ports: 1 x HDMI
1 x DisplayPort -
PCI/PCI Express: 1 x PCIe 5.0 x16
1 x PCIe 4.0 x16 (supports x4 mode)
2 x PCIe 4.0 x1 -
Storage: 4 x SATA III
1 x M.2 (2242/2260/2280) - PCIe 4.0 x4
1 x M.2 (2260/2280) - PCIe 4.0 x4
1 x M.2 (2242/2260/2280) - SATA & PCIe 4.0 x4 - RAID: "Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10"
- Wireless: -
- LAN: GB LAN
- Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
-
USB Ports Supported: Rear:
1 x USB 3.2 Gen2x2 Type-C
1 x USB 3.2 Gen2 Type-A
4 x USB 3.2 Gen1 Type-A
2 x USB 2.0
Front:
1 x USB 3.2 Gen1 Type-C
2 x USB 3.2 Gen1
4 x USB 2.0 -
Back Panel I/O Ports: 1 x USB 3.2 Gen2x2 Type-C
1 x USB 3.2 Gen2 Type-A
4 x USB 3.2 Gen1 Type-A
2 x USB 2.0
1 x DisplayPort
1 x HDMI
1 x Intel 1Gb Ethernet
3 x Audio jacks -
Internal I/O Connectors: 1 x 4-pin CPU Fan
1 x 4-pin CPU OPT Fan
1 x 4-pin AIO Pump
3 x 4-pin Chassis Fan
1 x 24-pin Main
1 x 8-pin + 12V
1 x 4-pin + 12V
3 x M.2 (Key M)
4 x SATA 6Gb/s
1 x USB 3.2 Gen1 Type-C
1 x USB 3.2 Gen1
2 x USB 2.0 -
.: 3 x Addressable Gen2
1 x Aura RGB
1 x Clear CMOS
1 x COM Port
1 x Front Panel Audio
1 x M.2 (Key E)
1 x S/PDIF Out
1 x SPI TPM (14-1pin)
1 x 20-3 pin System Panel
1 x Thunderbolt (USB4) -
Accessories: 2 x SATA 6Gb/s cables
1 x I/O Shield
2 x Screw packages for M.2 SSD
1 x User guide - Additional Features: See Overview
- Package Type: Retail
- Package Weight: 1.5000 kg
- Warranty: 3 Years
- #Hide#M.2 Slot(s): Yes (M.2)
- #Hide#No. LAN Ports: 1 x LAN
- #Hide#Max LAN Speed: GB LAN
