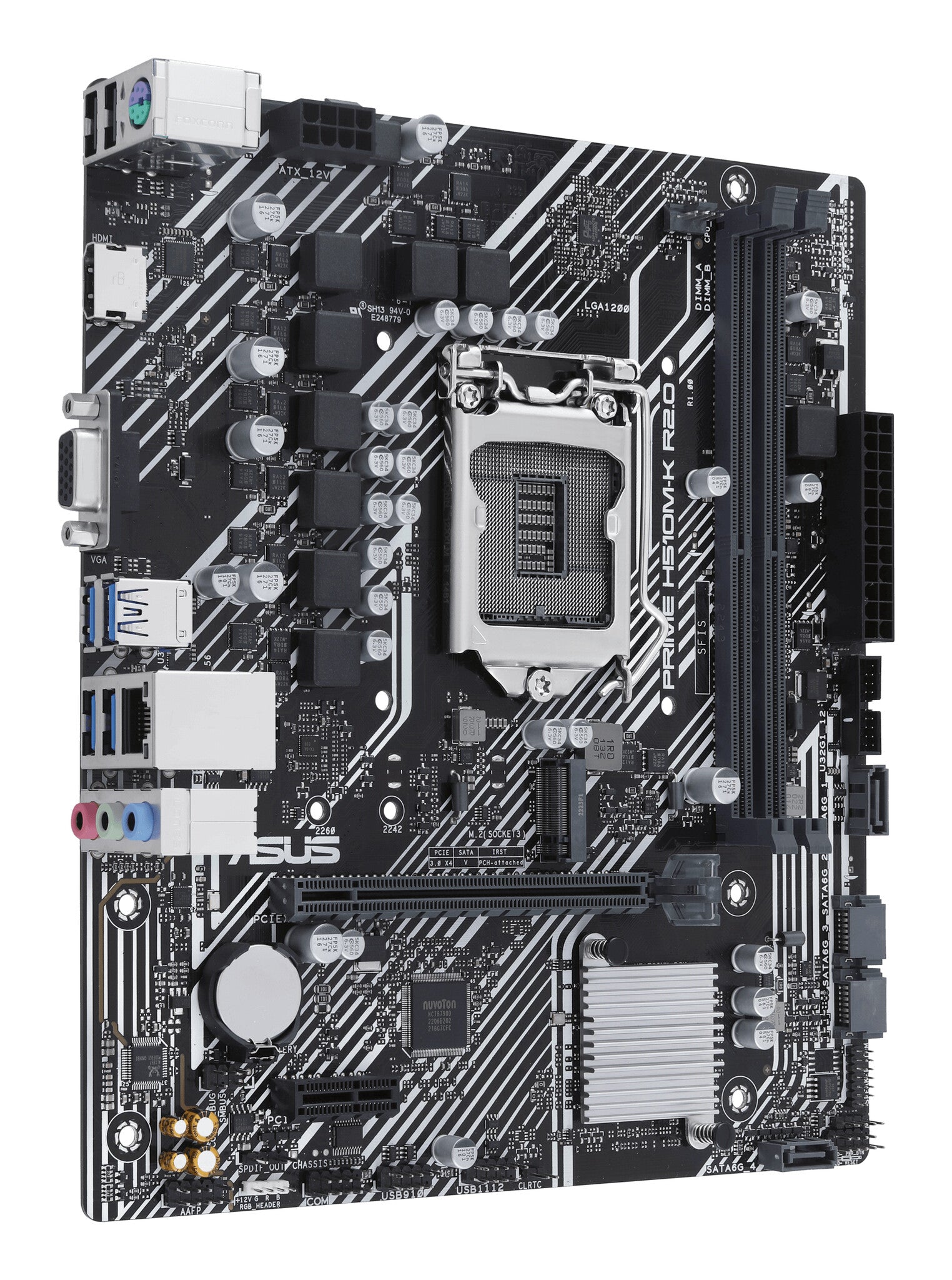

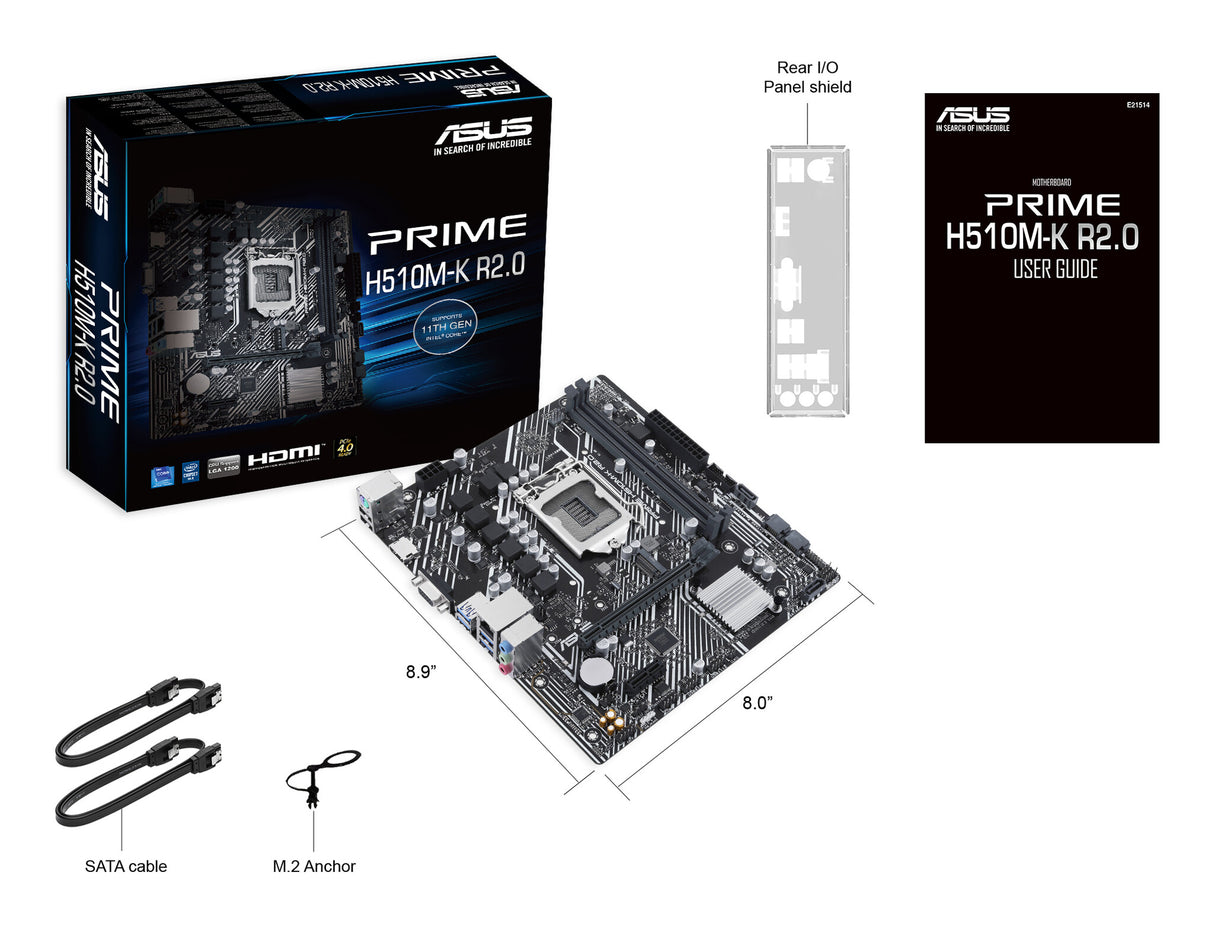

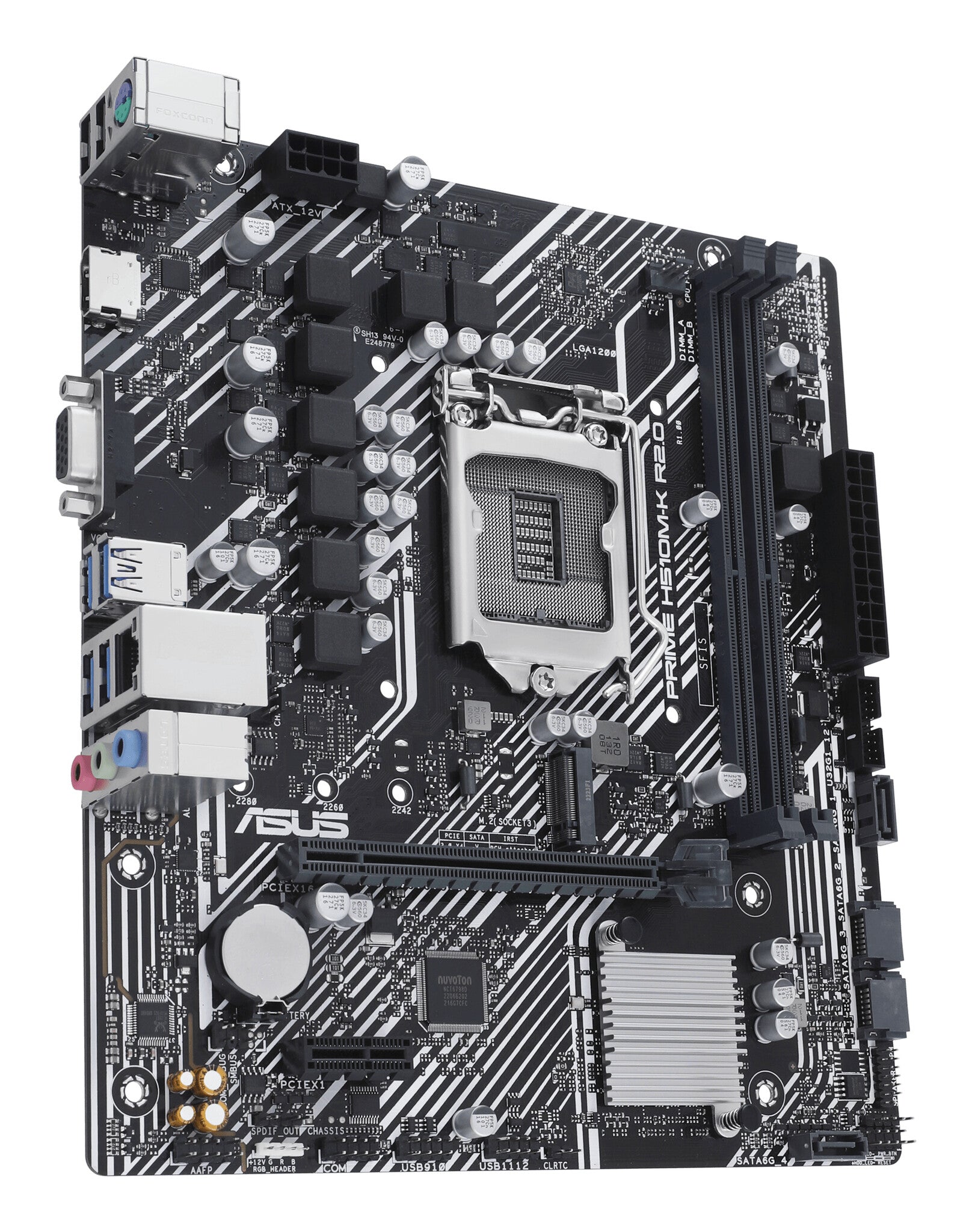

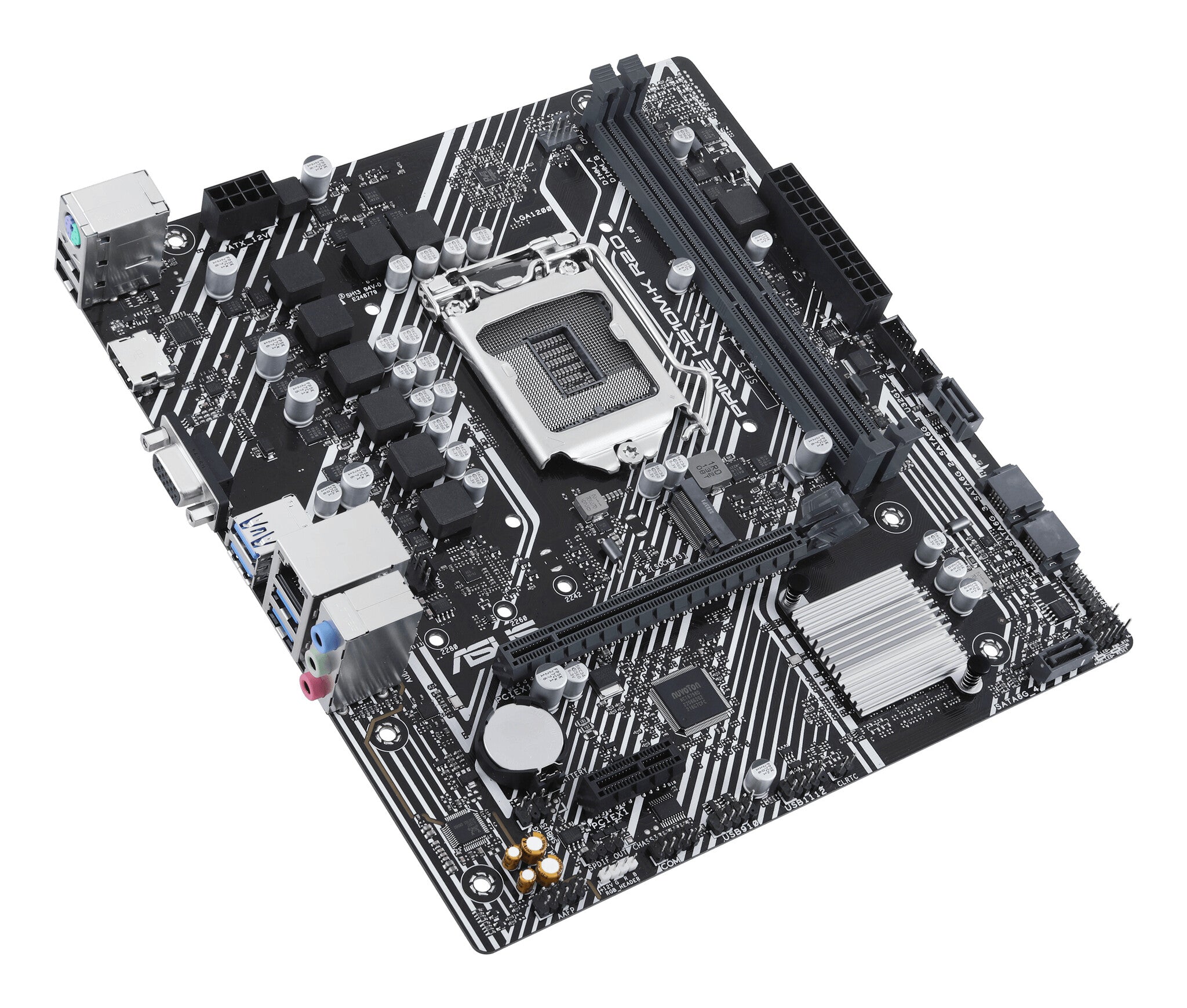

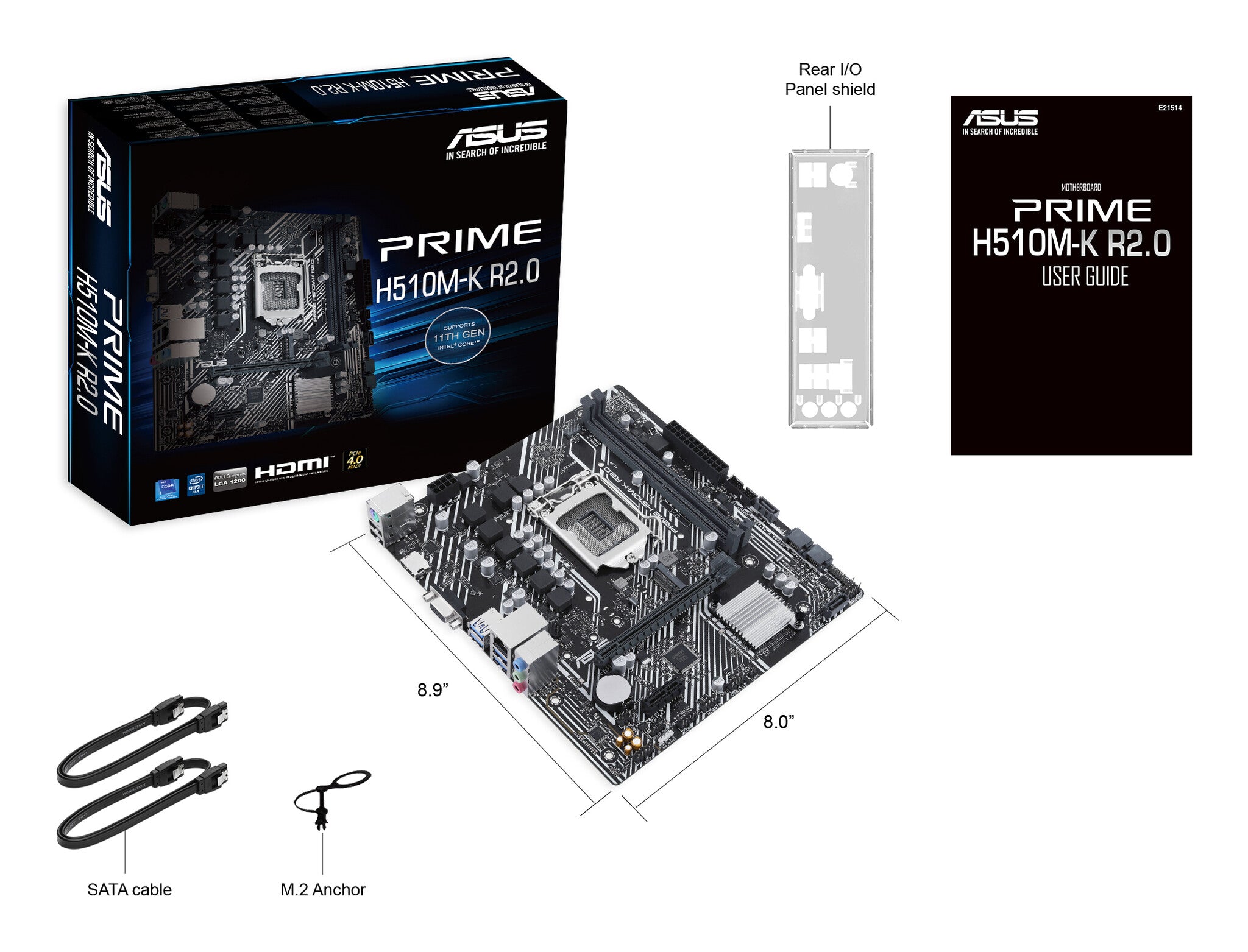

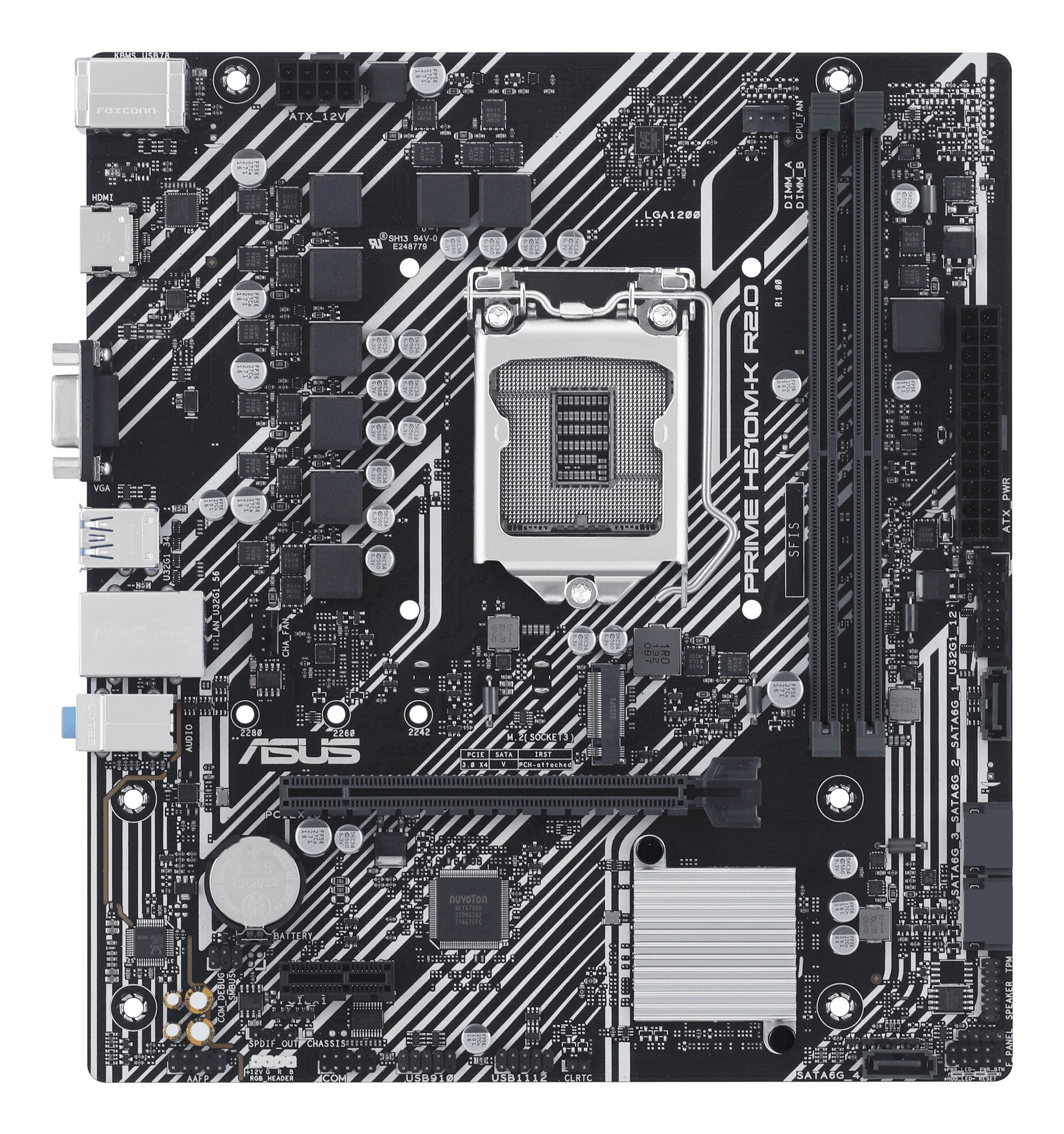

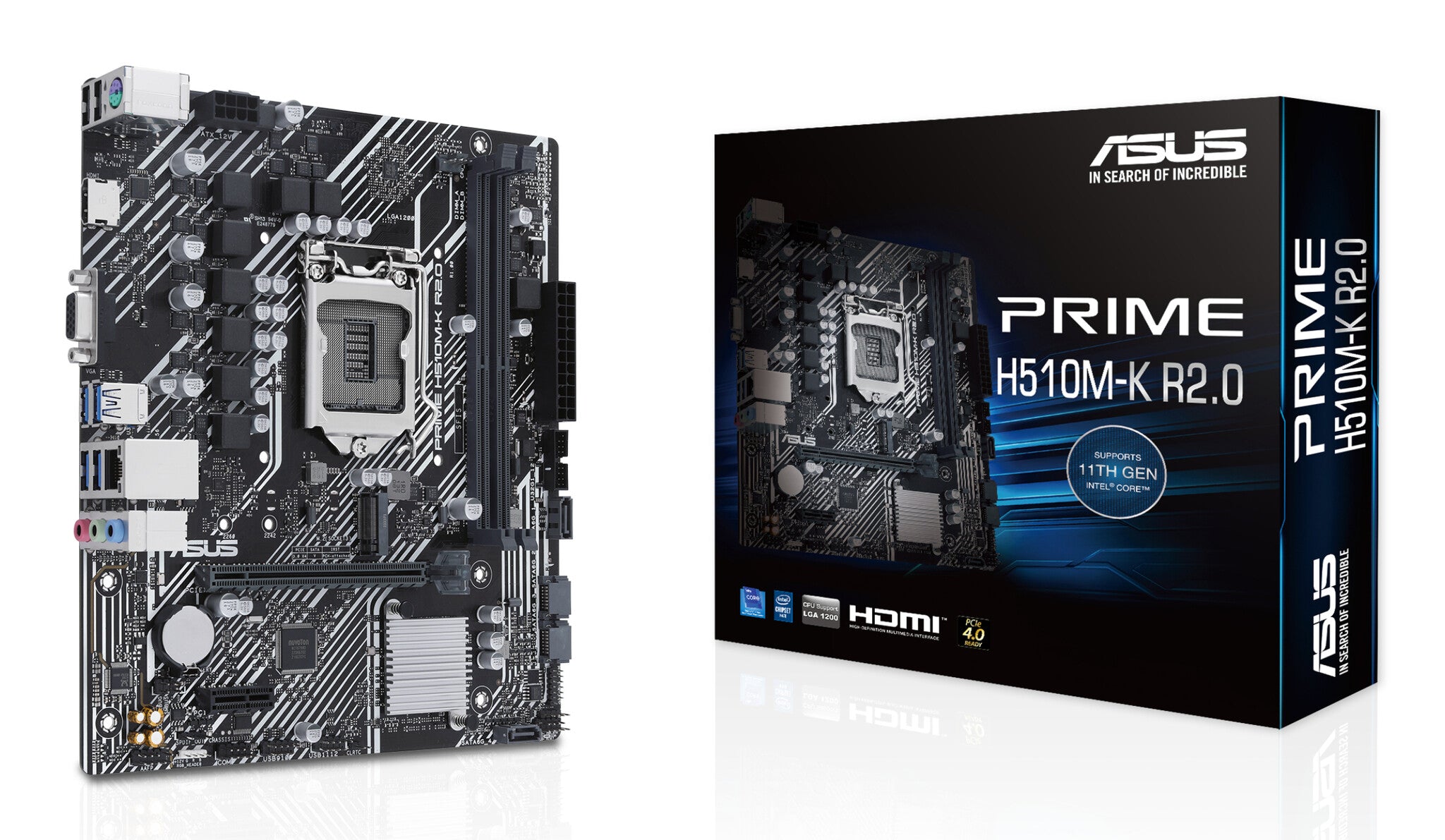

ASUS PRIME H510M-K R2.0 Intel H510 LGA 1200 (Socket H5) micro ATX
Key Details:
- Intel LGA 1200 (Socket H5) Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
- PC micro ATX Intel H510 7.1 channels
- DDR4-SDRAM 2 DIMM Maximum internal memory: 64 GB
- HDD & SSD M.2, SATA III Number of storage drives supported: 5
- BIOS type: EFI AMI 128 Mbit
- Fast Ethernet, Gigabit Ethernet
ASUS PRIME H510M-K R2.0 Intel H510 LGA 1200 (Socket H5) micro ATX
Description
Description
| Processor | |
|---|---|
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Processor socket | LGA 1200 (Socket H5) |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Unbuffered memory | Yes |
| Maximum internal memory | 64 GB |
| Supported memory clock speeds | 2133,2400,2666,2800,2933,3000,3200 MHz |
| ECC сompatibility | Non-ECC |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 2 |
| Supported memory types | DDR4-SDRAM |
| Storage controllers | |
|---|---|
| Number of HDDs supported | 4 |
| Number of storage drives supported | 5 |
| Supported storage drive interfaces | M.2, SATA III |
| Supported storage drive types | HDD & SSD |
| Internal I/O | |
|---|---|
| TPM connector | Yes |
| 12V power connector | Yes |
| EPS power connector (8-pin) | Yes |
| Number of chassis fan connectors | 1 |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Front panel audio connector | Yes |
| S/PDIF out connector | Yes |
| Number of SATA III connectors | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 2.0 connectors | 2 |

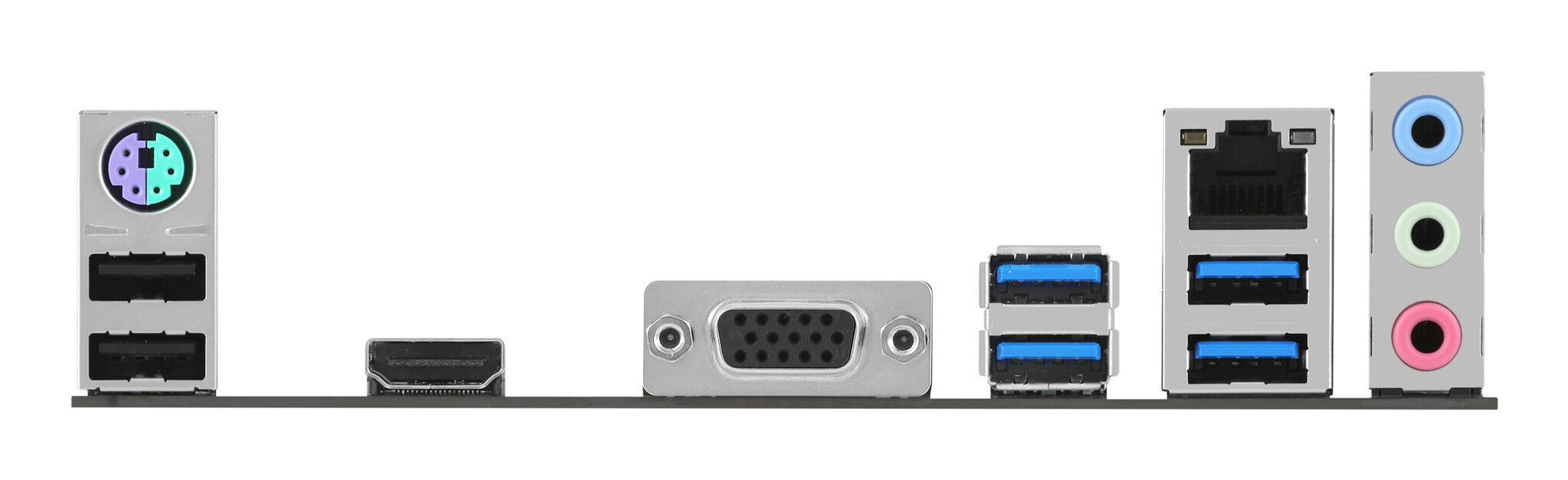

| Rear panel I/O ports | |
|---|---|
| COM ports quantity | 1 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| PS/2 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 2.0 ports quantity | 2 |
| Network | |
|---|---|
| Wi-Fi | No |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN | Yes |
| Features | |
|---|---|
| Windows operating systems supported | Windows 10 x64 |
| Audio output channels | 7.1 channels |
| Motherboard chipset | Intel H510 |
| Motherboard chipset family | Intel |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Expansion slots | |
|---|---|
| Number of M.2 (M) slots | 1 |
| PCI Express x1 (Gen 3.x) slots | 1 |
| BIOS | |
|---|---|
| BIOS memory size | 128 Mbit |
| BIOS type | EFI AMI |
| Weight & dimensions | |
|---|---|
| Depth | 203 mm |
| Width | 226 mm |
